Part Number

Search

54S280FM

Description
Parity Generator/Checker, TTL, CDFP14,
Categorylogic    logic
File Size51KB,2 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

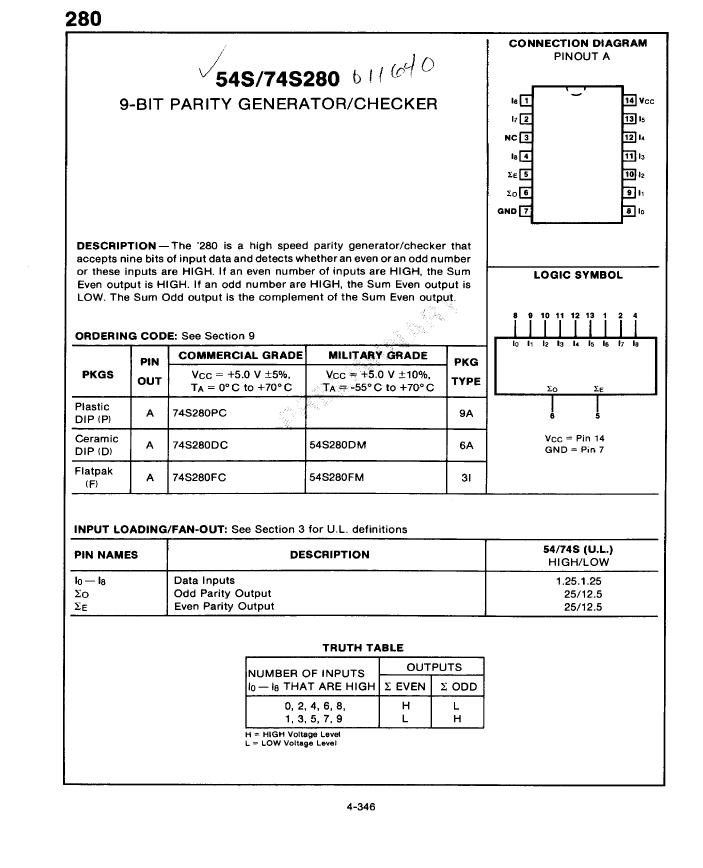

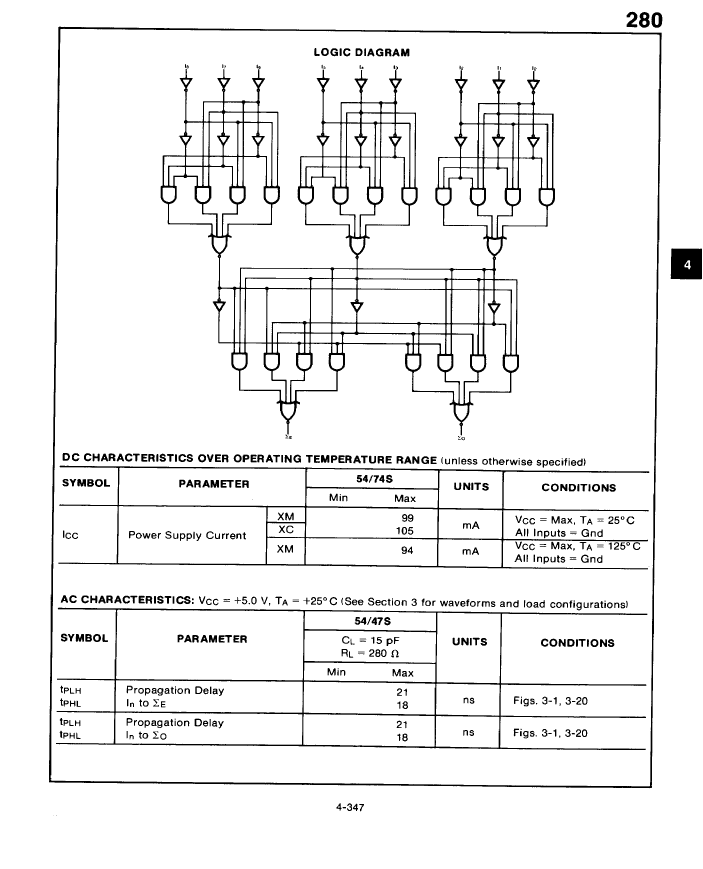

54S280FM Overview

Parity Generator/Checker, TTL, CDFP14,

54S280FM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
package instructionDFP, FL14,.3
Reach Compliance Codecompli
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Logic integrated circuit typePARITY GENERATOR/CHECKER
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
This Material Copyrighted By Its Respective Manufacturer

54S280FM Related Products

54S280FM 74S280DC 74S280FC 74S280PC 54S280DMQB
Description Parity Generator/Checker, TTL, CDFP14, Parity Generator/Checker, TTL, CDIP14, Parity Generator/Checker, TTL, CDFP14, Parity Generator/Checker, TTL, PDIP14, Parity Generator/Checker, S Series, 9-Bit, True Output, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Maker Fairchild Fairchild Fairchild Fairchild Fairchild
package instruction DFP, FL14,.3 DIP, DIP14,.3 DFP, FL14,.3 DIP, DIP14,.3 CERAMIC, DIP-14
Reach Compliance Code compli compliant compliant compliant unknown
JESD-30 code R-XDFP-F14 R-XDIP-T14 R-XDFP-F14 R-PDIP-T14 R-CDIP-T14
JESD-609 code e0 e0 e0 e0 e0
Logic integrated circuit type PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER
Number of terminals 14 14 14 14 14
Maximum operating temperature 125 °C 70 °C 70 °C 70 °C 125 °C
Package body material CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED
encapsulated code DFP DIP DFP DIP DIP
Encapsulate equivalent code FL14,.3 DIP14,.3 FL14,.3 DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK IN-LINE FLATPACK IN-LINE IN-LINE
power supply 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V
surface mount YES NO YES NO NO
technology TTL TTL TTL TTL TTL
Temperature level MILITARY COMMERCIAL COMMERCIAL COMMERCIAL MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT THROUGH-HOLE FLAT THROUGH-HOLE THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm 1.27 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Base Number Matches - 1 1 1 1
