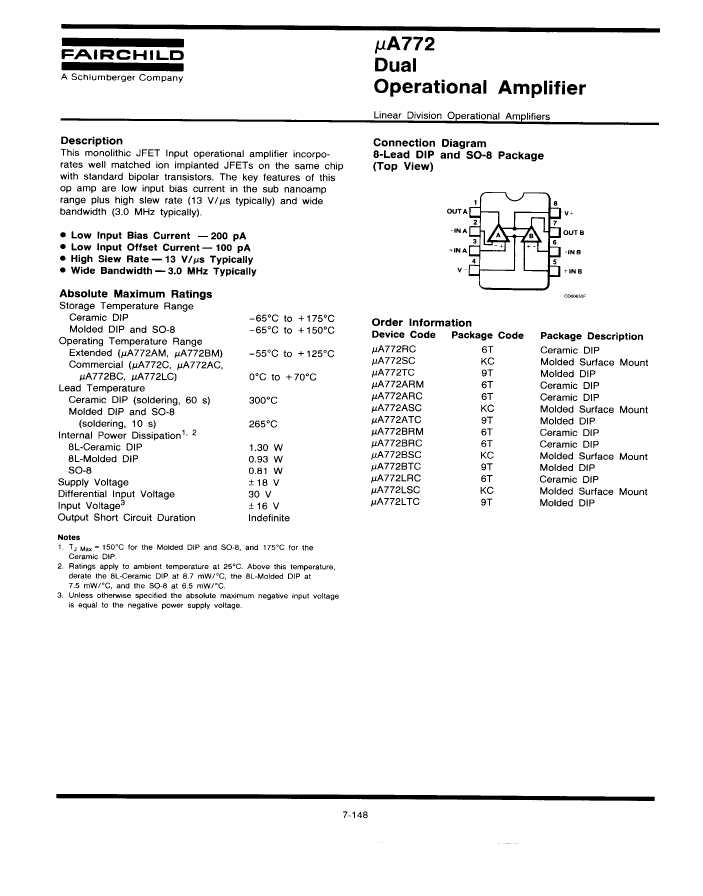

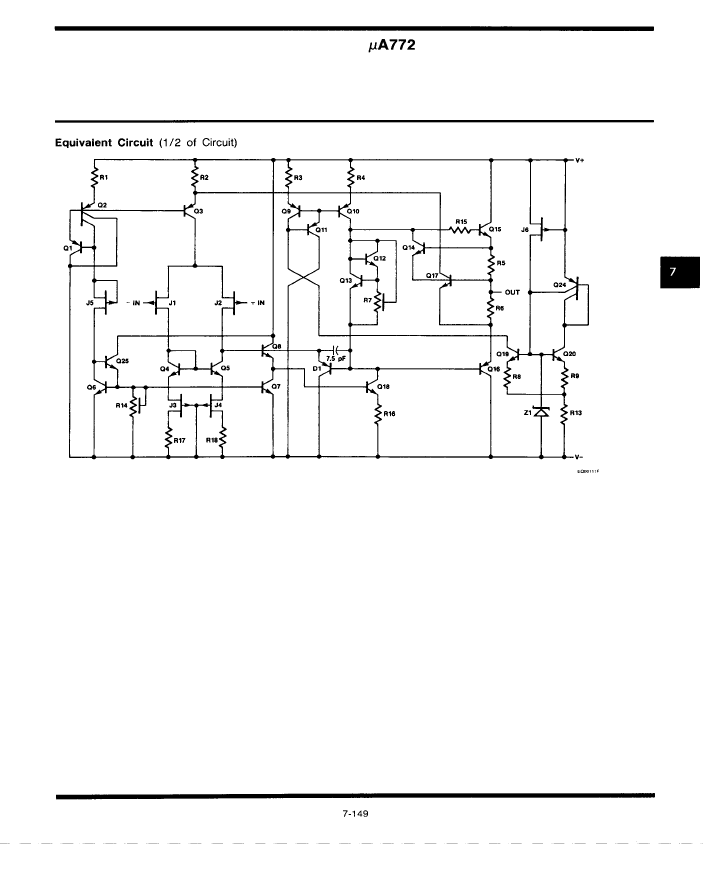

Operational Amplifier, 2 Func, 13000uV Offset-Max, CDIP8,

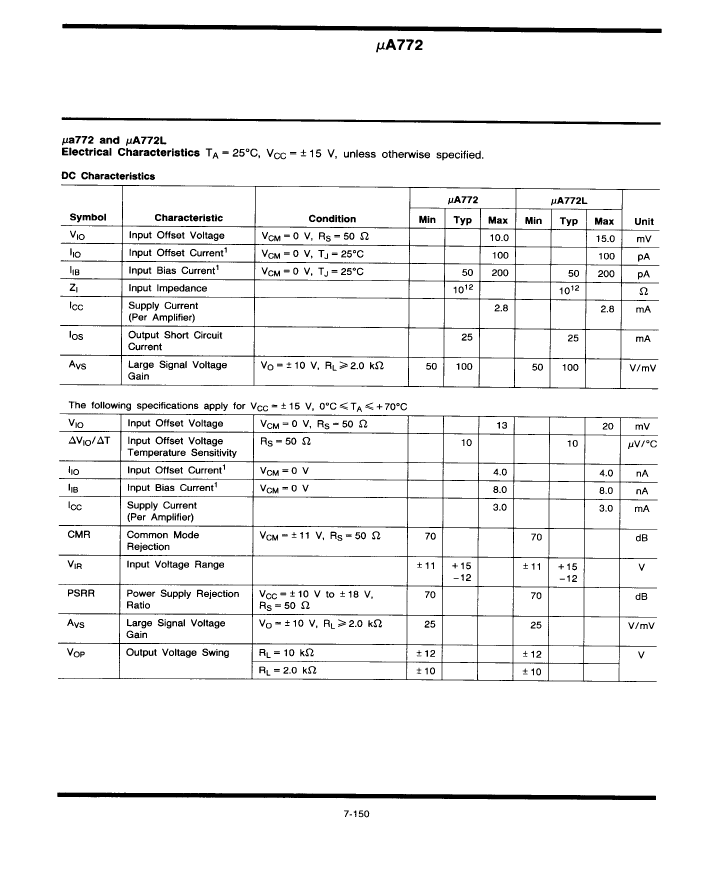

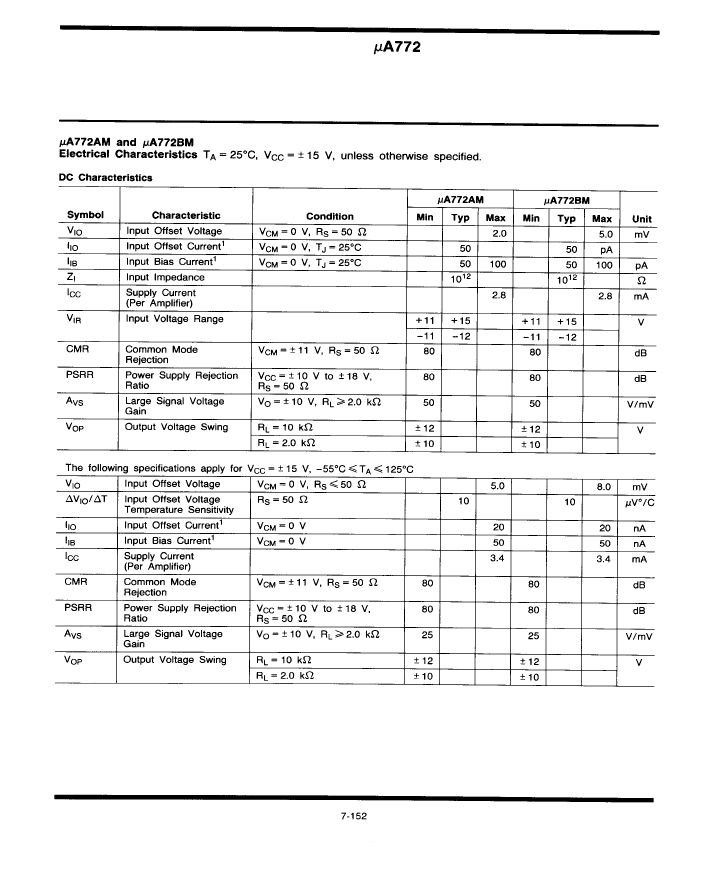

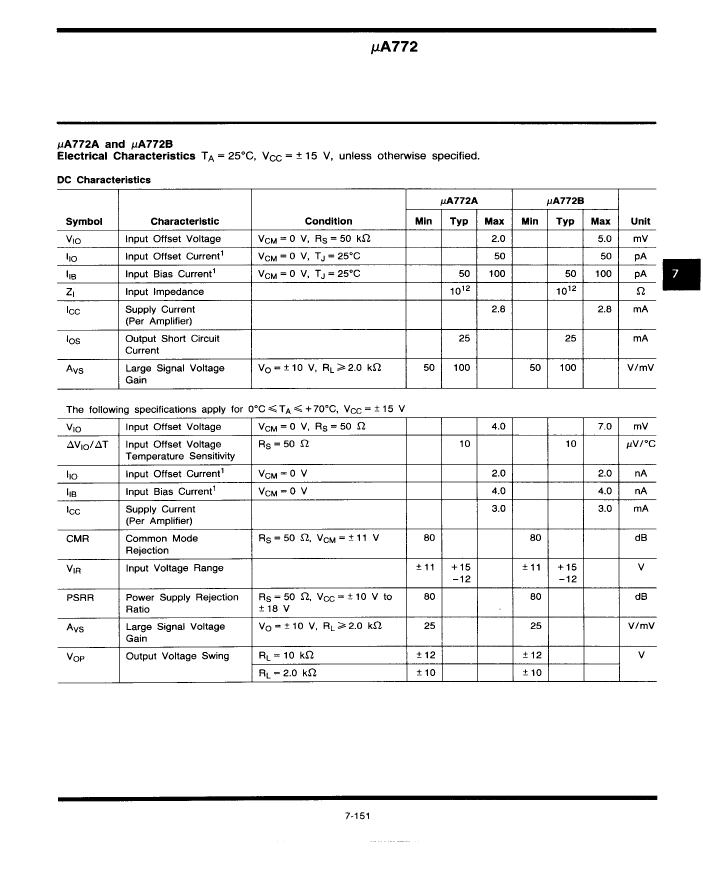

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DIP |
| package instruction | DIP, DIP8,.3 |
| Contacts | 8 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.0002 µA |
| frequency compensation | YES |
| Maximum input offset current (IIO) | 0.004 µA |
| Maximum input offset voltage | 13000 µV |
| JESD-30 code | R-XDIP-T8 |
| JESD-609 code | e0 |
| low-bias | YES |
| low-dissonance | NO |
| Humidity sensitivity level | 2A |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| UA772RC | UA772ATC | UA772TC | UA772ARM | UA772BRM | UA772BRC | UA772BTC | UA772ARC | |
|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 2 Func, 13000uV Offset-Max, CDIP8, | Operational Amplifier, 2 Func, 4000uV Offset-Max, PDIP8, | Operational Amplifier, 2 Func, 13000uV Offset-Max, PDIP8, | Operational Amplifier, 2 Func, 5000uV Offset-Max, CDIP8, | Operational Amplifier, 2 Func, 8000uV Offset-Max, CDIP8, | Operational Amplifier, 2 Func, 7000uV Offset-Max, CDIP8, | Operational Amplifier, 2 Func, 7000uV Offset-Max, PDIP8, | Operational Amplifier, 2 Func, 4000uV Offset-Max, CDIP8, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 | DIP, DIP8,.3 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compli | compliant | compliant | unknown | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.0002 µA | 0.0002 µA | 0.0002 µA | 0.0002 µA | 0.0002 µA | 0.0002 µA | 0.0002 µA | 0.0002 µA |
| frequency compensation | YES | YES | YES | YES | YES | YES | YES | YES |
| Maximum input offset current (IIO) | 0.004 µA | 0.002 µA | 0.004 µA | 0.02 µA | 0.02 µA | 0.002 µA | 0.002 µA | 0.002 µA |
| Maximum input offset voltage | 13000 µV | 4000 µV | 13000 µV | 5000 µV | 8000 µV | 7000 µV | 7000 µV | 4000 µV |
| JESD-30 code | R-XDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-XDIP-T8 | R-XDIP-T8 | R-XDIP-T8 | R-PDIP-T8 | R-XDIP-T8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| low-bias | YES | YES | YES | YES | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO | NO | NO | NO | NO |
| Humidity sensitivity level | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP8,.3 | DIP8,.3 | DIP8,.3 | DIP8,.3 | DIP8,.3 | DIP8,.3 | DIP8,.3 | DIP8,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | - |
