Document Number V-70044B
Analog Output
Semiconductor Pressure Sensor
Description
The AG2 pressure sensor series is composed of a
silicon piezoresistive pressure sensing chip and a
signal conditioning integrated circuit. The low-level
signal from the sensing chip is amplified, temperature
compensated, calibrated and finally converted to a
high level analog output voltage that is proportional
with the applied pressure. The AG2 series measures
gauge pressure.
AG2
Series
AG2*3
AG2*6
Features
Amplified and temperature compensated analog
output
High accuracy ±1.5 %FS
Supply voltage 3.0, 3.3 & 5.0 Vdc
Low supply current Max 2 mA at 3.3 Vdc
Miniature 10.3 mm x 7 mm SMT package
3 mm port and 6 mm port available
Operating temperature -40 to 125
℃
Wide compensated temperature 0 to 85
℃
Pins & Package compatible with Fujikura’s XFGM
integrated pressure sensor
Customization available
Applications
Battery-operated Devices
Medical Devices
Industrial Pneumatic Devices
Consumer Devices
RoHS Compliant

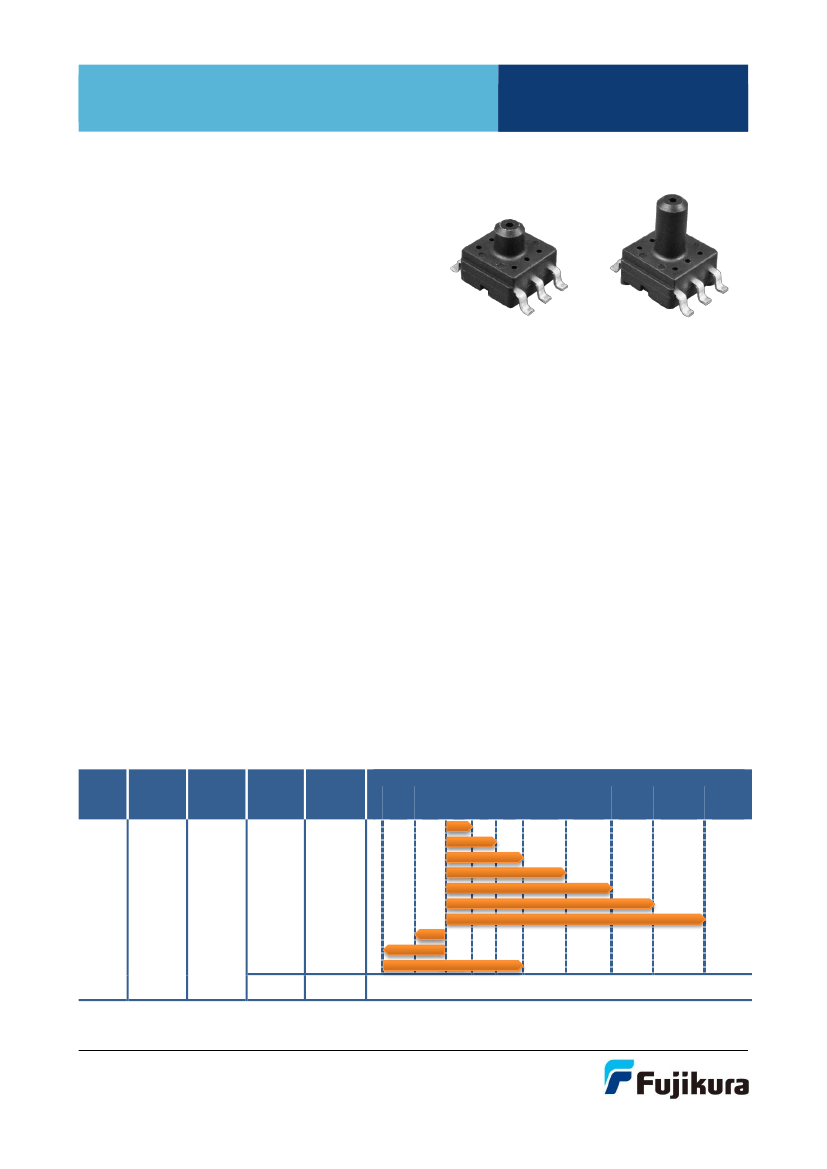

Device Lineup
Model
Port
Length
Pressure
Type
Supply
Voltage
Accuracy
-100 -50
(-15)
(-7)
025KG
0
Pressure Range
25 50 100
200
(3)
(7)
(15)
(30)
500
(70)
700
(100)
1000 kPa
(150) psi
050KG
100KG
5.0 Vdc
6 mm
AG2
or
3 mm
Gauge
or
3.3 Vdc
050KV
100KV
200KG
±1.5 %FS
500KG
700KG
001MG
100KW
3.0 Vdc
±2.0 %FS
Same as the above
© 2013 Fujikura Ltd. All rights reserved.
This data sheet has a possibility to be revised without notice. This data sheet does not contain all
information. Before designing, please ask us the specifications of this product.
1
Document Number V-70044B
Analog Output
Semiconductor Pressure Sensor
Device Name Code
Sensor
Code
Pressure
Code
AG2
Series
AG2 0 3 - 025K G - TP
Model
Supply voltage
0: 5.0 Vdc
1: 3.3 Vdc
2: 3.0 Vdc
Port length
3: 3 mm
6: 6 mm
Pressure type
G: Gauge/Positive
V: Gauge/Negative
W: Gauge/Bi-pressure
Pressure value
025K: 25 kPa
050K: 50 kPa
100K: 100 kPa
200K: 200 kPa
500K: 500 kPa
700K: 700 kPa
001M: 1 MPa
Packing style
Blank: Tray
TP: Tape & Reel

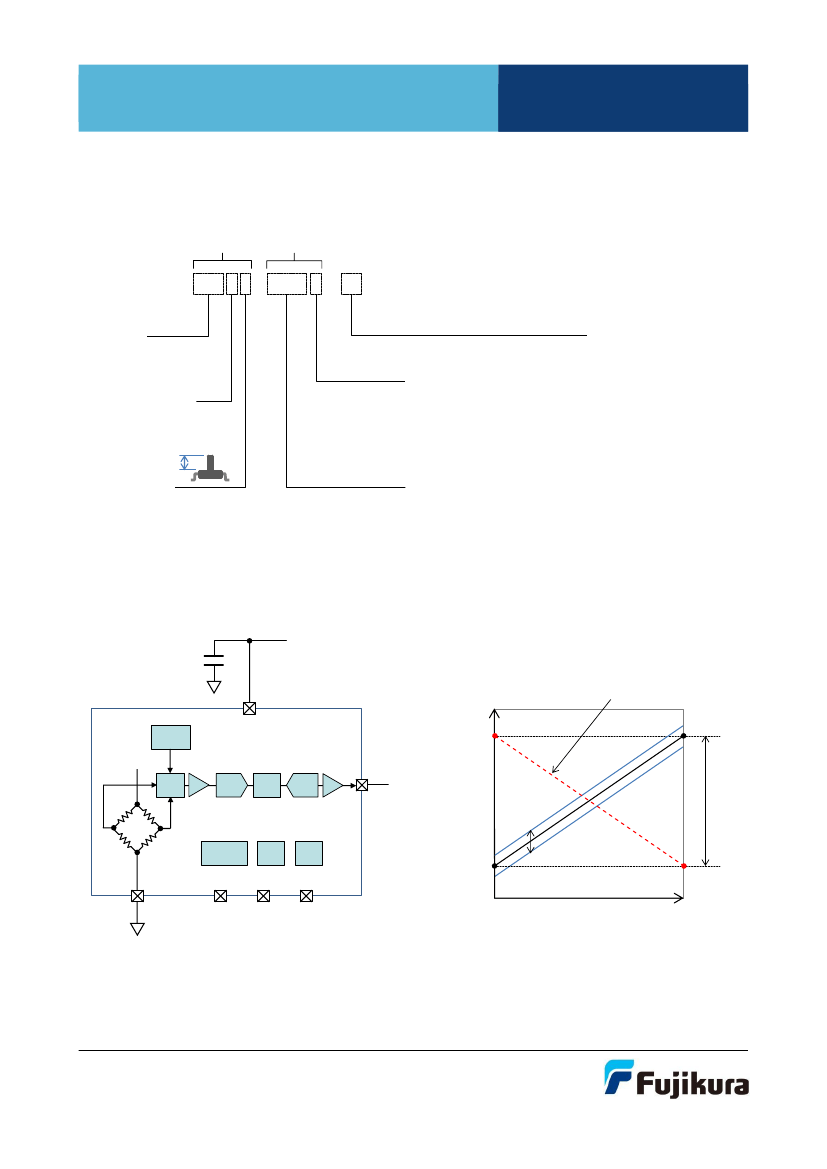

Block Diagram
3.0, 3.3 or 5.0 Vdc
0.1 µF
Pin 3
VDD
Temp
Sensor
VDD
Output Characteristics
Pressure Code: 050KV, 100KV
Vfs
Pre-Amp
Sensor
Bridge
Buffer
Pin 2
VOUT
Output
MUX
ADC
DSP
DAC
SV
Error
EEPROM
OSC
POR
Voff
Pin 4
NC
Pin 5
NC
Pin 6
NC
Pin 1
VSS
Min. Popt
Input Pressure
Max. Popt
© 2013 Fujikura Ltd. All rights reserved.
This data sheet has a possibility to be revised without notice. This data sheet does not contain all
information. Before designing, please ask us the specifications of this product.
2
Document Number V-70044B
Analog Output
Semiconductor Pressure Sensor
Absolute Maximum Ratings
Item
Supply Voltage
Load Pressure
Operating Temperature
Storage Temperature
Symbol
VDDmax
Pmax+
Topt
Tstg
Rating
6
See Pressure Range Table
-40 to +125
-40 to +125
AG2
Series
Unit
Vdc
℃
℃
General Specifications
Item
Supply Voltage
Type of Pressure
Pressure Media
Compensated Temperature
Operating Humidity
Storage Humidity
Symbol
VDD
-
-
-
Hopt
Hstg
AG20*
5.0±0.25
Sensor Code
AG21*
3.3±0.165
Gauge pressure
Non-corrosive gases
0 to +85
30 to 85 (non-condensing)
30 to 85 (non-condensing)
℃
%RH
%RH
AG22*
3.0±0.15
Unit
Vdc
Pressure Range
Item
Absolute Maximum Load Pressure
Measurement Pressure
Symbol
Pmax+
Popt
Min.
Max.
Pressure Code
025KG 050KG 100KG 200KG 500KG 700KG 001MG 050KV 100KV 100KW
+50
+100
+200
+400 +1000 +1400 +1500 +100
+200
+200
0
+25
0
+50
0
+100
0
+200
0
+500
0
+700
0
+1000
-50
0
-100
0
-100
+100
Unit
kPa
Electrical Characteristics
Sensor Code
Item
Offset Voltage
Full Scale Voltage
Span Voltage
Accuracy
Output Resolution
Supply Current
Offset Voltage
Full Scale Voltage
Span Voltage
Accuracy
Output Resolution
Supply Current
Offset Voltage
Full Scale Voltage
Span Voltage
Accuracy
Output Resolution
Supply Current
Response Time
Sampling Frequency
Load Resistor
Load Capacitance
Condition
Min. Popt, 050KV & 100KV: Max. Popt
Max. Popt, 050KV & 100KV: Min. Popt
Min. to max. Popt
0 to 85℃
AG20*
VDD = 5.0 Vdc
AG21*
VDD = 3.3 Vdc
Min. Popt, 050KV & 100KV: Max. Popt
Max. Popt, 050KV & 100KV: Min. Popt
Min. to max. Popt
0 to 85℃
AG22*
VDD = 3.0 Vdc
Min. Popt, 050KV & 100KV: Max. Popt
Max. Popt, 050KV & 100KV: Min. Popt
Min. to max. Popt
0 to 85℃
for reference
VOUT - VSS or VDD - VOUT
VOUT - VSS
Common
Load resistor RL =∞, Ambient temperature Ta = 25℃
Rating
Symbol
Unit
Min.
Typ.
Max.
Voff
0.1325
0.2
0.2675
V
Vfs
4.6325
4.7
4.7675
V
SV
-
4.5
-
V
-1.5
-
+1.5
%FS
Error
-0.0675
-
+0.0675
V
Vrso
-
2.5
-
mV
Ic
-
-
3
mAdc
Voff
0.2595
0.3
0.3405
V
Vfs
2.9595
3.0
3.0405
V
SV
-
2.7
-
V
-1.5
-
+1.5
%FS
Error
-0.0405
-
+0.0405
V
Vrso
-
1.7
-
mV
Ic
-
-
2
mAdc
Voff
0.096
0.15
0.204
V
Vfs
2.796
2.85
2.904
V
SV
-
2.7
-
V
-2.0
-
+2.0
%FS
Error
-0.054
-
+0.054
V
Vrso
-
1.5
-
mV
Ic
-
-
2
mAdc
tr
-
1
-
msec.
fs
-
1
-
kHz
RL
2.5
-
-
kΩ
CL
-
-
15
nF
© 2013 Fujikura Ltd. All rights reserved.
This data sheet has a possibility to be revised without notice. This data sheet does not contain all
information. Before designing, please ask us the specifications of this product.
3
Document Number V-70044B
Analog Output
Semiconductor Pressure Sensor
AG2
Series
unit: mm

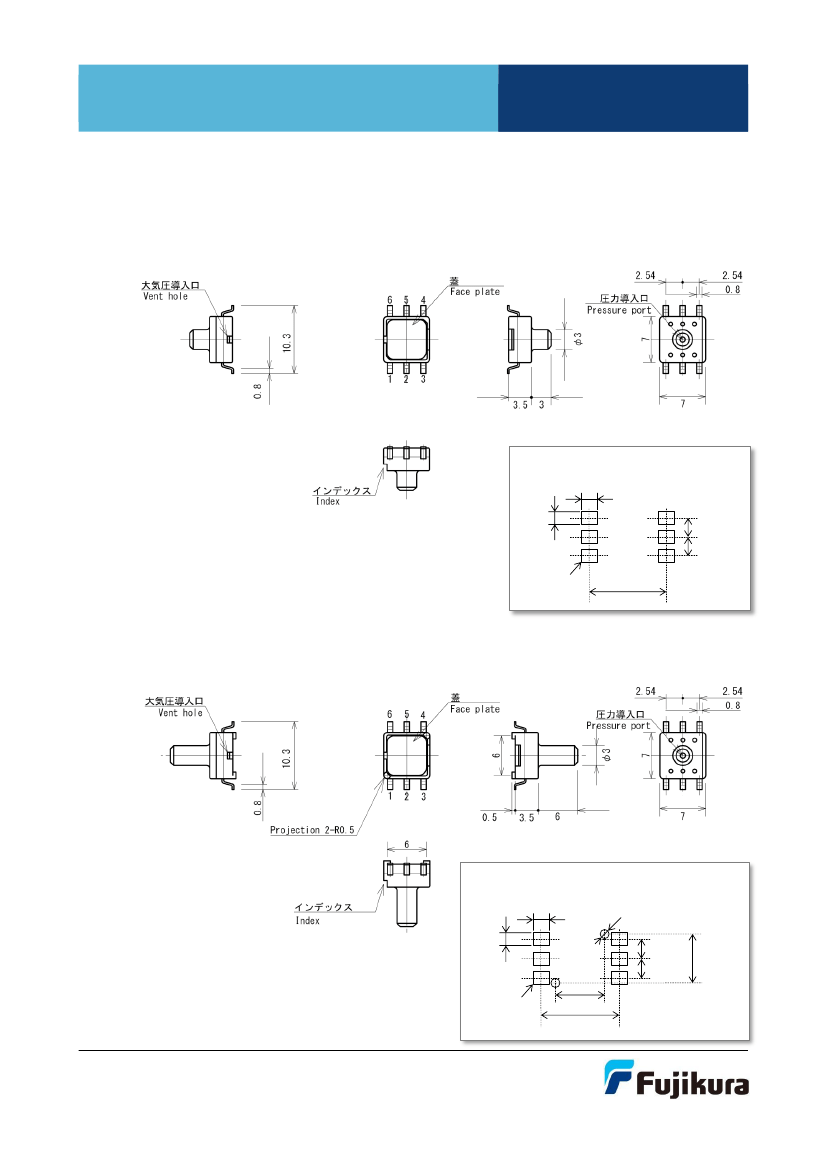

Package Dimensions
Sensor Code: AG2*3
Footprint (for reference)
1.7 mm
1.4 mm
2.54 mm
2.54 mm
Land pads
9.4 mm
Sensor Code: AG2*6
Footprint (for reference)
1.7 mm
2 - φ1.1 mm (Holes for Projections)
1.4 mm
2.54 mm
6.0 mm
2.54 mm
Land pads
6.0 mm
9.4 mm
© 2013 Fujikura Ltd. All rights reserved.
This data sheet has a possibility to be revised without notice. This data sheet does not contain all
information. Before designing, please ask us the specifications of this product.
4
