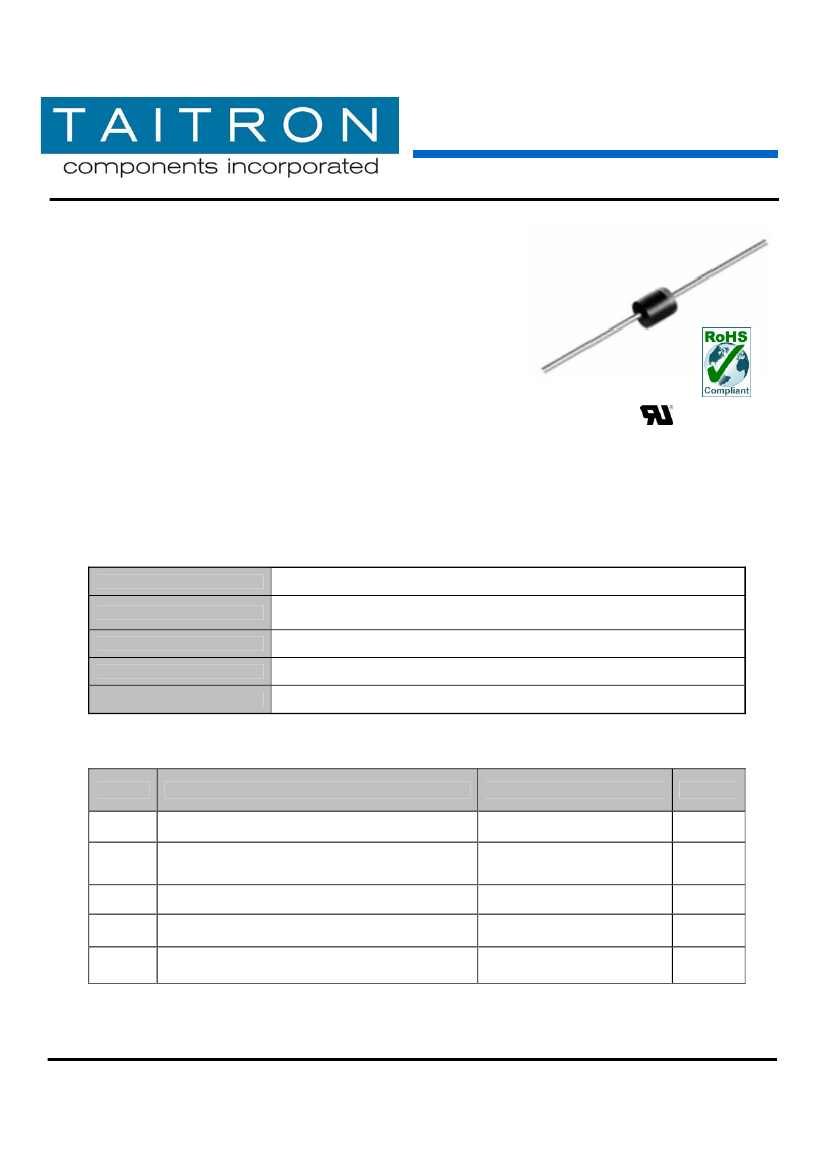

5000W Transient Voltage Suppressor
5KP5.0A~180CA
5000W Transient Voltage Suppressor
Features
Stand-off voltage from 5.0 to 220 volts
Glass passivated junction
5000W Peak Pulse Power capability on 10/1000μs waveform
repetition rate(duty cycle): 0.05%
Fast response time: typically less than 1.0ps from 0v to V
BR
Low incremental surge resistance, excellent clamping capability
High temperature soldering guaranteed:
265°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg tension)
This series is UL recognized under component index. File number E315008
RoHS Compliant
T6L

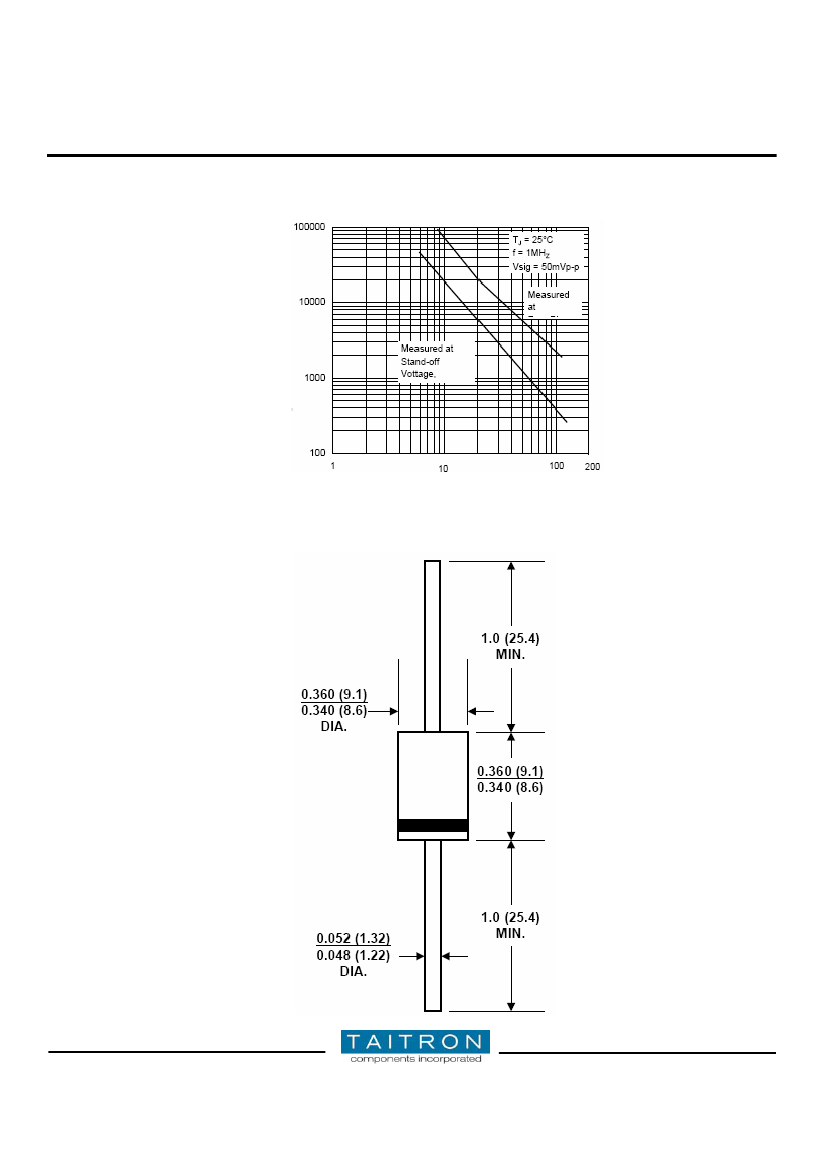

Mechanical Data
Case:
Terminals:
Polarity:
Mounting position:
Weight:
Molded plastic body over glass passivated junction
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Color band denotes the cathode except Bi-directional
Any
0.07 ounce, 2.1 grams
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
V
WM
P
PPM
I
PPM
I
FSM
Stand-Off Voltage
Peak Pulse Power Dissipation on 10/1000μs
Waveform(Note 1)
Peak Pulse Current on 10/1000μs Waveform(Note 1)
Peak Forward Surge Current 8.3ms Single Half Sine-
wave, Uni-directional only (Note 3)
Description
Value
5.0 to 180
Minimum 5000
See Table
400
-55 to 175
Unit
V
W
A
A
°C
T
J,
T
STG
Operating Junction and Storage Temperature Range
Notes:
(1) Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25°C per Fig. 2
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. C/AH 2008-02-25
Page 1 of 6
5000W Transient Voltage Suppressor
5KP5.0A~180CA
(2) Mounted on copper pad area of 0.8×0.8" (20×20mm) per Fig. 5
(3) Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses
per minute maximum
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
P/N
Bi-Polar
(Note3)
5KP5.0CA
5KP6.0CA
5KP6.5CA
5KP7.0CA
5KP7.5CA
5KP8.0CA
5KP8.5CA
5KP9.0CA
5KP10CA
5KP11CA
5KP12CA
5KP13CA
5KP14CA
5KP15CA
5KP16CA
5KP17CA
5KP18CA
5KP20CA
5KP22CA
5KP24CA
5KP26CA
5KP28CA
5KP30CA
5KP33CA
Stand-Off
Voltage
Breakdown Voltage
@
I
T
Max.
Clamping
Vltg. @
Max.
Peak
Pulse
Current
Max. Reverse
Leakage
Current
@
V
WM
V
BR
Uni-Polar
5KP5.0A
5KP6.0A
5KP6.5A
5KP7.0A
5KP7.5A
5KP8.0A
5KP8.5A
5KP9.0A
5KP10A
5KP11A
5KP12A
5KP13A
5KP14A
5KP15A
5KP16A
5KP17A
5KP18A
5KP20A
5KP22A
5KP24A
5KP26A
5KP28A
5KP30A
5KP33A
I
T
Max.
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
5.0
50
(mA)
I
PPM
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
V
WM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
Min.
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
I
PPM
(A)
(Note1)
544.0
486.0
477.0
417.0
388.0
368.0
348.0
325.0
295.0
275.0
252.0
233.0
216.0
205.0
193.0
181.0
172.0
154.0
141.0
129.0
119.0
110.0
103.0
93.9
I
D
(μA)
(Note1)
5000
5000
2000
1000
250
150
50
20
15.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Rev. C/AH 2008-02-25
www.taitroncomponents.com
Page 2 of 6
5000W Transient Voltage Suppressor
5KP5.0A~180CA
P/N
Bi-Polar
(Note3)
5KP36CA
5KP40CA
5KP43CA
5KP45CA
5KP48CA
5KP51CA
5KP54CA
5KP58CA
5KP60CA
5KP64CA
5KP70CA
5KP75CA
5KP78CA
5KP85CA
5KP90CA
5KP100CA
5KP110CA
5KP120CA
5KP130CA
5KP150CA
5KP160CA
5KP170CA
5KP180CA
Stand-Off
Voltage
Breakdown Voltage
@
I
T
Max.
Clamping
Vltg. @
V
BR
Uni-Polar
5KP36A
5KP40A
5KP43A
5KP45A
5KP48A
5KP51A
5KP54A
5KP58A
5KP60A
5KP64A
5KP70A
5KP75A
5KP78A
5KP85A
5KP90A
5KP100A
5KP110A
5KP120A
5KP130A
5KP150A
5KP160A
5KP170A
5KP180A
I
T
Max.
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104.0
111.0
123.0
135.0
147.0
159.0
185.0
197.0
209.0
221.0
5.0
(mA)
I
PPM
V
C
(V)
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
292.0
Max.
Peak
Pulse
Current
Max. Reverse
Leakage
Current
@
V
WM
V
WM
(V)
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
Min.
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100.0
111.0
122.0
133.0
144.0
167.0
178.0
189.0
200.0
I
PPM
(A)
(Note1)
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
26.0
24.0
20.6
19.3
18.2
17.6
I
D
(μA)
(Note1)
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Note:
1. Surge current waveform per Fig. 3 and derate per Fig. 2
2. For Bi-directional types with V
WM
of 10 volts and less, the I
D
limit is doubled.
3. C suffix for Bidirectional use, A suffix for 5% tolerance.
Rev. C/AH 2008-02-25
www.taitroncomponents.com
Page 3 of 6
5000W Transient Voltage Suppressor
5KP5.0A~180CA

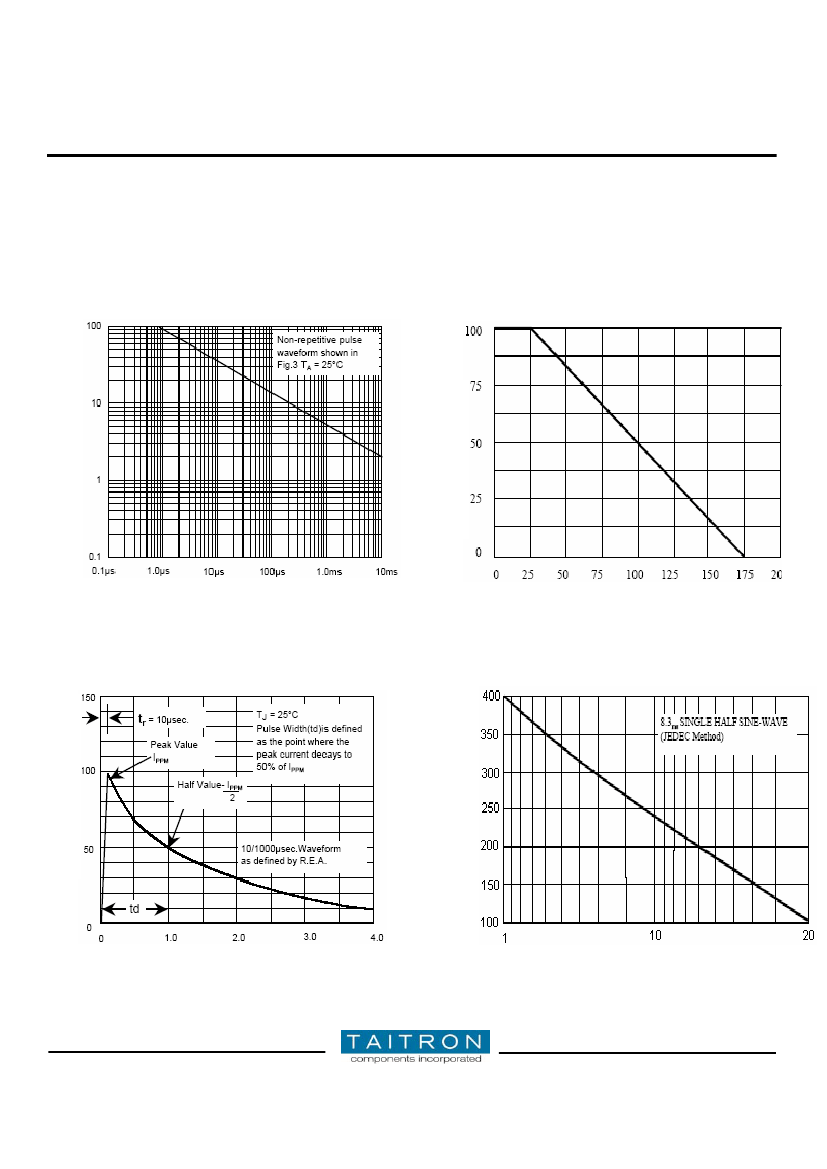

Typical Characteristics Curves
Fig.1- Peak Pulse Power Rating Curve
Fig.2- Pulse Derating Curve
P
PPM
-Peak Pulse Power (KW)
P
PPM
OR
I
PPM
(%)
Pulse Width
t
d
Ambient Temperature T
A
(°C)
Fig.3- Pulse Waveform
Fig.4- Max. Non-Repetitive Forward Surge Current
Uni-directional only
Time
t
(ms)
I
FSM
-Peak
Forward Surge Current
I
PPM
Peak Pulse Current
Number of Cycles at 60Hz
Rev. C/AH 2008-02-25
www.taitroncomponents.com
Page 4 of 6
