Disc Ceramic Capacitors
General Specifications - Class II General Purpose

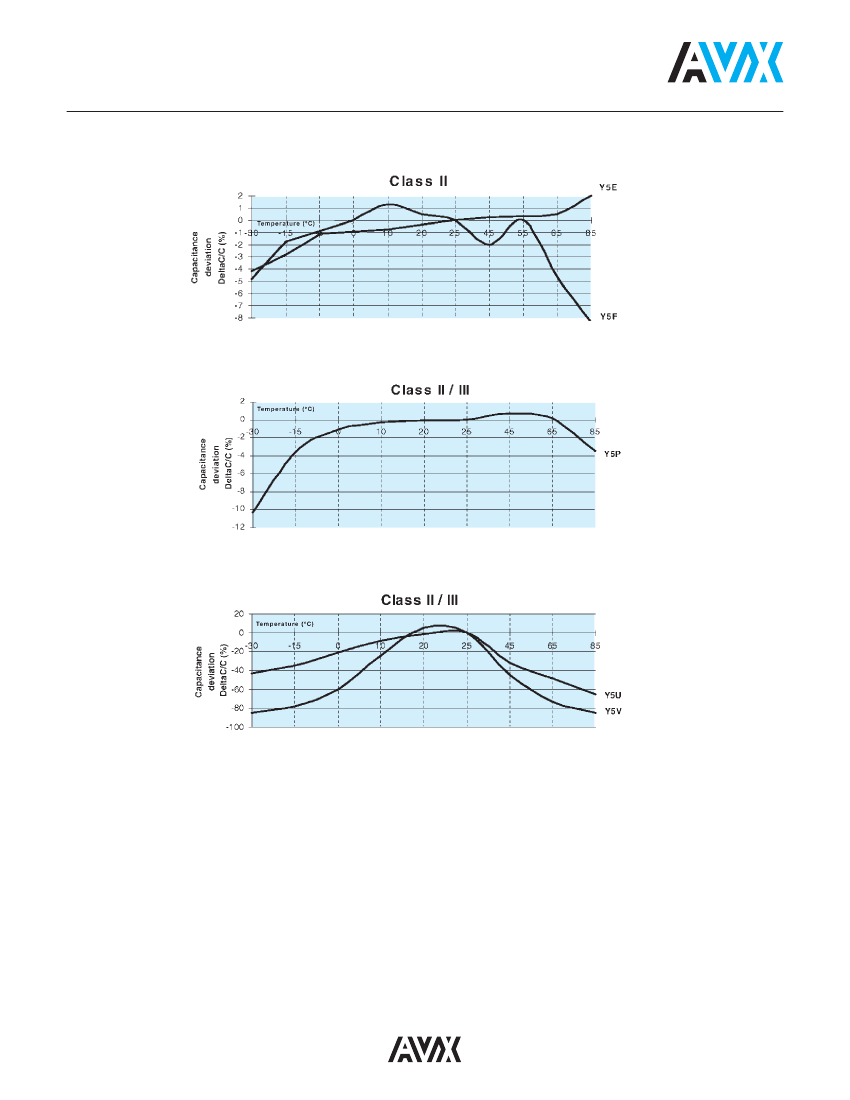

DIELECTRIC - CLASS II
These ceramic capacitors have a high dielectric constant,
what makes possible high capacitance values in
reduced dimensions, however temperature coefficient and
loss factor are greater than Class I.
Typical applications are decoupling and by pass.
Meets IEC 384-9 (1988).
HOW TO ORDER
5M
Product Code
K
Voltage
101
Capacitance
K
Tolerance
A
Lead
Forming
B
Capacitor
Diameter
A
Finishing
A
Packaging
100V / 500V PERFORMANCE CHARACTERISTICS CLASS II
Voltage Rating
Measured at
Dissipation Factor (%)
Tolerance
Insulation
Resistance (IR)
Dielectric Strength
NOTE: Charging
current limited
to 50 mA
dV/dt test
Operating
Temperature
Range (ºC)
Climatic
Category
100V ... 500V
1.0 kHz @ 0.3 Vrms / 25ºC
Y5E / Y5F / Y5P
≤
2.5%
Y5U / Y5V / Z5V
≤
3.0%
1kV ... 5kV
1.0 kHz @ 0.3 Vrms / 25ºC
Y5F
≤
2.5%
Y5U / Y5V
≤
3.0%
C
R
< 10 pF
→
±0.25 pF, ±0.5 pF
C
R
≥
10 pF
→
±5%, ±10%
@ V
R
→
≥
10 GΩ
@ V
R
= 100V
→
Vt = 250V (DC)
@ V
R
= 500V
→
Vt = 1250V (DC)
–
-30... +85ºC
C
R
< 10 pF
→
±0.25 pF, ±0.5 pF
C
R
≥
10 pF
→
±5%, ±10%
@ 500V
→
≥
10 GΩ
1.5 x
V
R
+ 500 (DC)
up to 3.0 kV/µsec for 5NR; 5NS Series
-30 ... +85ºC Phenolic Coated
-30 ... +125ºC Epoxy Coated
30 / 85 / 21 Phenolic Coated
30 / 85 / 56 Epoxy Coated
30 / 085 / 21 Phenolic Coated
Note: Damp Heat Steady State: 90... 95% R.H. 40ºC / 21 days. No voltage to be applied.
11
Disc Ceramic Capacitors
Dimension Table - Class II
Low and Medium Voltage General Purpose
100V / 500V CLASS II – CAPACITANCE VS. DISC DIAMETER
Temp.
Y5E
Coefficient
Digits 1,2,3
5MK
5MQ
of P.N.
Rated
500 VDC
Voltage (V
R
)
100 VDC
C
R
(pF)
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
15,000
22,000
33,000
47,000
100,000
millimeters (inches)
Y5V
Z5V
5TQ
500 VDC
5UK
100 VDC
Y5F
5NK
100 VDC
5NQ
500 VDC
5OK
Y5P
5OQ
500 VDC
5SK
Y5U
5SQ
500 VDC
5TK
100 VDC
100 VDC
100 VDC
5.0 (0.197)
5.0 (0.197)
6.0 (0.236)
6.0 (0.236)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
7.0 (0.276)
7.0 (0.276)
6.0 (0.236)
7.0 (0.276)
6.0 (0.236)
6.0 (0.236)
7.0 (0.276)
7.0 (0.276)
9.0 (0.354)
9.0 (0.354)
9.0 (0.354)
11.0 (0.433)
14.0 (0.551)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
10.0 (0.394)
7.0 (0.276)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
19.0 (0.748)
23.0 (0.906)
7.0 (0.276)
7.0 (0.276)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
6.0 (0.236)
7.0 (0.276)
6.0 (0.236)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
9.0 (0.354)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
7.0 (0.276)
9.0 (0.354)
11.0 (0.433)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
6.0 (0.236)
7.0 (0.276)
8.0 (0.315)
12.0 (0.472)
6.0 (0.236)
19.0 (0.748)
9.0 (0.354)
19.0 (0.748)
Diameter (φ) = 9th Part Number Digit
13
Disc Ceramic Capacitors
Dimension Table - Class II
High Voltage - Class II General Purpose
1kV / 5kV CLASS II – CAPACITANCE VS. DISC DIAMETER
Temp.
Coefficient
Digits 1,2,3
5NR
of P.N.
Rated
1000 VDC
Voltage (V
R
)
100 VAC
C
R
(pF)
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
15,000
22,000
50,000
100,000
millimeters (inches)
Y5V
Y5F
5NS
2000 VDC
150 VAC
5NT
3000 VDC
150 VAC
5SR
1000 VDC
100 VAC
5SS
Y5U
5ST
3000 VDC
150 VAC
5SU
4000 VDC
150 VAC
5SW
5000 VDC
150 VAC
5TR
1000 VDC
100 VAC
5TS
2000 VDC
150 VAC
5TT
3000 VDC
150 VAC
2000 VDC
150 VAC
5.0 (0.197
5.0 (0.197
5.0 (0.197)
6.0 (0.236)
5.0 (0.197)
8.0 (0.315)
6.0 (0.236)
8.0 (0.315)
9.0 (0.354)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
19.0 (0.748)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
19.0 (0.748)
23.0 (0.906)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
19.0 (0.748)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
8.0 (0.315)
6.0 (0.236)
5.0 (0.197)
6.0 (0.236)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
6.0 (0.236)
8.0 (0.315)
8.0 (0.315)
6.0 (0.236)
9.0 (0.354)
9.0 (0.354)
10.0 (0.394)
10.0 (0.394)
11.0 (0.433)
6.0 (0.236)
14.0 (0.551)
14.0 (0.551)
16.0 (0.630)
16.0 (0.630)
9.0 (0.354)
12.0 (0.472)
14.0 (0.551)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
8.0 (0.315)
5.0 (0.197)
5.0 (0.197)
6.0 (0.236)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
Diameter (φ) = 9th Part Number Digit
14
