SERIES 23
2330-0455 Cable assembly with HDMI 2
MIL-DTL-38999 Series III

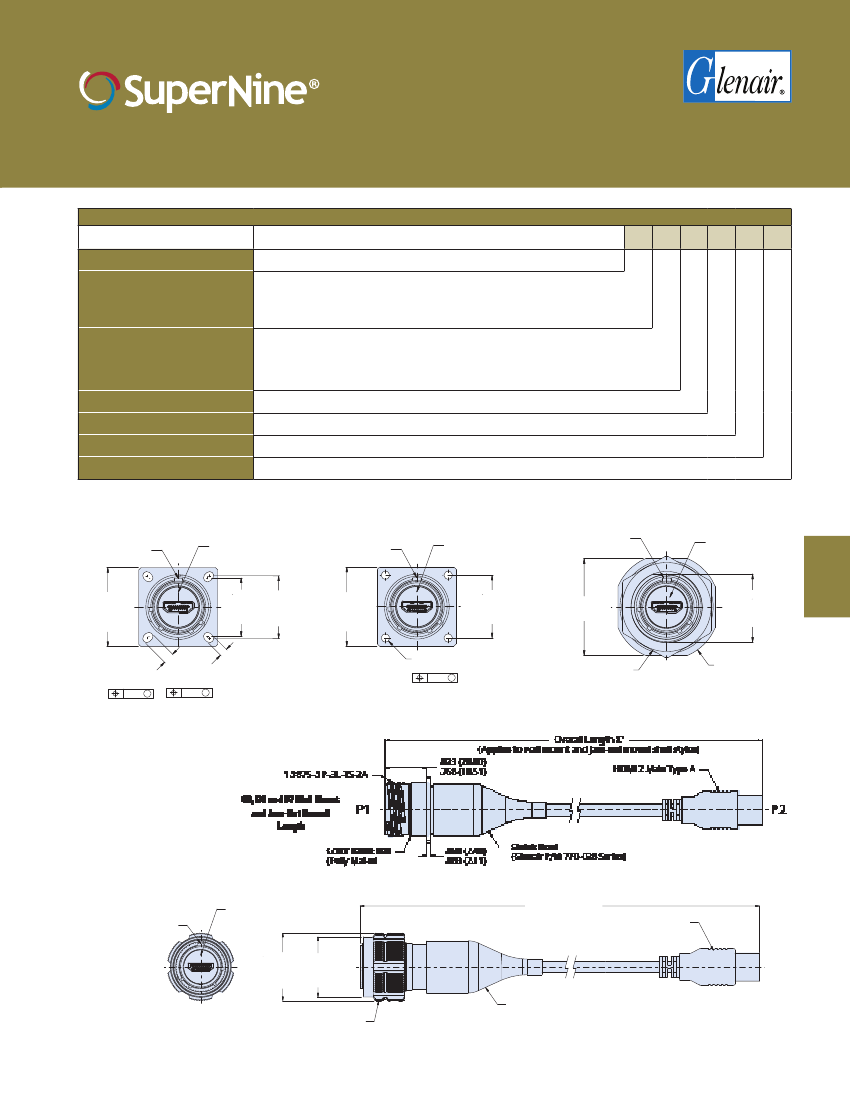

Sample Part Number
Series / Basic Part No.
P1 Material/Finish
2330-0455
NF
= Aluminum/cadmium olive drab
ME
= Aluminum/electroless nickel
MT
= Aluminum/nickel PTFE
ZR
= Aluminum/zinc-nickel
00
= Wall mount receptacle with slotted holes
D0
= Wall mount receptacle with round holes
07
= Jam-nut receptacle
G6
= Plug
17
A, B, C, D, E, N
= Normal; Per MIL-DTL-38999
H
= Horizontal
V
= Vertical
Part Number Development
2330-0455
Datalink connectors
M
07 -17
N
H
-X
P1 Connector Style
Shell Size
Alternate Polarization
HDMI Orientation
Overall Length
Provided in 1 foot increments; 01 - 1.0 ft
00 - Wall Mount Receptacle
With Slotted Holes
Master Keyway
HDMI Female 2
Type A Interface
D0 - Wall Mount Receptacle
With Round Holes
Master Keyway
HDMI Female 2
Type A Interface
07 - Jam Nut Receptacle
Master Keyway
HDMI Female 2
Type A Interface
1.323 (33.60)
1.299 (32.99)
Sq.
2x .969 2x 1.062
(24.61) (26.97)
Bsc
BSC
1.323 (33.60)
1.299 (32.99)
Sq.
2x 1.062
(26.97)
BSC
.136 (3.45)
.120 (3.05)
.005
M
2x 1.642 (41.71)
1.610 (40.89)
1.191 (30.25)
1.181 (30.00)
Flat
E
.202 (5.13)
4x
.186 (4.72)
.005
M
.136 (3.45)
.120 (3.05)
.005
M
4x
4x Ø
Jam-nut thread
M32 x 1.0-6g 0.100R
Ø 1.764 (44.81)
1.740 (44.20)
(Horizontal Orientation Shown)
(Horizontal Orientation Shown)
(Horizontal Orientation Shown)
Master Key
HDMI Male
Type A Interface
Overall Length X'
HDMI 2 Plug Type A
G6 - Plug
Ø1.406 Ø1.358
(35.71) (34.49)
Max
Max
P1
Shrink Boot
(Glenair P/n: 770-028 Series)
P2
(Horizontal HDMI Orientation Shown)
Knurl Mfg's Option
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
E-57
SERIES 23
2330-0455 Cable assembly with HDMI 2
MIL-DTL-38999 Series III

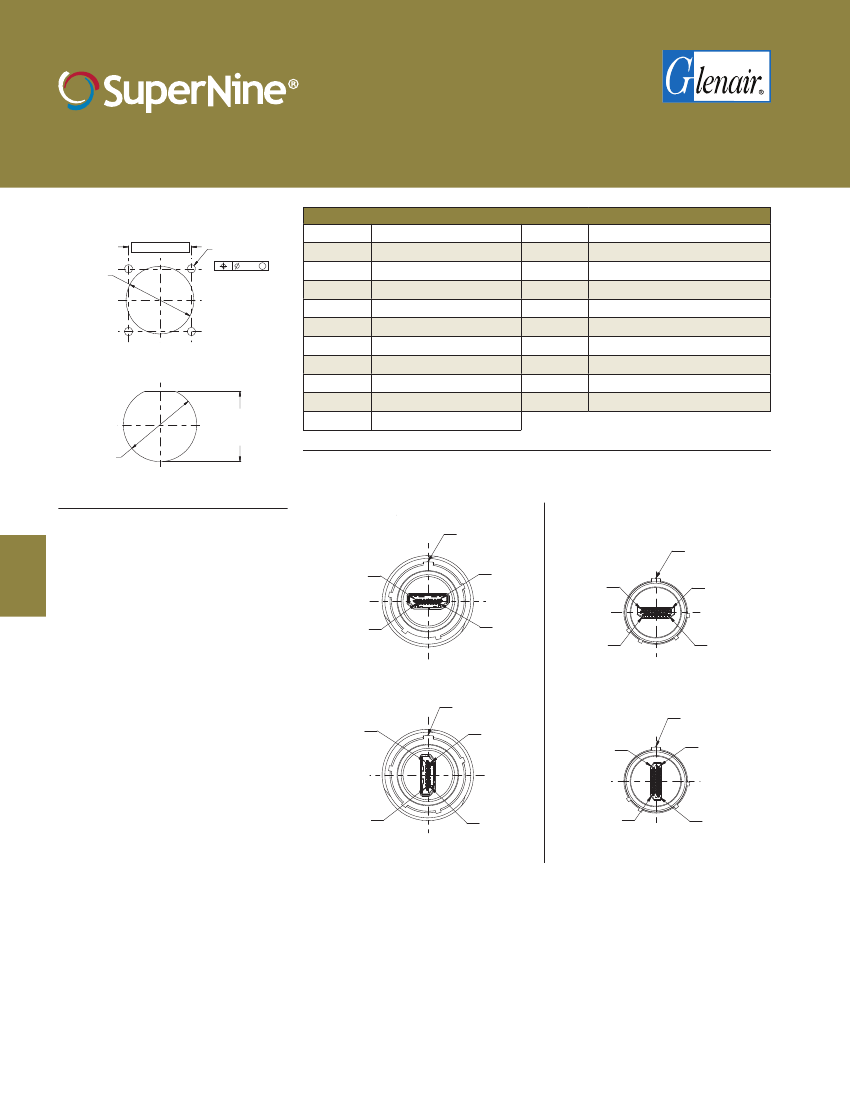

Recommended Mounting Holes & Cut Outs
2X 1.062 BSC
Ø1.219
(30.96)
MIN
.133 (33.78)
4X Ø .123 (31.24)
.005
M
Datalink connectors
HDMI 2, Connector Pin Assignments
Back Panel Wall Mount Receptacle
Ø
1.270 (32.26)
1.260 (32.00)
Jam Nut Receptacle
1.210 (30.73)
1.200 (30.48)
FLAT
Pin
1
2
3
4
5
6
7
8
9
10
Signal
TMDS DATA2+
TMDS DATA2 SHIELD
TMDS DATA2-
TMDS DATA1+
TMDS DATA1 SHIELD
TMDS DATA1-
TMDS DATA0+
TMDS DATA0 SHIELD
TMDS DATA0-
TMDS CLOCK+
Pin
11
12
13
14
15
16
17
18
19
Signal
TMDS CLOCK SHIELD
TMDS CLOCK-
CEC
UTILITY
SCL
SDA
DDC/CEC GROUND
+5V POWER
HOT PLUG DETECT
HDMI 2 ORIENTATION OPTIONS
(PARTIAL FRONT VIEWS SHOWN)
Receptacle
Master Keyway
Master Key
Pin 19
Pin 1
Pin 1
Pin 19
Plug
NOTES
E
1. Material/finish
• Shell, jam-nut, barrel: see part number
development
• Insulators: high grade rigid dielectric/N.A.
• Contacts: copper alloy, gold plated
• Seals: silicone based elastomer
• HDMI (shell/contacts): copper alloy
• Dielectric: thermoplastic PA9T UL94V-0
• Hardware: stainless steel/passivated
2. HDMI specifications:
Performance:
• HDMI 2
Electrical:
• Current rating: 0.5 amps min
• DWV: 300 Vac
• I.R.: 100 Meg Ohms min.
• Operating temperature range:
-20°C to +85°C
3. Connector interface (P1) per MIL-
DTL-38999, Series III, Shell size 17
4. Connector front interface with HDMI
Type A male is designed to mate with
HDMI receptacle patch cord or Glenair
HDMI receptacle connector 2330-0441
Connector front interface with HDMI
Type A female is designed to mate with
HDMI male patch cord
Pin 18
Pin 2
Pin 2
Horizontal
Master Keyway
Horizontal
Pin 18
Pin 1
Master Key
Pin 2
Pin 1
Pin 2
Pin 19
Vertical
Pin 18
Pin 18
Vertical
Pin 19
E-58
