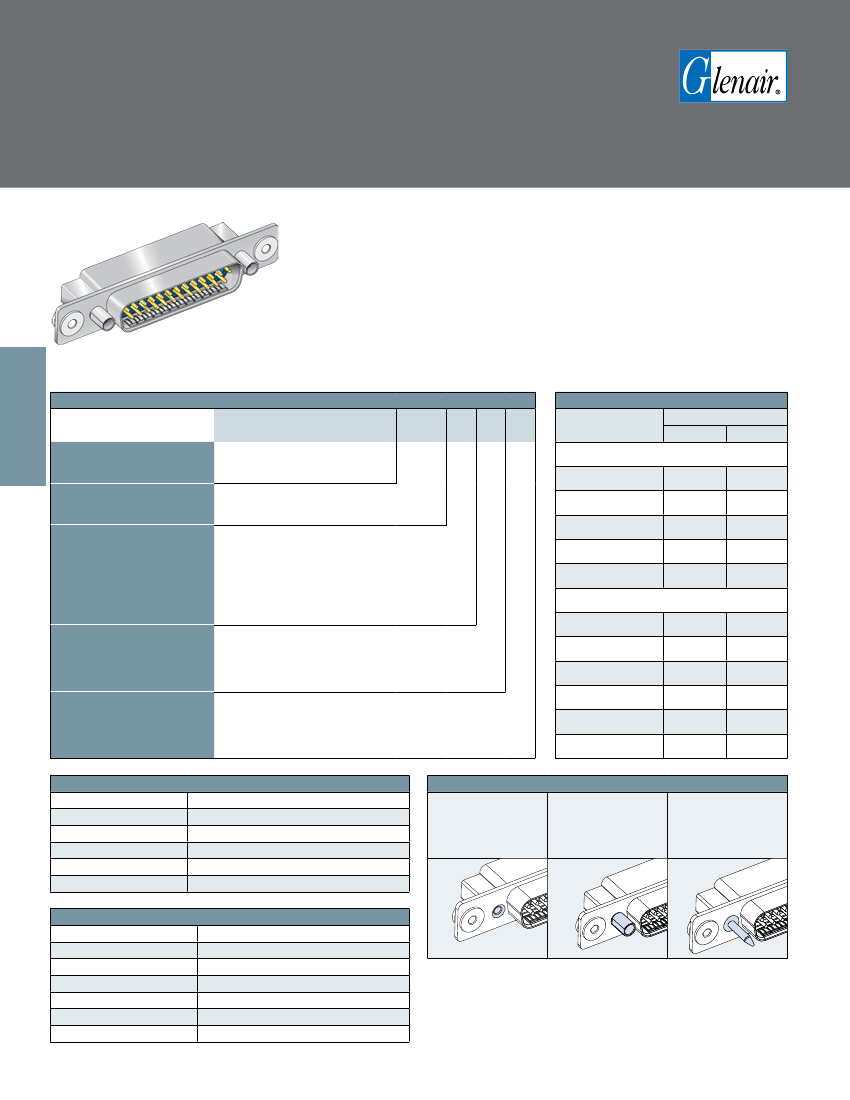

series 28
HiPer-D Standard and High-Density Connectors
280-030P float mount pin connectors for blind mating,
crimp
termination
280-030P HiPer-D pin connectors feature stainless steel float bushings for blind
mating. Attach to panel with #4-40 screws (not supplied with connector). Crimp,
rear-releaseable size #20 or #22 contacts. Intermateable with standard M24308-type
D-Subminiature connectors, the HiPer-D features a rugged machined aluminum shell,
rubber seals and optional ground springs for improved resistance to electromagnetic
interference. Threaded holes on the rear of the connector allow direct attachment of
HiPer-D EMI backshells. Contacts are packaged with connector. Terminate contacts
with crimp tools purchased separately. Glass-reinforced thermoset epoxy insulators,
copper alloy retention clips. Fluorosilicone face seal and rear grommet meet IP67
immersion requirement (mated). 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
B
Ordering Information
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
280-030P
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
Shell Size - Contact Arrangements
6H104 MT
N
N
Shell Size-
Contact Arr.
Contact Size and Qty
#20
#22
280-030P
Standard Density
1S9
2S15
3S25
4S37
5S50
9
15
25
37
50
High Density
1H15
15
26
44
62
78
104
Shell Finish
ground Spring
G
= Supplied with EMI Ground Spring
N
= No Ground Spring
2H26
3H44
4H62
5H78
6H104
Mating hardware
N
= No Hardware (supplied with #8-32 tapped hole)
G
= Male Guide Pins
B
= Female Guide Bushings
Materials and Finishes
Shell
Aluminum alloy
Contacts
Copper alloy, 50 microin. gold plated
Insulators
Thermoset epoxy
Retention Clips
Copper alloy
Grommet, Seal, O-ring Fluorosilicone rubber
Hardware
300 series stainless steel
Specifications
Current Rating
#22 5 AMPS, #20 7.5 AMPS
Test Voltage
1000 VAC RMS
Insulation Resistance
5000 megohms minimum
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
300 g.
Vibration, Random
43.92 g.
B-28
Mating hardware
No Hardware
#8-32 tapped hole
N
Female Guide
Bushings
B
Male Guide Pins
G
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Standard and High-Density Connectors
280-030P float mount pin connectors for blind mating,
crimp
termination

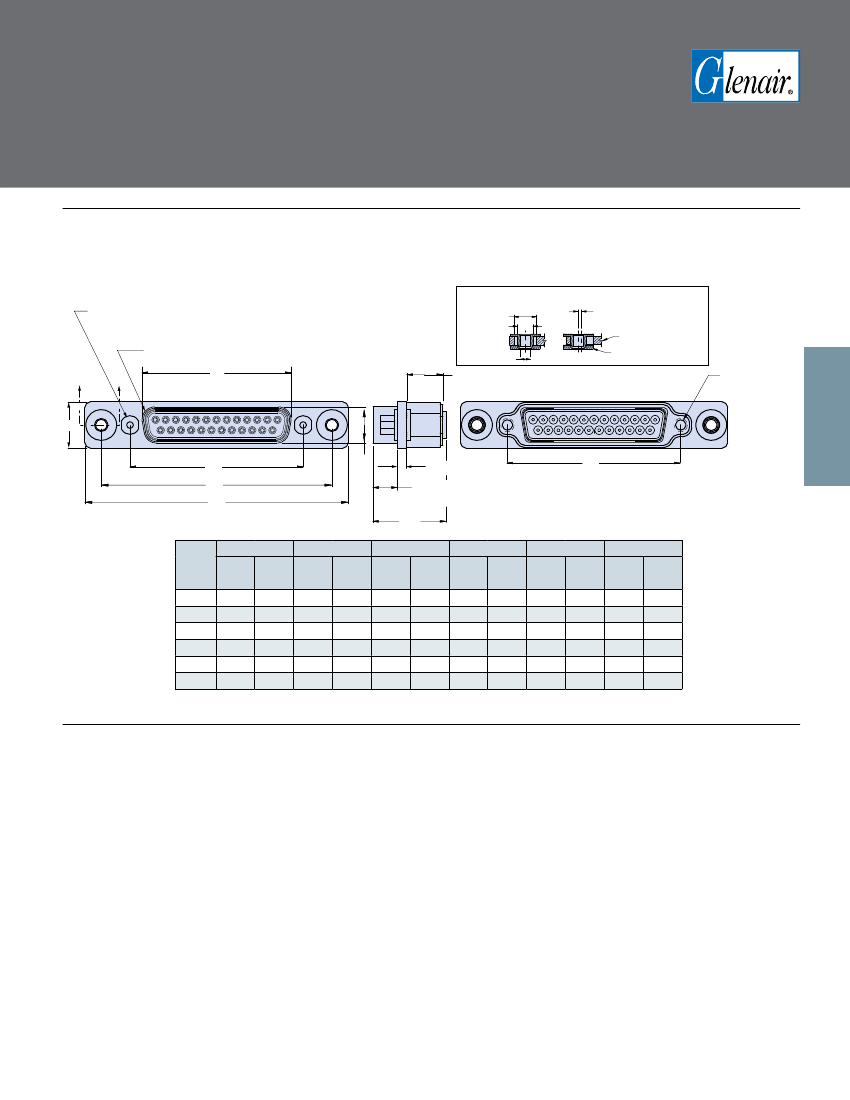

280-030P DIMENSIONS
GUIDE PIN, GUIDE BUSHING, OR 8-32
UNC 2B .150 (3.81) MIN. DEEP 2PLCS
REF
R .134 (3.41)
G
G
.250 (6.35)
.170 (4.32)
.120 (3.05)
SECTION G-G
.040±.040 (1.02±1.02)
DIAMETRAL FLOAT
CONNECTOR
FLOAT BUSHING
D
.390±.005
(9.91±0.13)
4-40 UNC-2B
.150 MIN. DEEP
TYP 2 PLCS
B
C
F
A
E
C
B
.094 (2.39)
.262±.003
(6.65±0.08)
.784
(19.92)
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.986 50.44
2.314 58.78
2.854 72.49
3.502 88.95
3.408 86.56
3.502 88.95
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.600 15.24
.662 16.81
in
A
mm
in
B
mm
C Basic
in.
mm
± .005
± 0.13
± .005
± 0.13
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
.389
.389
.389
.389
9.88
9.88
9.88
9.88
in
D
mm
in
E
mm
F Basic
in
mm
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
1.636 41.55
1.964 49.89
2.504 63.60
3.152 80.06
3.058 77.67
3.152 80.06
.501 12.73
.563 14.30
NOTES
1.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no minimum
order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D Contacts and Crimp Tools
for
contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
HiPer-D connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
2.
3.
4.
5.
B-29
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
