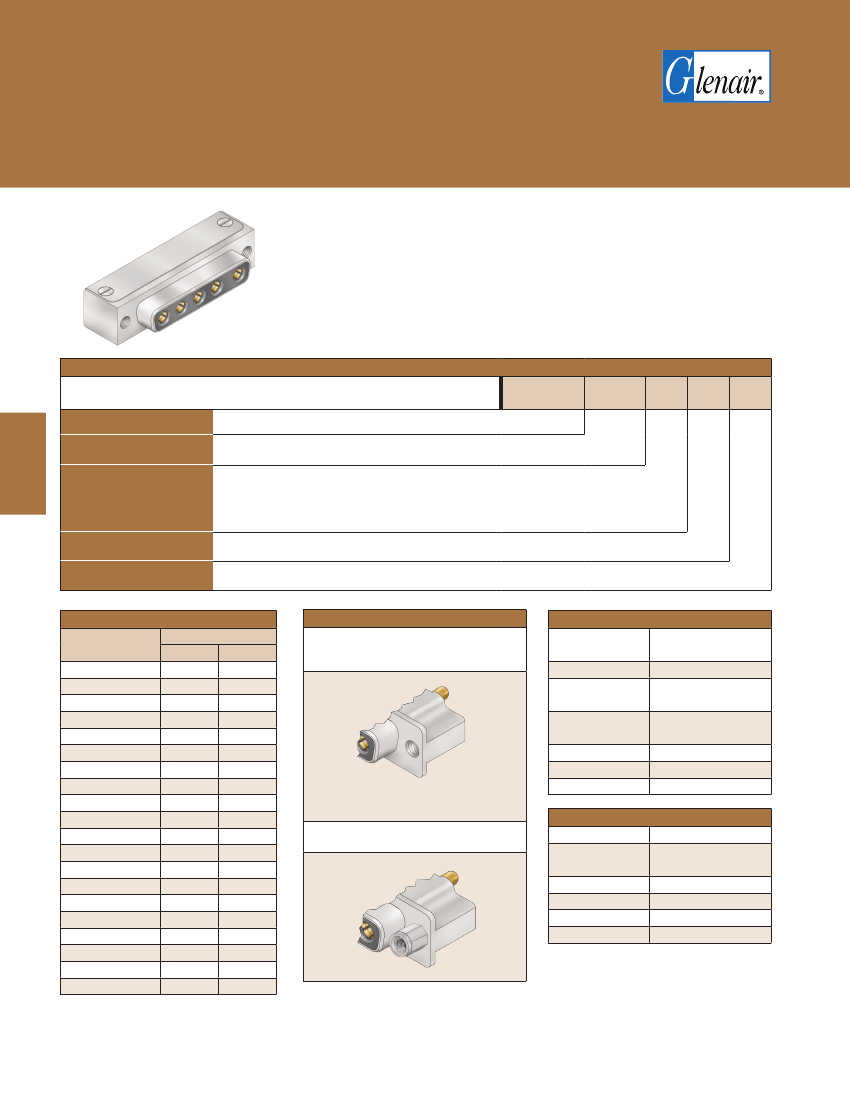

SERIES 28
HiPer-D
®
Combo Connectors
280-057S right angle PC tail socket connectors
with low profile mounting flange
The HiPer-D
®
is a high performance version of the M24308-type D-Subminiature
connector. HiPer-D
®
connectors feature improved EMI performance and
environmental sealing and “closed entry” contact cavity for improved contact
protection. Factory-installed PC tail contacts, integral board standoffs and threaded
holes for attaching to circuit board. Gold-plated copper alloy contacts, one-piece
machined aluminum shell, glass-reinforced thermoset epoxy insulator, epoxy
potting compound. 1000 VAC, 7.5 Amps (#20), up to 40 Amps with size #8 power
contacts.
How To Order
Sample Part Number
Basic Part Number
280-057S
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware
P
= #4-40 Female Jackpost
A
= .125 (3.18) Tail Length
B
= .250 (6.35) Tail Length
280-057S
4-27P2
JF
P
B
C
Shell Size-
Contact Arrangement
Shell Finish
Hardware Option
PC Tail Length
Contact Arrangements
Shell Size-
Contact Arr.
1-2P2
1-5P1
2-3P3
2-7P2
2-11P1
3-5P5
3-9P4
3-13P3
3-17P2
3-21P1
4-8P8
4-13P6
4-17P5
4-21PA4
4-25P3
4-27P2
5-24P7
5-36P4
5-43P2
5-47P1
Contact Size and Qty
#20
#8
2
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
Mating Hardware
N
No Hardware
#4-40 Female Threads in Mounting Holes
Current Rating
Test Voltage
Insulation
Resistance
Operating
Temperature
Specifications
#20 7.5 AMPS, #8 40
AMPS
1000 VAC RMS
5000 megohms
minimum
-65° C. to +200° C.
IP 67
300 g.
43.92 g.
Ingress Protection
Shock
Vibration, Random
Choose this option for rear panel mounting
and order jackpost kit 289-016 separately.
P
#4-40 Female Jackposts
Materials and Finishes
Shell
Contacts
Insulator
Potting Compound
Hardware
Shroud
Aluminum alloy
Copper alloy, 50
microinches gold
Thermoset epoxy
Epoxy
300 series stainless steel
Stainless steel
C-36
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Combo Connectors
280-057S right angle PC tail socket connectors
wwith low profile mounting flange

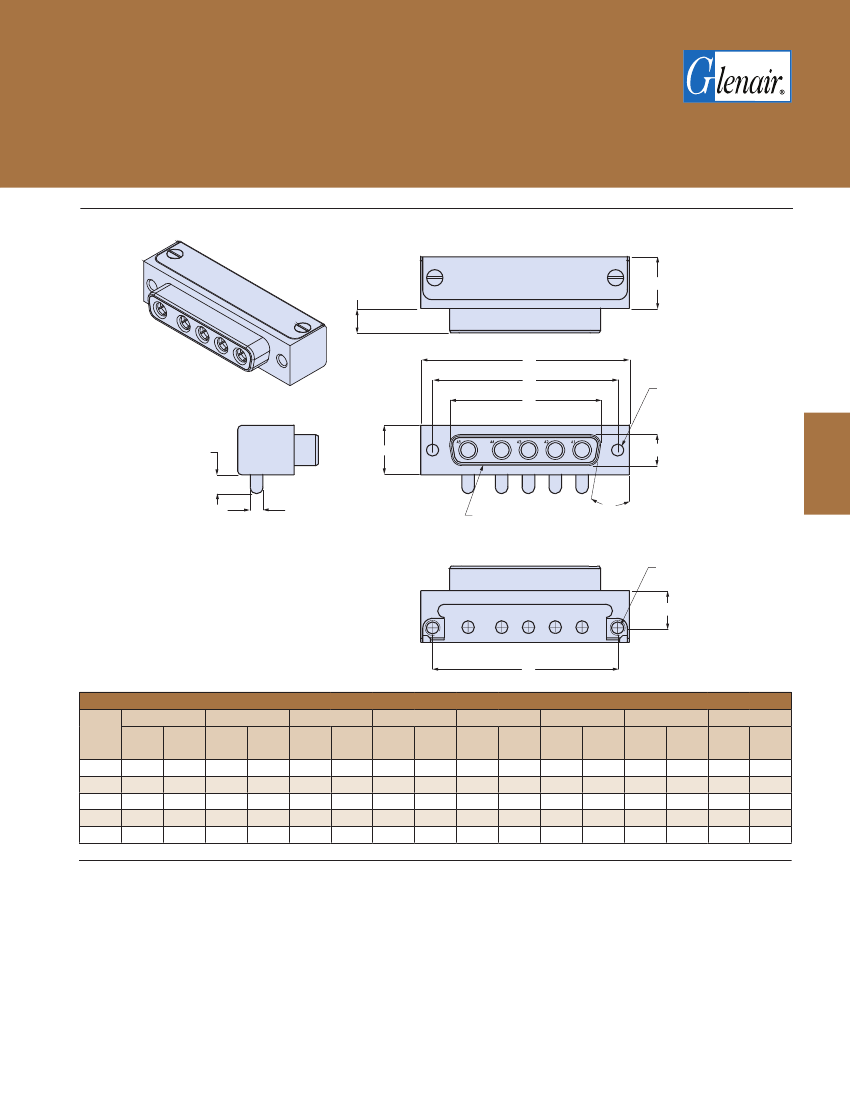

280-057S DIMENSIONS
.262 ± .005
(6.65 ± 0.13)
H
A
C
D
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
TAIL LENGTH
± .015 (0.38)
B
E
C
PC TAIL DIAMETER
.125± .002 (3.18 ± 0.05) SIZE 8
.030 ± .002 (0.76 ± 0.05) SIZE 20
OPTIONAL GROUND
SPRING 2 PLCS
10°
TYP
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
J
C
Dimensions
Shell
Size
1
2
3
4
5
A
± .015
1.213
1.541
2.088
2.729
2.635
B
± 0.38
30.81
39.14
53.04
69.32
66.93
C Basic
± 0.38
12.55
12.55
12.55
12.55
15.37
D
± .005
.643
.971
1.511
2.159
2.054
E
± 0.13
16.33
24.66
38.38
54.84
52.17
F Max
± 0.13
7.90
7.90
7.90
7.90
10.74
G Max
in.
.432
.432
.432
.432
.544
H Max
in.
.520
.844
1.386
2.034
1.887
in
mm
± .015
.494
.494
.494
.494
.605
in
mm
in.
.984
1.312
1.852
2.500
2.406
mm
24.99
33.32
47.04
63.50
61.11
in
mm
± .005
.311
.311
.311
.311
.423
in
mm
in.
.769
1.093
1.636
2.282
2.188
mm
19.53
27.76
41.55
57.96
55.58
mm
10.97
10.97
10.97
10.97
13.82
mm
13.21
21.44
35.20
51.66
47.93
NOTES
1.
2.
3.
4.
5.
6.
Contacts are factory-installed, non-removable and are potted with epoxy.
HiPer-D
®
connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D
®
Shell Plating
Options
for additional choices .
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
For printed circuit board mounting dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Combo HiPer-D
®
connectors meet the applicable requirements of MIL-DTL-24308 and are intermateable with standard M24308-
type D-Subminiature combo connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D
®
Product Specification.
C-37
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
