500-107Z251PMNB602 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 500-107Z251PMNB602

500-107Z251PMNB602: DescriptionMilitary Connector Accessory,; CategoryThe connector Connector bracket; File Size154KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

500-107Z251PMNB602 Overview

Military Connector Accessory,

500-107Z251PMNB602 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli

Preview

Download Datasheet

View All

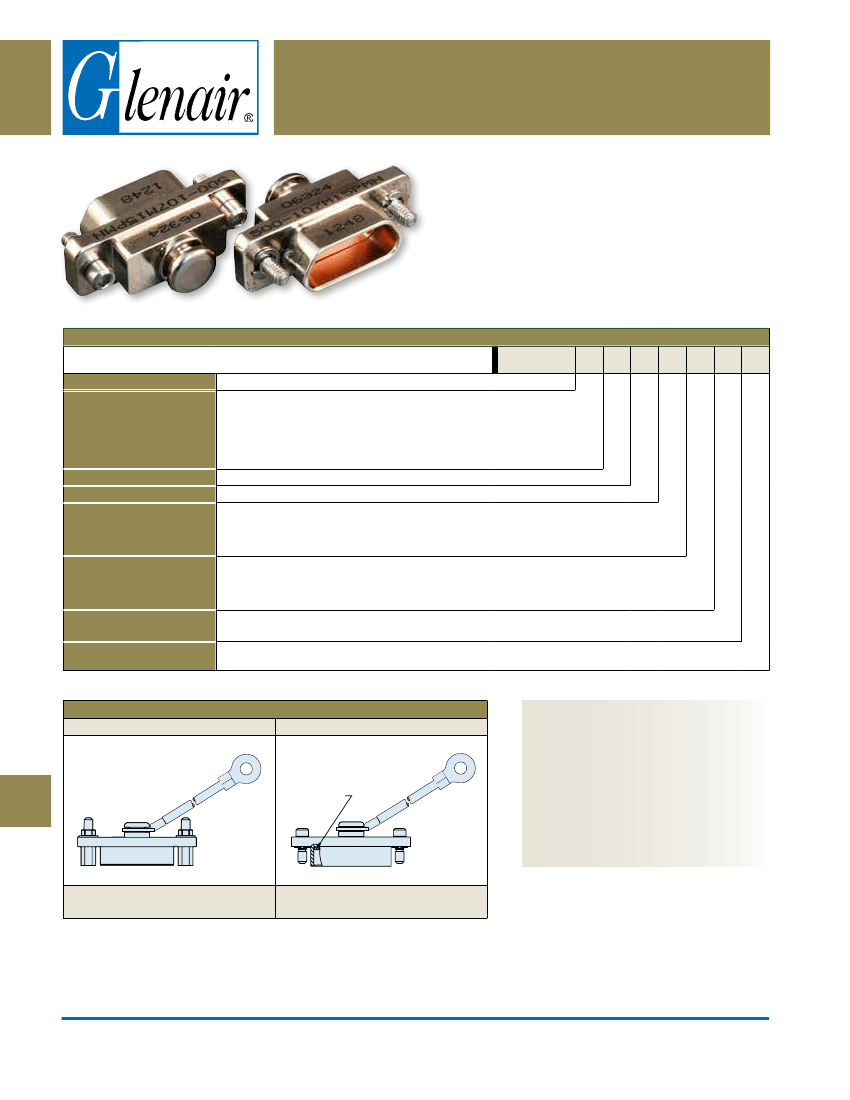

Metal Protective Covers

with Silicone Rubber Gaskets

500-107

Micro-D

Accessories

Sample Part Number

Series

Shell Finish

Connector Size

Style

Hardware

Attachment Type

Attachment Length (Inhes)

Attachment Diameter

Choose Metal Protective Covers

for full

environmental protection.

Silicone Rubber Gasket

provides a watertight seal.

How To Order Metal Protective Covers

500-107

- Cadmium Plate/Olive Drab

- Black Anodize

- Chem Film

- Cadmium, Yellow Chromate

- Electroless Nickel

- Cadmium, Olive Drab

- Red Anodized

- Gold Iridite Over Cadmium Plate

- Stainless Steel/Passivate

- Gold Plate

- Electroless Nickel, Grade A

9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100

(See Table I)

- Dust Cover for Plug

- Dust Cover for Receptacle (See Table II)

- No Hardware (Ø.093)

- Hexhead Jackscrew

- Slotted Jackscrew

- Female Jackpost

- Extended Hexhead Jackscrew

- Extended Slotted Jackscrew

- Hexhead Non-Removable Jackscrew

- Extended Non-Removable Jackscrew

- Wire Rope, Nylon Jacket

- Wire Rope, Fluoropolymer Jacket

- No Lanyard Attachment

- No Lanyard Or Attachment Boss

- Wire Rope, PVC Jacket

- Wire Rope, No Jacket

- Flexible Nylon Rope

Length in One Inch Increments;

Example: “6” equals six inches.

- .140 (3.6)

- 0.182

- 0.191

- .197 (5.0)

- .167 (4.2)

- .125 (3.2)

I.D. of Ring Terminal

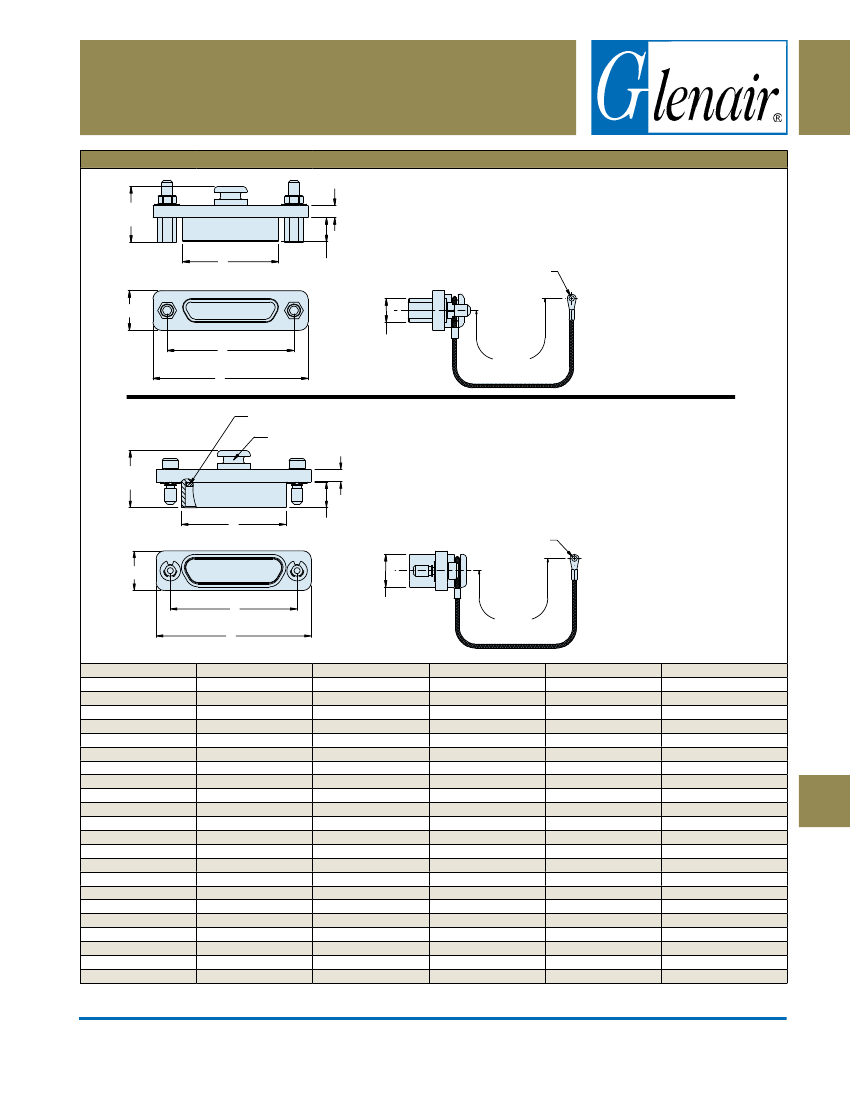

Table I: Select A Protective Cover Style

Style P

Style R

Notes

Use With Micro-D Plugs

GASKET ON PLUG

COVER ONLY

1. Assembly identified with manufacturer's

name and p/n, space permitting.

2. Material/finish:

Backshell - see How To Order Table

Hardware - cres/passivated

Attachment - see How To Order Table

Gasket - silicone/N.A.

3. Attachment to withstand 25 lb min.

Pull test.

Use With Micro-D Receptacles

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

N-8

E-Mail: sales@glenair.com
