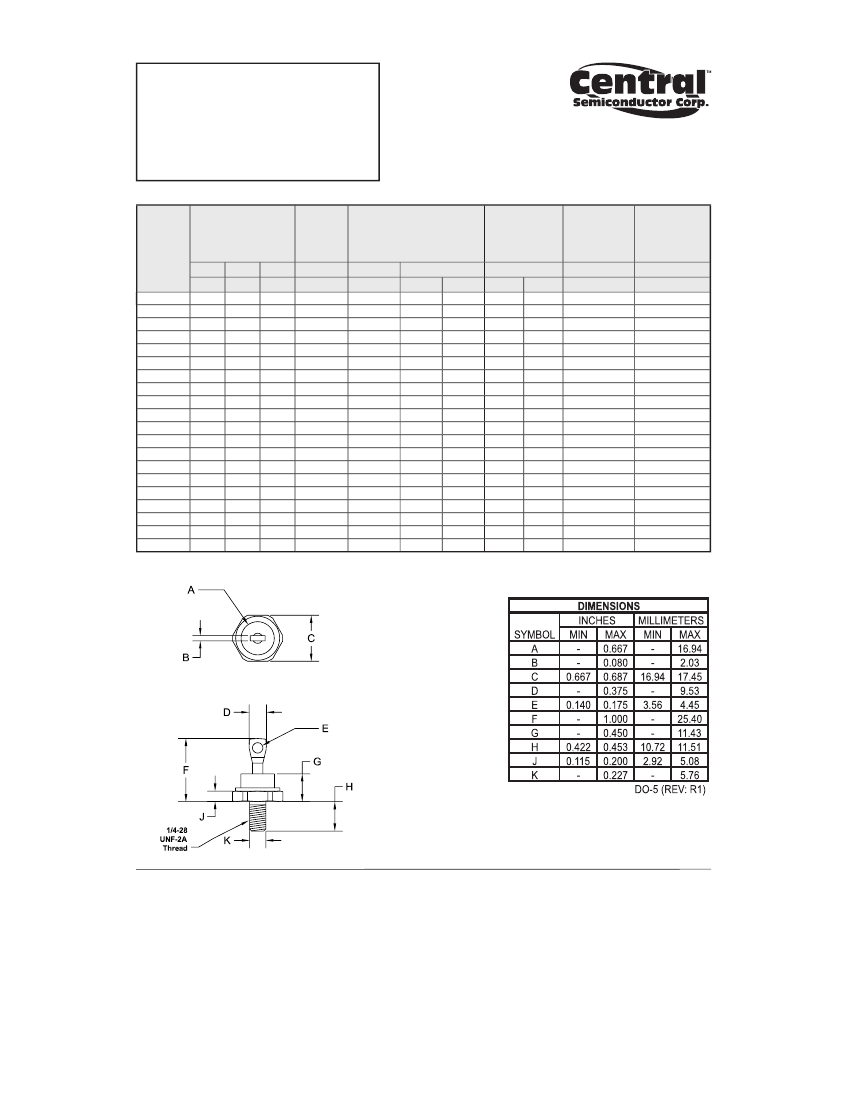

1N3305B THRU 1N3350B

SILICON ZENER DIODES

6.8 VOLT THRU 200 VOLT

50W, 5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 1N3305B series

types are silicon Zener diodes manufactured in a

hermetically sealed metal case, designed for high

reliability industrial applications. Also available in

reverse polarity connection (replace “B” suffix with “RB”

suffix in part number - ex. 1N3305RB).

MARKING: FULL PART NUMBER

DO-5 CASE

MAXIMUM RATINGS:

(TC=75°C)

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

PD

TJ, Tstg

Θ

JC

UNITS

W

°C

°C/W

50

-65 to +175

2.0

ELECTRICAL CHARACTERISTICS:

(TC=30°C unless otherwise noted) VF=1.5V MAX @ IF=10A

ZENERVOLTAGE

TYPE

MIN

V

1N3305B

1N3306B

1N3307B

1N3308B

1N3309B

1N3310B

1N3311B

1N3312B

1N3313B

1N3314B

1N3315B

1N3316B

1N3317B

1N3318B

1N3319B

1N3320B

1N3321B

1N3322B

1N3323B

1N3324B

1N3325B

1N3326B

1N3327B

1N3328B

1N3329B

1N3330B

6.460

7.125

7.790

8.645

9.500

10.45

11.40

12.35

13.30

14.25

15.20

16.15

17.10

18.05

19.00

20.90

22.80

23.75

25.65

28.50

31.35

34.20

37.05

40.85

42.75

44.65

VZ @ IZT

NOM

V

6.8

7.5

8.2

9.1

10

11

12

13

14

15

16

17

18

19

20

22

24

25

27

30

33

36

39

43

45

47

MAX

V

7.140

7.875

8.610

9.555

10.50

11.55

12.60

13.65

14.70

15.75

16.80

17.85

18.90

19.95

21.00

23.10

25.20

26.25

28.35

31.50

34.65

37.80

40.95

45.15

47.25

49.35

TEST

CURRENT

IZT

mA

1850

1700

1500

1370

1200

1100

1000

960

890

830

780

740

700

660

630

570

520

500

460

420

380

350

320

290

280

270

MAXIMUM ZENER

IMPEDANCE

ZZT @ IZT

Ω

0.2

0.3

0.4

0.5

0.6

0.8

1.0

1.1

1.2

1.4

1.6

1.8

2.0

2.2

2.4

2.5

2.6

2.7

2.8

3.0

3.2

3.5

4.0

4.5

5.0

ZZK @ IZK

Ω

mA

70

80

90

100

5.0

MAXIMUM

REVERSE

CURRENT

@ VR

μA

V

150

75

50

25

10

5.0

4.5

5.0

5.4

6.1

6.7

8.4

9.1

9.9

10.6

11.4

12.2

13.0

13.7

14.4

15.2

16.7

18.2

19.0

20.6

22.8

25.1

27.4

29.7

32.7

34.2

35.8

IR

MAXIMUM

ZENER

CURRENT

(TC=75°C MAX)

IZM

mA

6600

5900

5200

4800

4300

3900

3600

3300

3000

2800

2650

2500

2300

2200

2100

1900

1750

1550

1500

1400

1300

1150

1050

975

930

880

TYPICAL

TEMPERATURE

COEFFICIENT

V

Z

%/°C

0.040

0.045

0.048

0.051

0.055

0.060

0.065

0.070

0.075

0.080

0.085

0.090

R3 (21-March 2013)
