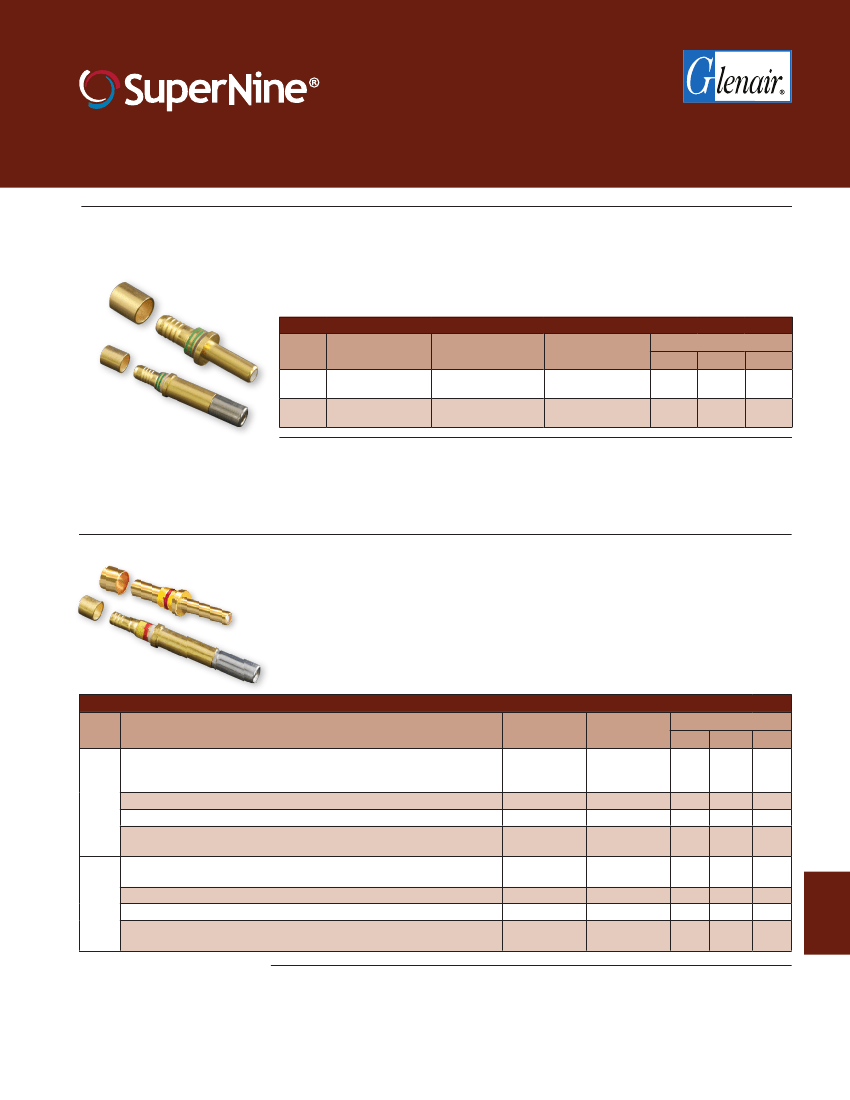

SERIES 23
Contacts
M39029 and Glenair signature solutions
MIL-DTL-38999 Series III type

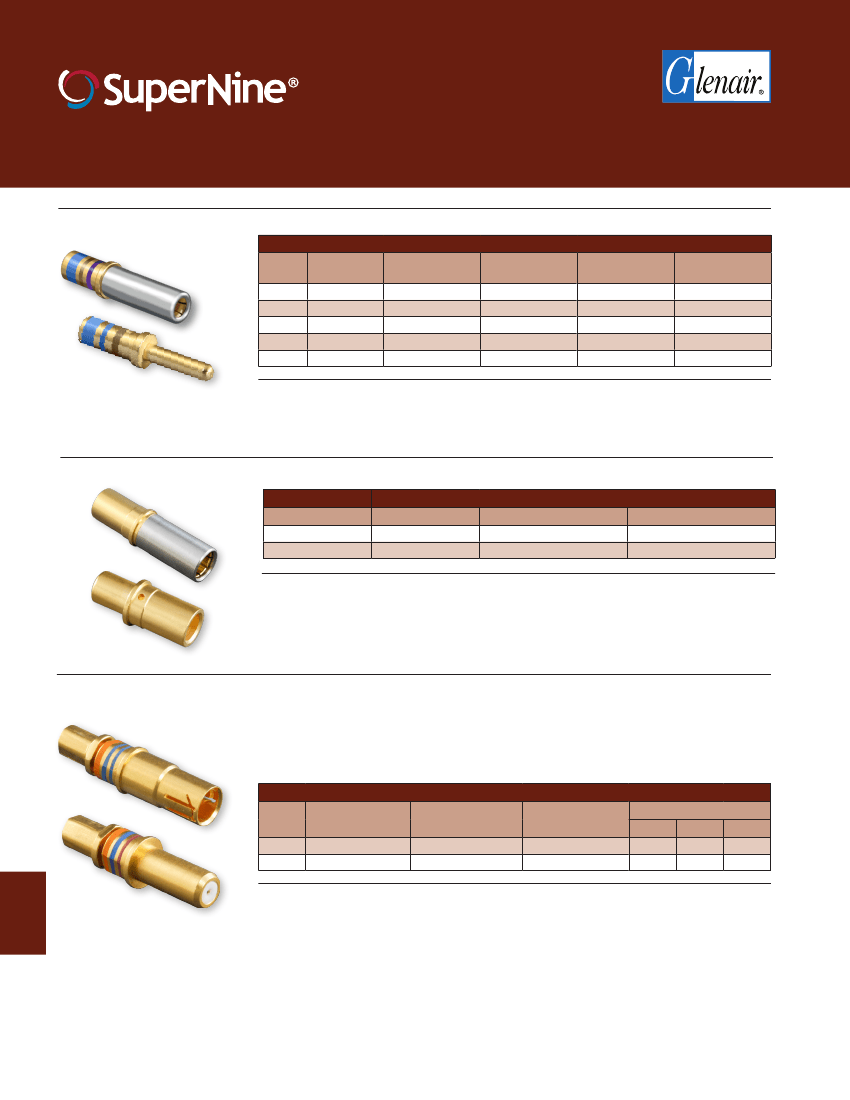

EXTENDED DUTY CRIMP CONTACTS
How-To-Order Extended Duty Crimp Contacts
Mating
Wire
End Size Accomodation
22
20
16
12
10
22-28 AWG
20-24 AWG
16-20 AWG
12-14 AWG
10 AWG
Pin Contacts
Military Part No.
M39029/107-620
M39029/107-621
M39029/107-622
M39029/107-623
M39029/107-624
Pin Contacts
Glenair Part No.
850-007-22-620
850-007-20-621
850-007-16-622
850-007-12-623
850-007-10-624
Socket Contacts
Military Part No.
M39029/106-614
M39029/106-615
M39029/106-616
M39029/106-617
M39029/106-618
Socket Contacts
Glenair Part No.
850-006-22-614
850-006-20-615
850-006-16-616
850-006-12-617
850-006-10-618
MATERIAL AND FINISH
• Copper alloy, plated with 5 μinches gold over 45 μinches palladium alloy.
• Rated to 1500 cycles of durability.
#8 HIGH POWER CONTACTS
How-To-Order #8 High Power Contacts
Type
Socket
Pin
Mating End Size
8
8
Wire Accommodation
8 AWG
8 AWG
Glenair Part Number
850-013
850-014
MATERIAL AND FINISH
Contact Body: Copper alloy, plated with 50 microinches gold per ASTM B488 Type II code C
over 50–100 microinches nickel IAW SAE AMS-QQ-N-290, class II
Hood: CRES, passivated
SIZE #8 COAXIAL CONTACTS
These #8 contacts accept 95 ohm coaxial cable. Inner contact is rated at 1 amp, the outer contact
12 amps. DWV rating is 1,300 Vac rms sea level, 250 Vac at 50,000 feet. Contacts are packaged
individually and shipped unassembled with instruction sheet. One contact consists of outer
contact, fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner and outer contacts
are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation resistance.
How-To-Order Size #8 Coaxial Contacts
Type
Pin
Socket
Cable
Accommodation
M17/095-RG180
M17/095-RG180
Part Number
852-007-08-367
852-006-08-366
Military Part
Number
M39029/60-367
M39029/59-366
Color Band
1st
Orange
Orange
2nd
Blue
Blue
3rd
Violet
Blue
J
MATERIAL AND FINISH
• Contact Body: Copper Alloy/Gold Plated
• Center Contact: Copper Alloy/Gold Plated
• Ferrule: Copper Alloy/Gold Plated
• Insulator: Teflon
J-2
Rev. 07.13.18
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 23
Contacts
M39029 and Glenair signature solutions
MIL-DTL-38999 Series III type

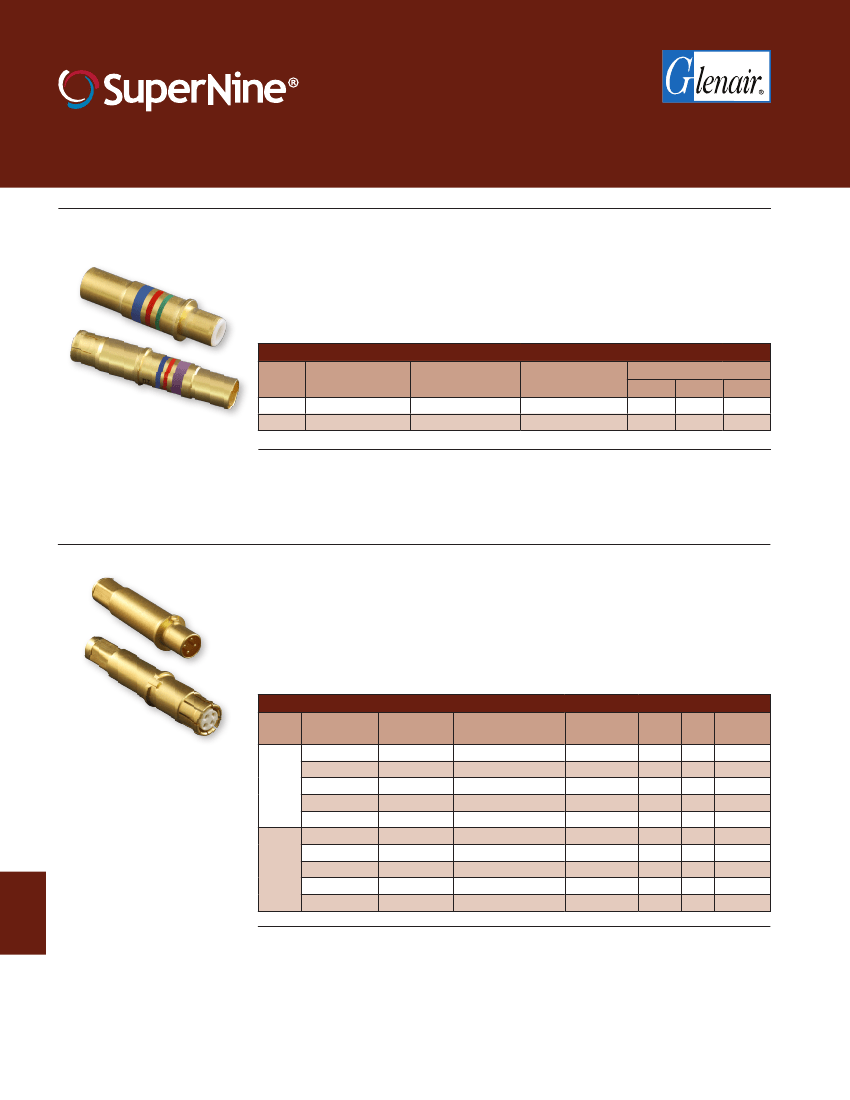

SIZE #12 COAXIAL CONTACTS
These contacts offer improved frequency response compared to standard coaxial contacts. VSWR is
1.32:1 at 3GHz . Nominal impedance is 50 ohms. Insertion loss at 3GHz is 0.20 dB maximum. Inner
contact is rated at 1 amp, the outer contact 12 amps. DWV voltage rating is 1000 Vac rms sea level,
250 Vac at 50,000 feet. Contacts are packaged individually and shipped unassembled with instruction
sheet. Inner and outer contacts are gold-plated copper alloy. 5000 megohm insulation resistance.
How-To-Order Size #12 Coaxial Contacts
Type
Pin
Socket
Cable
Accommodation
M17/113-RG316
M17/094-RG179
M17/113-RG316
M17/094-RG179
Part Number
852-004-12-558
852-005-12-559
Military Part
Number
M39029/102-558
M39029/103-559
Color Band
1st
Green
Green
2nd
Green
Green
3rd
Gray
White
MATERIAL AND FINISH
• Contact Body: Copper Alloy/Gold Plated
• Hood: Stainless Steel/Passivated
• Center Contact: Copper Alloy/Gold Plated
• Crimp Sleeve: Copper Alloy/Gold Plated
• Insulator: Teflon
SIZE #16 COAXIAL CONTACTS
These #16 contacts accept 50 ohm and 75 ohm coaxial cable. Inner contact is rated at 1 amp, the
outer contact 12 amps. DWV rating is 800 Vac rms sea level, 250 Vac at 50,000 feet. Contacts are
packaged individually and are unassembled with instruction sheet. One contact consists of outer
contact , fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner and outer contacts are
gold-plated copper alloy. Approved to SAE AS39029. VSWR rating 1.5:1 maximum up to 700 MHz.
5000 megohm insulation resistance.
How-To-Order Size #8 Coaxial Contacts
Type
Cable Accommodation
M17/119-RG174, M17/113-RG316, M17/094-RG179, Times AA3248, Teledyne 11299,
Haveg 8100207,
Thermax 75-738-BCCWXE, Tensolite 3088/L707YX-1
Pin
M19/093-RG178
Haveg 61-02051, Revere WH95623
Haveg 30-00761, Haveg 30-02024, Haveg 30-02033, Tensolite 24713/A955KK1,
Tensolite 26723/A955KK1
M17/119-RG174, M17/113-RG316, M17/094-RG179, Times AA3248, Teledyne 11299,
Haveg 8100207, Thermax 75-738-BCCWXE, Tensolite 30888/L707YX-1
M17/093-RG178
Haveg 61-02051, Revere WH95623
Haveg 30-00761, Haveg 30-02024, Haveg 30-02033,
Tensolite 24713/A955KK1, Tensolite 26723/A955KK1
Part Number
Military Part
Number
Color Band
1st
2nd
Red
Red
Red
Red
Red
Red
3rd
Yellow
Green
Blue
Violet
Gray
White
Black
852-008-16-424 M39029/76-424
Yellow
852-008-16-425 M39029/76-425
Yellow
852-008-16-426 M39029/76-426
Yellow
852-008-16-427 M39029/76-427
Yellow
852-009-16-428 M39029/77-428
Yellow
852-009-16-429 M39029/77-429
Yellow
852-009-16-431
Socket
852-009-16-430 M39029/77-430
Yellow Orange
M39029/77-431
Yellow Orange Brown
J
MATERIAL AND FINISH
• Contact Body: Copper Alloy/Gold Plated
• Center Contact: Copper Alloy/Gold Plated
• Crimp Sleeve: Copper Alloy/Gold Plated
• Insulator: Teflon
J-3
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 23
Contacts
M39029 and Glenair signature solutions
MIL-DTL-38999 Series III type

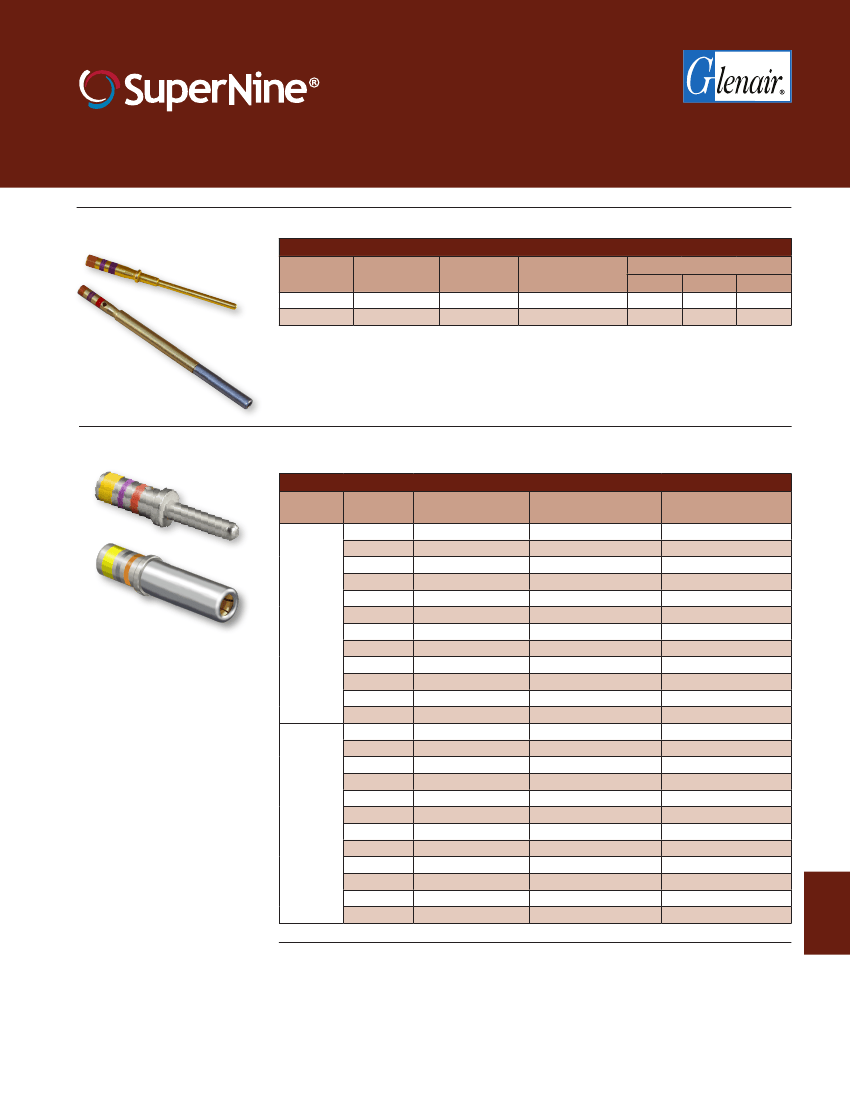

SIZE #8 CONCENTRIC TWINAX CONTACTS
These #8 concentric twinax contacts accept MIL-STD-1553 data bus twinax cable. Center and
intermediate contacts are rated at 1 amp, the outer contact 12 amps. DWV rating is 500 Vac rms sea
level, 125 Vac at 70,000 feet. Operating frequency is 0-20 MHz. Contacts are packaged individually
and shipped unassembled with instruction sheet. One contact consists of outer contact ,
fluorocarbon dielectric, inner contact , intermediate contact and shield crimp bushing. All contacts
are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation resistance.
How-To-Order Size #8 Concentric Twinax Contacts
Type
Pin
Socket
Cable
Accommodation
M17/176-00002
M17/176-00002
Part Number
853-003-08-625
853-004-08-628
Military Part
Number
M39029/113-625
M39029/114-628
Color Band
1st
Blue
Blue
2nd
Red
Red
3rd
Green
Violet
MATERIAL AND FINISH
• Contact Body: Copper Alloy/Gold Plated
• Inner and Intermediate Contacts: Copper
Alloy/Gold Plated
• Crimp Sleeve: Copper Alloy/Gold Plated
• Insulator: PEEK and PTFE (Teflon)
SIZE #8 QUADRAX CONTACTS
These #8 quadrax contacts accept 100 ohm quadrax cable. Center contacts are rated at 1 amp,
the outer contact 12 amps. DWV rating is 500 Vac rms sea level, 125 Vac at 70,000 feet. Contacts
are packaged individually and shipped unassembled with instruction sheet. One contact consists
of outer contact , fluorocarbon dielectric, inner contacts and shield crimp bushing. All contacts
are gold-plated copper alloy. 5000 megohm insulation resistance at 200Vdc. Mates with: 854-002.
Ideally suited for up to 1000 Base-T gigabit Ethernet.
How-To-Order Size #8 Concentric Twinax Contacts
Type
Glenair
Part Number
854-001-01
854-001-02
854-001-03
854-001-04
854-001-05
854-002-01
Socket
854-002-02
854-002-03
854-002-04
854-002-05
Military
Part Number
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Cable
Accommodation
Tensolite NF26Q100
Tensolite NF24Q100
Draka Fileca F-4704-6
Draka Fileca F-4704-4
Tensolite NF22Q100
Tensolite NF26Q100
Tensolite NF24Q100
Draka Fileca F-4704-6
Draka Fileca F-4704-4
Tensolite NF22Q100
Grommet
Follower
687-754-8-1
687-754-8-2
687-754-8-3
687-754-8-4
687-754-8-5
687-754-8-1
687-754-8-2
687-754-8-3
687-754-7-4
687-754-8-5
Cable
O.D.
.137
.163
.153
.175
.190
.137
.163
.153
.175
.190
“A”
Hex
.218
.218
.218
.218
.231
.218
.218
.218
.218
.231
Wire Size
26 AWG
24 AWG
26 AWG
24 AWG
22 AWG
26 AWG
24 AWG
26 AWG
24 AWG
22 AWG
Pin
J
MATERIAL AND FINISH
Contact Body: Copper Alloy/Gold Plated
Inner Contact: Copper Alloy/Gold Plated
Crimp Bushing: Brass or equivalent/Gold Plated
Insulator: Teflon, Ultem Series 1000 or equivalent
Grommet/Follower: Fluorosilicone/Ultem 1000 or equivalent
J-4
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 23
Contacts
M39029 and Glenair signature solutions
MIL-DTL-38999 Series III type

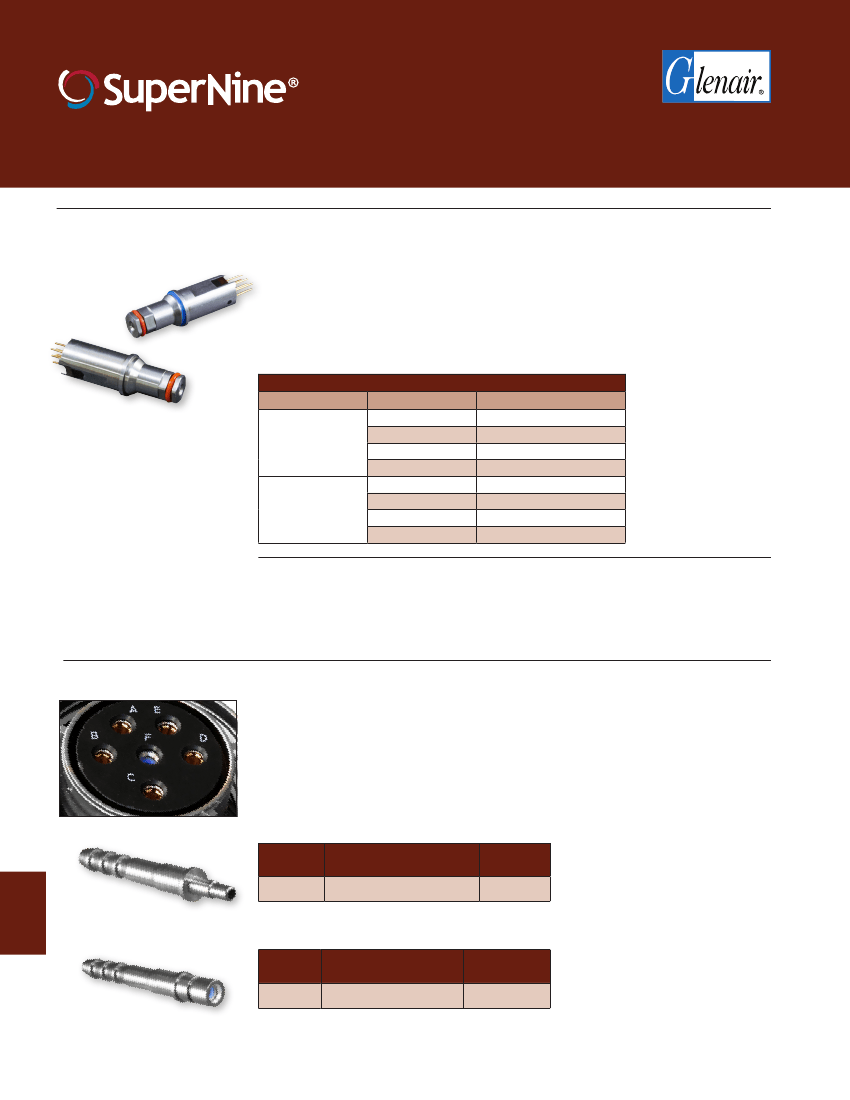

SIZE #23 CONTACTS FOR HIGH-DENSITY CONTACT ARRANGEMENTS
How-To-Order Size #23 Contacts for High-Density Arrangements
Color Band
Contact Type
Pin
Socket
Wire Size
#22 – #28
#22 – #28
Material
BeCu
BeCu
Part Number
M39029/18-177
M39029/17-172
1st
Brown
Brown
2nd
Violet
Violet
3rd
Violet
Red
THERMOCOUPLE CONTACTS
How-To-Order Thermocouple Contacts
Type
Mating End
Size
22
22
22
22
20
20
20
20
16
16
16
16
22
22
22
22
20
Socket
20
20
20
16
16
16
16
Wire Accomodation
22-28 AWG
22-28 AWG
22-28 AWG
22-28 AWG
20-24 AWG
20-24 AWG
20-24 AWG
20-24 AWG
16-20 AWG
16-20 AWG
16-20 AWG
16-20 AWG
22-28 AWG
22-28 AWG
22-28 AWG
22-28 AWG
20-24 AWG
20-24 AWG
20-24 AWG
20-24 AWG
16-20 AWG
16-20 AWG
16-20 AWG
16-20 AWG
Military Part Number
M39029/87-470
M39029/87-471
M39029/87-472
M39029/87-473
M39029/87-474
M39029/87-475
M39029/87-476
M39029/87-477
M39029/87-478
M39029/87-479
M39029/87-480
M39029/87-481
M39029/88-482
M39029/88-483
M39029/88-484
M39029/88-485
M39029/88-486
M39029/88-487
M39029/88-488
M39029/88-489
M39029/88-490
M39029/88-491
M39029/88-492
M39029/88-493
Glenair Part Number
850-023-22-470
850-023-22-471
850-023-22-472
850-023-22-473
850-023-20-474
850-023-20-475
850-023-20-476
850-023-20-477
850-023-16-478
850-023-16-479
850-023-16-480
850-023-16-481
850-024-22-482
850-024-22-483
850-024-22-484
850-024-22-485
850-024-20-486
850-024-20-487
850-024-20-488
850-024-20-489
850-024-16-490
850-024-16-491
850-024-16-492
850-024-16-493
Pin
J
MATERIAL AND FINISH
Copper alloy per ASTM B196 or B197, 50 microinches gold plated per ASTM B488 Type II Code C
Class 1.25 over nickel plate per QQ-N-290 Class 2, 50-100 microinches.
Thermocouple contacts: alumel or chromel alloy, unplated, per ANSI 96.1
Socket contact hood: stainless steel, passivated per AMS-QQ-P-35.
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
J-5
SERIES 23
Contacts
M39029 and Glenair signature solutions
MIL-DTL-38999 Series III type
SIZE #8 CAVITY OPTOELECTRONIC CONTACT
TX
(with blue stripe)
Size 8 Cavity Optoelectronic contacts transmit and receive differential CML electrical signals
over Multimode fiber optic cable. Transmitters consist of a laser driver with a temperature
compensation circuit to maintain optical power over the entire operating temperature range,
and a 850nm VCSEL laser. Receivers consist of an 850nm PIN Photo Detector, a Transimpedance
Amplifier with automatic gain control circuit, and a Limiting Amplifier. Differential output data
signals are CML compatible. The transmitter has a Tx Disable pin to turn off transmitter output
and a Tx Fault pin to signal a fault condition. Receiver includes a CMOS compatible Loss of Signal
Indicator to prevent invalid data.
How-To-Order #8 Optoelectronic Contacts
Type
Signal Type
1.25 Gbps
2.50 Gbps
3.20 Gbps
4.25 Gbps
1.25 Gbps
2.50 Gbps
3.20 Gbps
4.25 Gbps
Glenair Part Number
050-301-01-T
050-301-02-T
050-301-03-T
050-301-04-T
050-301-01-R
050-301-02-R
050-301-03-R
050-301-04-R
RX
Patent Pending
Transmitter
Receiver
MATERIAL/FINISH
Shell: 300CRES/Passivate or NM6
Seal: Silicone elastomer
Fiber ferrule & sleeve: Zirconia ceramic
PC tail contacts: Copper alloy/gold plated
PCB flex: FR4 & Polyimide
Solder type: RoHS compliant Sn95/Sb5 (232°C
melting temp) & RoHS compliant Sn96.5/Ag3.0/
Cu0.5 (217° melting)
SIZE #12 PNEUMATIC CONTACTS
Stainless steel pneumatic contacts fit MIL-DTL-38999 connectors. Contacts snap into size #12
cavities. Attach to 3/32 inch (2.38) diameter tubing. Socket contact has fluorosilicone O-ring and
PTFE backup washers. Originally designed for pitot tube connections, these pneumatic contacts
are rated for 100 psi maximum air pressure. No installation tool is required. Remove contacts
with plastic extraction tool 809-132 (M81969/14-04).
Cavity F contains a Pitot tube
Socket contact
Contact
Type
Pin
For Use In
D38999 Type, All Series
Part
Number
830-003
1
J
1. 830-003 supersedes 857-011
Contact
Type
Socket
For Use In
D38999 Type Series I, III, IV
Part Number
830-005
J-6
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
京公网安备 11010802033920号
EEWORLD
