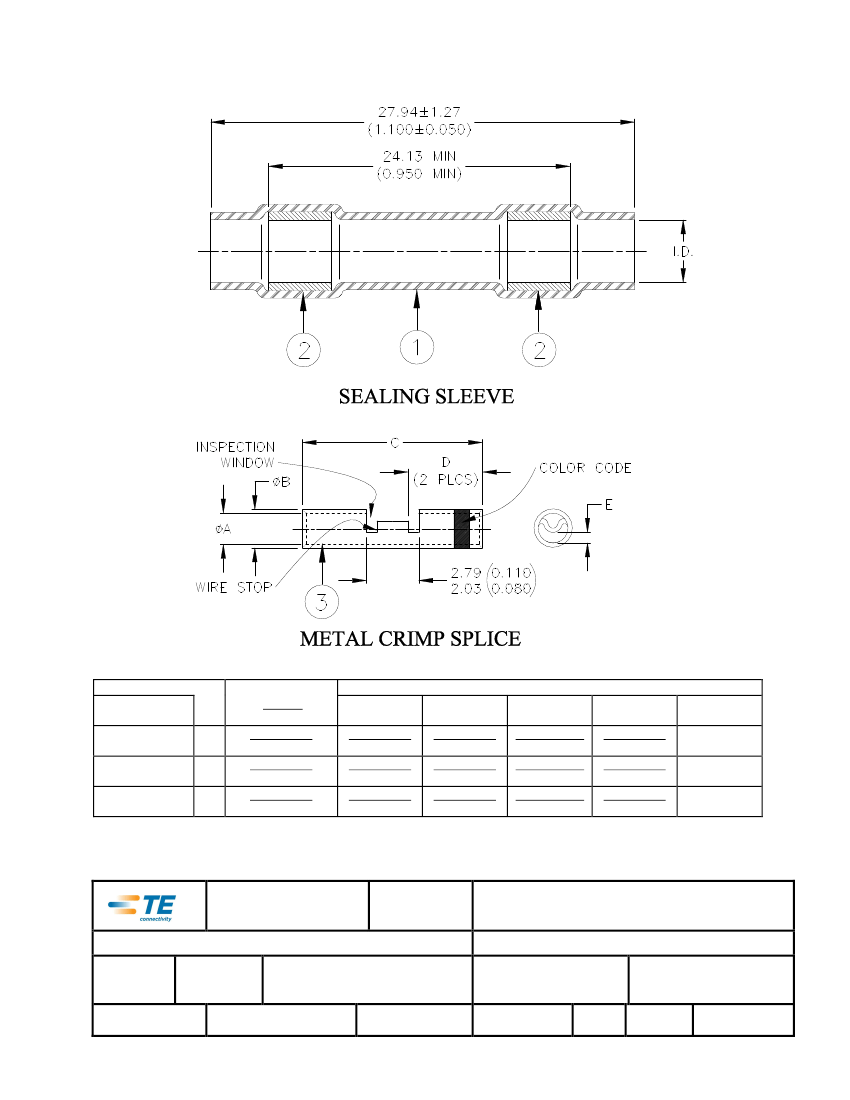

SPECIFICATION CONTROL DRAWING
Product Rev
Product
Name
D-436-36
D-436-37
D-436-38
A
A
A
* I.D.: a) As received;
I.D.*
Product Dimensions
a (min)
A
B
C
D
b (max)
2.16 (0.085)
1.27 (0.050)
2.03 (0.080)
12.95 (0.510)
6.22 (0.245)
0.64 (0.025)
1.14 (0.045)
1.91 (0.075)
12.45 (0.490)
5.72 (0.225)
2.79 (0.110)
1.75 (0.069)
2.69 (0.106)
14.86 (0.585)
7.11 (0.280)
0.64 (0.025)
1.63 (0.064)
2.57 (0.101)
14.35 (0.565)
6.60 (0.260)
4.32 (0.170)
2.59 (0.102)
3.89 (0.153)
14.86 (0.585)
7.11 (0.280)
0.64 (0.025)
2.46 (0.097)
3.73 (0.147)
14.35 (0.565)
6.60 (0.260)
b) After unrestricted recovery thru meltable insert.
E
max
0.38
(0.015)
0.51
(0.020)
1.27
(0.050)
TE Connectivity
305 Constitution Drive
Menlo Park, CA 94025, USA
Raychem
Products
TITLE:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
ANGLES: N/A
TE Connectivity reserves the right to amend this
0.00 N/A
drawing at any time. Users should evaluate the
0.0 N/A
ROUGHNESS IN
suitability of the product for their application.
0 N/A
MICRON
DRAWN BY:
REPLACES:
DCR NUMBER:
IN-LINE SPLICE SEALING SYSTEM,
1 TO 1 MIL-S-81824/1
DOCUMENT NO.:
D-436-36/-37/-38
DATE:
DOC ISSUE:
11MAY11
PROD. REV.
SCALE:
SIZE:
2
SHEET:
M. FORONDA
N/A
D000566
SEE TABLE
None
A
1 of 2
Print Date: 11-May-11
If this document is printed it becomes uncontrolled. Check for the latest revision.
SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene
fluoride.
2. SEALING RINGS: Immersion resistant thermoplastic. Color: one clear, one color coded (see table below).
3. CRIMP SPLICER:
Base Metal: Copper alloy 101 or 102 per ASTM B-75.
Plating: Tin, per MIL-T-10727, Type I
Color code: See table below.
Product
Name
D-436-36
D-436-37
D-436-38
MIL Spec
Equivalent
M81824/-1-1
M81824/-1-2
M81824/-1-3
Wire Range
(AWG)
26 - 20
20 - 16
16 - 12
Color
Code
RED
BLUE
YELLOW
Wgt. - Lbs/Mpc
max
1.02
1.61
2.720
APPLICATION
1. These parts are designed to provide immersion resistant in-line splices of 1 to 1 wires falling within size range listed above,
and having insulations rated for 135°C.
2. Parts will meet all requirements of MIL-S-81824/1 when installed as outlined below. Assembly is not required for
acceptance testing inspection.
3. Acceptance sampling shall be in accordance with Paragraph 4.6.1 of MIL-S-81824.
4. Packing and packaging shall be in accordance with Sections 5, Level C, of MIL-S-81824.
5. This document takes precedence over documents reference herein.
ASSEMBLY PROCEDURE:
1. Slide sealing sleeve onto one of the wires to be spliced.
2. Strip wires 5/16” to 11/32”.
3. Insert one wire into barrel of crimp splicer and crimp using a Raychem AD-1377 crimp tool. Repeat for other wire.
4. Center sealing sleeve over the splice.
5. Apply heat, using an approved heat source, first to one of the inserts and then the other. Heat should be applied until
insert melts and flows axially along the wire.
TE Connectivity
305 Constitution Drive
Menlo Park, CA 94025, USA
Raychem
Products
TITLE:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
ANGLES: N/A
TE Connectivity reserves the right to amend this
0.00 N/A
drawing at any time. Users should evaluate the
0.0 N/A
ROUGHNESS IN
suitability of the product for their application.
0 N/A
MICRON
DRAWN BY:
REPLACES:
DCR NUMBER:
IN-LINE SPLICE SEALING SYSTEM,
1 TO 1 MIL-S-81824/1
DOCUMENT NO.:
D-436-36/-37/-38
DATE:
DOC ISSUE:
11MAY11
PROD. REV.
SCALE:
SIZE:
2
SHEET:
M. FORONDA
N/A
D000566
SEE TABLE
None
A
2 of 2
Print Date: 11-May-11
If this document is printed it becomes uncontrolled. Check for the latest revision.
