Connector
Accessories
Basic Number
650HS058
Dummy Stowage Receptacle for
MIL-DTL-38999 Series III Connector
Shell Size
650HS058
B
17
T
Finish
(Table II)
T
- Flange with 4-40 Mounting Holes
Omit
for Standard Configuration
Master Key
Indicator
Master Key
Indicator
F Sq.
4-40 UNC
4 Places
E Typ.
F Sq.
E Typ.
D Typ.
G
4 Places
B / B1*
C / C1*
H
Dia.

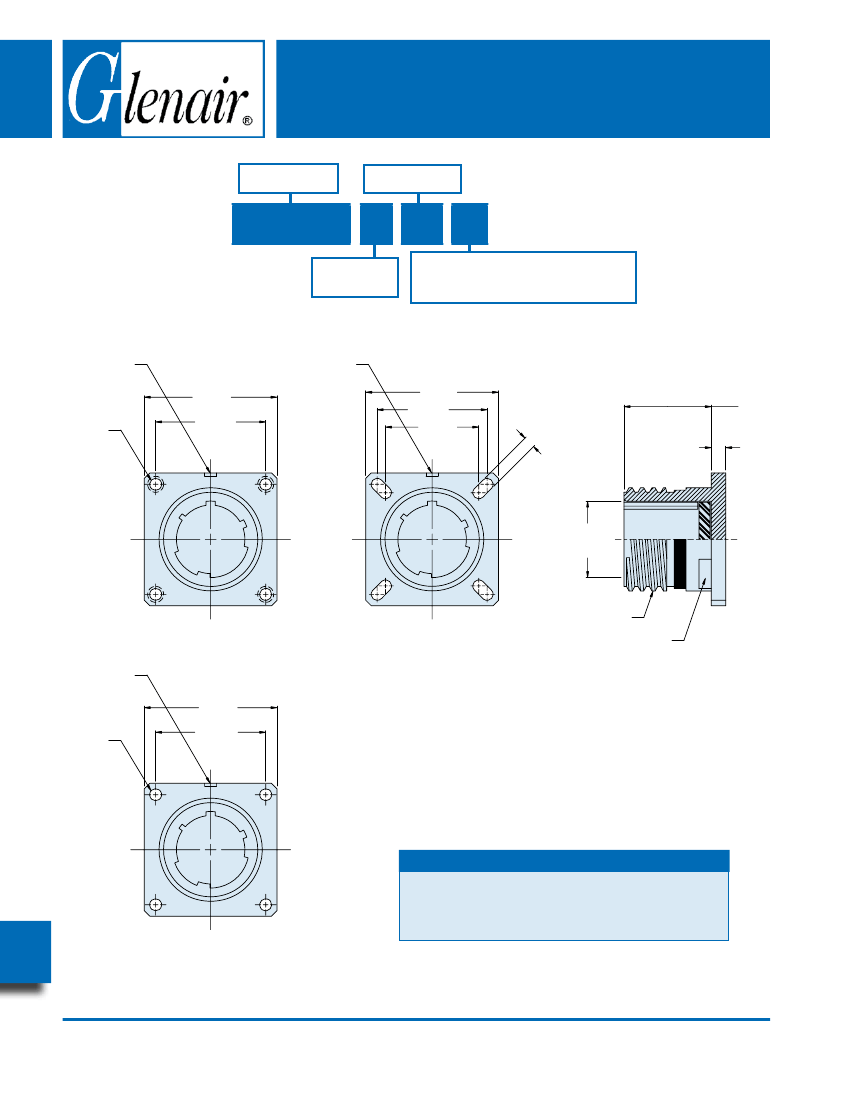

Style T
Metal and Composite Configuration
with 4-40 UNC Mounting Holes
Master Key
Indicator
Standard Configuration
(Metal Shell)
A Thread
Undercut
Mfr. Option
* Denotes the Following:
B (For Aluminum or Stainless Steel)
B1 (For Composite)
C (For Aluminum or Stainless Steel)
C1 (For Composite)
F Sq.
G Dia.
4 Places
E Typ.
APPLICATION NOTES
1.
2.
See applicable Military Specification for complete
dimensions.
Metric dimensions (mm) are indicated in parentheses.
G
Standard Configuration
(Composite Shell Finish XM and XW)
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
G-42
650HS058
Dummy Stowage Receptacle for
MIL-DTL-38999 Series III Connector
TABLE II: FINISHES
Symbol
B
J
M
N
NF
T
Z1
MT
XM
XW
XZN
Finish
Cadmium Plate, Olive Drab
Gold Iridite over Cadmium Plate
over Nickel
Electroless Nickel
Cad Plate, Olive Drab over
Electroless Nickel
Cadmium Plate, Olive Drab over
Electroless Nickel
Cad Plate / Bright Dip over Nickel
300 Series SST, Passivated
Ni-PTFE
1000 Hour Grey
TM
Nickel Fluorocarbon Polymer
Composite, Electroless Nickel
Composite, Cadmium Olive Drab
over Electroless Nickel
Composite, Zinc-Nickel
TABLE I: DIMENSIONS
Shell
Size
A
B
C
D
E
F
G
H
J
Shell Size
Ref
9
11
13
15
17
19
21
23
25
A
Thread
.625-.1P-3LTS
.750-.1P-3LTS
.875-.1P-3LTS
1.000-.1P-3LTS
1.187-.1P-3LTS
1.250-.1P-3LTS
1.375-.1P-3LTS
1.500-.1P-3LTS
1.625-.1P-3LTS
B
+.000
-.005 (.13)
.820 (20.83)
.820 (20.83)
.820 (20.83)
.820 (20.83)
.820 (20.83)
.820 (20.83)
.790 (20.07)
.790 (20.07)
.790 (20.07)
B1
+.055
-.000
.768 (19.5)
.768 (19.5)
.768 (19.5)
.768 (19.5)
.768 (19.5)
.768 (19.5)
.736 (18.7)
.736 (18.7)
.736 (18.7)
C
±.012 (0.3)
.098 (2.5)
.098 (2.5)
.098 (2.5)
.098 (2.5)
.098 (2.5)
.098 (2.5)
.126 (3.2)
.126 (3.2)
.126 (3.2)
C1
.144/.087 (3.65/2.2)
.144/.087 (3.65/2.2)
.144/.087 (3.65/2.2)
.144/.087 (3.65/2.2)
.144/.087 (3.65/2.2)
.144/.087 (3.65/2.2)
.171/.114 (4.35/2.9)
.171/.114 (4.35/2.9)
.171/.114 (4.35/2.9)
D
.594 (15.09)
.719 (18.26)
.812 (20.62)
.906 (23.01)
.969 (24.61)
1.062 (26.97)
1.156 (29.36)
1.250 (31.75)
1.375 (34.93)
TABLE I: DIMENSIONS (CONTINUED)
Shell
Size
A
B
C
D
E
F
G
H
J
© 2008 Glenair, Inc.
www.glenair.com
Shell Size
Ref
9
11
13
15
17
19
21
23
25
E
.719 (18.26)
.812 (20.62)
.906 (23.01)
.969 (24.61)
1.062 (26.97)
1.156 (29.36)
1.250 (31.75)
1.375 (34.93)
1.500 (38.10)
F
±.012 (0.3)
.937 (23.8)
1.031 (26.2)
1.126 (28.6)
1.220 (31.0)
1.311 (33.3)
1.437 (36.5)
1.563 (39.7)
1.689 (42.9)
1.811 (46.0)
G Dia
±.008 (0.2)
.128 (3.25)
.128 (3.25)
.128 (3.25)
.128 (3.25)
.128 (3.25)
.128 (3.25)
.128 (3.25)
.154 (3.91)
.154 (3.91)
H
+.000
-.005 (.127)
.492 (12.5)
.620 (15.7)
.769 (19.5)
.894 (22.7)
1.019 (25.9)
1.124 (28.5)
1.249 (31.7)
1.375 (34.9)
1.499 (38.1)
Printed in U.S.A.
E-Mail: sales@glenair.com
CAGE CODE 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
