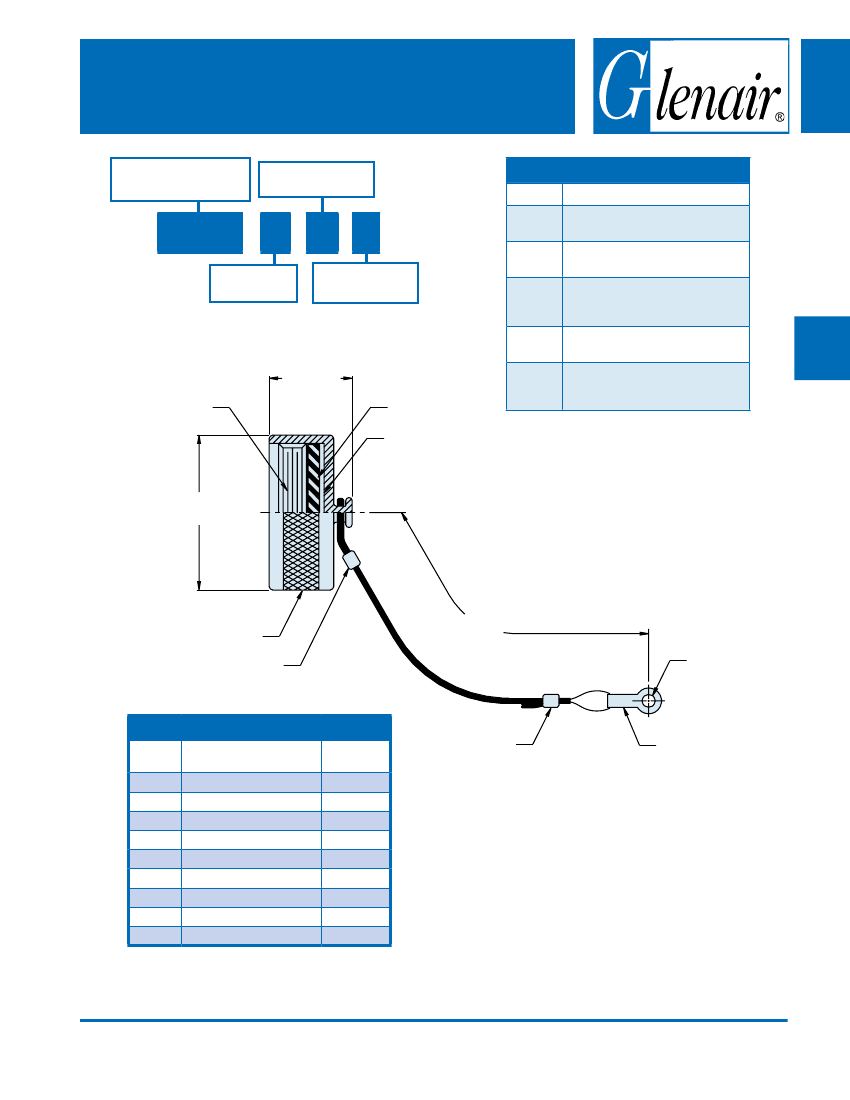

for MIL-DTL-38999 Series III Connectors
with Anti-Rotation Device
Basic Part Number
667-104
- Protective Cover
Connector Shell Size
(See
Table I)
TABLE II
Symbol
XB
XM
Finish Description
No Plating - Black Color
(Non-Conductive Finish)
2000 Hour Corrosion Resistant
Electroless Nickel
2000 Hour Corrosion Resistant
Ni-PTFE, Nickel-Fluorocarbon
Polymer.
1000 Hour Grey
TM
No Plating - Brown Color
(Non-Conductive Finish)
2000 Hour Corrosion Resistant
Cadmium/Olive Drab over
Electroless Nickel
667-104 - C
Finish Symbol
(See
Table II)
15
L
Less Attachment
and Boss
XMT
XO
.91 Max
A Thread
Seal
Anti-Rotation Device
XW
B Max
Knurl Style Mfr. Option
Crimp Ring
2.75 / 2.25
.140 Dia
TABLE I: CONNECTOR SHELL SIZE
Shell
Size
09
11
13
15
17
19
21
23
25
A Thread
.6250-0.1P-0.3L-TS
.7500-0.1P-0.3L-TS
.8750-0.1P-0.3L-TS
1.0000 -0.1P-0.3L-TS
1.1875 -0.1P-0.3L-TS
1.2500 -0.1P-0.3L-TS
1.3750 -0.1P-0.3L-TS
1.5000 -0.1P-0.3L-TS
1.6250 -0.1P-0.3L-TS
B Max
.906
1.102
1.220
1.260
1.457
1.535
1.654
1.772
1.929
Crimp Ring
Clevis
Metric dimensions (mm) are in parentheses
and are for reference only.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-11
Protective
Covers
667-104
Composite Receptacle Cover
A
B
C
D
E
F
G
