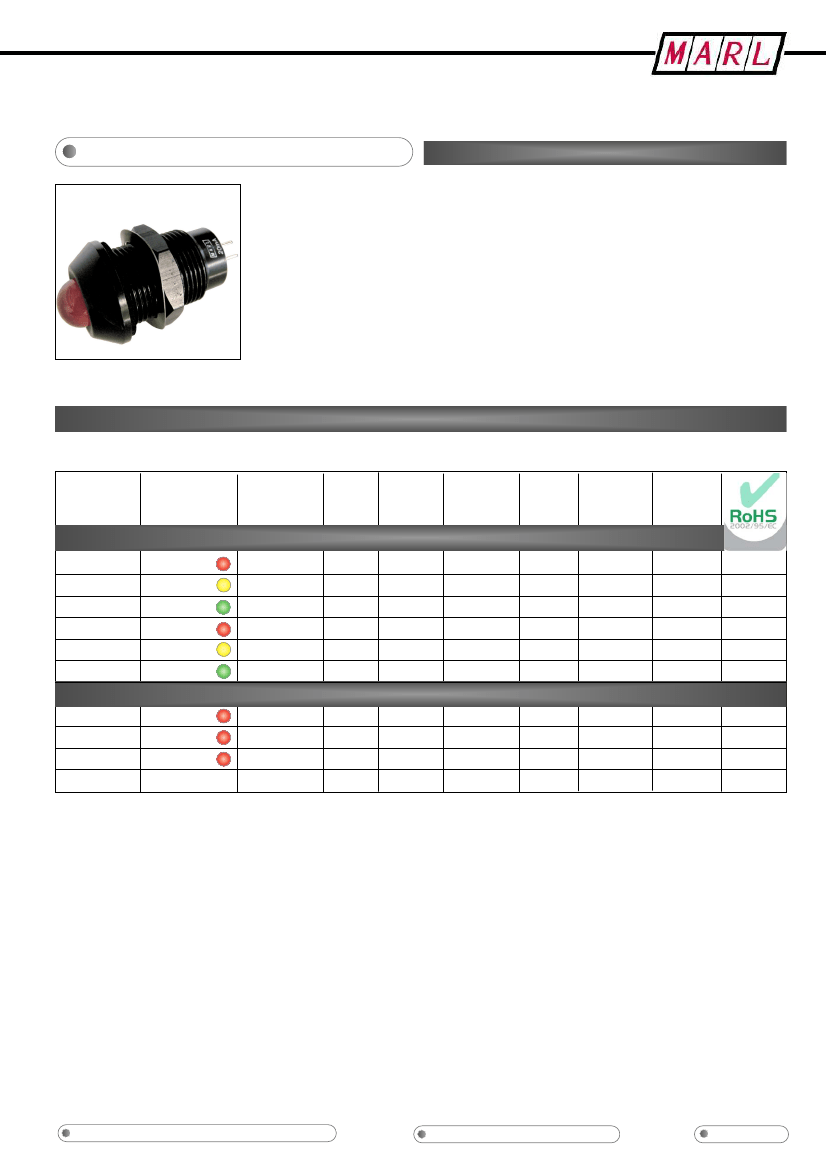

PROFESSIONAL LED INDICATORS Ø16mm Mounting
FEATURES
Black anodised aluminium housing
678 SERIES
PACK QUANTITY = 10 PIECES
Sealed to IP67
Excellent wide viewing angle characteristics
Suitable for high vibration applications
Internal reverse protection diode fitted as standard in all
voltage models.
SPECIFICATION
Ordering Information & Typical T
echnical Characteristics (T
a = 25°C)
Mean Time Between Failure = 100,000 Hours.
PART NUMBER
COLOUR
Luminous intensity figures refer to the unmodified discrete LED.
VOLTAGE
CURRENT
LUMINOUS
WAVE
OPERATING
STORAGE
LENS
DC (Vdc)
Vopr
DC (mA)
lopr
INTENSITY
lv@20mA (mcd)
LENGTH
λp
(nm)
TEMP
T
opr
TEMP
T
stg
STANDARD INTENSITY
678-105-21
678-111-21
678-114-21
678-105-23
678-111-23
678-114-23
Red
Yellow
Green
Red
Yellow
Green
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
12
12
12
24-28
24-28
24-28
19
20
20
20
20
20
100
50
60
100
50
60
627
590
565
627
590
565
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
Yes
Yes
Yes
Yes
Yes
Yes
HIGH INTENSITY
678-102-04
678-102-21
678-102-23
UNITS
Red
Red
Red
Colour Diffused
Colour Diffused
Colour Diffused
1.85
12
24-28
Vdc
20
20
20
mA
450
450
450
mcd
660
660
660
nm
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
°C
-40 ~ +85
-40 ~ +85
-40 ~ +85
°C
Yes
Yes
Yes
^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs. Refer to page 3
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
© MARL INTERNATIONAL LTD 2007 : DS 090/07
Issue 1
SAMPLES AVAILABLE
Page 1 of
3

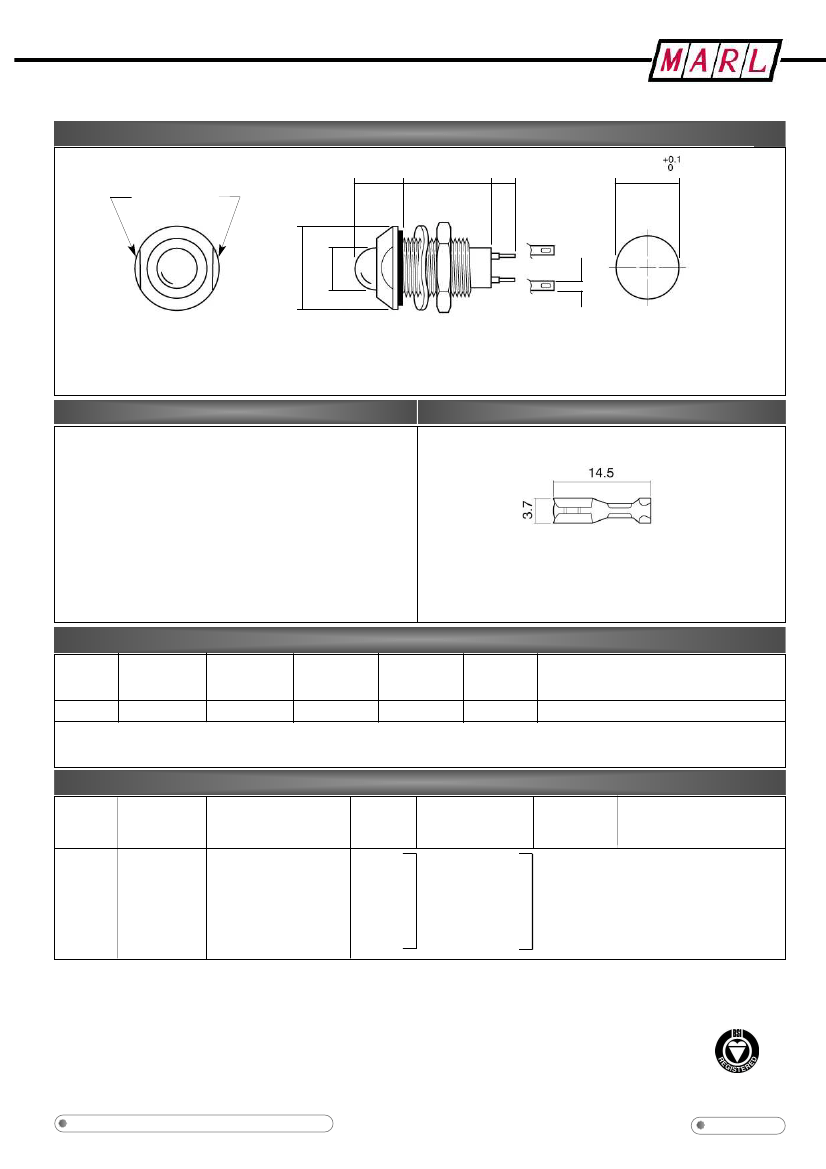

678 SERIES
12.2
2 Anti-Rotation Flats
22.5
6.0
Ø16.0
Ø21.0
Ø10.0
2.8
Mounting Hole
Dimensions in mm (Typical)
Not to scale
Anode termination indicated by red sleeve
MATERIALS
Body
Nut
Panel Seal
T
ermination T
ags
Lens
Encapsulation
Lock Washer
Black anodised aluminium
Black anodised aluminium
Viton
Tin Plated Phosphor Bronze
Epoxy
PC5430 resin
Spring Steel
PUSH-ON CONNECTORS
925-000-00 is brass tin plated.
Dimensions in mm (Typical)
Not to scale
For use with 678 series lamps.
TECHNICAL CHARACTERISTICS
SERIES
MAXIMUM
DISSIPATION
678
UNITS
1700
mW
POWER
MAXIMUM
VOLTAGE
3* / 1000•
Vdc
• = Voltage Version
REVERSE
PANEL
NUT
MINIMUM
MIN/MAX.
THICKNESS
1.5-8.0
mm
PANEL
CUTOUT
TORQUE
1.0
Nm
MOUNTING
CENTRES
x,y = 25.0
mm
MOUNTING
16.0
mm
* = Current Version
OPTIONAL FLYING LEAD TERMINATIONS
ORDER
SUFFIX
15
15
19
19
CODE
SUPPLY
WIRE
WIRE
NO/DIAMETER
CONDUCTORS
OF
DIAMETER
INSULATION
OVER
COMMENTS
VOLTAGE
COLOUR
LENGTH
DC Products
AC Products
DC Products
AC Products
Red-anode / Black-cathode
Brown-live / Blue-neutral
Red-anode / Black-cathode
Brown-live / Blue-neutral
150mm
150mm
1000mm
1000mm
Customised
available
19/0.15mm
1.2mm
lengths
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
BS EN ISO 9001:2000
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
© MARL INTERNATIONAL LTD 2007 : DS 090/07
Issue 1
Page 2 of 3

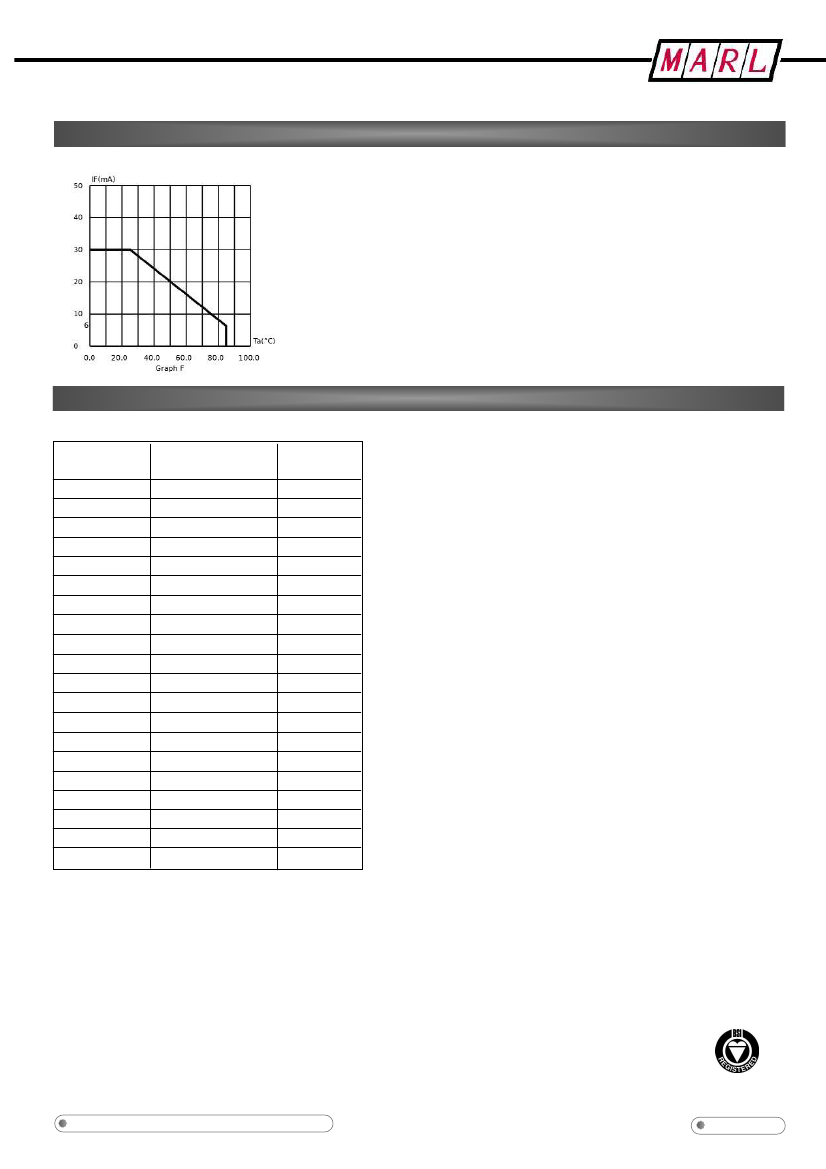

DERATING INFORMATION
102, 105, 111 & 114
678 SERIES
Part numbers also available in the 307 Series:
PART NO.
COLOUR
VOLTAGE
(Vdc) Vopr
678-102-22
678-102-75
678-102-76
678-105-04
678-105-22
678-105-75
678-105-76
678-111-04
678-111-22
678-111-71
678-111-76
678-114-22
678-114-45
678-114-58
678-114-75
678-114-76
678-114-86
678-521-00-50
678-930-00-51
UNITS
Red
Red
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Green
Green
Green
Green
Green
Green
Yellow
Blue
24Vdc
110Vac
230Vac
20mA
24Vdc
110Vac
230Vac
20mA
24Vdc
12Vac
230Vac
24Vdc
30Vdc
70Vdc
110Vac
230Vac
115Vac
110Vdc
110Vdc
The products listed above illustrate all of the options available to order. These products may have custom
modifications that alter their operation beyond the generic information contained within this datasheet. Please
contact sales for further information.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
BS EN ISO 9001:2000
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
© MARL INTERNATIONAL LTD 2007 : DS 090/07
Issue 1
Page 3 of 3
