678D
www.vishay.com
Vishay Sprague
Aluminum Capacitors
105 °C, Miniature, Radial Lead

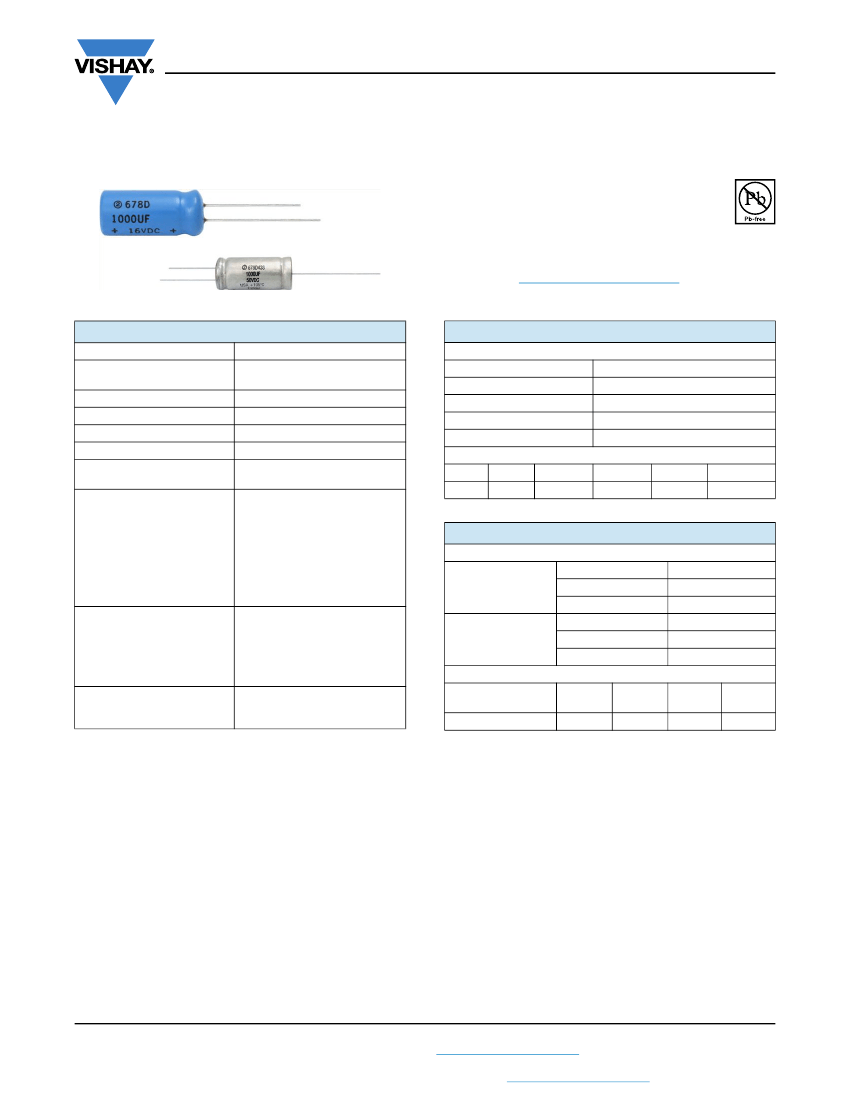

FEATURES
• Improved SMPS output capacitors
• Highest ripple current ratings per case size
• High CV
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Available
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
Ø D x L in inches [mm]
Operating temperature
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
VALUE
0.394 x 0.472 [10.0 x 12.0]
to 0.709 x 1.575 [18.0 x 40.0]
- 55 °C to + 105 °C
33 μF to 6800 μF
± 20 %
6.3 WV
DC
to 63 WV
DC
2 and 3 radial leads and axial
mount.
4000 h (0.512" [13.0] diameter):
3000 h (0.394" [10.0] diameter):
CAP
20 % (6.3 WV
DC
to 25 WV
DC
),
15 % (40 WV
DC
to 63 WV
DC
)
from initial measurement.
ESR
1.3 x initial
specified limit.
DCL
2 x initial specified limit.
1000 h:
CAP
20 %
(6.3 WV
DC
to 25 WV
DC
),
15 % (40 WV
DC
to 63 WV
DC
)
from initial measurements.
ESR
1.3 x initial
specified limit.
I = 0.01 CV, 2 min charge time.
I = 0.03 CV, 1 min charge time.
I in μA, C in μF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 105 °C
+ 85 °C
+ 75 °C
+ 65 °C
FREQUENCY (Hz)
WV
DC
50 TO 60 100 TO 120 300 TO 400 1K TO 19K 20K TO 200K
6.3 to 63
0.60
0.70
0.75
0.82
1.0
MULTIPLIERS
1.0
2.2
2.7
3.0
LOW TEMPERATURE PERFORMANCE
CAPACITANCE RATIO C
- 55 °C
/C
+ 25 °C
MINIMUM AT 120 Hz
MAXIMUM
CAPACITANCE
CHANGE
MAXIMUM
IMPEDANCE
CHANGE
VOLTAGE
6.3 V to 16 V
25 V to 63 V
VOLTAGE
6.3 V to 16 V
25 V to 63 V
0.394
[10.0]
4.0
0.512
[13.0]
7.0
0.630
[16.0]
10.0
MULTIPLIER
0.75
0.85
MULTIPLIER
2.0
1.5
0.709
[18.0]
12.0
Life validation test at 105 °C
Shelf life at 105 °C
ESL (TYPICAL VALUES AT 1 MHz TO 10 MHz)
NOMINAL
DIAMETER
TYPICAL ESL (nH)
DC leakage current
Revision: 23-May-13
Document Number: 42055
1
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
678D
www.vishay.com

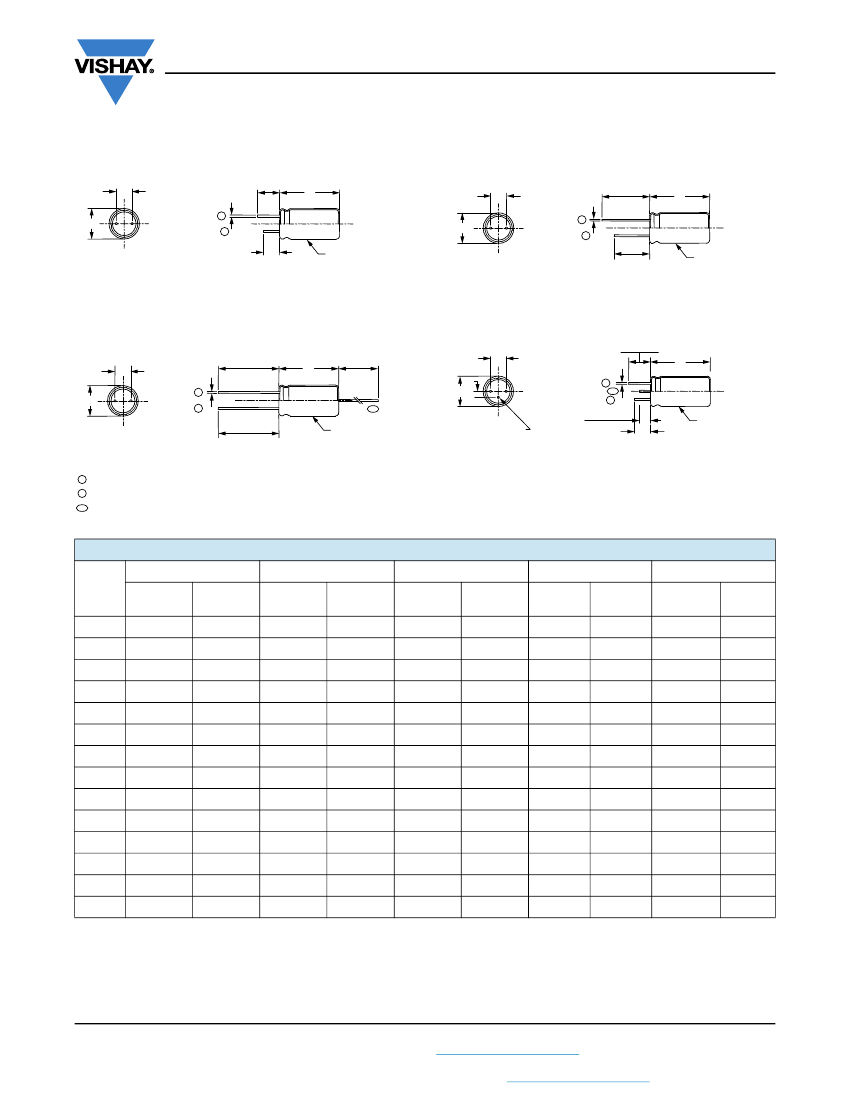

BULK SPECIFICATIONS
in millimeters
TERMINAL CODE C
S
D
+
-
Vishay Sprague
TERMINAL CODE D
9.5 min.
W
L
S
+
20 min.
W
L
D
7.1 min.
Sleeve
-
15 min.
Sleeve
TERMINAL CODE J
25 min.
S
+
TERMINAL CODE O
9.5 ± 1.6
W
L
25 min.
T
D
NC
S
+
NC
W
L
D
-
-
5.0 ± 1.6
Third lead may fall
within ± 20° of C
L
25 min.
Sleeve
7.1 ± 1.6
Sleeve
Notes
+
Positive terminal
-
Negative terminal
NC
No charge potential
DIMENSIONS
in inches [millimeters]
NOMINAL
CASE
CODE
CC
CD
CG
DG
DK
DM
DT
DS
EK
EN
ER
EU
FR
FV
D
L
STYLES 2 AND 4
D (max.)
L (max.)
STYLES 3 AND 5
D (max.)
L (max.)
LEAD SPACING
S ± 0.024
[0.60]
T ± 0.020
[0.50]
n/a
n/a
n/a
LEAD DIAMETER
NOMINAL
0.025 [0.63]
0.025 [0.63]
0.025 [0.63]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
0.032 [0.81]
AWG
22
22
22
20
20
20
20
20
20
20
20
20
20
20
0.394 [10.0] 0.512 [13.0] 0.413 [10.5] 0.563 [14.3] 0.413 [10.5] 0.630 [16.0] 0.197 [5.0]
0.394 [10.0] 0.630 [16.0] 0.413 [10.5] 0.669 [17.0] 0.413 [10.5] 0.740 [18.8] 0.197 [5.0]
0.394 [10.0] 0.787 [20.0] 0.413 [10.5] 0.846 [21.5] 0.413 [10.5] 0.906 [23.0] 0.197 [5.0]
0.492 [12.5] 0.787 [20.0] 0.512 [13.0] 0.846 [21.5] 0.512 [13.0] 0.906 [23.0] 0.197 [5.0] 0.098 [2.5]
0.492 [12.5] 0.984 [25.0] 0.512 [13.0] 1.043 [26.5] 0.512 [13.0] 1.142 [29.0] 0.197 [5.0] 0.098 [2.5]
0.492 [12.5] 1.043 [26.5] 0.512 [13.0] 1.102 [28.0] 0.512 [13.0] 1.161 [29.5] 0.197 [5.0] 0.098 [2.5]
0.492 [12.5] 1.319 [33.5] 0.512 [13.0] 1.346 [34.2] 0.512 [13.0] 1.417 [36.0] 0.197 [5.0] 0.098 [2.5]
0.492 [12.5] 1.673 [42.5] 0.512 [13.0] 1.720 [43.7] 0.512 [13.0] 1.791 [45.5] 0.197 [5.0] 0.098 [2.5]
0.630 [16.0] 0.984 [25.0] 0.650 [16.5] 1.031 [26.2] 0.650 [16.5] 1.098 [27.9] 0.295 [7.5] 0.150 [3.8]
0.630 [16.0] 1.260 [32.0] 0.650 [16.5] 1.319 [33.5] 0.650 [16.5] 1.417 [36.0] 0.295 [7.5] 0.150 [3.8]
0.630 [16.0] 1.417 [36.0] 0.650 [16.5] 1.476 [37.5] 0.650 [16.5] 1.575 [40.0] 0.295 [7.5] 0.150 [3.8]
0.630 [16.0] 1.575 [40.0] 0.650 [16.5] 1.642 [41.7] 0.650 [16.5] 1.669 [42.4] 0.295 [7.5] 0.150 [3.8]
0.709 [18.0] 1.417 [36.0] 0.728 [18.5] 1.476 [37.5] 0.728 [18.5] 1.575 [40.0] 0.295 [7.5] 0.150 [3.8]
0.709 [18.0] 1.575 [40.0] 0.728 [18.5] 1.653 [42.0] 0.728 [18.5] 1.693 [43.0] 0.295 [7.5] 0.150 [3.8]
Revision: 23-May-13
Document Number: 42055
2
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
678D
www.vishay.com
TAPE AND REEL, SPECIFICATIONS TO EIA-468D
in inches [millimeters]
Formed Leads
P
Vishay Sprague
K
H
F
H
0
W
0
W
L
1
P
0
d
D
0
DIMENSIONS
in inches [millimeters]
AND PACKAGING QUANTITIES
CASE SIZE
0.236 x 0.453 [6.0 x 11.0]
0.315 x 0.472 [8.0 x 12.0]
F LEAD SPACING
0.197 [5.0]
0.197 [5.0]
P
STD. QTY/REEL
800
700
Unformed (Straight) Leads
H
F
W
0
W
L
1
P
0
d
D
0
f
DIMENSIONS
in inches [millimeters]
AND PACKAGING QUANTITIES
CASE SIZE
0.236 x 0.453 [6.0 x 11.0]
0.315 x 0.472 [8.0 x 12.0]
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.630 [10.0 x 16.0]
0.394 x 0.787 [10.0 x 20.0]
Note
(1)
Available as special order.
F LEAD SPACING
0.098 [2.5]
0.140
(1)
[3.5]
0.197 [5.0]
0.197 [5.0]
0.197 [5.0]
STD. QTY/REEL
800
700
500
500
500
Revision: 23-May-13
Document Number: 42055
3
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
678D
www.vishay.com
Vishay Sprague
CASE SIZE (DIAMETER x LENGTH)
0.315 x 0.472
0.394 x 0.512
0.394 x 0.630
[8.0 x 12.0]
[10.0 x 13.0]
[10.0 x 16.0]
0.025 [0.63]
0.025 [0.63]
0.025 [0.63]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.197 [5.0]
0.197 [5.0]
0.197 [5.0]
0.157 [4.0]
n/a
n/a
0.787 [20.0]
0.906 [23.0]
0.906 [23.0]
0.630 [16.0]
n/a
n/a
0.709 [18.0]
0.709 [18.0]
0.709 [18.0]
0.591 [15.0]
0.591 [15.0]
0.591 [15.0]
0.157 [4.0]
0.157 [4.0]
0.157 [4.0]
0.028 [0.7]
0.028 [0.7]
0.028 [0.7]
0.118 [3.0]
0.118 [3.0]
0.118 [3.0]
DIMENSIONS
in inches [millimeters]
ITEM
d - Lead-wire diameter
P - Pitch of component
P
0
- Feed hole pitch
F - Lead-to-lead distance
K - Clinch height
H - Height of component from tape center
H
0
- Lead-wire clinch height
W - Tape width
W
0
- Hold down tape width
D
0
- Feed hole diameter
t - Total tape thickness
L
1
- Maximum lead protrusion
0.236 x 0.433
[6.0 x 11.0]
0.025 [0.63]
0.500 [12.7]
0.500 [12.7]
0.197 [5.0]
0.098 [2.5]
0.728 [18.5]
0.630 [16.0]
0.709 [18.0]
0.591 [15.0]
0.157 [4.0]
0.028 [0.7]
0.118 [3.0]
0.394 x 0.787
[10.0 x 20.0]
0.025 [0.63]
0.500 [12.7]
0.500 [12.7]
0.197 [5.0]
n/a
0.906 [23.0]
n/a
0.709 [18.0]
0.591 [15.0]
0.157 [4.0]
0.028 [0.7]
0.118 [3.0]
Note
• Terminal Code “I” = Tape and reel. Terminal Code “+” = Tape and ammo.
Positive leader is standard. Negative leader is available by special order.
ORDERING EXAMPLE
Electrolytic capacitor 678D series: 678D 108 M 6R3 DG 3 D
DESCRIPTION
CODE
678D
108
M
6R3
DG
3
D
EXPLANATION
Product type
Capacitance value (1000 μF)
Tolerance (M = ± 20 %)
Voltage rating at 105 °C (6R3 = 6.3 V)
Can size (see Dimensions table)
Sleeve and sealing (3 = P.V.C. sleeve w/epoxy end seal)
Terminal code/packaging (D = Bulk; straight leads)
Note
• For lead (Pb)-free/RoHS compliant products add suffix “E3” to part number.
Example: 678D108M6R3DG3DE3
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(μF)
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR
AT + 25 °C (m)
20 Hz
20 kHz
0.213
0.133
0.071
0.041
0.031
0.029
0.135
0.092
0.062
0.042
0.038
0.031
MAX. RIPPLE
AT + 105 °C (A)
20 kHz to 100 kHz
0.36
0.49
0.83
1.36
1.67
2.02
0.46
0.63
0.98
1.52
1.56
1.97
MAX.
IMPEDANCE
AT + 25 °C (m)
100 Hz
0.213
0.132
0.070
0.045
0.032
0.031
0.134
0.090
0.061
0.046
0.041
0.033
330.0
470.0
1000.0
2200.0
3300.0
4700.0
330.0
470.0
1000.0
(1)
2200.0
3300.0
4700.0
678D337M6R3CC3D
678D477M6R3CD3D
678D108M6R3DG3D
678D228M6R3EK3D
678D338M6R3DS3D
678D478M6R3FR3D
678D337M010CD3D
678D477M010CG3D
678D108M010DM3D
678D228M010EK3D
678D338M010EN3D
678D487M010FR3D
6.3 WV
DC
at 105 °C, SURGE = 9 V
0.394 x 0.512 [10.0 x 13.0]
0.540
0.394 x 0.630 [10.0 x 16.0]
0.340
0.492 x 0.787 [12.5 x 20.0]
0.200
0.630 x 0.984 [16.0 x 25.0]
0.110
0.492 x 1.673 [12.5 x 42.5]
0.067
0.709 x 1.417 [18.0 x 36.0]
0.066
10 WV
DC
AT 105 °C, SURGE = 13 V
0.394 x 0.630 [10.0 x 16.0]
0.350
0.394 x 0.787 [10.0 x 20.0]
0.235
0.492 x 1.043 [12.5 x 26.5]
0.120
0.630 x 0.984 [16.0 x 25.0]
0.115
0.630 x 1.260 [16.0 x 32.0]
0.085
0.709 x 1.417 [18.0 x 36.0]
0.070
Revision: 23-May-13
Document Number: 42055
4
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
678D
www.vishay.com
Vishay Sprague
MAX. ESR
AT + 25 °C (m)
20 Hz
20 kHz
MAX. RIPPLE
AT + 105 °C (A)
20 kHz to 100 kHz
MAX.
IMPEDANCE
AT + 25 °C (m)
100 Hz
0.217
0.136
0.094
0.065
0.034
0.034
0.148
0.098
0.075
0.045
0.034
0.028
0.250
0.100
0.076
0.068
0.036
0.028
0.265
0.165
0.070
0.050
0.035
0.275
0.112
0.071
0.052
0.039
0.032
0.288
0.180
0.090
0.054
0.054
0.040
0.038
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(μF)
PART NUMBER
NOMINAL CASE SIZE
DxL
16 WV
DC
AT 105 °C, SURGE = 20 V
220.0
(1)
330.0
(1)
678D227M016CC3D
678D337M016CD3D
678D477M016CG3D
678D108M016DM3D
678D228M016ER3D
678D338M016FR3D
678D227M020CD3D
678D337M020CG3D
678D477M020DG3D
678D108M020DT3D
678D228M020ER3D
678D338M020FV3D
678D107M025CC3D
678D227M025CG3D
678D337M025DG3D
678D477M025DM3D
678D108M025DS3D
678D228M025FV3D
678D476M040CC3D
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.630 [10.0 x 16.0]
0.394 x 0.787 [10.0 x 20.0]
0.492 x 1.043 [12.5 x 26.5]
0.630 x 1.417 [16.0 x 36.0]
0.709 x 1.417 [18.0 x 36.0]
0.394 x 0.630 [10.0 x 16.0]
0.394 x 0.787 [10.0 x 20.0]
0.492 x 0.787 [12.5 x 20.0]
0.492 x 1.280 [12.5 x 33.5]
0.630 x 1.417 [16.0 x 36.0]
0.709 x 1.575 [18.0 x 40.0]
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.787 [10.0 x 20.0]
0.492 x 0.787 [12.5 x 20.0]
0.492 x 1.043 [12.5 x 26.5]
0.492 x 1.673 [12.5 x 42.5]
0.709 x 1.575 [18.0 x 40.0]
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.630 [10.0 x 16.0]
0.492 x 1.043 [12.5 x 26.5]
0.630 x 0.984 [16.0 x 25.0]
0.630 x 1.417 [16.0 x 36.0]
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.787 [10.0 x 20.0]
0.472 x 1.043 [12.5 x 26.5]
0.630 x 0.984 [16.0 x 25.0]
0.492 x 1.673 [12.5 x 42.5]
0.709 x 1.575 [18.0 x 40.0]
0.394 x 0.512 [10.0 x 13.0]
0.394 x 0.630 [10.0 x 16.0]
0.492 x 0.787 [12.5 x 20.0]
0.492 x 1.280 [12.5 x 33.5]
0.630 x 0.984 [16.0 x 25.0]
0.492 x 1.673 [12.5 x 42.5]
0.630 x 1.417 [16.0 x 36.0]
0.585
0.370
0.250
0.130
0.074
0.074
0.380
0.270
0.250
0.115
0.077
0.061
0.700
0.300
0.270
0.160
0.090
0.062
0.950
0.580
0.200
0.133
0.080
1.250
0.520
0.240
0.150
0.110
0.077
1.600
1.000
0.450
0.160
0.170
0.130
0.120
0.217
0.137
0.098
0.066
0.032
0.032
0.150
0.100
0.077
0.048
0.032
0.026
0.250
0.105
0.078
0.067
0.034
0.026
0.265
0.165
0.068
0.046
0.033
0.275
0.115
0.069
0.048
0.036
0.028
0.288
0.180
0.093
0.055
0.050
0.038
0.035
0.40
0.52
0.70
1.00
1.78
1.94
0.41
0.61
0.45
0.78
1.80
2.25
0.32
0.59
0.79
0.97
1.60
2.22
0.28
0.38
0.93
1.28
1.76
0.28
0.57
0.93
1.26
1.55
2.15
0.27
0.37
0.72
1.10
1.23
1.51
1.70
470.0
1000.0
(1)
2200.0
3300.0
220.0
330.0
470.0
1000.0
2200.0
3300.0
100.0
(1)
220.0
330.0
(1)
20 WV
DC
AT 105 °C, SURGE = 30 V
25 WV
DC
AT 105 °C, SURGE = 35 V
470.0
(1)
1000.0
2200.0
47.0
100.0
(1)
40 WV
DC
AT 105 °C, SURGE = 55 V
678D107M040CD3D
678D337M040DM3D
678D477M040EK3D
678D108M040ER3D
678D476M050CC3D
678D107M050CG3D
678D227M050DM3D
678D337M050EK3D
678D477M050DS3D
678D108M050FV3D
678D336M063CC3D
678D476M063CD3D
678D107M063DG3D
678D227M063DT3D
678D227M063EK3D
678D337M063DS3D
678D477M063ER3D
330.0
(1)
470.0
(1)
1000.0
47.0
100.0
(1)
220.0
330.0
470.0
1000.0
33.0
47.0
100.0
220.0
220.0
(1)
330.0
470.0
50 WV
DC
AT 105 °C, SURGE = 75 V
63 WV
DC
AT 105 °C, SURGE = 80 V
Note
(1)
These values are normally stocked.
Revision: 23-May-13
Document Number: 42055
5
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
