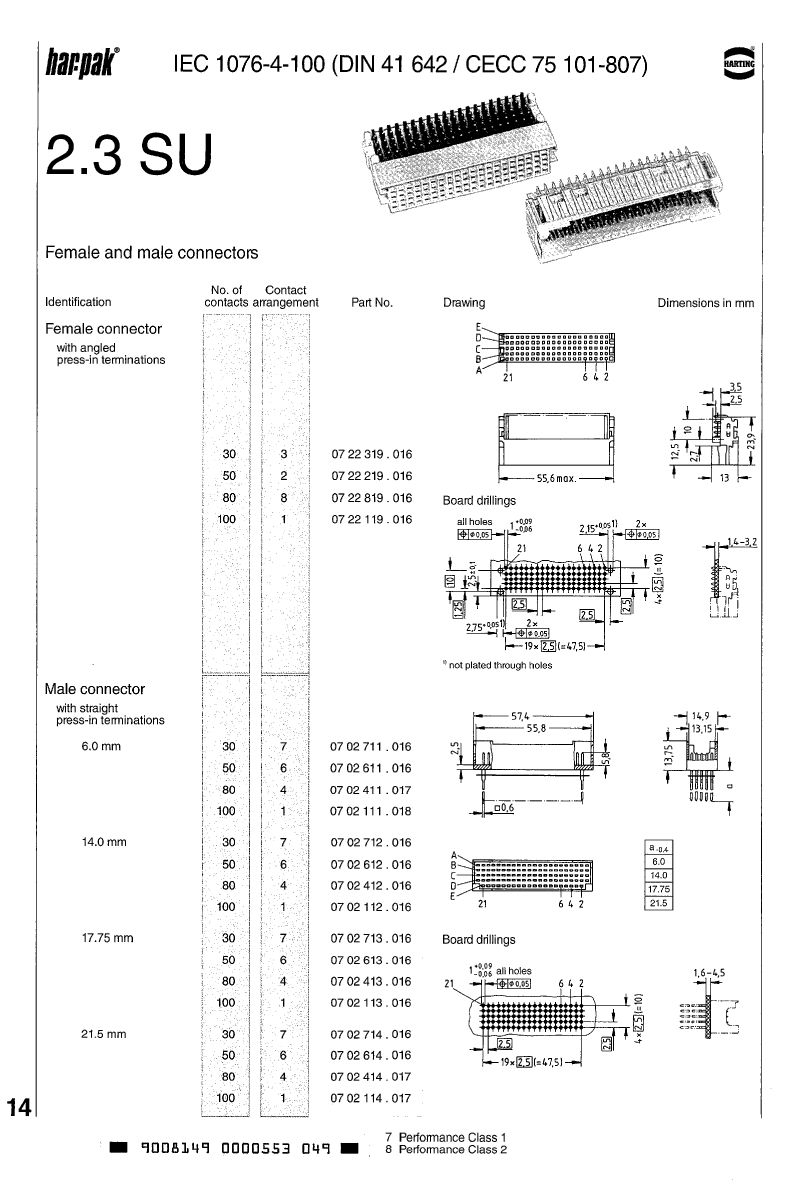

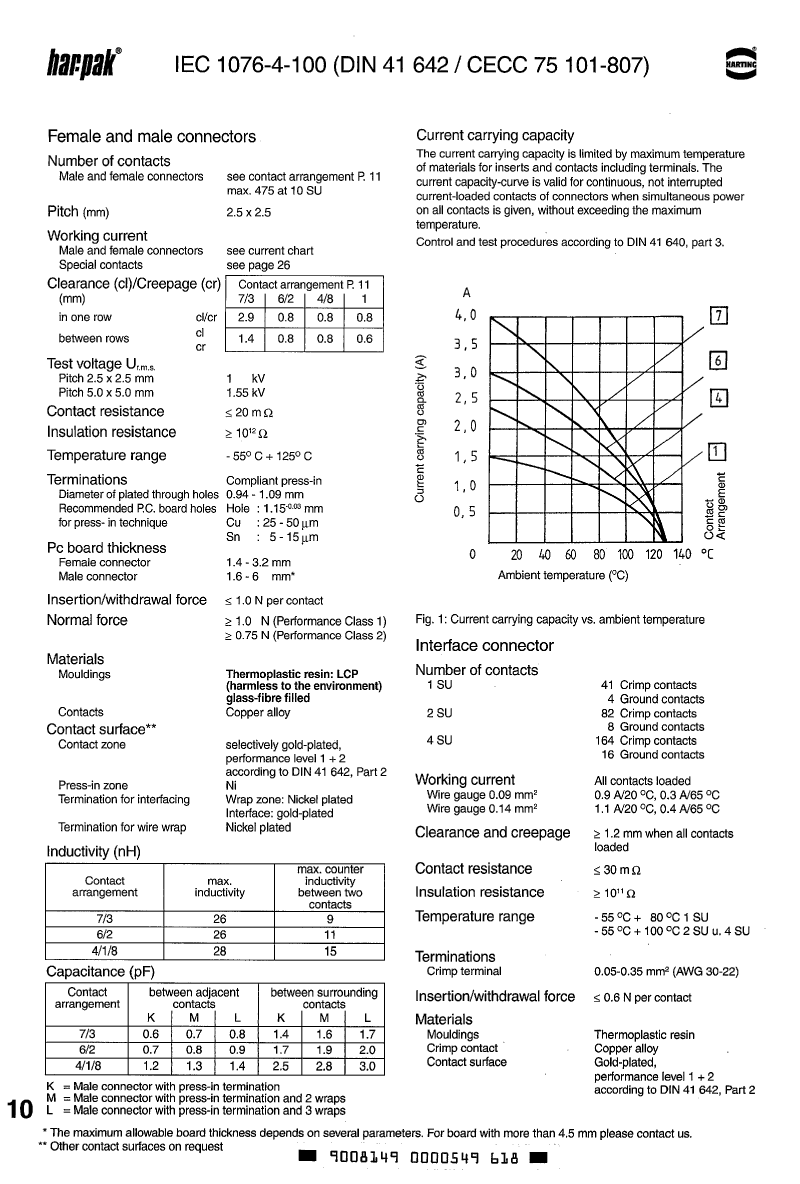

0702411.017: DescriptionBoard Connector, 80 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size249KB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

0702411.017 Overview

Board Connector, 80 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Receptacle

0702411.017 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compli
body width	0.587 inch
subject depth	0.541 inch
body length	2.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	1.0008 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	0702
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
polarization key	ENDS
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Termination type	PRESS FIT
Total number of contacts	80
Evacuation force-minimum value	1.0008 N

Preview

Download Datasheet

View All

0702411.017 Related Products

	0702411.017	0702114.017	0722319.016	0722219.016
Description	Board Connector, 80 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Receptacle	Board Connector, 100 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug	Board Connector, 50 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug
Reach Compliance Code	compli	compli	compliant	compli
body width	0.587 inch	0.587 inch	0.512 inch	0.512 inch
subject depth	0.541 inch	0.541 inch	0.941 inch	0.941 inch
body length	2.26 inch	2.26 inch	2.189 inch	2.189 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	MALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	1.0008 N	1.0008 N	1.0008 N	1.0008 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	0702	0702	0722	0722
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Match contact row spacing	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5
Number of rows loaded	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
polarization key	ENDS	ENDS	ENDS	ENDS
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	80	100	30	50
Evacuation force-minimum value	1.0008 N	1.0008 N	1.0008 N	1.0008 N
Maker	HARTING	-	HARTING	HARTING
