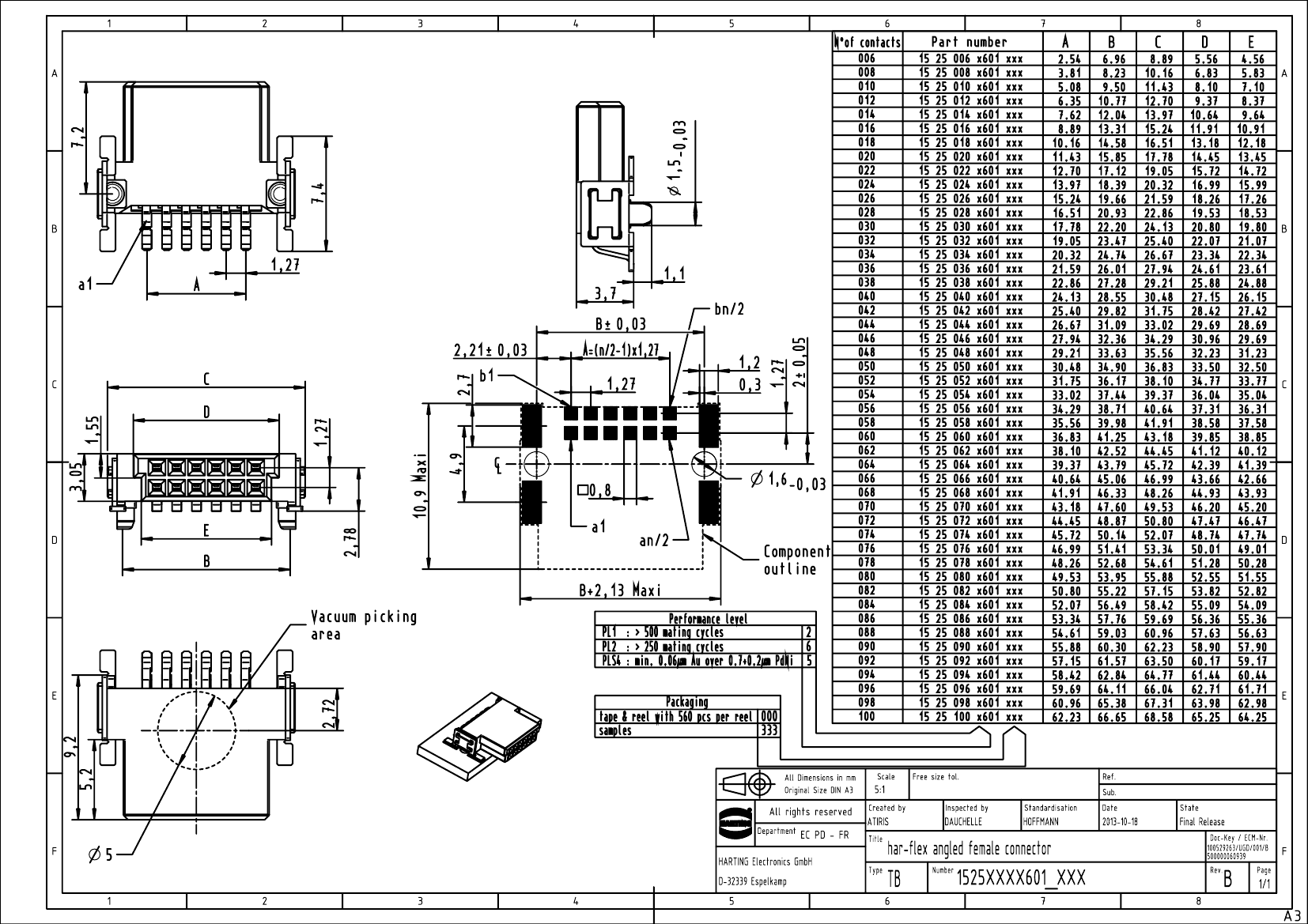

Board Connector, 70 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | HARTING |
| Reach Compliance Code | compli |
| Samacsys Descripti | Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 70, Angled |
| Board mount options | PEG |
| body width | 0.146 inch |
| body length | 1.95 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON PD-NI |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | SQ PIN-SKT |
| maximum insertion force | .5004 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 |
| Manufacturer's serial number | 1525 |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.05 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 1.27 mm |
| polarization key | POLARIZED HOUSING |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 70 |
| Evacuation force-minimum value | .5004 N |
