M20-8760206: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size610KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M20-8760206 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

M20-8760206 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH TEMPRATURE
subject depth	0.1 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.0024 N
Insulation resistance	1000000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	M20-87
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	M20-1070200
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

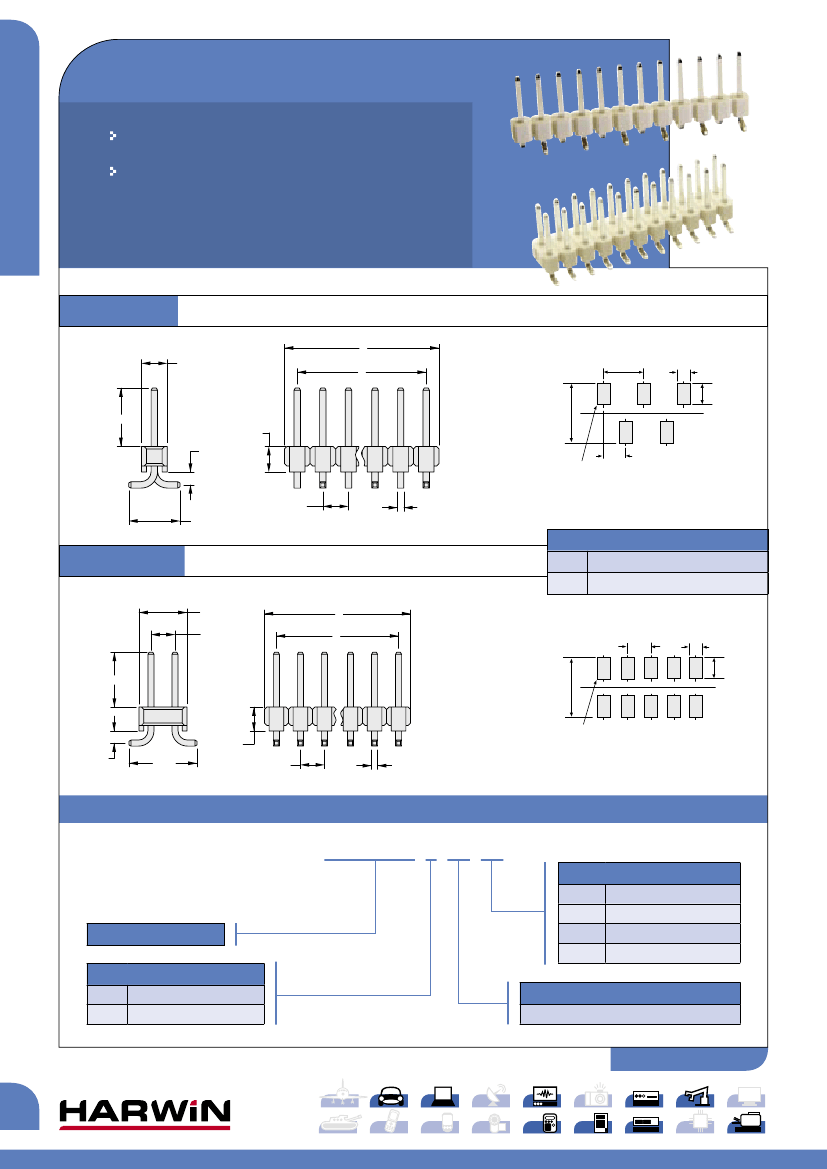

M20 Connectors

2.54mm (.100") PITCH

1.27

Vertical SMT Male Connectors

For pick and place cap and packed in tube –

add P to the end of the part number.

For pick and place cap in tape & reel packaging –

add R to the end of the part number.

SINGLE ROW

A

2.54

B

5.08

1.27

2.20

5.80

2.54

1.27

5.5

No. 1 Position

2.54

Recommended PC Board Pattern

2.54

5.08

0.64 SQ

CALCULATION

DOUBLE ROW

5.08

2.54

A

B

A

B

2.54 x No. of ways per row

2.54 x (No. of ways per row – 1)

2.54

1.27

2.20

5.80

8.00

No. 1 Position

2.54

7.20

2.54

0.64 SQ

Recommended PC Board Pattern

HOW TO ORDER

M20 – 87 X XX XX

FINISH

06

22

Tin/Lead

Gold + Tin/Lead

Gold + Tin

Tin

SERIES CODE

TAIL SPACING

6

7

Double Row

Single Row

42

46

NO. OF WAYS PER ROW

02 to 40
