M20-9662942: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size645KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M20-9662942 Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

M20-9662942 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M20-9
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	58

Preview

Download Datasheet

View All

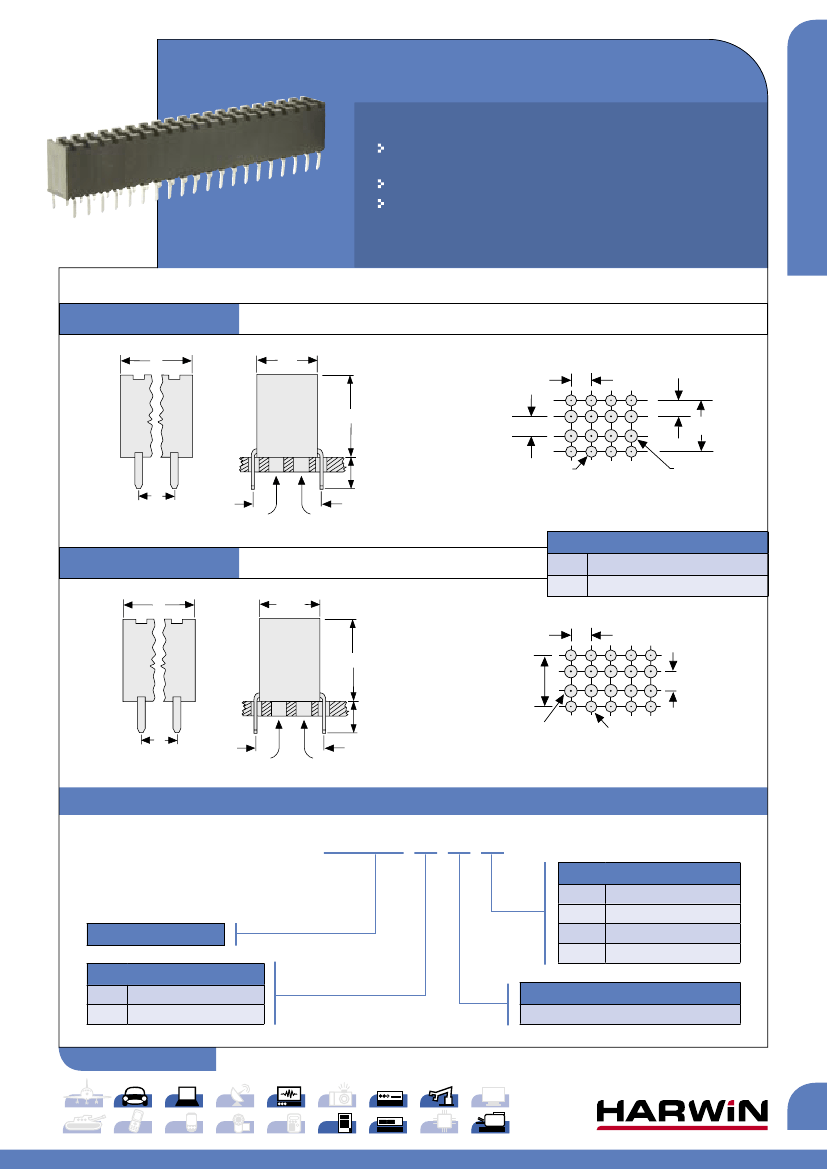

PC Tail Bottom Entry Female Connectors

Suitable for use with M20-997 bottom entry pin headers

shown on page 56.

For Polarising Key use

order code M20-003.

Choice of tail offset dimensions.

OFFSET TAIL 6.35mm

A

6.05

Max.

6.05

Max.

2.54

1.90

8.60 Max.

3.0

B

8.60

2.54

6.35

Hole Ø0.8

Hole Ø1.2

3.0

6.35

Recommended PC Board Pattern

Direction of Pin Entry 6.35

Direction of Pin Entry

CALCULATION

A

B

2.54 x No. of ways per row

2.54 x (No. of ways per row – 1)

OFFSET TAIL 7.62mm

A

3.0

6.05

Max.

6.05

Max.

8.60 Max.

7.62

6.35

3.0

6.35

2.54

3.0

B

3.0

7.62

Direction of Pin Entry 7.62

Direction of Pin Entry

Hole Ø1.2

Hole Ø0.8

Recommended PC Board Pattern

HOW TO ORDER

M20 – 9 XX XX XX

FINISH

06

22

Tin/Lead

Gold + Tin/Lead

Gold + Tin

Tin

SERIES CODE

TAIL SPACING

66

84

Offset Tail 7.62mm

Offset Tail 6.35mm

42

46

NO. OF WAYS PER ROW

02 to 36

www.harwin.com

45

2.54mm (.100") PITCH

M20 Connectors
