M200-3882145 Overview

Board Connector

M200-3882145 Parametric

Parameter NameAttribute value
MakerHarwin
Reach Compliance Codecompli
Connector typeBOARD CONNECTOR
Manufacturer's serial numberM200-38

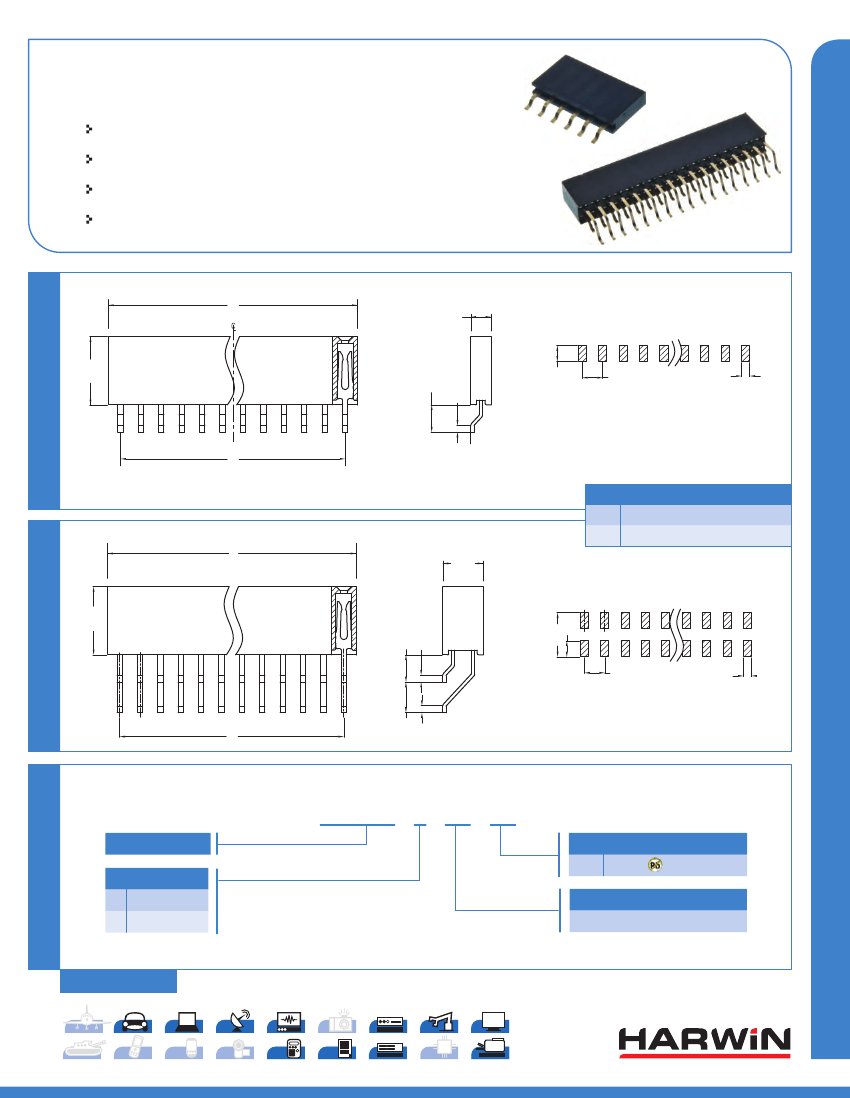

M200 Connectors
Female Horizontal Surface Mount
For Board to Board application
Suitable for use with M20/M200 male connectors series
Please contact sales@harwinasia.com for alternative plating
A
2.50
SINGLE ROW
0.85
2.54
1.00
Recommended PC Board Pattern
B
CALCULATION:
A
B
A
5.00
(2.54 x No. of ways per row) + 0.25
2.54 x (No. of ways per row - 1)
DOUBLE ROW
8.50
3.40
0.85
5.50
2.00
2.54
1.00
Recommended PC Board Pattern
B
HOW TO ORDER
M200-38 X
SERIES CODE
3.80
0.85
XX
XX
FINISH
45
Gold
TYPE
7
8
Single Row
Double Row
NO. OF WAYS PER ROW
02 to 40
www.harwinasia.com
All dimensions in mm.
xx
2.54mm (.100”) PITCH
Please contact sales@harwinasia.com for Tape and Reel
8.50
3.40
2.00
