M22-2021106 datasheet, PDF - EEWORLD Datasheet

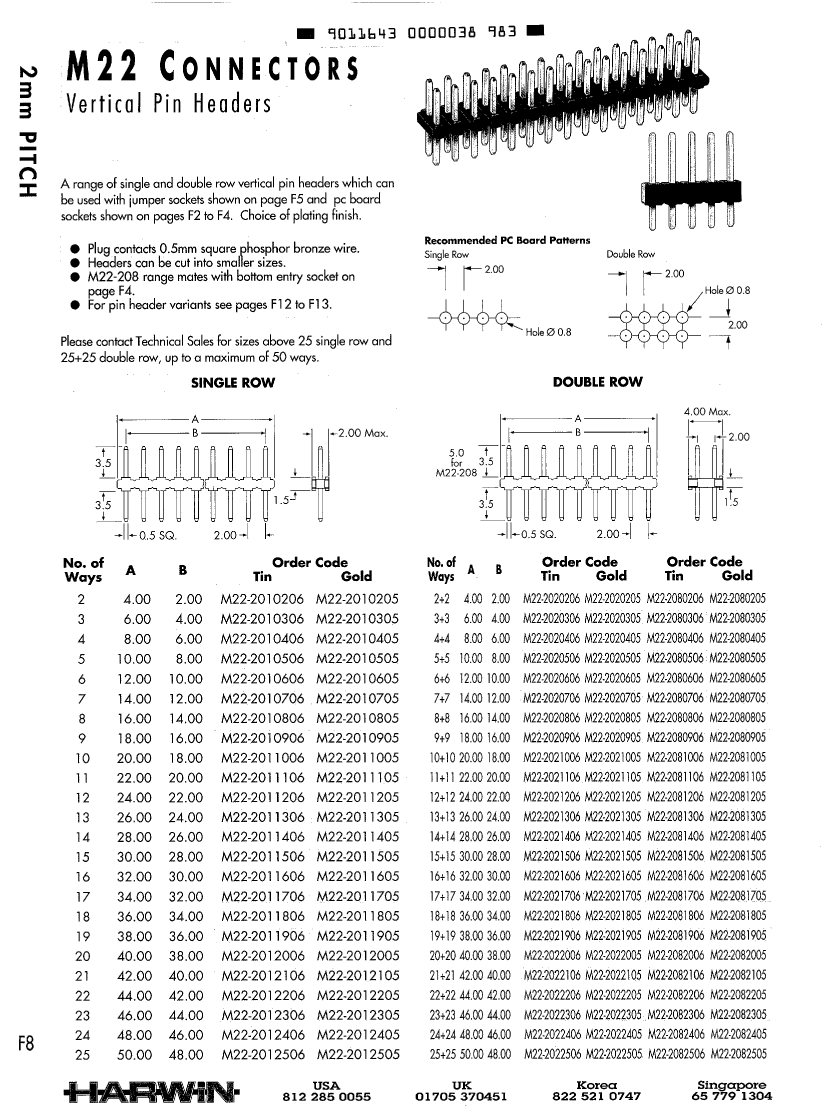

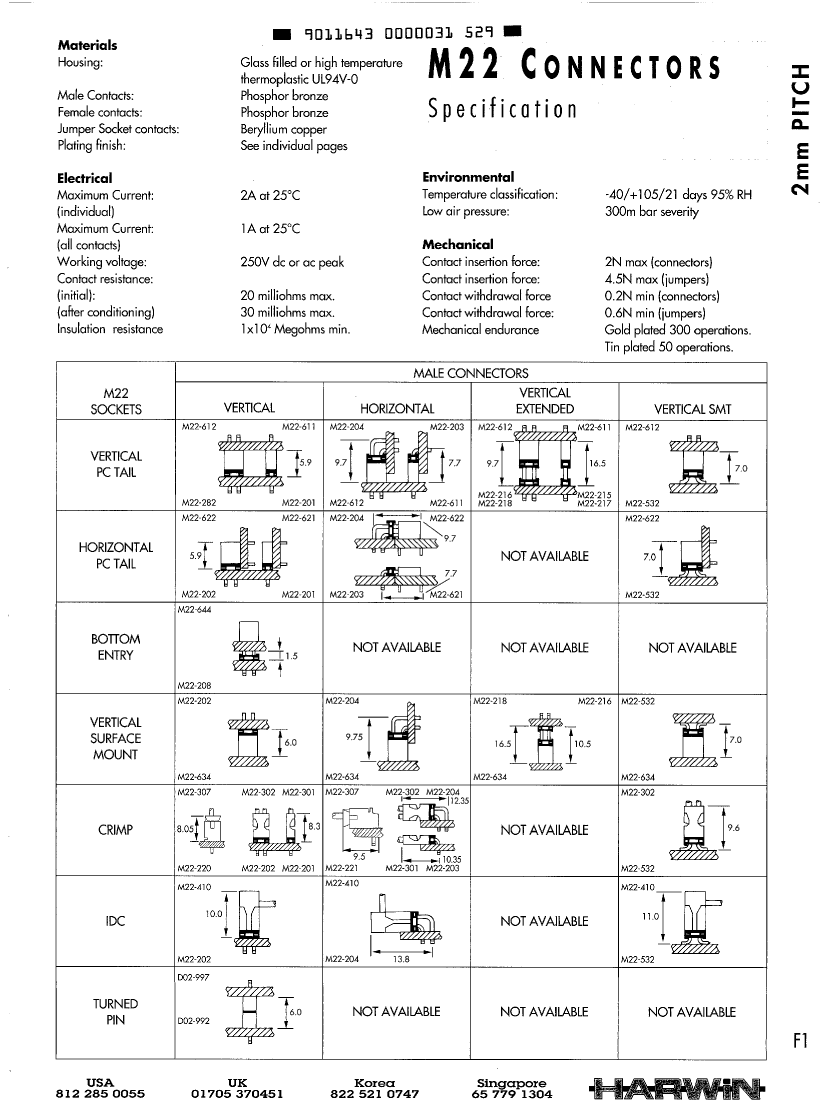

M22-2021106: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size255KB，2 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M22-2021106 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknow
body width	0.157 inch
subject depth	0.059 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VDC V
Durability	50 Cycles
maximum insertion force	2.0016 N
Insulation resistance	10000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	M22
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22
