688FXM010M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 688FXM010M

688FXM010M: Description105Â°C Low Profile Radial Lead Aluminum Electrolytic Capacitors; CategoryPassive components capacitor; File Size117KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

688FXM010M Overview

105Â°C Low Profile Radial Lead Aluminum Electrolytic Capacitors

688FXM010M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	88 mΩ
JESD-609 code	e3
leakage current	2.04 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	1330 mA
surface mount	NO
Delta tangent	0.36
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

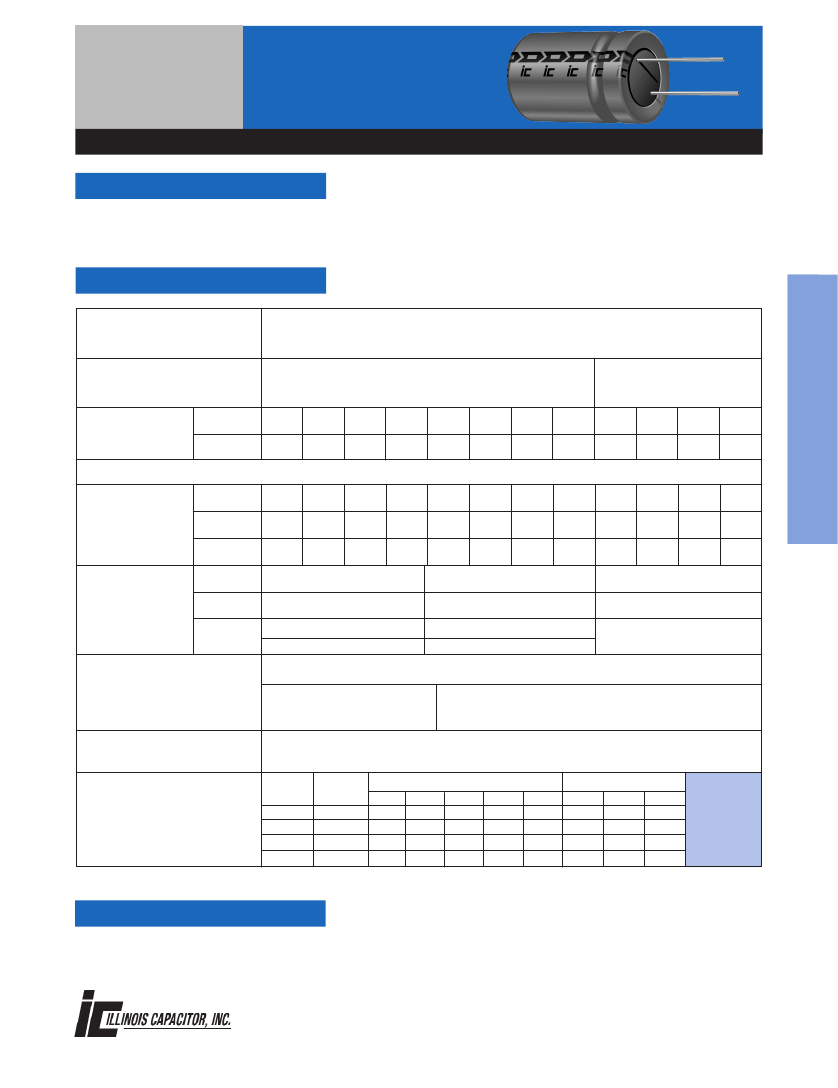

FXM

FEATURES

Low Profile

Extended Life

SPECIFICATIONS

+105°C Low Profile

Radial Lead

Aluminum Electrolytic

Capacitors

For all general purpose applications

Voltage Range: 6.3 WVDC to 400 WVDC

Capacitance Range: 0.1 µF to 10,000 µF

Aluminum Electrolytic

Capacitance Tolerance

±20% at 120Hz, 25°C

Operating Temperature Range

Dissipation Factor

120Hz, 20

WVDC

tan

6.3

.28

-55°C to + 105°C

.24

-40°C to + 105°C

.12

.20

.16

.14

100

.08

160

200

250

400

.25

Note:

For above D.F. specifications, add .02 for every 1,000 µF above 1,000 µF

WVDC

Impedance Ratio

(Max.) @120Hz

-25°C/20°C

-40°C/20°C

WVDC

Leakage Current

Time

6.3

100

160

200

250

400

≤

100 WVDC

1 minute

.03 CV or 4µA

whichever is greater

≤

100 WVDC

2 minutes

.01 CV or 3µA

whichever is greater

≥

160 WVDC

1 minute

.04 CV + 100µA

1000 hours at +105°C with rated WVDC

Load Life

Capacitance change

Dissipation factor

Leakage current

≤

20% of initial measured value

≤

200% of initial specified value

≤100%

of specified value

1,000 hours at +105°C with no voltage applied.

Units will meet load life specifications

Capacitance

(µF)

C≤47

47<C≤470

C>470

10≤C≤150

Shelf Life

WVDC

Frequency (Hz)

.75

.85

120

1.0

300

1.35

1.23

1.10

1.25

1.57

1.34

1.13

1.40

10K

2.0

1.5

1.15

1.6

Temperature (°C)

+105

1.0

+85

1.4

+60

1.75

Ripple Current Multipliers

6.3 to 100

160 to 400

SPECIAL ORDER OPTIONS

•

Special tolerances: ±10% (K), -10% + 30% (Q)

(See pages 33 thru 37)

•

Tape and Reel/Ammo-Pack

•

Cut, Formed, Cut and Formed, and Snap In Leads

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
