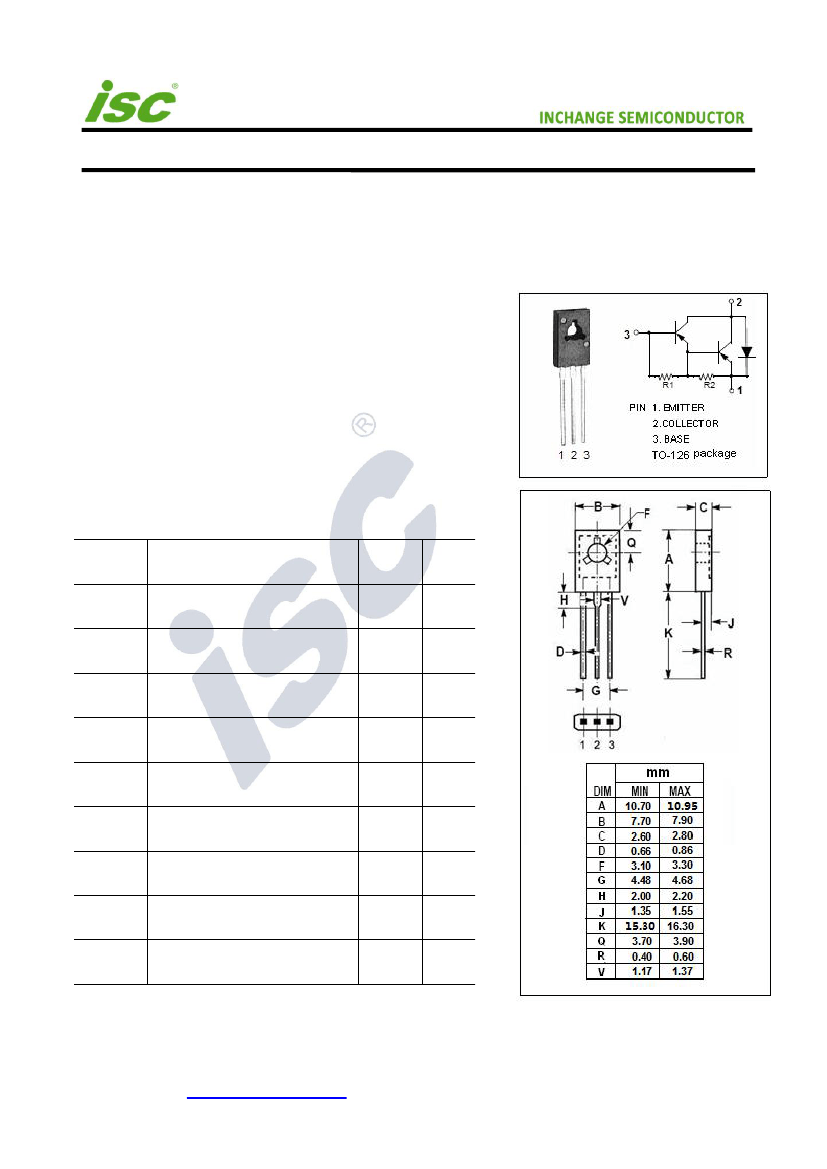

INCHANGE Semiconductor
isc
Silicon PNP Darlington Power Transistor
DESCRIPTION
·Collector-Emitter
Sustaining Voltage-
: V
CEO(SUS)
= -40V(Min)
·High
DC Current Gain-
: h
FE
=
1000(Min)@ (V
CE
= -3V, I
C
= -0.5A)
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
2SB786
APPLICATIONS
·Designed
for general-purpose amplifier and low-speed
switching applications.
ABSOLUTE MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
i
T
stg
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current-Continuous
Collector Current-Peak
Base Current
Collector Power Dissipation
T
C
=25℃
Junction Temperature
Storage Temperature Range
VALUE
-40
-40
-5
-2
-3
-0.1
5
150
-55~150
UNIT
V
V
V
A
A
A
W
℃
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
INCHANGE Semiconductor
isc
Silicon PNP Darlington Power Transistor
ELECTRICAL CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBO
L
V
CEO(SUS)
V
(BR)EBO
V
(BR)CBO
V
CE
(sat)
I
CEO
I
CBO
I
EBO
h
FE
f
T
C
OB
PARAMETER
Collector-Emitter Sustaining Voltage
Emitter-Base Breakdown Voltage
Collector-Base breakdown voltage
Collector-Emitter Saturation Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Current-Gain—Bandwidth Product
Output Capacitance
CONDITIONS
I
C
= -10mA; I
B
= 0
I
E
= -2mA; I
C
= 0
I
C
=-1mA; I
E
= 0
I
C
= -0.6A; I
B
= -1.2mA
V
CE
= -40V
;
I
B
= 0
V
CB
= -40V
;
I
E
= 0
V
EB
= -5V; I
C
= 0
I
C
= -0.5A ; V
CE
= -3V
I
C
=-0.1A ; V
CE
= -6V
I
E
=0; V
CB
= -10V; f= 1MHz
11
1000
150
MIN
-40
-5
-40
TYP
2SB786
MAX
UNIT
V
V
V
-1.5
-0.1
-1.0
-2.0
V
mA
uA
mA
MHz
pF
Notice：
ISC reserves the rights to make changes of the content herein the datasheet at any time
without notification. The information contained herein is presented only as a guide for the
applications of our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in
equipment which could have applications in hazardous environments, aerospace industry, or
medical field. Please contact us if you intend our products to be used in these special
applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products,
and specifically disclaims any and all liability, including without limitation special,
consequential or incidental damages.
