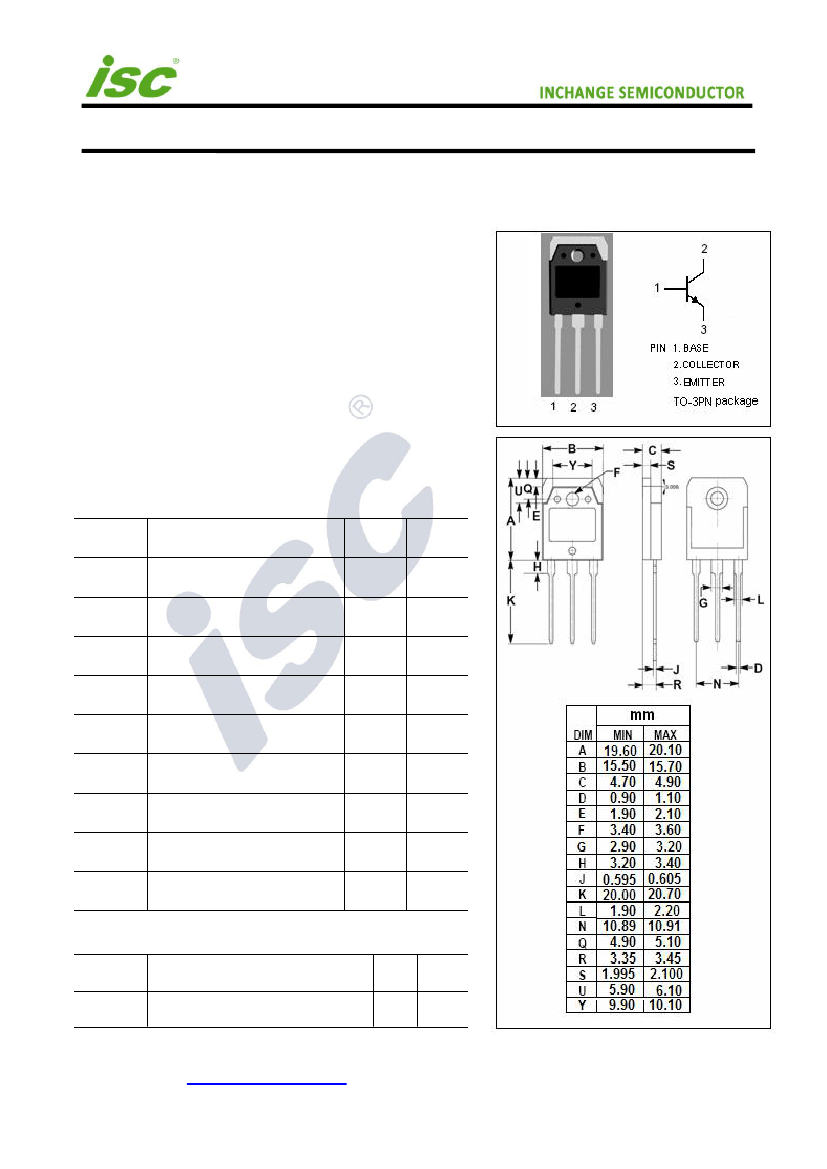

Silicon NPN Power Transistor
DESCRIPTION
·High
Collector-Emitter Breakdown Voltage-
: V
(BR)CEO
= 400V(Min)
·High
Switching Speed
·High
Reliability
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Switching
regulators
·Ultrasonic
generators
·High
frequency inverters
·General
purpose power amplifiers
ABSOLUTE MAXIMUM RATINGS(T
a
=25
℃)
SYMBOL
V
CBO
V
CEO
V
CEO(SUS)
V
EBO
I
C
I
B
P
C
T
J
T
stg
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Collector-Emitter Voltage
Emitter-Base voltage
Collector Current-Continuous
Base Current-Continuous
Collector Power Dissipation
@ T
C
=25℃
Junction Temperature
Storage Temperature Range
VALUE
450
400
400
10
15
5
80
150
-55~150
UNIT
V
V
V
V
A
A
W
℃
℃
2SC3725
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal Resistance,Junction to Case
MAX
1.56
UNIT
℃/W
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon NPN Power Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CE
(sat)
V
BE
(sat)
I
CBO
I
EBO
h
FE
PARAMETER
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
CONDITIONS
I
C
= 10mA ; I
B
= 0
I
C
= 1mA ; I
E
= 0
I
E
= 1mA; I
C
= 0
I
C
= 6A; I
B
= 1.2A
I
C
= 6A; I
B
= 1.2A
V
CB
= 450V; I
E
= 0
V
EB
= 7V; I
C
= 0
I
C
= 6A; V
CE
= 5V
10
MIN
400
450
10
2SC3725
TYP.
MAX
UNIT
V
V
V
0.8
1.2
0.1
0.1
V
V
mA
mA
Switching times
t
on
t
stg
t
f
Turn-on Time
Storage Time
Fall Time
I
C
= 6A, I
B1
= 2A; I
B2
= -4A;
R
L
= 15Ω; P
W
=20μs
Duty Cycle≤2%
1.0
2.5
0.5
μs
μs
μs
Notice：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
