BAS40-05B5000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-05B5000

BAS40-05B5000: DescriptionRectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN; CategoryDiscrete semiconductor diode; File Size219KB，8 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS40-05B5000 Overview

Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN

BAS40-05B5000 Parametric

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	1 week
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Number of components	2
Number of terminals	3
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

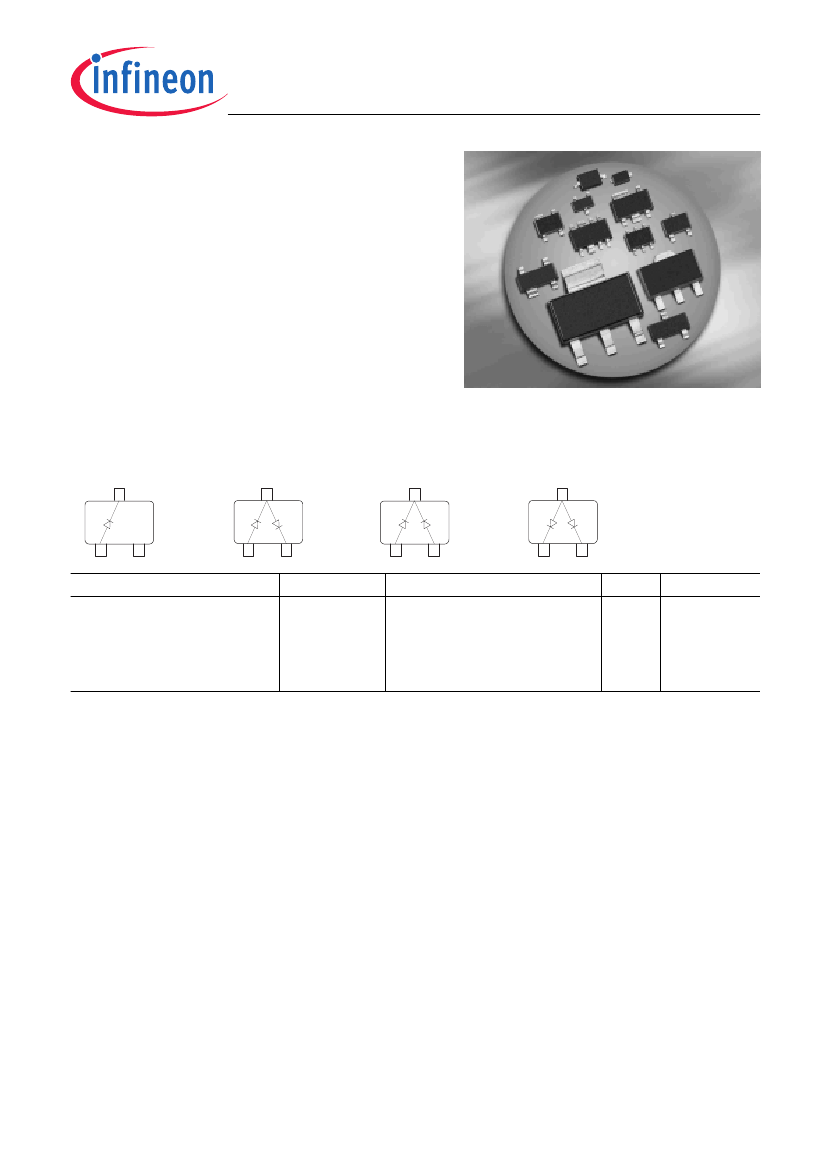

BAS40...B5000 / B5003

Silicon Schottky Diode

•

General-purpose diode for high-speed switchhing

•

Circuit protected

•

Voltage clamping

•

High-level detecting and mixing

•

Improved operating temperature range

due to extra-low thermal resistance

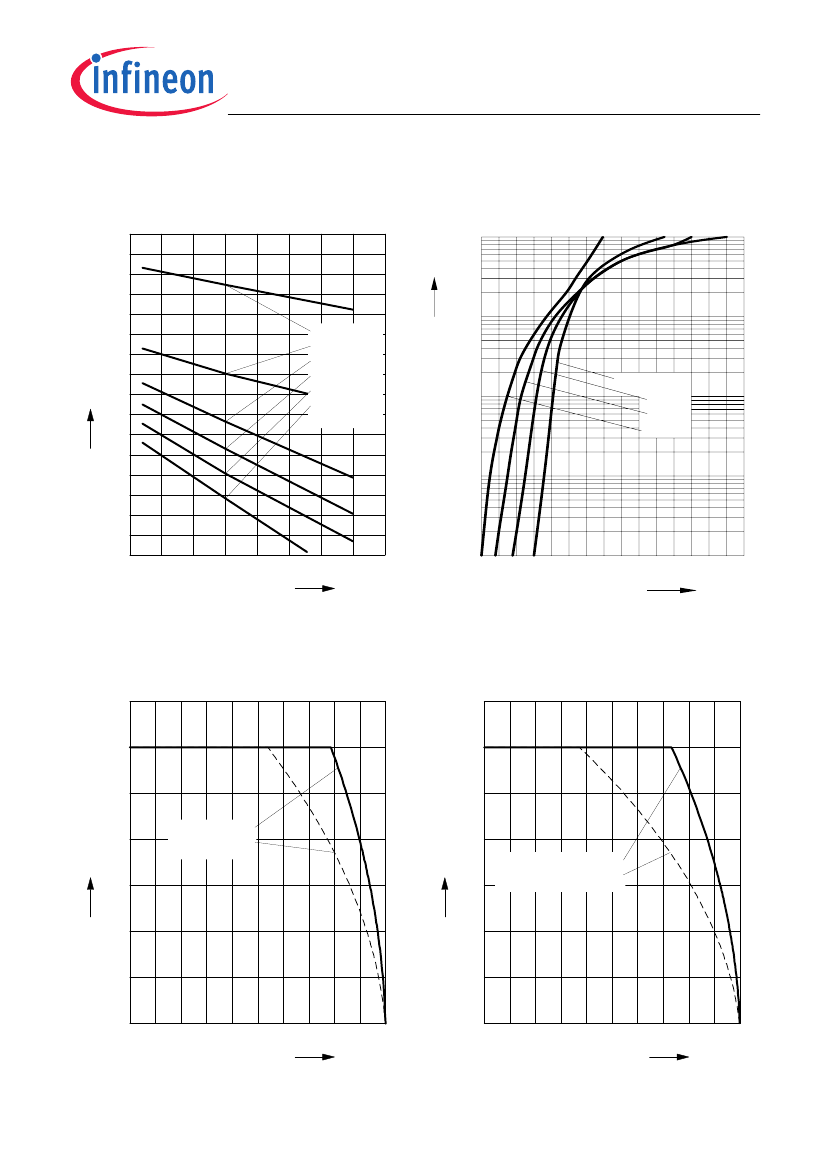

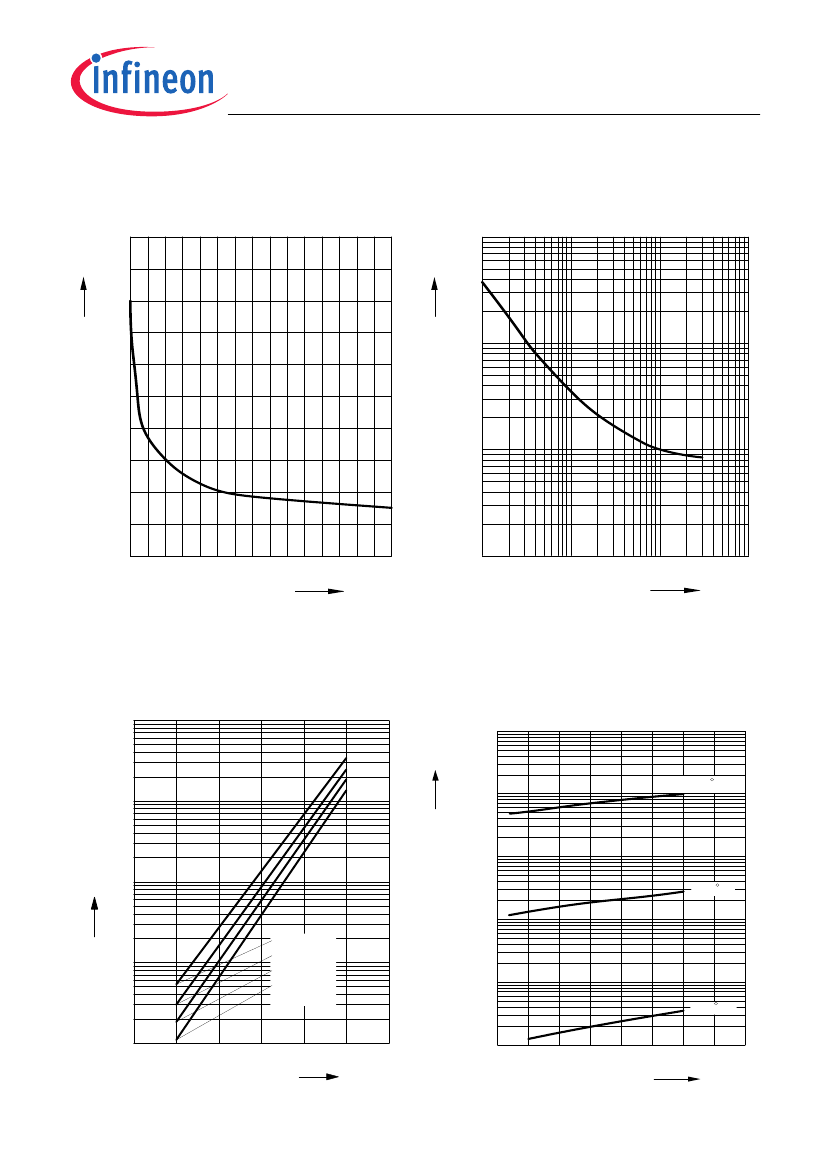

(see attached Forward current curves)

•

High volume packing size:

B5000: 9 x 10k reels, B5003: 10 x 3k reels

•

Not for automotive applications*

BAS40

BAS40-04

BAS40-05

BAS40-06

D 1

D 2

D 1

D 2

D 1

D 2

Type

BAS40

BAS40-04

BAS40-05

BAS40-06

Package

SOT23

Configuration

single

series

common cathode

common anode

(nH)

1.8

Marking

43s

44s

45s

46s

* Automotive qualification ongoing

2006-08-04

BAS40-05B5000 Related Products

	BAS40-05B5000	BAS40B5000	BAS40-04B5000	BAS40-06B5000
Description	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN	Rectifier Diode, Schottky, 1 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3-PIN
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3
Number of components	2	1	2	2
Number of terminals	3	3	3	3
Maximum output current	0.12 A	0.12 A	0.12 A	0.12 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	Infineon	-	Infineon	Infineon
