D27C011-150V10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> D27C011-150V10

D27C011-150V10: DescriptionUVPROM, 128KX8, 150ns, CMOS, CDIP28; Categorystorage storage; File Size481KB，13 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D27C011-150V10 Overview

UVPROM, 128KX8, 150ns, CMOS, CDIP28

D27C011-150V10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknow
Maximum access time	150 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	1048576 bi
Memory IC Type	UVPROM
memory width	8
Number of terminals	28
word count	131072 words
character code	128000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

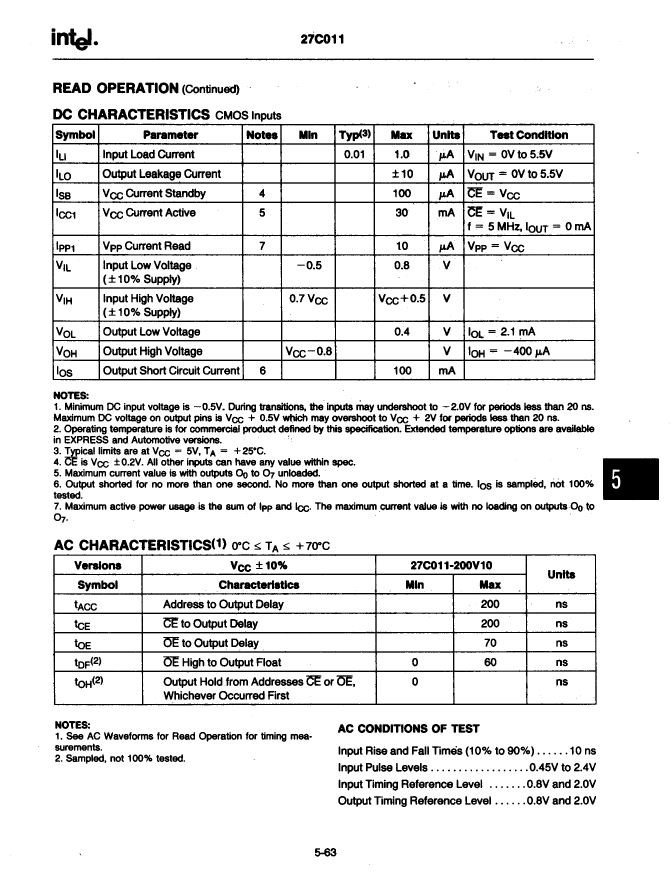

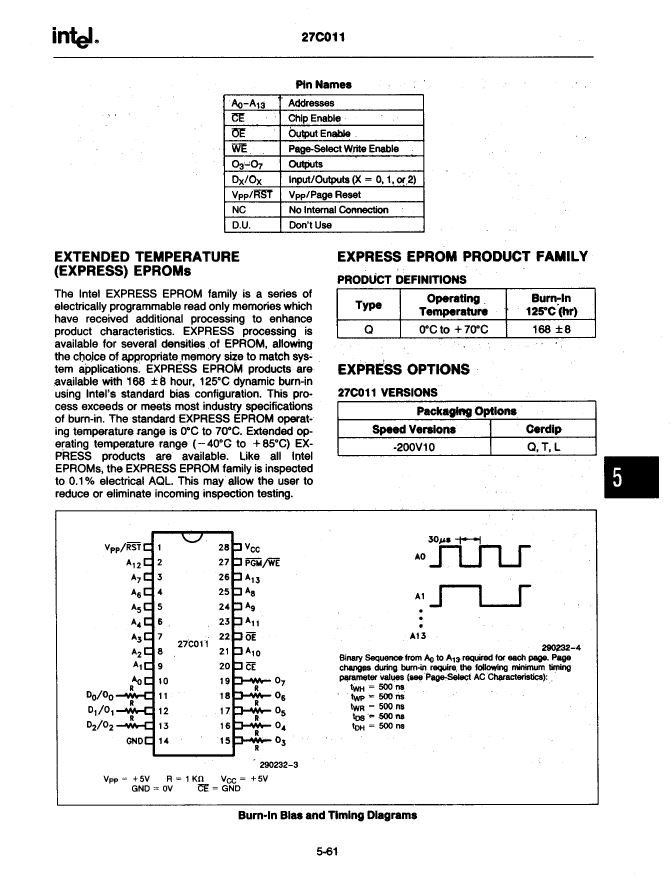

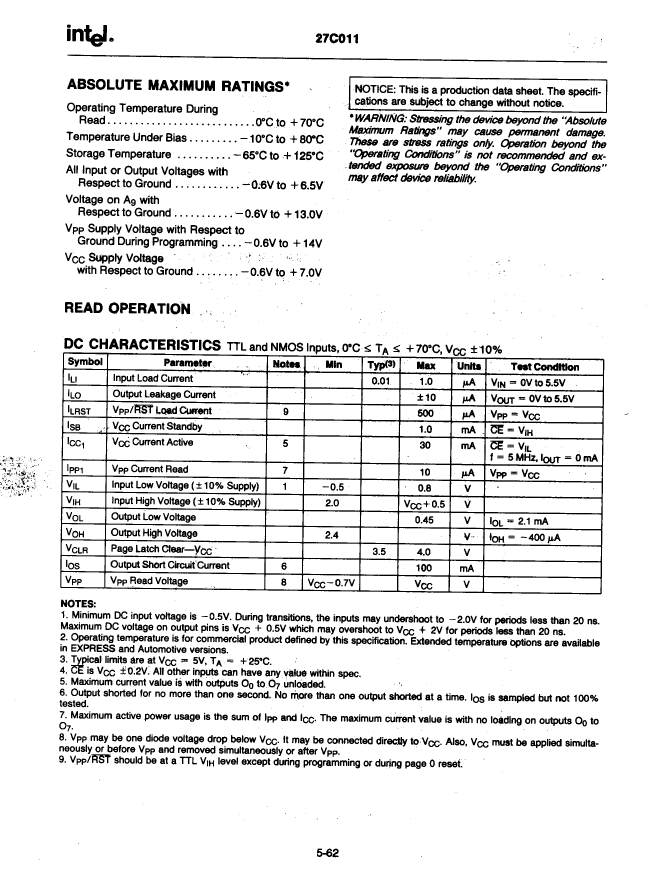

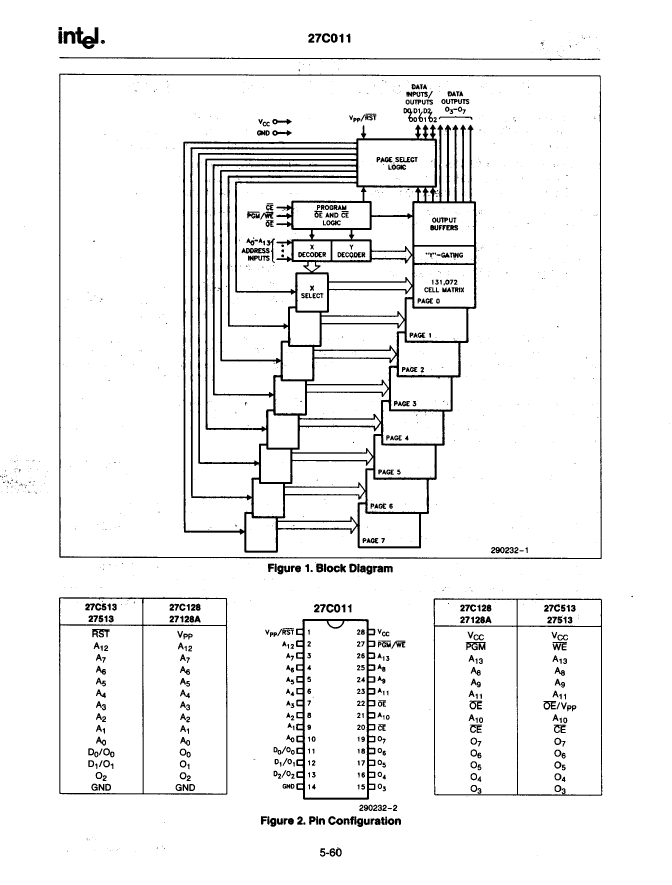

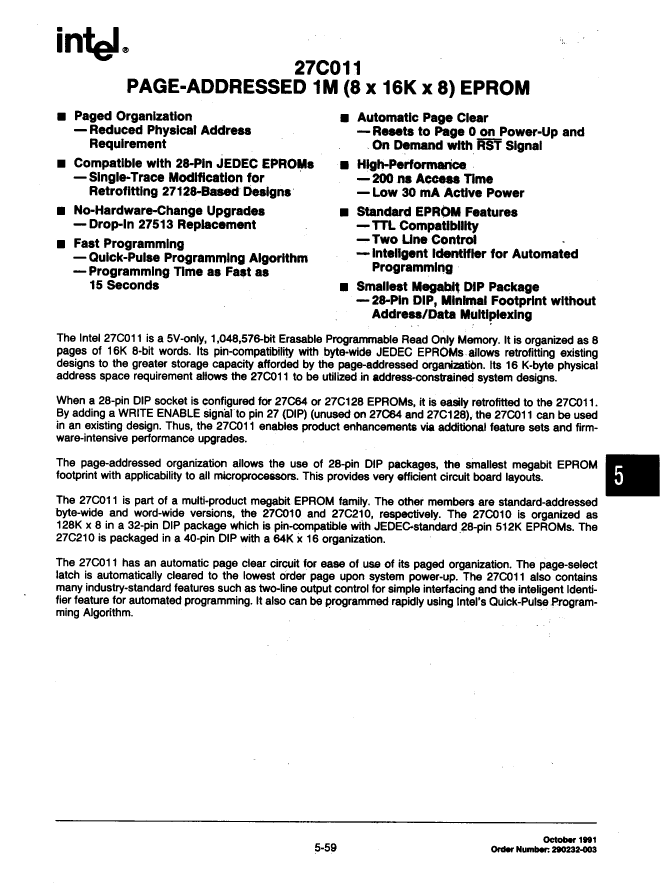

D27C011-150V10 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

D27C011-150V10 Related Products

	D27C011-150V10	D27C011-200V10	LD27C011-200V10	TD27C011-200V10	QD27C011-200V10
Description	UVPROM, 128KX8, 150ns, CMOS, CDIP28	UVPROM, 128KX8, 200ns, CMOS, CDIP28	UVPROM, 128KX8, 200ns, CMOS, CDIP28, CERDIP-28	UVPROM, 128KX8, 200ns, CMOS, CDIP28, CERDIP-28	UVPROM, 128KX8, 200ns, CMOS, CDIP28, CERDIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel	Intel	Intel
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6
Reach Compliance Code	unknow	unknown	compliant	compliant	unknown
Maximum access time	150 ns	200 ns	200 ns	200 ns	200 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0	e0
memory density	1048576 bi	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
memory width	8	8	8	8	8
Number of terminals	28	28	28	28	28
word count	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	WDIP	WDIP	WDIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead
Parts packaging code	-	-	DIP	DIP	DIP
Contacts	-	-	28	28	28
ECCN code	-	-	EAR99	EAR99	EAR99
length	-	-	37.15 mm	37.15 mm	37.15 mm
Number of functions	-	-	1	1	1
Operating mode	-	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Parallel/Serial	-	-	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	-	-	5.72 mm	5.72 mm	5.72 mm
Maximum supply voltage (Vsup)	-	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	-	4.5 V	4.5 V	4.5 V
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	-	15.24 mm	15.24 mm	15.24 mm
