IRFL41N15DPBF

Description
Power Field-Effect Transistor, 40A I(D), 150V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, TO-262, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size85KB,6 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IRFL41N15DPBF Overview

Power Field-Effect Transistor, 40A I(D), 150V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, TO-262, 3 PIN

IRFL41N15DPBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-262AA
package instructionIN-LINE, R-PSIP-T3
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)660 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage150 V
Maximum drain current (ID)40 A
Maximum drain-source on-resistance0.045 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-262AA
JESD-30 codeR-PSIP-T3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)160 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON

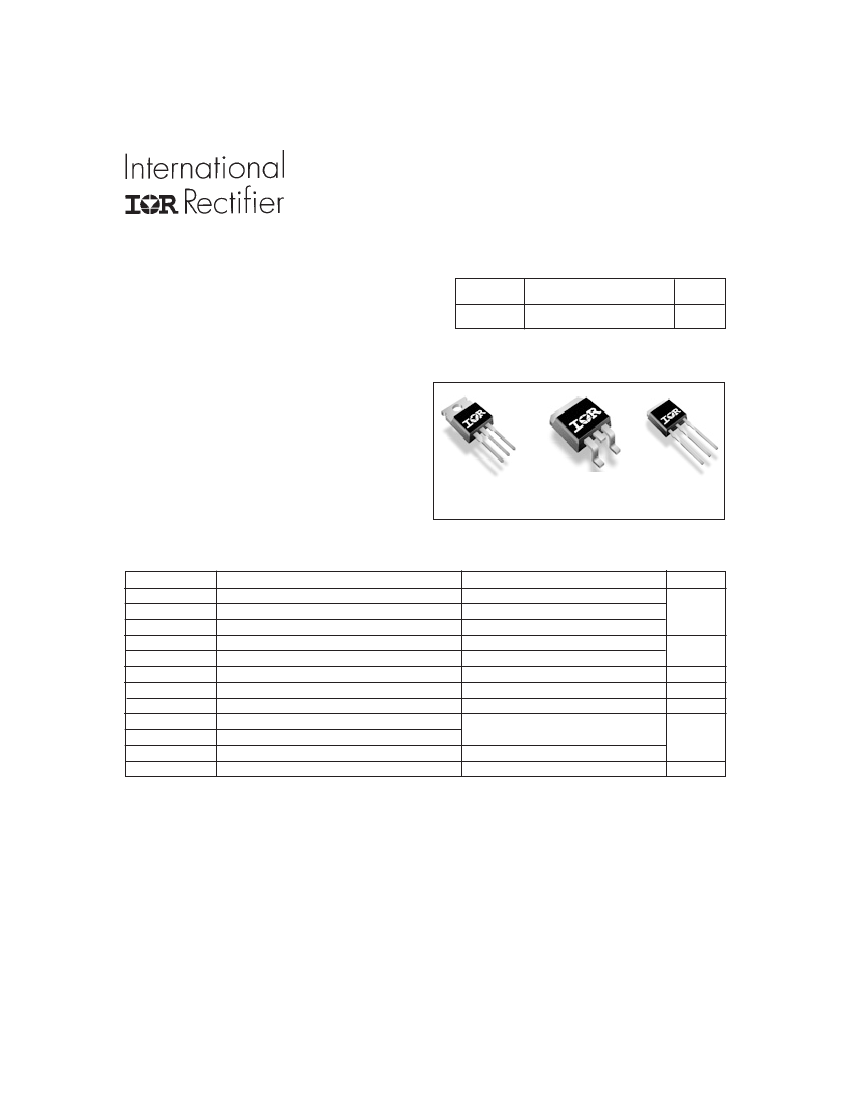

PD- 93804
PROVISIONAL
SMPS MOSFET
IRFB41N15D
IRFS41N15D
IRFL41N15D
HEXFET
®
Power MOSFET
Applications
l
High frequency DC-DC converters
Benefits
l
Low Gate-to-Drain Charge to Reduce
Switching Losses
l
Fully Characterized Capacitance Including
Effective C
OSS
to Simplify Design, (See
App. Note AN1001)
l
Fully Characterized Avalanche Voltage
and Current
V
DSS
150V
R
DS(on)
max
0.045Ω
I
D
41A
TO-220AB
IRFB41N15D
D
2
Pak
IRFS41N15D

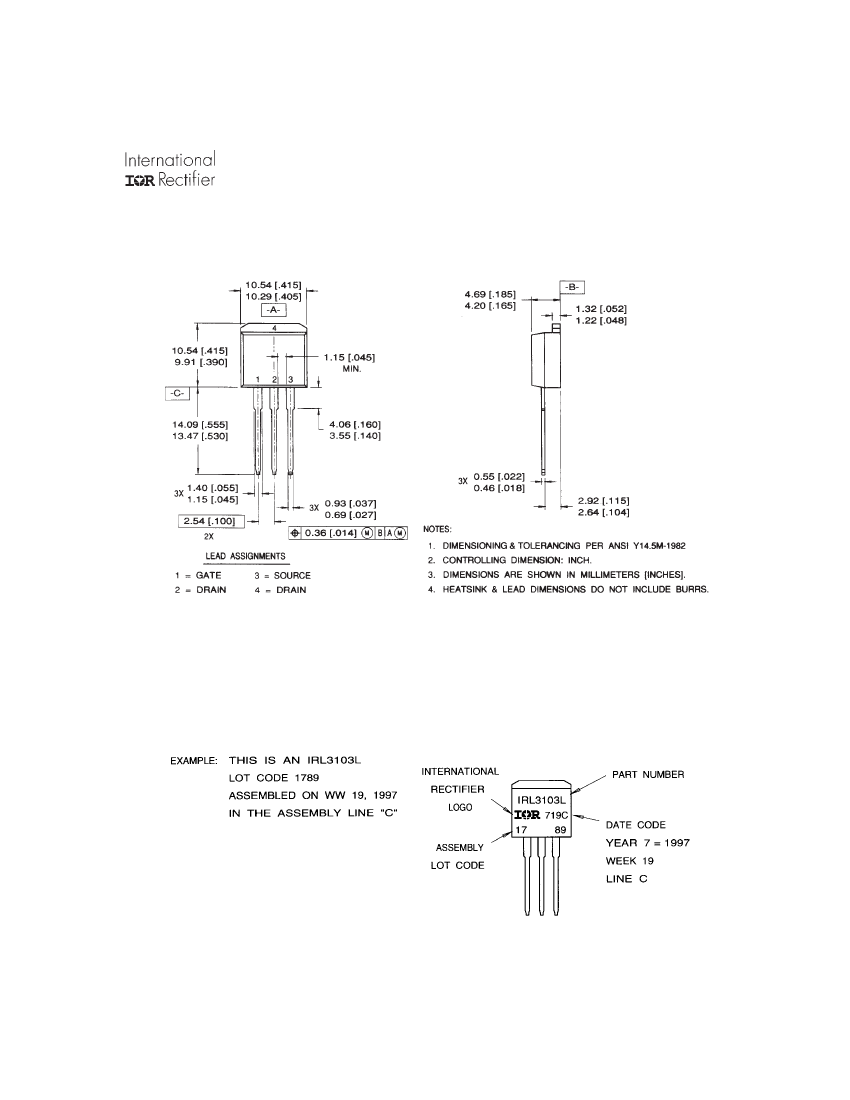

TO-262
IRFL41N15D
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
C
= 25°C
V
GS
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current

Power Dissipation
‡
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery dv/dt
ƒ
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torqe, 6-32 or M3 screw†
Max.
40
29
160
3.1
200
1.3
± 30
3.6
-55 to + 175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
V/ns
°C
Typical SMPS Topologies
l
Telecom 48V input DC-DC Active Clamp Reset Forward Converter
Notes

through
‡
are on page 5
www.irf.com
1
11/22/99

IRFL41N15DPBF Related Products

IRFL41N15DPBF IRFL41N15D
Description Power Field-Effect Transistor, 40A I(D), 150V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, TO-262, 3 PIN Power Field-Effect Transistor, 40A I(D), 150V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, TO-262, 3 PIN
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
Parts packaging code TO-262AA TO-262AA
package instruction IN-LINE, R-PSIP-T3 IN-LINE, R-PSIP-T3
Contacts 3 3
Reach Compliance Code compli compli
ECCN code EAR99 EAR99
Avalanche Energy Efficiency Rating (Eas) 660 mJ 660 mJ
Shell connection DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 150 V 150 V
Maximum drain current (ID) 40 A 40 A
Maximum drain-source on-resistance 0.045 Ω 0.045 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code TO-262AA TO-262AA
JESD-30 code R-PSIP-T3 R-PSIP-T3
JESD-609 code e3 e0
Number of components 1 1
Number of terminals 3 3
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 175 °C 175 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) 260 225
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum pulsed drain current (IDM) 160 A 160 A
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal surface MATTE TIN OVER NICKEL TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature 40 30
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
