AT49F040-70PC: Description4-Megabit 512K x 8 5-volt Only CMOS Flash Memory; Categorystorage storage; File Size163KB，12 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

AT49F040-70PC Overview

4-Megabit 512K x 8 5-volt Only CMOS Flash Memory

AT49F040-70PC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	0.600 INCH, PLASTIC, DIP-32
Contacts	32
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	70 ns
startup block	BOTTOM
command user interface	YES
Data polling	YES
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
length	42.05 mm
memory density	4194304 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	1,1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	5.59 mm
Department size	16K,496K
Maximum standby current	0.0001 A
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	15.24 mm

Preview

Download Datasheet

View All

Features

•

Single Voltage Operation

•

– 5V Read

– 5V Reprogramming

Fast Read Access Time - 70 ns

Internal Program Control and Timer

16K bytes Boot Block With Lockout

Fast Erase Cycle Time - 10 seconds

Byte By Byte Programming - 50

µs/Byte

Hardware Data Protection

DATA Polling For End Of Program Detection

Low Power Dissipation

– 50 mA Active Current

– 100

µA

CMOS Standby Current

Typical 10,000 Write Cycles

Description

The AT49F040 is a 5-volt-only in-system Flash Memory. Its 4 megabits of memory is

organized as 524,288 words by 8 bits. Manufactured with Atmel’s advanced nonvola-

tile CMOS technology, the device offers access times to 70 ns with power dissipation

of just 275 mW over the commercial temperature range. When the device is dese-

lected, the CMOS standby current is less than 100

µA.

The device contains a user-enabled “boot block” protection feature. Two versions of

the feature are available: the AT49F040 locates the boot block at lowest order

addresses (“bottom boot”); the AT49F040T locates it at highest order addresses (“top

boot”).

(continued)

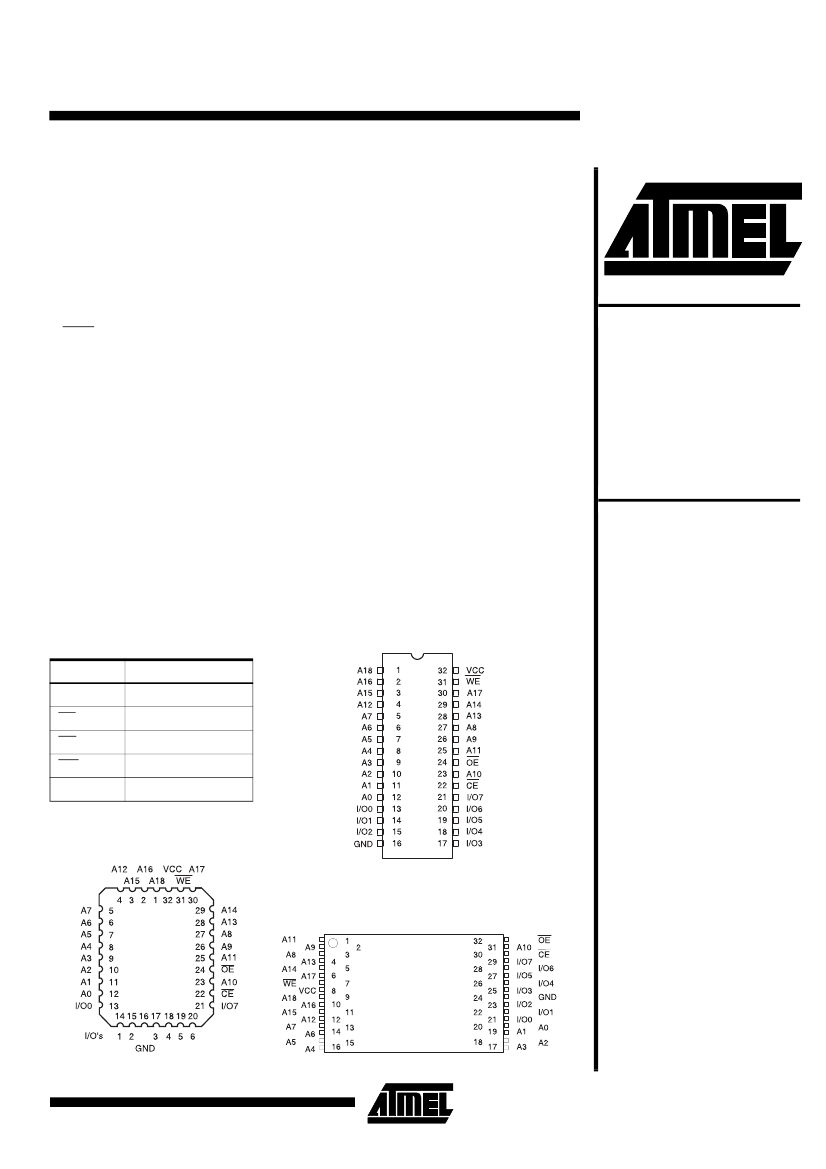

4-Megabit

(512K x 8)

5-volt Only

CMOS

Flash Memory

AT49F040

AT49F040T

AT49F040/040T

Pin Configurations

Pin Name

A0 - A18

I/O0 - I/O7

Function

Addresses

Chip Enable

Output Enable

Write Enable

Data Inputs/Outputs

DIP Top View

AT49F040/040T

PLCC Top View

TSOP Top View

Type 1

Rev. 0998A-A–01/98
