BD546C datasheet, PDF - EEWORLD Datasheet

BD546C: Description15A, 100V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3; CategoryDiscrete semiconductor The transistor; File Size205KB，6 Pages; ManufacturerJ.W. Miller ( Bourns )

Download Datasheet Parametric Compare View All

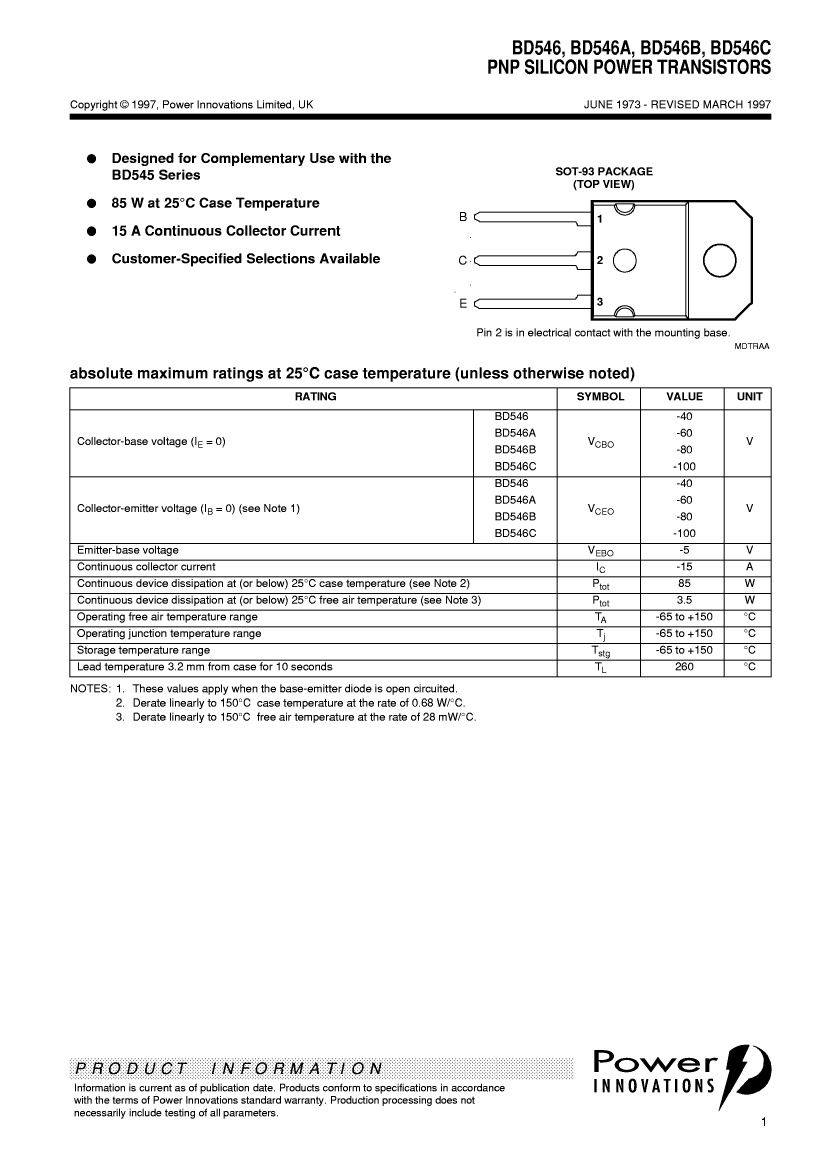

BD546C Overview

15A, 100V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3

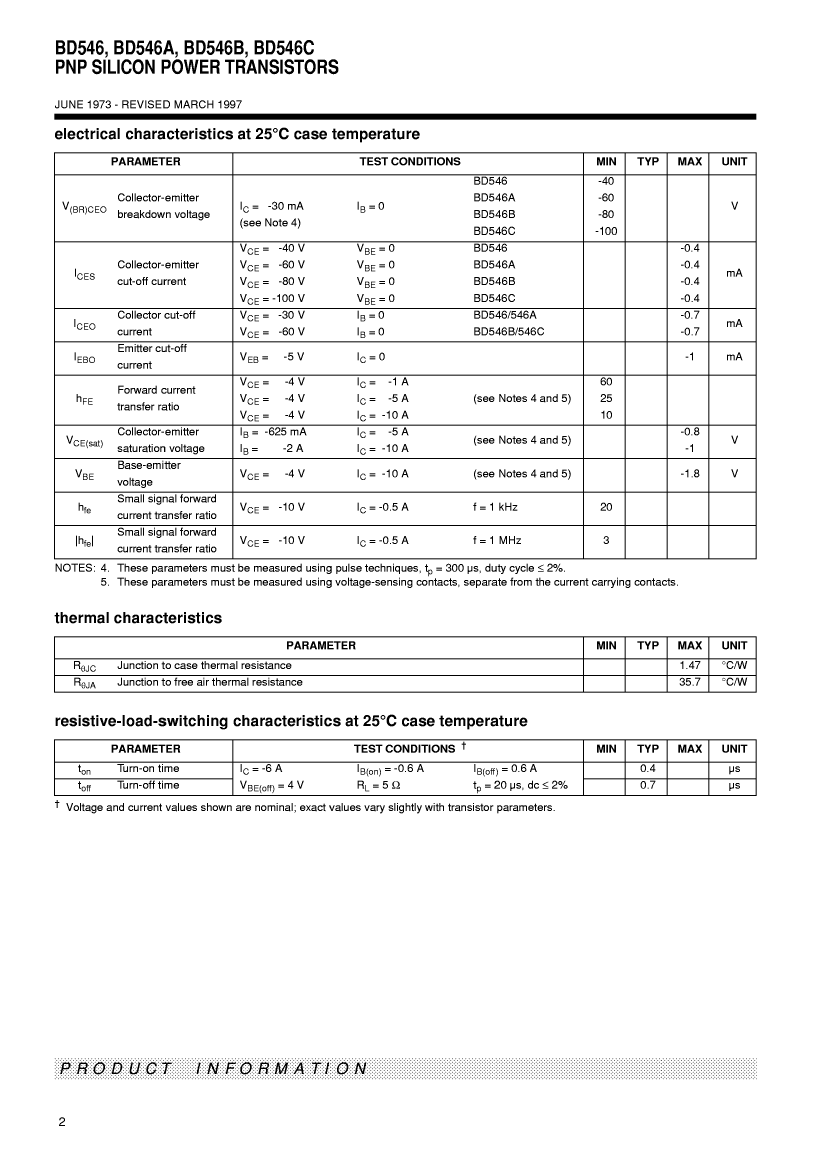

Parameter Name	Attribute value
Maker	J.W. Miller ( Bourns )

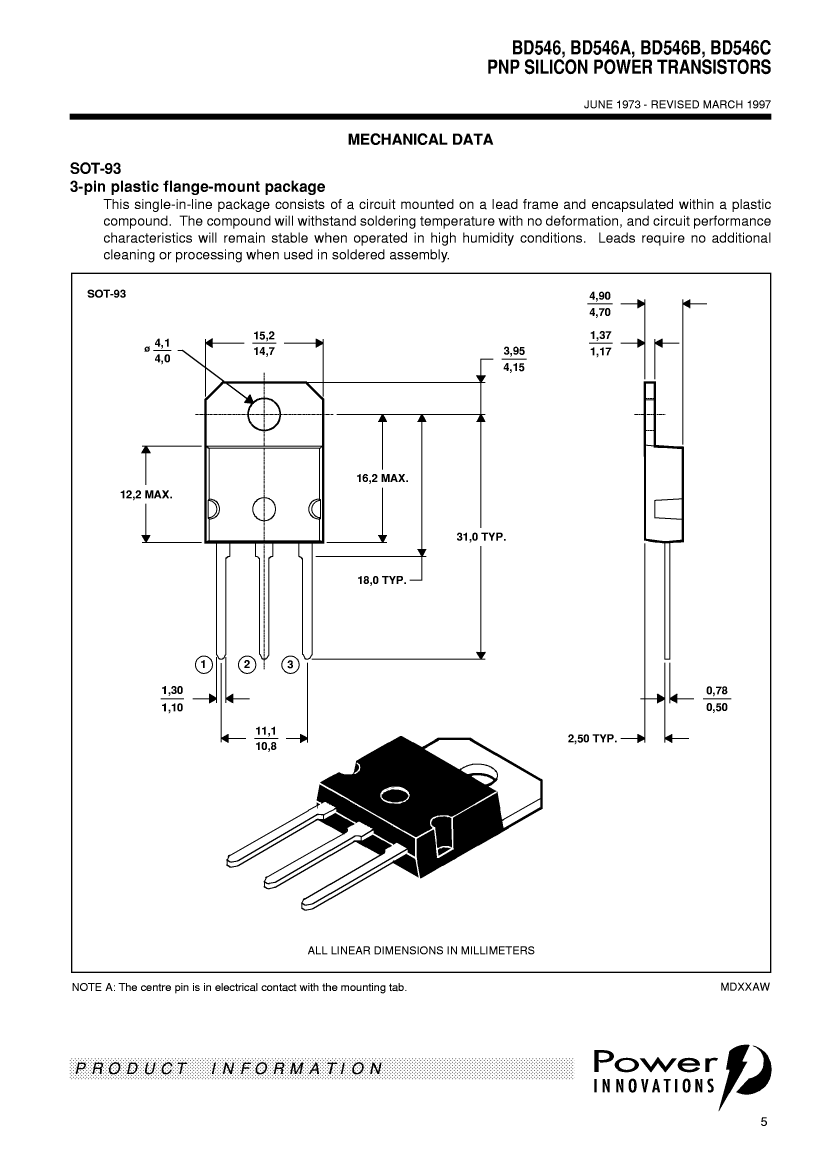

package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR

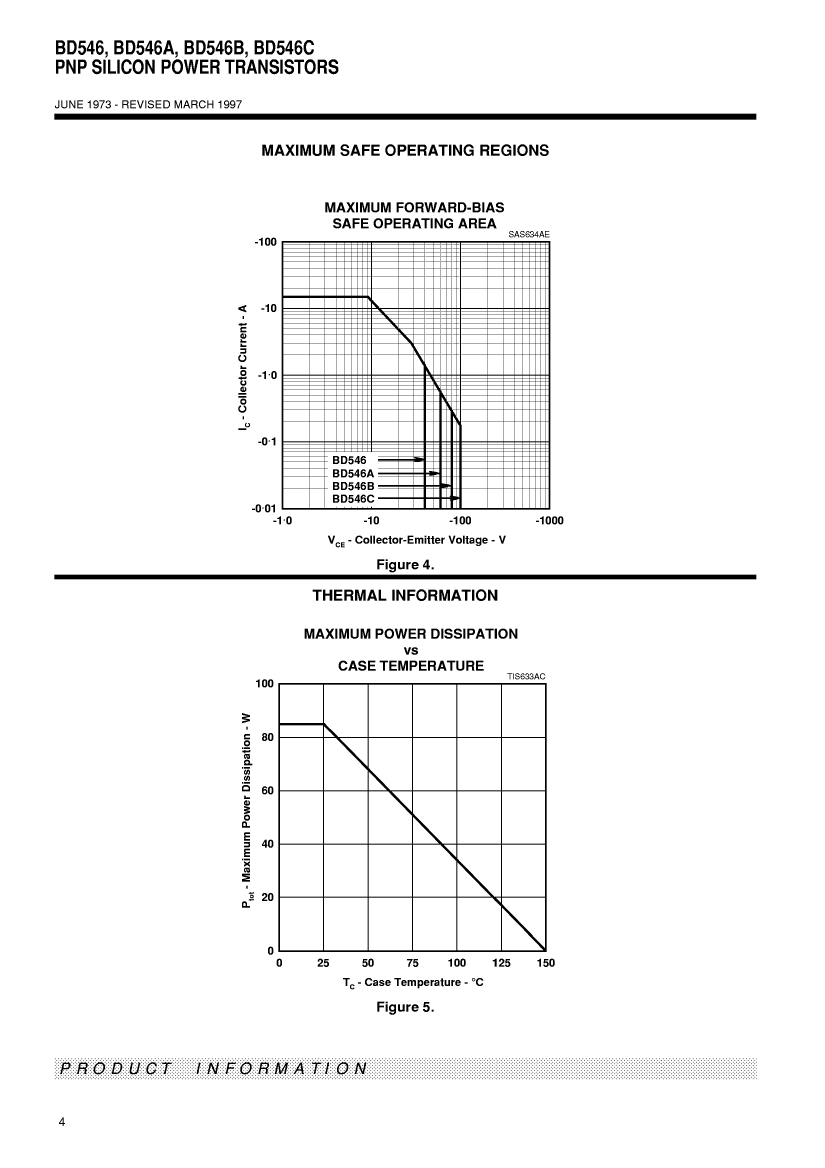

Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	100 V
Configuration	SINGLE

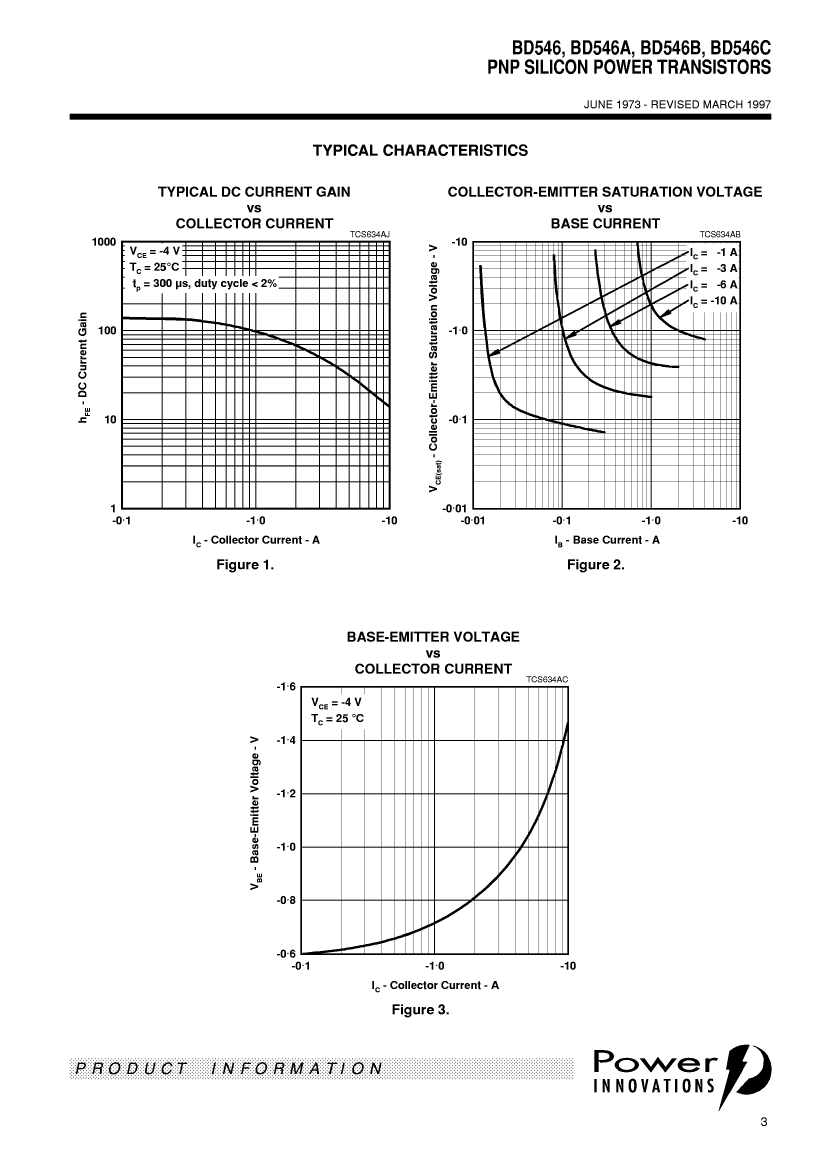

Minimum DC current gain (hFE)	10
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	BD546C	BD546	BD546A	BD546B
Description	15A, 100V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3	15A, 40V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3	15A, 60V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3	15A, 80V, PNP, Si, POWER TRANSISTOR, PLASTIC, FM-3
Maker	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	15 A	15 A	15 A	15 A
Collector-emitter maximum voltage	100 V	40 V	60 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	10	10	10	10
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
