2-5E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-5E

2-5E: DescriptionWire Terminal, 2.63mm2; CategoryThe connector; File Size29KB，1 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

2-5E Overview

Wire Terminal, 2.63mm2

2-5E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	2-5E
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	2.63 mm2
Wire gauge	14 AWG

Preview

Download Datasheet

View All

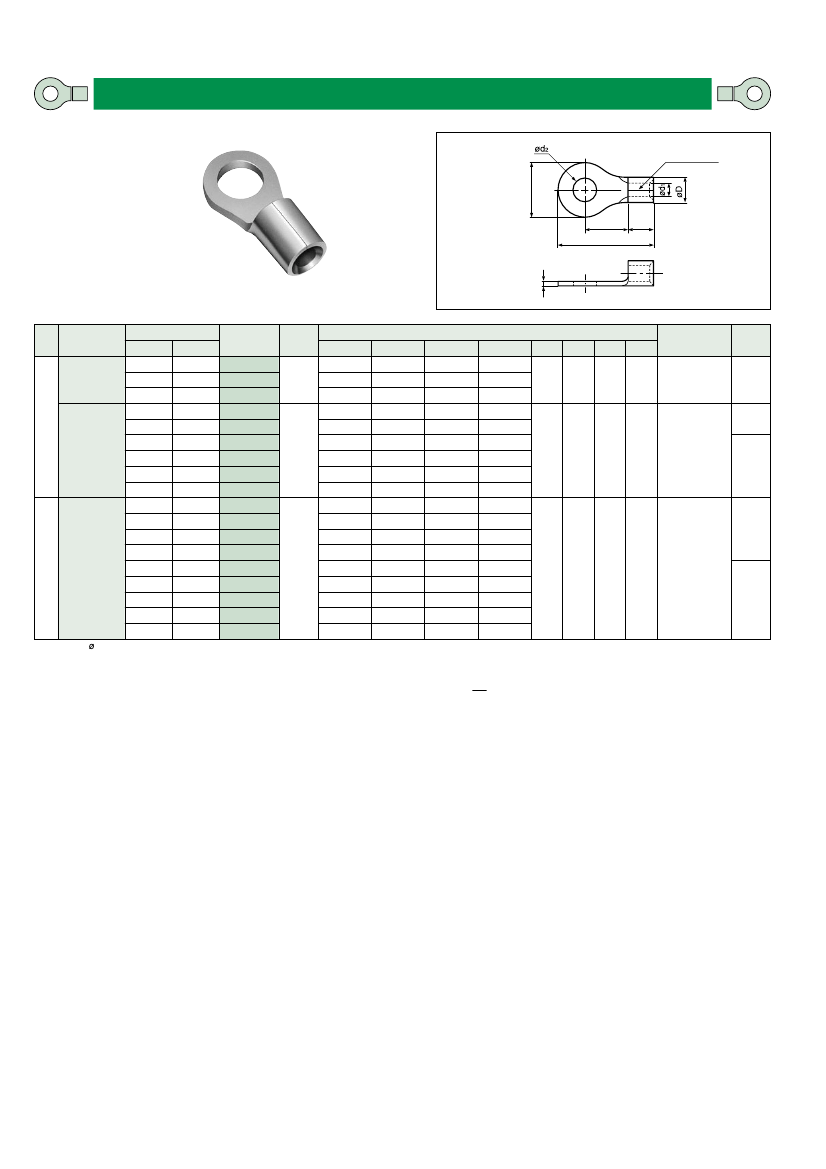

Solderless terminals

RING TONGUE (R type)

Non-insulated (Heavy duty)

Brazed seam

Applicable Wire

AWG#(mm

)

22 to 16

(0.25 to 1.65)

type

16 to 14

(1.04 to 2.63 )

Stud size

American

5-6

1/4

5/16

3/8

1/2

3-4

5-6

1/4

5/16

3/8

Metric

3.5

Part No.

1.25-3E

1.25-4E

1.25-5E

2-4E

2-5E

2-6E

2-8E

2-10E

2-12E

2-3.2ES

2-3ES

2-4ES

2-5ES

2-6ES

2-8ES

2-9ES

2-10ES

2-L10ES

Standard

Dimensions mm (in.)

ø d

3.7 (.146)

4.3 (.169)

5.3 (.209)

4.3 (.169)

5.3 (.209)

8.0 (.315) 16.4 (.646)

9.2 (.362) 18.6 (.732)

7.6 (.299)

7.2 (.284)

øD

ø d

Tool No.

YHT-2210

YA-1,YA-2

YA-4

BCT-0514

Qty/box

1.0

1.9

4.0

4.8

(.189 ) (.157) (.075 ) (.039 )

1,000

YHT-2210

YA-1

YA-2

YA-4

BCT-0514

1,000

6.4 (.252) 13.6 (.535) 25.3 (.996) 11.7 (.461)

1.6

2.3

5.5

6.8

8.4 (.331) 13.6 (.535) 25.3 (.996) 11.7 (.461) (.268) (.217) (.091) (.063)

10.5 (.413) 13.6 (.535) 25.3 (.996) 11.7 (.461)

13.0 (.512) 19.0 (.748) 33.0(1.299) 16.7 (.657)

3.2 (.126)

3.7 (.146)

4.3 (.169)

5.3 (.209)

7.1 (.280) 15.4 (.606)

8.7 (.343) 17.8 (.701)

5.7 (.224)

7.3 (.287)

1.2

3.0

5.5

6.2

(.244) (.217) (.118) (.047)

500

1,000

type

16 to 14

(1.04 to 2.63)

6.4 (.252) 13.5 (.532) 24.2 (.953) 11.3 (.445)

8.4 (.331) 13.5 (.532) 24.2 (.953) 11.3 (.445)

9.8 (.386) 13.5 (.532) 24.2 (.953) 11.3 (.445)

10.5 (.413) 13.5 (.532) 24.2 (.953) 11.3 (.445)

10.5 (.413) 19.0 (.748) 31.6(1.244) 16.0 (.630)

—

500

Note:1) The D of products with the suffix "E" at the end of the part number is one size larger than the non-insulated terminal with the same part number.

For the crimping tool jaws, select one size larger from among the three jaw sizes on the YHT-2210 crimping tool.

2) Contact JST concerning minimum lot size.

3) The part numbers indicated in the above table are for products with a brazed seam.

When ordering products with a butted seam, add the prefix "WS" to the part number (ex. 2-4E —>WS2-4E).

Delivery lead times may vary depending on the product. Contact JST for details.
