AC Line EMI Suppression and RC Networks
R47 Series Metallized Polypropylene Film, Class X2, 520 VAC
Overview

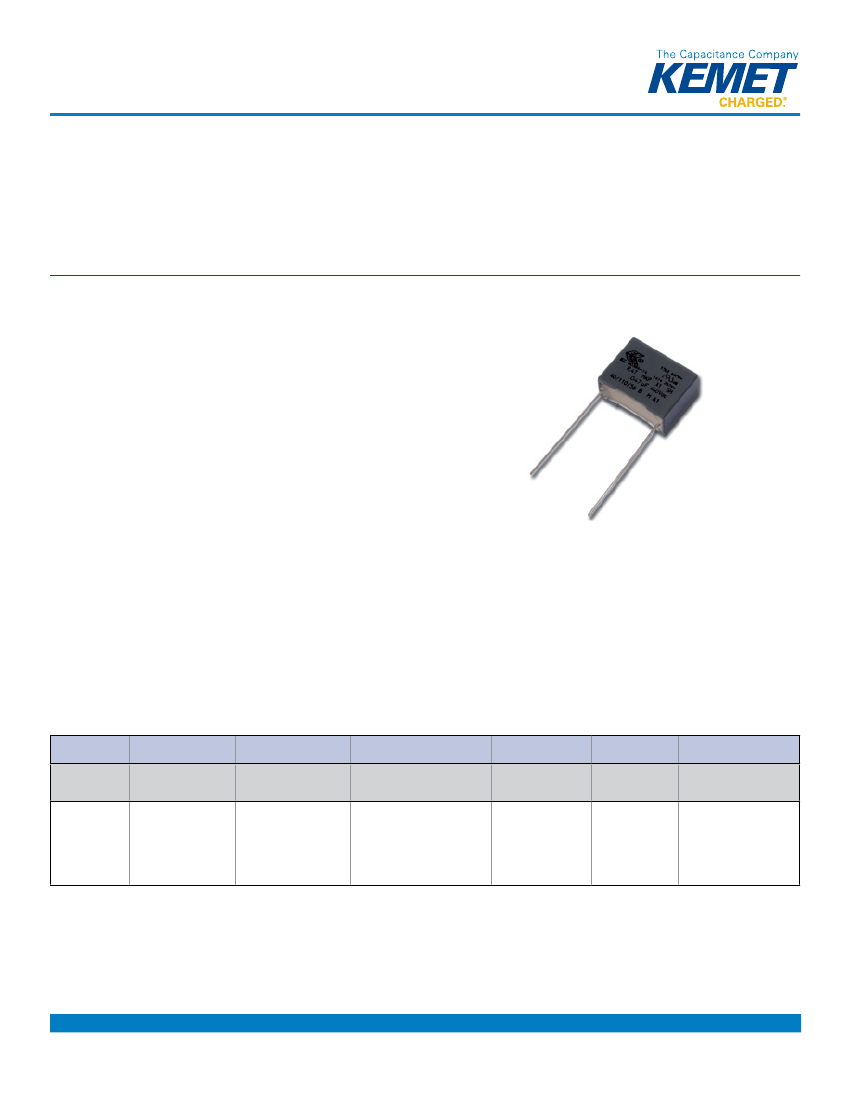

The R47 Series is constructed of metallized polypropylene film
encapsulated with self-extinguishing resin in a box of material
meeting the requirements of UL 94 V–0.
Applications
Typical applications include worldwide use in electromagnetic
interference suppression in all X2 and across-the-line
applications.
Benefits
•
•
•
•
•
•
•
•
•
•
Approvals: ENEC, UL, cUL
Rated voltage: 520 VAC 50/60 Hz
Capacitance range: 0.0047 – 2.2 µF
Lead spacing: 10.0 – 37.5 mm
Capacitance tolerance: ±20%, ±10%, ±5% on request
Climatic category: 40/85/56, IEC 60068–1
Tape and reel in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range of -40˚C to +85˚C
100% screening factory test at 2,700 VDC/1,700 VAC
Part Number System
R47
Series
X2, Metallized
Polypropylene
5
Rated Voltage (VAC)
5 = 520
F
Lead Spacing (mm)
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
1470
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be added.
00
Lead and
Packaging Code
See Ordering
Options Table
01
Internal Use
01, 02
(Standard)
M
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3008_R47_X2_520 • 4/4/2013
1
Film Capacitors
AC Line EMI Suppression and RC Networks – R47 Series Metallized Polypropylene Film, Class X2, 520 VAC
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
00
DQ
CK
50
40
Lead Length
(mm)
Lead and
Packaging
Code
10
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Bag) – Long Leads
Bulk (Bag) – Max Length Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
4 +2/-0
00
DQ
CK
50
40
BB
15
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Bag) – Long Leads
Bulk (Bag) – Max Length Leads
Pizza Pack
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Ammo Pack
4 +2/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
4 +2/-0
00
DQ
CK
50
40
BB
22.5
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Tray) – Long Leads
Bulk (Tray) – Max Length Leads
Pizza Pack
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
4 +2/-0
H
0
= 18.5 +/-0.5
25 +2/-1
30 +5/-0
00
CK
50
40
27.5
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Tray) – Long Leads
Bulk (Tray) – Max Length Leads
Standard Lead and Packaging Options
37.5
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
Bulk (Tray) – Long Leads
Bulk (Tray) – Max Length Leads
4 +2/-0
25 +2/-1
30 +5/-0
00
50
40
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3008_R47_X2_520 • 4/4/2013
2
Film Capacitors
AC Line EMI Suppression and RC Networks – R47 Series Metallized Polypropylene Film, Class X2, 520 VAC
Dimensions – Millimeters
L
H
d
p
p
Nominal
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
4.0
5.0
6.0
5.0
6.0
6.0
7.5
7.5
8.5
9.0
10.0
11.0
13.0
6.0
6.5
7.0
8.5
10.0
11.0
13.0
9.0
11.0
13.0
14.0
18.0
22.0
11.0
13.0
16.0
19.0
20.0
B
LL
B
Tolerance
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.2/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
Nominal
9.0
11.0
12.0
11.0
12.0
17.5
13.5
18.5
14.5
12.5
16.0
19.0
12.0
15.0
13.5
16.0
17.0
18.5
20.0
22.0
17.0
20.0
22.0
28.0
33.0
37.0
22.0
24.0
28.5
32.0
40.0
H
Tolerance
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
+0.1/-0
Nominal
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
41.5
41.5
41.5
41.5
41.5
L
Tolerance
+0.2/-0
+0.2/-0
+0.2/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.5/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
+0.3/-0
Nominal
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1
1
1
1
1
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3008_R47_X2_520 • 4/4/2013
3
Film Capacitors
AC Line EMI Suppression and RC Networks – R47 Series Metallized Polypropylene Film, Class X2, 520 VAC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Approvals
Dissipation Factor
520 VAC 50/60 Hz
0.0047 – 2.2 µF
±20%, ±10%, ±5% on request
-40ºC to +85°C
40/85/56
ENEC, UL, cUL, CQC
Maximum Values at +23°C
1 kHz
0.1%
The 100% screening factory test is carried out at 2,700 VDC/1,700 VAC.
The voltage level is selected to meet the requirements in applicable
equipment standards. All electrical characteristics are checked after the
test. It is not permitted to repeat this test as there is a risk to damage the
capacitor. KEMET is not liable in such case for any failures.
Minimum Values Between Terminals
Insulation Resistance
C ≤ 0.33 µF
C > 0.33 µF
In DC Applications
Recommended Voltage ≤ 1,000 VDC
≥ 50,000 MΩ
≥ 30,000 MΩ • µF
Test Voltage Between Terminals

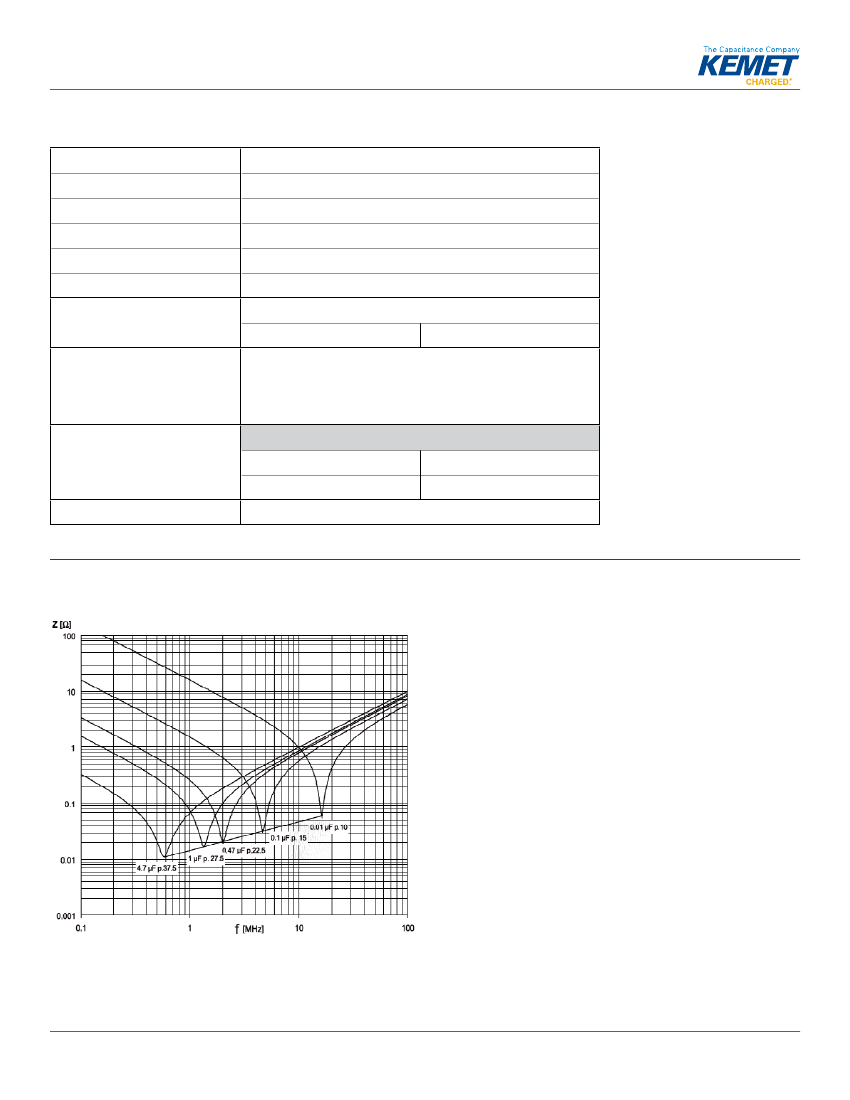

Impedance Graph
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3008_R47_X2_520 • 4/4/2013
4
Film Capacitors
AC Line EMI Suppression and RC Networks – R47 Series Metallized Polypropylene Film, Class X2, 520 VAC
Environmental Test Data
Test
Endurance
Vibration
Bump
Change of Temperature
Active Flammability
Passive Flammability
Damp Heat Steady State
IEC Publication
EN/IEC 60384–14
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068–2–14 Test Na
IEC 60384–14
IEC 60384–14
IEC 60068–2–78 Test Cab
Procedure
1.25 x V
R
VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1 second,
1,000 hours at upper rated temperature
3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s
2
1,000 bumps at 390 m/s
2
Upper and lower rated temperature 5 cycles
V
R
+ 20 surge pulses at 2.5 kV (pulse every 5 seconds)
IEC 60384–1, IEC 60695–11-5 Needle flame test
+40°C and 93% RH, 56 days
Approvals
Mark
Specification
EN/IEC 60384–14
File Number
CA08.00101
UL 1414 (up to 1 μF, 85°C, 250 VAC)
UL 1283 (440 VAC 110°C)
E97797
E85238
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3008_R47_X2_520 • 4/4/2013
5
