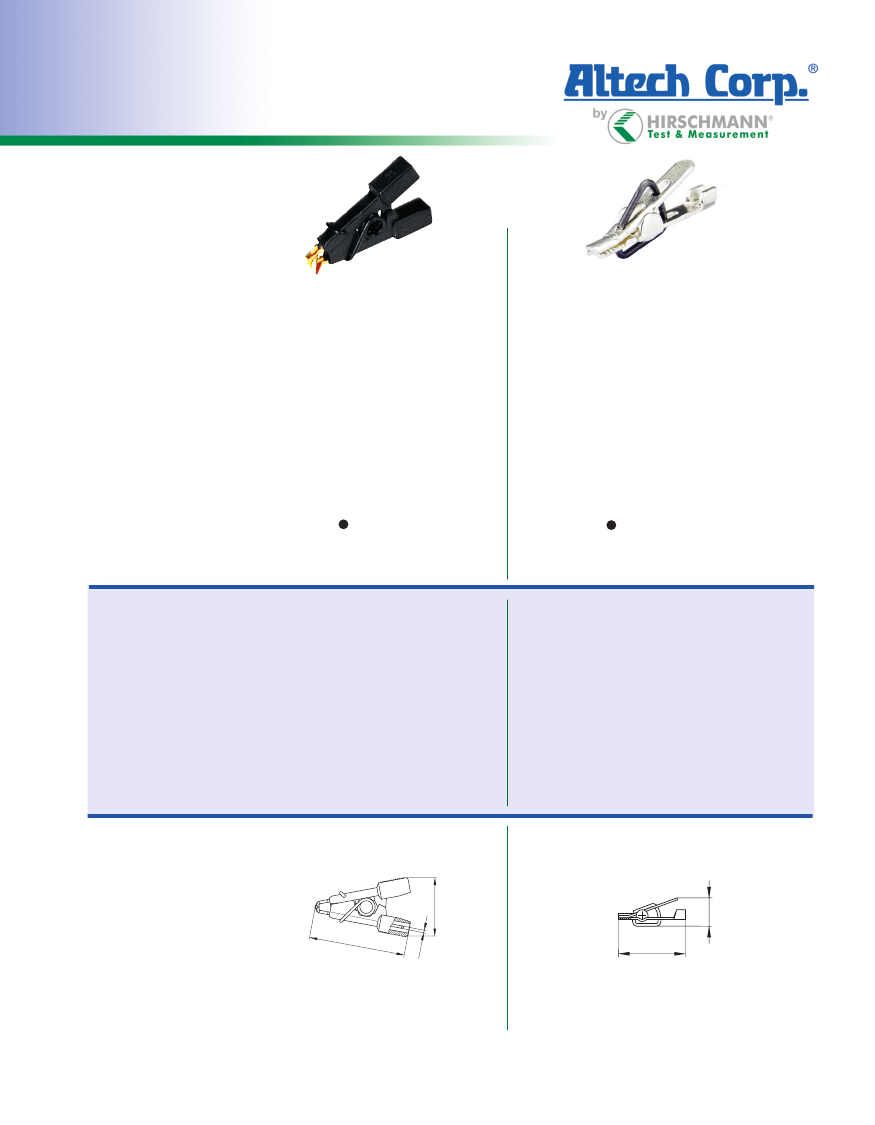

Alligator Clips
0.64 and 2 mm System
Type
MICRO-SMD CLIP 1
Spring loaded 2 pole test clip designed for
MSD components; gold plated, hardened tip;
flat nose for testing individual components;
insulated spring, 0.64mm connection pin
terminal.
AGF 1
Mini alligator clip for small components, silver
plated, solder/ crimp terminal max. 0.5mm
2
.
Clamping range
PART NO. /
Housing color
0 mm to 8 mm (0.31”)
1 mm (0.04”)
972416100
930476001
Technical Data
Contact Type
Connection Type
Voltage Rating
Measurment Category (IEC61010)
Current Rating*
Contact Resistance
Material Specifications
Alligator Clip
Housing
Environmental Conditions
Temperature Range
Flamability Rating
Housing
Drawing
Measurements are shown in millimeters.
Multiply by 0.03937 to convert to inches.
-30 °C to +100 °C (22°F to 212°F)
UL 94 HB
-25°C to +100 °C (13°F to 212°F)
–
gold plated copper beryllium
PBT
silver plated brass
–
alligator clip
2x pin 0.64 mm
30 VAC / 60 VDC
CAT I
1A
6 mOhm
alligator clip
solder, crimp 0.5mm
2
30 VAC / 60 VDC
CAT I
3A
15 mOhm
15
* Please consider derating graph on page 80.
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
Ø 0,6
25
4
17
7
21
