KM-27PBC-A-08: DescriptionT-3/4 SINGLE COLOR LED, BLUE, 1.78mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size73KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KM-27PBC-A-08 Overview

T-3/4 SINGLE COLOR LED, BLUE, 1.78mm, ROHS COMPLIANT PACKAGE-2

KM-27PBC-A-08 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	250.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	TAPE AND REEL
peak wavelength	468 nm
shape	ROUND
size	1.78 mm
surface mount	YES
T code	T-3/4
Terminal pitch	7.3 mm
perspective	20 deg

Preview

Download Datasheet

View All

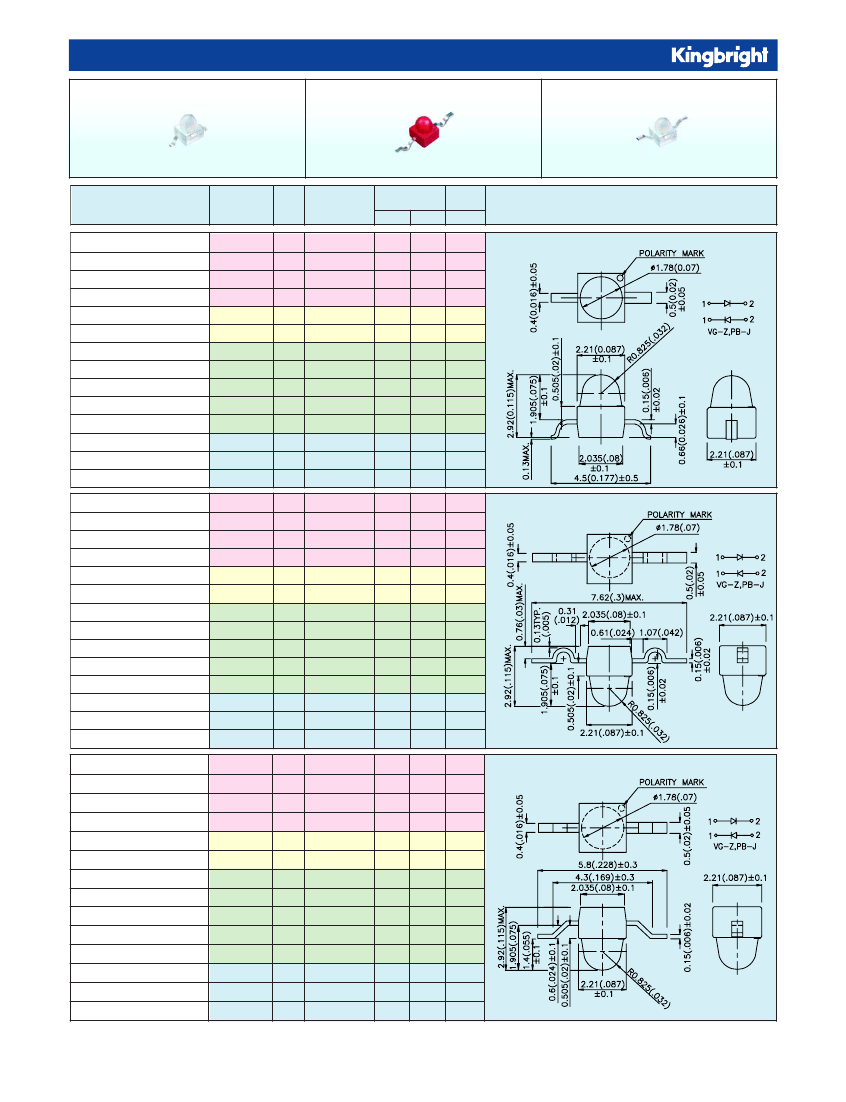

SURFACE MOUNT LED LAMPS

KM-27xxx-03

KM-27xxx-08

KM-27xxx-09

Part No.

Material

λ

D

(nm)

Lens Type

Iv (mcd)

@20mA

Min.

Typ.

View ing

Angle

2θ 1/2

θ

Dimension

KM-27SURC-03

KM-27SURCK-03

KM-27SEC-03

KM-27SECK-03

KM-27SYC-03

KM-27SYCK-03

KM-27MGC-03

KM-27CGCK-03

KM-27ZGC-03

KM-27VGC-A-03

KM-27VGC-Z-03

KM-27QBC-D-03

KM-27PBC-A-03

KM-27PBC-J03

InGaAlP

AlInGaN

InGaN

AlInGaN

InGaN

628

635

601

588

590

568

570

525

535

470

water clear

650

480

1200

900

650

280

110

1800

380

3300

180

110

380

1600

1400

2000

1800

1500

1300

600

400

3300

800

6400

500

250

1000

20°

Subminiature Solid State Lamps

Gull Wing Lead

KM-27SURC08

KM-27SURCK-08

KM-27SEC-08

KM-27SECK-08

KM-27SYC-08

KM-27SYCK-08

KM-27MGC-08

KM-27CGCK-08

KM-27ZGC-08

KM-27VGC-A-08

KM-27VGC-Z-08

KM-27QBC-D-08

KM-27PBC-A-08

KM-27PBC-J-08

InGaAlP

AlInGaN

InGaN

AlInGaN

InGaN

628

635

601

588

590

568

570

525

535

470

water clear

650

480

1200

900

650

280

110

1800

380

3300

180

110

380

1600

1400

2000

1800

1500

1300

600

400

3300

800

6400

500

250

1000

20°

Subminiature Solid State Lamps

Yoke Lead

KM-27SURC-09

KM-27SURCK-09

KM-27SEC-09

KM-27SECK-09

KM-27SYC-09

KM-27SYCK-09

KM-27MGC-09

KM-27CGCK-09

KM-27ZGC-09

KM-27VGC-A-09

KM-27VGC-Z-09

KM-27QBC-D-09

KM-27PBC-A-09

KM-27PBC-J-09

InGaAlP

AlInGaN

InGaN

AlInGaN

InGaN

628

635

601

588

590

568

570

525

535

470

water clear

650

480

1200

900

650

280

110

1800

380

3300

180

110

380

1600

1400

2000

1800

1500

1300

600

400

3300

800

6400

500

250

1000

20°

Subminiature Solid State Lamps

Z-Bend Lead

NOTES:

1. All dimensions are in millimeters(inches).

2. Tolerance is

±0.25mm(0.01")

unless otherwise noted.

20
