712-387
Straight, 45° & 90° Environmental User-Installable
Fitting for Series 75 Flexible Metal-Core Conduit
712 S 387 M 16 12 - 6 A
Product
Series
Conduit Type
Length in 1/2 inch (12.7) increments
(Example: 6 = 3.0 inches (76.2))
Minimum Length:
Dash No. (Table II) 08 to 24 = 1.50 (50.8)
Dash No. (Table II) 32 to 96 = 2.00 (63.5)
Dash No. (Table II)
Thread Dash No. (Table I)
Series 75
Metal-Core
Conduit
TO BE USED WITH
ADAPTERS AND
TRANSITIONS
SHOWN ON PAGES
G-1 THROUGH G-8
Angular Function
H = 45°
J = 90°
S = Straight
Basic No.
Material/Finish
(Table III)

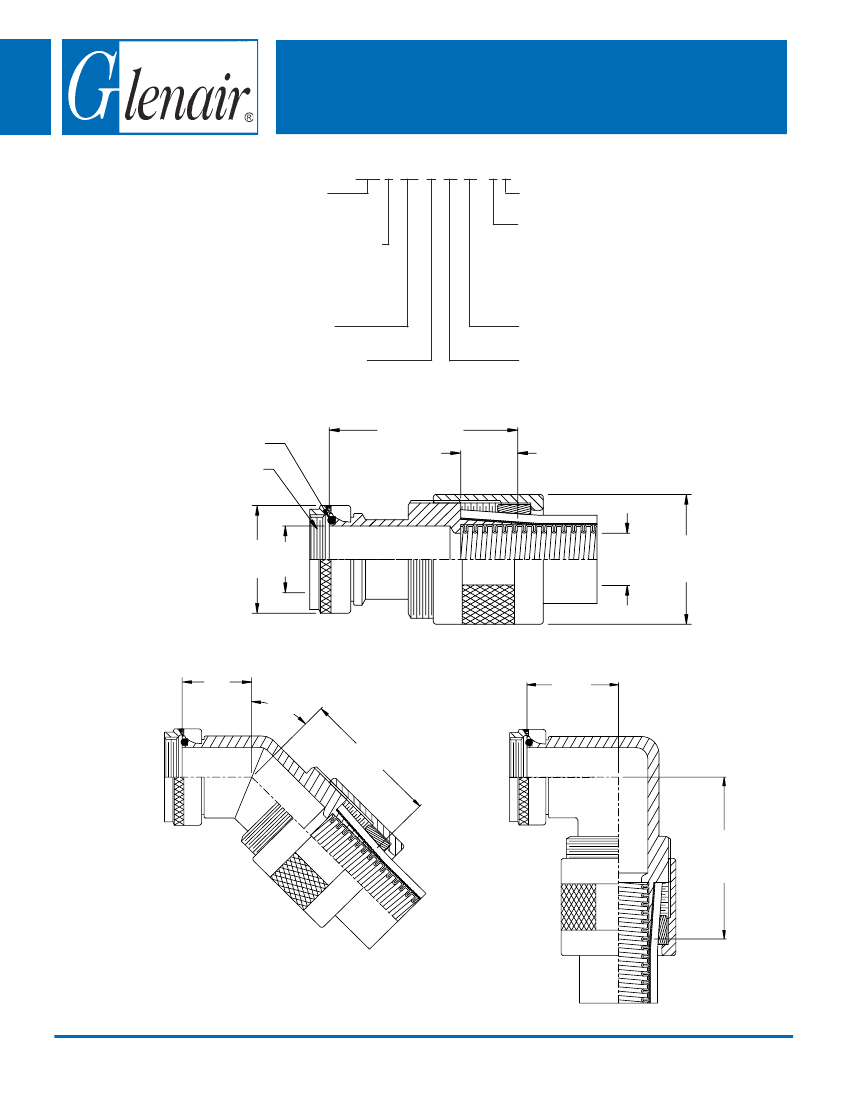

LENGTH
O-RING
A THREAD
(Table I)
E
CONE
LENGTH
B
C
TYP TYP
CONDUIT F
TYP
I.D.
STRAIGHT
G
45°
J
H
90°
45°
K
© 2003 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-14
712-387
Straight, 45° & 90° Environmental User-Installable
Fitting for Series 75 Flexible Metal-Core Conduit
TABLE I
DASH
NO.
08
12
16
20
24
32
40
48
56
64
80
96
A THREAD
CLASS 2B
1/2 - 20 UNF
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 5/16 - 18 UNEF
1 1/2 - 18 UNEF
1 3/4 - 18 UNS
2 - 18 UNS
2 1/4 - 16 UN
2 3/4 - 16 UN
3 1/4 - 16 UN
B
MAX
.640 (16.3)
.760 (19.3)
.890 (22.6)
1.024 (26.0)
1.152 (29.3)
1.488 (37.8)
1.676 (42.6)
1.960 (49.8)
2.210 (56.1)
2.460 (62.5)
2.930 (74.4)
3.450 (87.6)
C
DIA
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.000 (50.8)
2.500 (63.5)
3.000 (76.2)
TABLE II
DASH
NO.
08
12
16
20
24
32
40
48
56
64
80
96
CONDUIT
I.D.
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.000 (50.8)
2.500 (63.5)
3.000 (76.2)
E
.75 (19.1)
.75 (19.1)
.75 (19.1)
.75 (19.1)
.75 (19.1)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
F MAX
(NOTE 2)
1.16 (29.5)
1.34 (34.0)
1.46 (37.1)
1.65 (41.9)
1.84 (46.7)
2.02 (51.3)
2.34 (59.4)
2.72 (69.0)
2.96 (75.2)
3.22 (81.8)
3.86 (98.0)
4.38 (111.3)
G
MAX
.624 (15.8)
.654 (16.6)
.688 (17.5)
.705 (17.9)
.732 (18.6)
.773 (19.6)
.823 (20.9)
1.041 (26.4)
1.062 (27.0)
1.092 (27.7)
1.190 (30.2)
1.250 (31.8)
H
MAX
1.700 (43.2)
1.730 (43.9)
1.750 (44.5)
1.780 (45.2)
1.800 (45.7)
2.020 (51.3)
2.090 (53.1)
2.360 (59.9)
2.410 (61.2)
2.450 (62.2)
2.550 (64.8)
2.610 (66.3)
J
MAX
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.080 (27.4)
1.200 (30.5)
1.480 (37.6)
1.550 (39.4)
1.610 (40.9)
1.860 (47.2)
1.990 (50.5)
K
MAX
1.810 (46.0)
1.870 (47.5)
1.930 (49.0)
2.000 (50.8)
2.060 (52.3)
2.390 (60.7)
2.540 (64.5)
2.870 (72.9)
2.960 (75.2)
3.070 (78.0)
3.320 (84.3)
3.450 (87.6)
NOTES:
1. Metric dimensions (mm),
are in parentheses.
2. F dimension is based on
type A construction. Add .125
(3.2) to listed dimensions for
each additional shield types B
through D.
TABLE III
SYMBOL
A
B
C
M
NC
S
MATERIAL
Aluminum Alloy, 6061-T6
per QQ-A-225/8
Brass, ASTM B16 per
QQ-B-626
Corrosion Resistant Steel
per QQ-S-763, 300 Series
Aluminum Alloy, 6061-T6
per QQ-A-225/8
Aluminum Alloy, 6061-T6
per QQ-A-225/8
Carbon Steel, B1113,
per QQ-S-637
FINISH
Cadmium, Olive Drab, per QQ-P-416, over Electroless Nickel
per ASTMB733-90, and MIL-C-26074, 500 Hour Salt Spray
Passivate per QQ-P-35
Electroless Nickel per ASTMB733-90
and MIL-C-26074
Zinc Cobalt, Olive Drab
Cadmium, Olive Drab per QQ-P-416, over Electroless Nickel
per ASTM B733-90 and MIL-C-26074, 500 Hour Salt Spray
