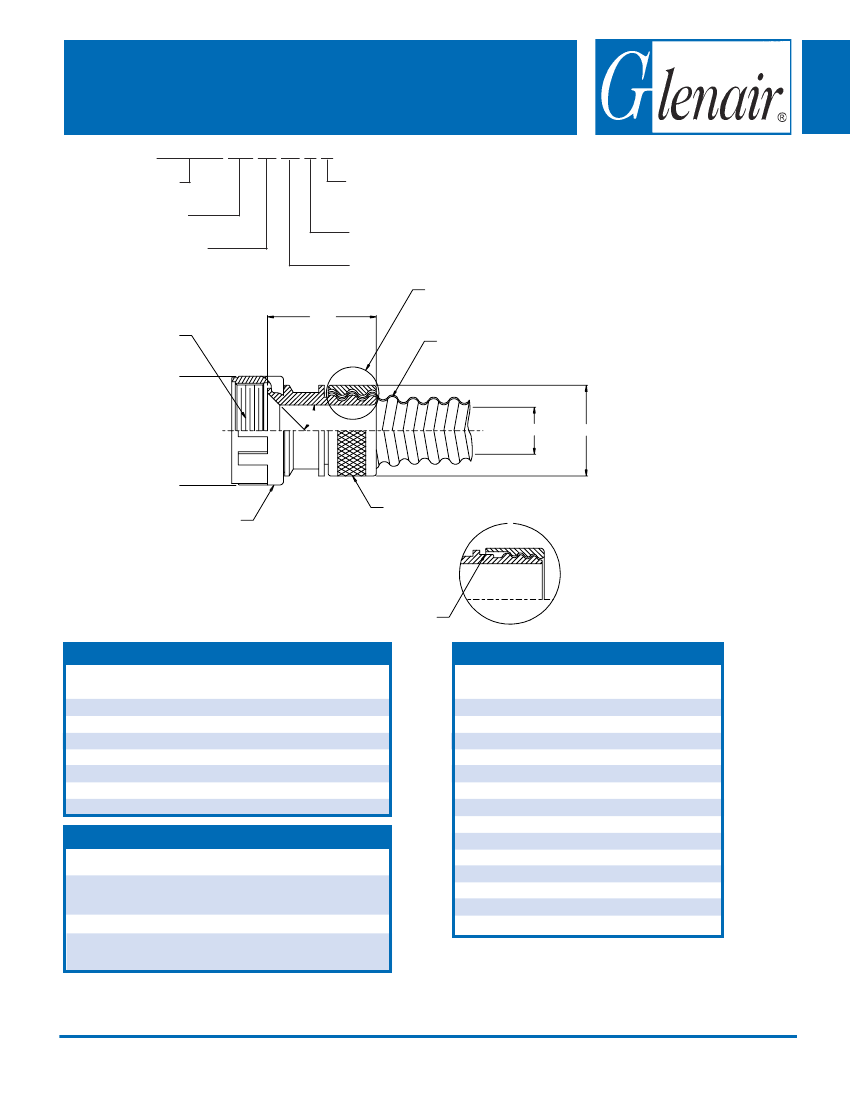

712S269
Self-Locking Composite Conduit Adapter for
Series 74 Bare PEEK or Standard Teflon
®
Tubing
712S269 XM 03 24 N K
Basic Part No.
Finish (Table III)
N = Non-self locking, omit for self locking
Dash No. (Table I)
Conduit Size (Table II)
See Detail A
A Thread - Typ.
Class 2A
1.06
(26.9)
Convoluted Tubing
(Shown for Reference
Only)
K = For use with PEEK conduit material,
omit for standard teflon conduit material
45°
Conduit I.D. J
Knurl or flute style mfr option
Self-Locking
Coupling
Land area to
accommodate
adhesive
DETAIL A
Optional Adhesive
Land Configuration
(See Part Number)
Table I
Dash
No.
01
02
03
04
05
06
07
A Thread Max Conduit
Unified
Size Table 2
.750 - 20
16
1.000 - 20
24
32
1.312 - 18
1.500 - 18
40
2.000 - 18
64
09
.500 - 20
.625 - 24
12
Weight in
Pounds Max.
.032
.043
.057
.070
.094
.030
.031
Dash
No.
06
09
10
12
14
16
20
24
28
32
40
48
56
64
Tablel II
Conduit
I.D.
.188 (4.8)
.281 (7.1)
.312 (7.9)
.375 (9.5)
.437 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.000 (50.8)
J Dia
Max
.790 (20.1)
.985 (25.0)
.985 (25.0)
1.035 (26.3)
1.100 (27.9)
1.160 (29.5)
1.285 (32.6)
1.480 (37.6)
1.670 (42.4)
1.720 (43.7)
2.100 (53.3)
2.420 (61.5)
2.660 (67.6)
2.910 (73.9)
Table III
TABLE 2
XM
XW
XB
XO
Electroless Nickel
Cadmium Olive Drab Over Electroless
Nickel
No Plating - Black Material
No Plating - Base Material
Non-conductive
Metric dimensions (mm) are in parentheses and are for reference only.
© 2003 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-29
Series 74
Convoluted
Tubing
