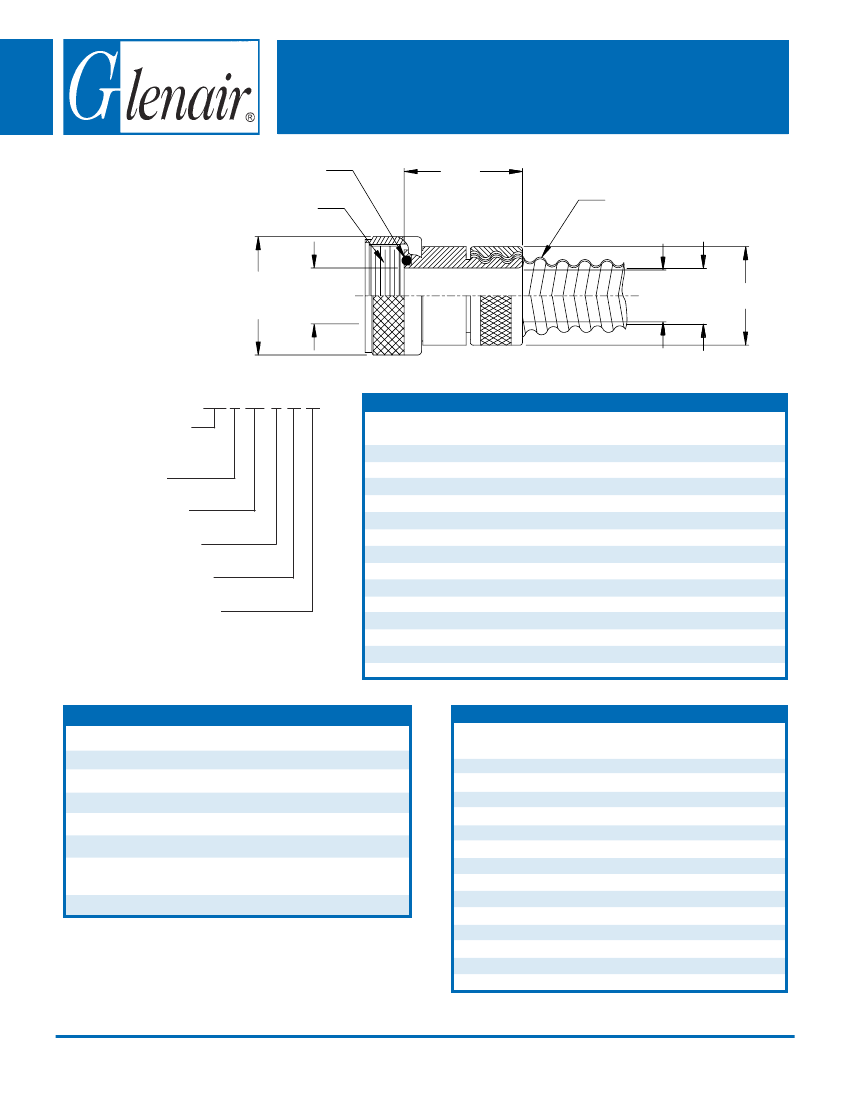

712-379 - Type A

Non-Environmental User-Installable Transition Fitting

for Series 74 Helical Convoluted Tubing

Series 74

Convoluted

Tubing

TYPE

A

TO BE USED

WITH

ADAPTERS AND

TRANSITIONS

SHOWN ON

PAGES G-1

THROUGH G-19

O-RING

A THREAD

1.06

(26.9)

CONVOLUTED

TUBING

B DIA

MAX

C

DIA

D TUBING

J DIA

DIA I.D.

712 S 379 M 16 16

Product Series

Angular Function

S=Straight

Basic Part No.

Finish (Table II)

Dash No. (Table I)

Dash No. (Table III)

Not for use with PEEK convoluted

tubing. Consult factory for

correct part number.

TABLE II

SYMBOL FINISH

B

J

M

N

NC

NF

T

Olive Drab over Cadmium Plate

DASH

NO.

06

09

10

12

14

16

20

24

28

32

40

48

56

64

A THREAD

CLASS 2B

7/16 - 28 UNEF

9/16 - 24 UNEF

5/8 - 24 UNEF

11/16 - 24 UNEF

3/4 - 20 UNEF

7/8 - 20 UNEF

1 - 20 UNEF

1 3/16 - 18 UNEF

1 5/16 - 18 UNEF

1 1/2 - 18 UNEF

1 3/4 - 18 UNS

2 - 18 UNS

2 1/4 - 16 UN

TABLE I

B

MAX

.640 (16.3)

.690 (17.5)

.760 (19.3)

.890 (22.6)

1.024 (26.0)

1.152 (29.3)

1.363 (34.6)

1.488 (37.8)

1.676 (42.6)

1.960 (49.8)

2.210 (56.1)

2.460 (62.5)

C

MAX

DIA

CONDUIT

.188 (4.8)

06

.281 (7.1)

09

.312 (7.9)

10

.375 (9.5)

12

.438 (11.1)

14

.500 (12.7)

16

.625 (15.9)

20

.750 (19.1)

24

.875 (22.2)

28

1.000 (25.4)

32

1.250 (31.8)

40

1.500 (38.1)

48

1.750 (44.5)

56

2.000 (50.8)

64

Gold Iridite over Cadmium Plate over Nickel

Electroless Nickel

Olive Drab over Cadmium Plate over Nickel

Zinc-Cobalt, Olive Drab

Olive Drab over Cadmium Plate over

Electroless Nickel (500 Hour Salt Spray)

Bright Dip Cadmium Plate over Nickel

Notes:

1. Metric dimensions (mm) are in parentheses.

2. Tubing shown for reference only.

3. Min/max dimensions not intended for inspection

criteria.

TABLE III

DASH

TUBING I.D.

NO.

MIN

MAX

06

.181 (4.6)

.188 (4.8)

09

.273 (6.9)

.281 (7.1)

10

.306 (7.8)

.312 (7.9)

12

.359 (9.1)

.375 (9.5)

14

.427 (10.8)

.437 (11.1)

16

.480 (12.2)

.500 (12.7)

20

.603 (15.3)

.625 (15.9)

24

.725 (18.4)

.750 (19.1)

28

.860 (21.8)

.875 (22.2)

32

.970 (24.6) 1.000 (25.4)

40

1.205 (30.6) 1.250 (31.8)

48

1.437 (36.5) 1.500 (38.1)

56

1.688 (42.9) 1.750 (44.5)

64

1.937 (49.2) 2.000 (50.8)

J

MAX

.530 (13.5)

.590 (15.0)

.660 (16.8)

.710 (18.0)

.780 (19.8)

.840 (21.3)

.970 (24.6)

1.160 (29.5)

1.310 (33.3)

1.410 (35.8)

1.720 (43.7)

2.010 (51.1)

2.380 (60.1)

2.560 (65.0)

Printed in U.S.A.

CAGE Codes 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

D-26
