CX5032SA12000H0PTWZ1 Overview

Crystal 12MHz ±50ppm (Tol) ±200ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin CSMD T/R

CX5032SA12000H0PTWZ1 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	LTB
Type	Crystal
Standard Frequency (MHz)	12
Frequency Tolerance (ppm)	±50
Frequency Stability (ppm)	±200
Load Capacitance (pF)	12
Series Resistance (Ohm)	100
Mode of Oscillation	Fundamental
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	150
Packaging	Tape and Reel
Supplier Package	CSMD
Pin Count	4
Standard Package Name	SMD
Mounting	Surface Mount
Package Height	0.85
Package Length	4.9
Package Width	3.1
PCB changed	4

Preview

Download Datasheet

View All

Crystal Units

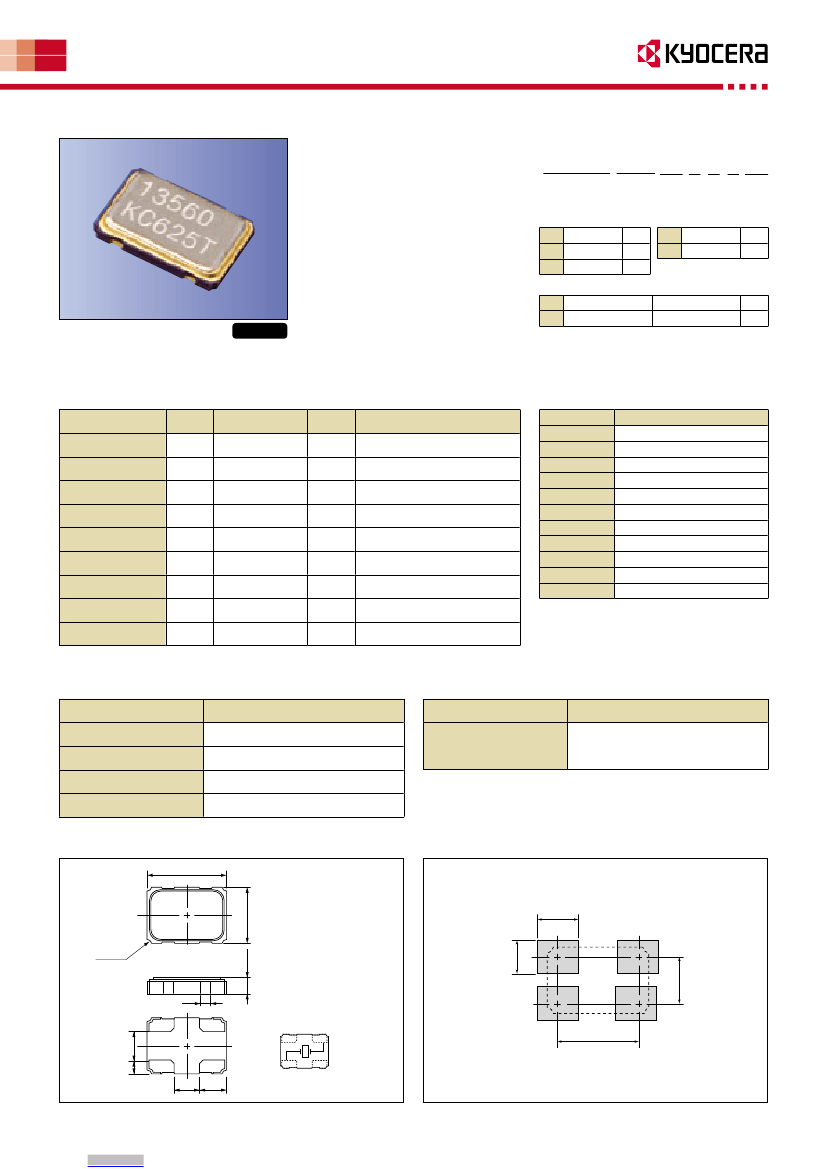

Surface Mount Type CX5032SA

5.0×3.2mm for Automotive

Features

• Crystal unit for automotive electronics

• Improved solderability

• Using ceramic package resulting in high

reliability

• Small and low profile

• Improved rust prevention performance

• Reflow compatible

• AEC-Q200 qualitied

How to Order

CX5032SA 08000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series

③

Load Capacitance

8 pF

10 pF

12 pF

—

Std.

②

Frequency

④

Frequency Stability

±50×10

Std.

±100×10

—

Applications

RoHS Compliant

• ECU

• TPMS

• High-Speed Automotive Network (Flex Ray

etc.)

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

-40

+125°C

-40

+150°C

±150×10

±200×10

—

Std.

⑦

Individual Specification

Packaging (Tape & Reel 5000/ 1000 pcs./ reel)

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Specification

8000 to 40000

Fundamental

±50

Table 1

Table 2

-40

+150

-40

+150

±200

Units

kHz

―

×10

ohm

μW

°C

×10

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

8000.000

9843.750

10000.000

12000.000

13560.000

15000.000

16000.000

18000.000

20000.000

24000.000

25000.000

Part Number

CX5032SA08000H0PTWZ1

CX5032SA09843H0PTWZ1

CX5032SA10000H0PTWZ1

CX5032SA12000H0PTWZ1

CX5032SA13560H0PTWZ1

CX5032SA15000H0PTWZ1

CX5032SA16000H0PTWZ1

CX5032SA18000H0PTWZ1

CX5032SA20000H0PTWZ1

CX5032SA24000H0PTWZ1

CX5032SA25000H0PTWZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

8000 to 8999kHz

9000 to 11999kHz

12000 to 19999kHz

20000 to 40000kHz

Motional Series Resistance

200Ω max.

150Ω max.

100Ω max.

50Ω max.

Table2 Level of Drive

Frequency Range

8000 to 40000kHz

Level of Drive

10μW (100μW max.)

Dimensions

4.90±0.1

3.10±0.1

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

1.6

1.3

4-R0.2

0.85±0.15

0.5

HOT

GND

CONNECTION

(TOP VIEW)

3.5

0.8

1.3

GND

2.3

1.2

HOT

No.2, 4: Case Ground

2.1

CX5032SA12000H0PTWZ1 Related Products

	CX5032SA12000H0PTWZ1	CX5032SA16000H0PTWZ1	CX5032SA08000H0PTWZ1
Description	Crystal 12MHz ±50ppm (Tol) ±200ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin CSMD T/R	Crystal 16MHz ±50ppm (Tol) ±200ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin CSMD T/R	Crystal 8MHz ±50ppm (Tol) ±200ppm (Stability) 12pF FUND 200Ohm Automotive 4-Pin CSMD T/R
EU restricts the use of certain hazardous substances	Compliant	Compliant	Compliant
ECCN (US)	EAR99	EAR99	EAR99
Part Status	LTB	LTB	LTB
Type	Crystal	Crystal	Crystal
Standard Frequency (MHz)	12	16	8
Frequency Tolerance (ppm)	±50	±50	±50
Frequency Stability (ppm)	±200	±200	±200
Load Capacitance (pF)	12	12	12
Series Resistance (Ohm)	100	100	200
Mode of Oscillation	Fundamental	Fundamental	Fundamental
Minimum Operating Temperature (°C)	-40	-40	-40
Maximum Operating Temperature (°C)	150	150	150
Packaging	Tape and Reel	Tape and Reel	Tape and Reel
Supplier Package	CSMD	CSMD	CSMD
Pin Count	4	4	4
Standard Package Name	SMD	SMD	SMD
Mounting	Surface Mount	Surface Mount	Surface Mount
Package Height	0.85	0.85	0.85
Package Length	4.9	4.9	4.9
Package Width	3.1	3.1	3.1
PCB changed	4	4	4
