BAC-UPL2000-D8B datasheet, PDF

Datasheet> All Categories > The connector> The connector> BAC-UPL2000-D8B

BAC-UPL2000-D8B: DescriptionRF BNC Connector,; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerL-com Global Connectivity

Download Datasheet Parametric View All

BAC-UPL2000-D8B Overview

RF BNC Connector,

BAC-UPL2000-D8B Parametric

Parameter Name	Attribute value
Maker	L-com Global Connectivity
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

REV

DESCRIPTION

RELEASED FOR PRODUCTION

ECN 3135: UPDATE DWG FORMAT

REVISIONS

DATE

03/20/03

12/31/07

CHANGED BY

MCCORMICK

D.GRIFFIN

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

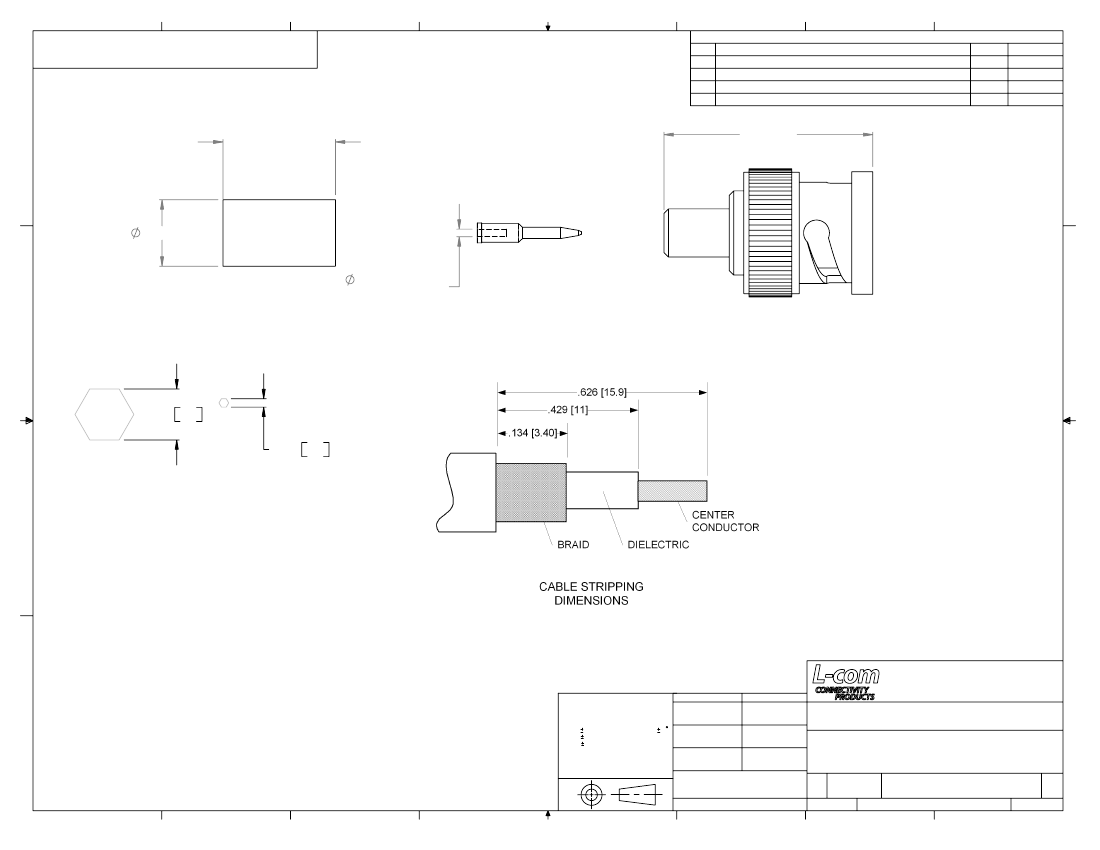

.50 [12.7]

.93 [24]

.295±.010

.034+.002/-.000

[.86]

.255 6.5

.042 1.1

RECOMMENDED

FERRULE & PIN

CRIMP SIZES

NOTES:

MATERIAL:

BODY:BRASS

DIELECTRIC: DELRIN

CENTER PIN: BRASS

FERRULE: BRASS

OUTER CONTACT: BRASS

BAYONET SLEEVE: BRASS

FINISH:

BODY: NICKEL PLATED

CENTER PIN: GOLD PLATED

FERRULE: NICKEL PLATED

OUTER CONTACT: GOLD FLASH PLATED

BAYONET SLEEVE: BLACK ELECTROLESS NICKEL PLATED

NOTES:

1. CHARACTERISTIC IMPEDANCE: 75 OHMS

2. RECOMMENDED APPLICATION: BELDEN 1506A; GEPCO VPM2000TK

COAXIAL CABLE

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845
