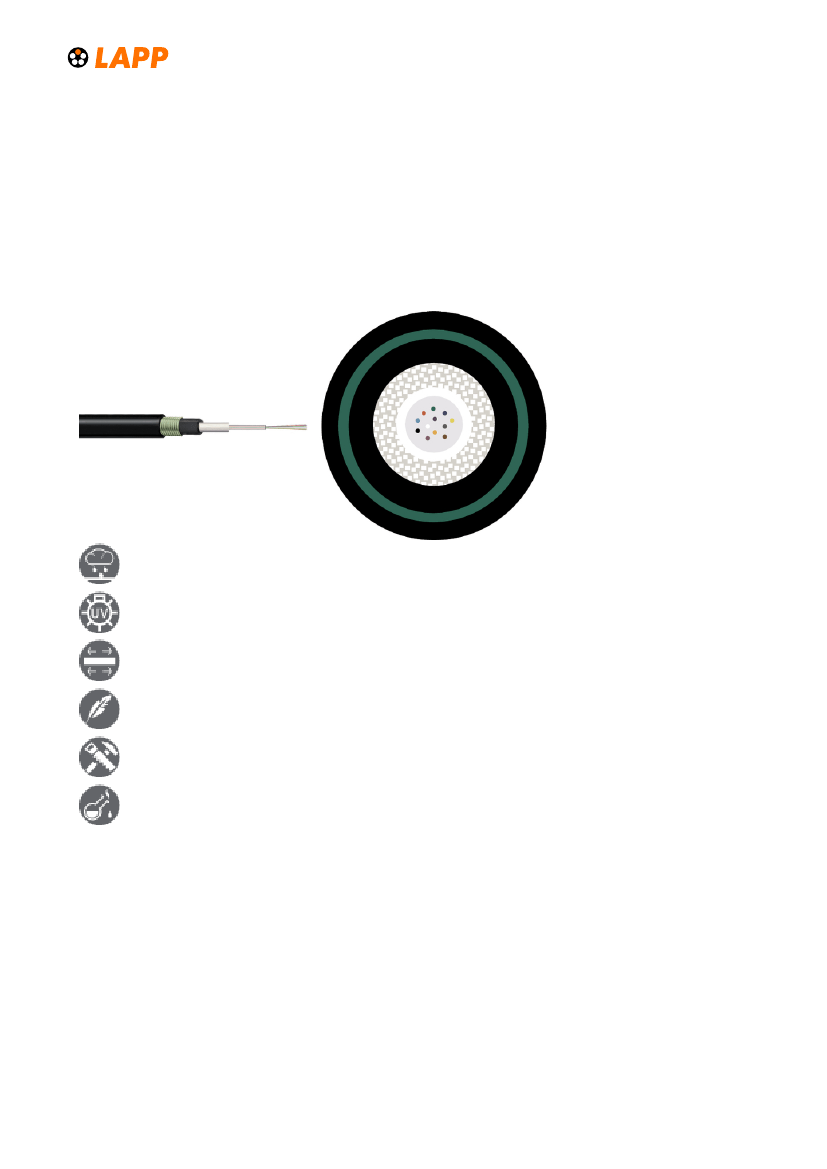

PRODUCT INFORMATION
HITRONIC® HQW-Plus Armoured Outdoor Cable
Outdoor cable with corrugated steel tape, central loose tube, non-metallic strain relief and PE inner and outer sheath
HITRONIC® HQW-Plus armoured outdoor cable, central loose tube, corrugated steel tape, inner and outer sheath
A-DQ(ZN)B2Y(SR)2Y
Info
cable with corrugated steel tape (CST) for increased mechanical stress
Waterproof
UV-resistant
Optimum strain relief
Low weight
Mechanical resistance
Halogen-free
Benefits
Additional sheath protects the fibres for use in harsh environments
Armouring provides excellent protection
against high mechanical stress and rodents
Suitable for direct burial
UV-resistant
longitudinally and laterally watertight
Application range
For outdoor use
Harsh industrial environment
Campus backbone
WAN applications
Last Update (31.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
HITRONIC® HQW-Plus Armoured Outdoor Cable
Methods of Deployment: empty plastic pipes, ducts and trays
Product features
Central loose tube with up to 24 fibres
Colour-coded fibres
Longitudinal watertight
Excellent rodent protection
Robust, halogen-free outer sheath
Product Make-up
Gel-filled loose tube
Water-blocking reinforced glass yarn strain relief
Corrugated steel tape armour
PE inner and outer sheaths
Colour: black (RAL 9005)
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Dimensions:
Core identification code:
Fibre type:
Standard designation:
Optical values:
Optical fibre type:
Permissible bending radius:
Permissible tensile force:
Temperature range:
ETIM 5.0 Class-ID: EC000034
ETIM 5.0 Class-Description: Fibre optic cable
ETIM 6.0 Class-ID: EC000034
ETIM 6.0 Class-Description: Fibre optic cable
Primary coated fibre: 250µm
Cable: see table
Fibre colour code see
data sheet
GOF - Glass Optical Fibre
A-DQ(ZN)B2Y(SR)2Y
see data sheet
Core material: glass
Cladding material: glass
Static: ≥ 15 x outer diameter
Dynamic: ≥ 20 x outer diameter
Fixed installation: 3000 N
Short-term: 5000 N
Fixed installation: -40°C to +70°C
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (31.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
HITRONIC® HQW-Plus Armoured Outdoor Cable
Article number
Multimode G 50 OM3
27920304
27920308
27920312
27920324
Multimode G 50 OM2
27920204
27920208
27920212
27920224
Multimode G 62.5 OM1
27920104
27920108
27920112
27920124
Single-mode E 9 OS2
27920904
27920908
27920912
27920924
Article designation
Fibre type
Number of fibres
4
8
12
24
Outer diameter [mm]
9.6
9.6
9.6
12.6
Weight (kg/km)
95
95
95
135
Last Update (31.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
HITRONIC® HQW-Plus3000 50/125 OM3
4G 50/125 OM3
HITRONIC® HQW-Plus3000 50/125 OM3
8G 50/125 OM3
HITRONIC® HQW-Plus3000 50/125 OM3
12G 50/125 OM3
HITRONIC® HQW-Plus3000 50/125 OM3
24G 50/125 OM3
HITRONIC® HQW-Plus3000 50/125 OM2
4G 50/125 OM2
HITRONIC® HQW-Plus3000 50/125 OM2
8G 50/125 OM2
HITRONIC® HQW-Plus3000 50/125 OM2
12G 50/125 OM2
HITRONIC® HQW-Plus3000 50/125 OM2
24G 50/125 OM2
HITRONIC® HQW-Plus3000 62.5/125 OM1
4G 62.5/125 OM1
HITRONIC® HQW-Plus3000 62.5/125 OM1
8G 62.5/125 OM1
HITRONIC® HQW-Plus3000 62.5/125 OM1
12G 62.5/125 OM1
HITRONIC® HQW-Plus3000 62.5/125 OM1
24G 62.5/125 OM1
HITRONIC® HQW-Plus3000 9/125 OS2
4E 9/125 OS2
HITRONIC® HQW-Plus3000 9/125 OS2
8E 9/125 OS2
HITRONIC® HQW-Plus3000 9/125 OS2
12E 9/125 OS2
HITRONIC® HQW-Plus3000 9/125 OS2
24E 9/125 OS2
4
8
12
24
9.6
9.6
9.6
12.6
95
95
95
135
4
8
12
24
9.6
9.6
9.6
12.6
95
95
95
PRODUCT INFORMATION
135
4
8
12
24
9.6
9.6
9.6
12.6
95
95
95
135
