PRODUCT INFORMATION

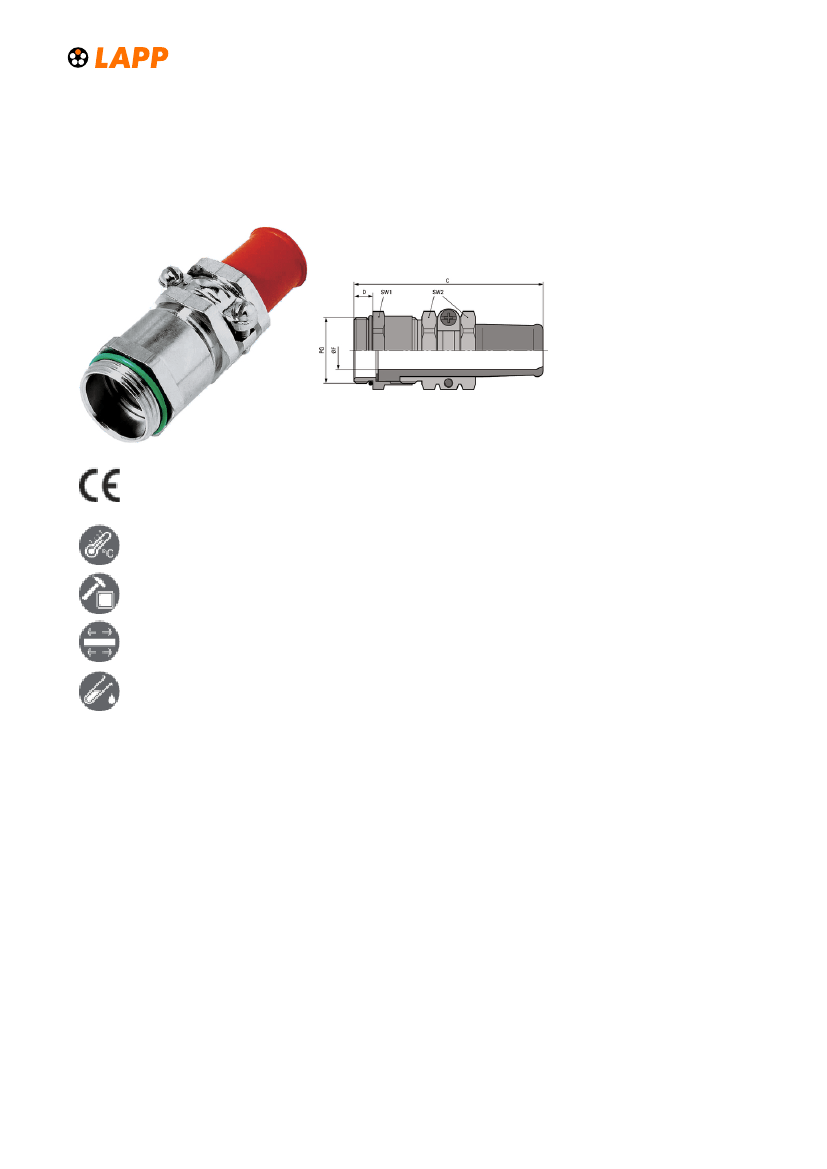

SKINDICHT® SR-SV
SKINDICHT® SR-SV, seawater-resistant PG brass cable gland for high temperatures, resistant to oils, solvents, acids and
chemicals
Temperature-resistant
Robust
Optimum strain relief
Good chemical resistance
Benefits
For high temperatures
Resistant to oils, solvents, acids and chemicals
Seawater-resistant
High strain relief
Robust
Application range
Special cable gland with FKM anti-kink sleeve. Our own reinforced acid-resistant FKM receptacle does not show any effects of
aging even after an extended period of use at a temperature of +165°C.
Machine and turbine manufacturing
Power plant engineering
Laboratory
Product Make-up
PG connection thread
Note
Last Update (26.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINDICHT® SR-SV
Counter nut to be used: SKINDICHT® SM
EMC version is available upon request
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
On request:
Material:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
The installation dimensions
can be found in appendix T21
Available with long connection thread
Body: nickel-plated brass
O-ring: FKM
Anti-kink protection: FKM
IP 65
-15°C to +165°C
Protection rating:
Temperature range:
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (26.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
SKINDICHT® SR-SV
Article number
SKINDICHT® SR-SV
52023620
52023621
52023622
52023623
52023624
52023625
52023626
52023627
52023628
52023629
Article designation /
size
SR-SV 11/07
SR-SV 11/09
SR-SV 13/09
SR-SV 13/11
SR-SV 13/13
SR-SV 16/13
SR-SV 16/15
SR-SV 21/15
SR-SV 21/17
SR-SV 21/19
Clamping range ØF
mm
5.5 - 7
7.5 - 9
7.5 - 9
9 - 11
11 - 13
11.5 - 13
13 - 15
13.5 - 15
15 - 17
17 - 19
Max. fitting size for
installation (mm)
28
28
32
32
32
35
35
40
46
46
SW1/SW2 mm
Overall length C mm
Thread length D mm
Pieces / PU
Last Update (26.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
20.0 / 20.0
20.0 / 20.0
22.0 / 22.0
22.0 / 22.0
22.0 / 22.0
24.0 / 24.0
24.0 / 24.0
30.0 / 30.0
30.0 / 30.0
30.0 / 30.0
56.0
56.0
62.0
62.0
62.0
67.0
67.0
79.0
79.0
79.0
6
6
6.5
6.5
6.5
6.5
6.5
7
7
7
25
25
25
25
25
10
10
10
10
10
PRODUCT INFORMATION
