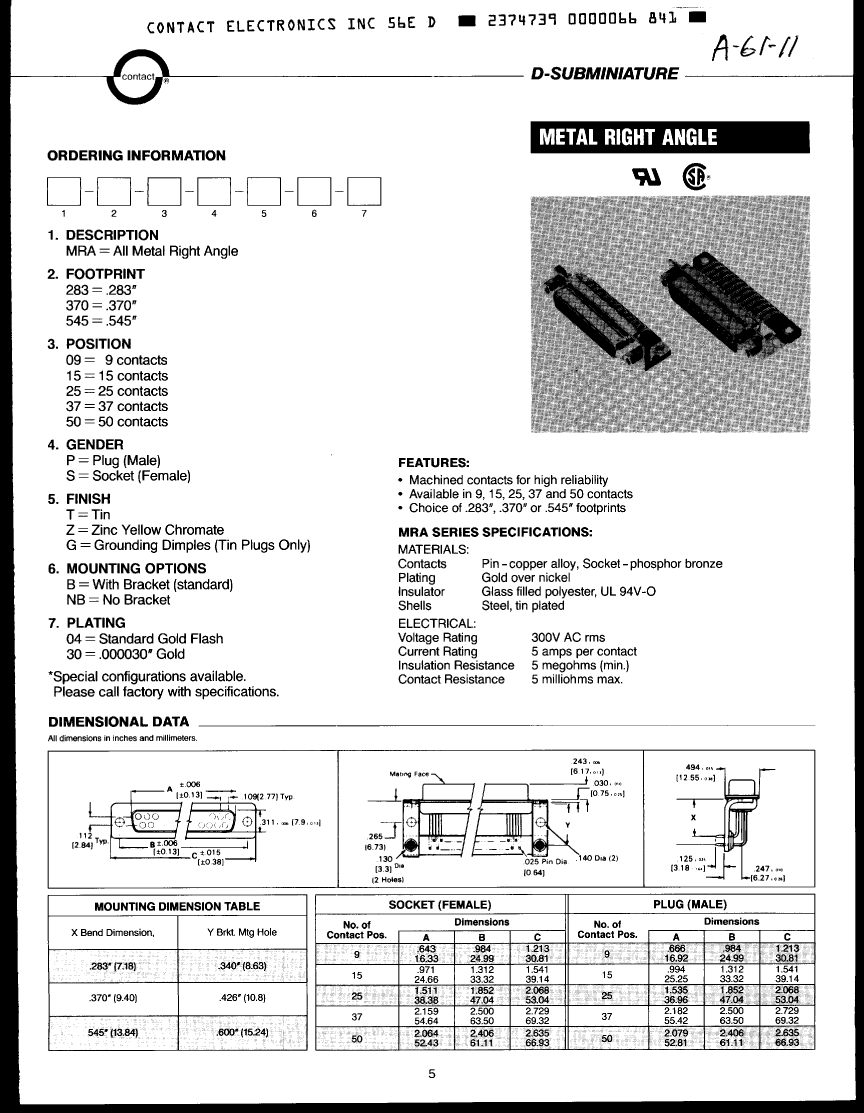

MRA-283-09-S-Z-B-30 datasheet, PDF

MRA-283-09-S-Z-B-30: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size139KB，1 Pages; ManufacturerLapp Group; Environmental Compliance

Download Datasheet Parametric View All

MRA-283-09-S-Z-B-30 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lapp Group
Reach Compliance Code	compli
ECCN code	EAR99
Other features	0.283-INCH FOOTPRINT
body width	0.494 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	5000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
