BZT52C7V5S

Description
Zener Diode, Case Style : SOD-323; Pd (W) : 0.2; Vz (V) Min: 7; Vz (V) Nom: 7.5; Vz (V) Max: 7.9; Vz @lzt (mA): 5; Leakage Current IR (uA): 1; Leakage Current VR (V): 5
CategoryDiscrete semiconductor    Zener diode
File Size1MB,3 Pages
ManufacturerLGE
Websitehttp://www.luguang.cn/web_en/index.html
Download Datasheet Parametric View All

BZT52C7V5S Online Shopping

Suppliers Part Number Price MOQ In stock
BZT52C7V5S - - View Buy Now

BZT52C7V5S Overview

Zener Diode, Case Style : SOD-323; Pd (W) : 0.2; Vz (V) Min: 7; Vz (V) Nom: 7.5; Vz (V) Max: 7.9; Vz @lzt (mA): 5; Leakage Current IR (uA): 1; Leakage Current VR (V): 5

BZT52C7V5S Parametric

Parameter NameAttribute value
Case StyleSOD-323
Pd(W)0.2
VZ(Min)7.00
VZ(Nom)7.5
VZ(Max)7.90
IZT(mA)5
IR(uA)1.00
VR(V)5.0
classDiodes

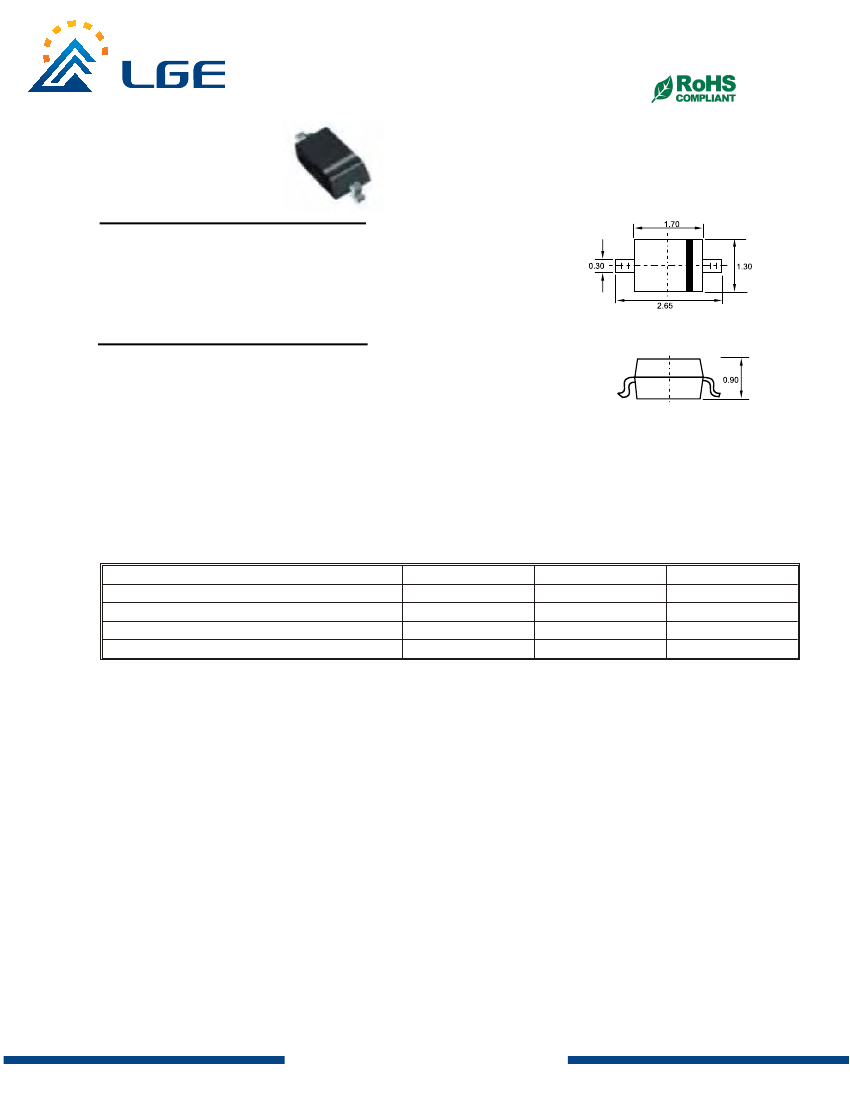

BZT52C2V0S-BZT52C39S
0.2W Zener Diode
SOD-323
Features
Planar Die Construction
Ultra-Small Surface Mount Package
Ideally suited for Automated Assembly
Processes
Mechanical Data
Case: SOD-323, Plastic
Case material - UL Flammability Rating
Classification 94V-0
Polarity: Cathode Band
Weight: 0.004 grams (approx.)
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Maximum Ratings
Characteristic
Forward Voltage (Note1)
Power Dissipation
1
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
@ I
F
= 10mA
Symbol
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
200
625
-65 to +150
Unit
V
mW
°C/W
°C
1. Short duration test pulse used in minimize self-heating effect.
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
