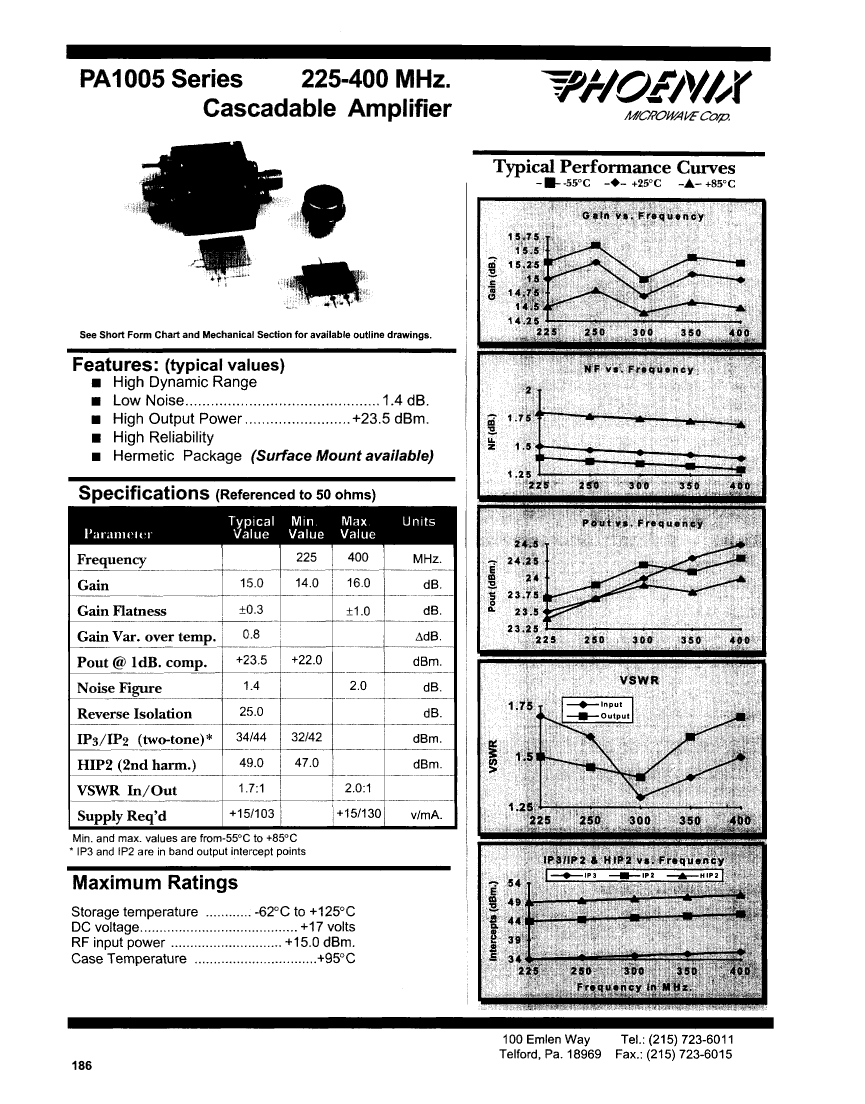

PA1005C Overview

Wide Band Medium Power Amplifier, 225MHz Min, 400MHz Max,

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	15 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	225 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

	PA1005C	PA1005	PA1005F	PA1005FH
Description	Wide Band Medium Power Amplifier, 225MHz Min, 400MHz Max,	Wide Band Medium Power Amplifier, 225MHz Min, 400MHz Max,	Wide Band Medium Power Amplifier, 225MHz Min, 400MHz Max,	Wide Band Medium Power Amplifier, 225MHz Min, 400MHz Max,
Maker	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	unknow	unknow	unknow	unknow
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	225 MHz	225 MHz	225 MHz	225 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
