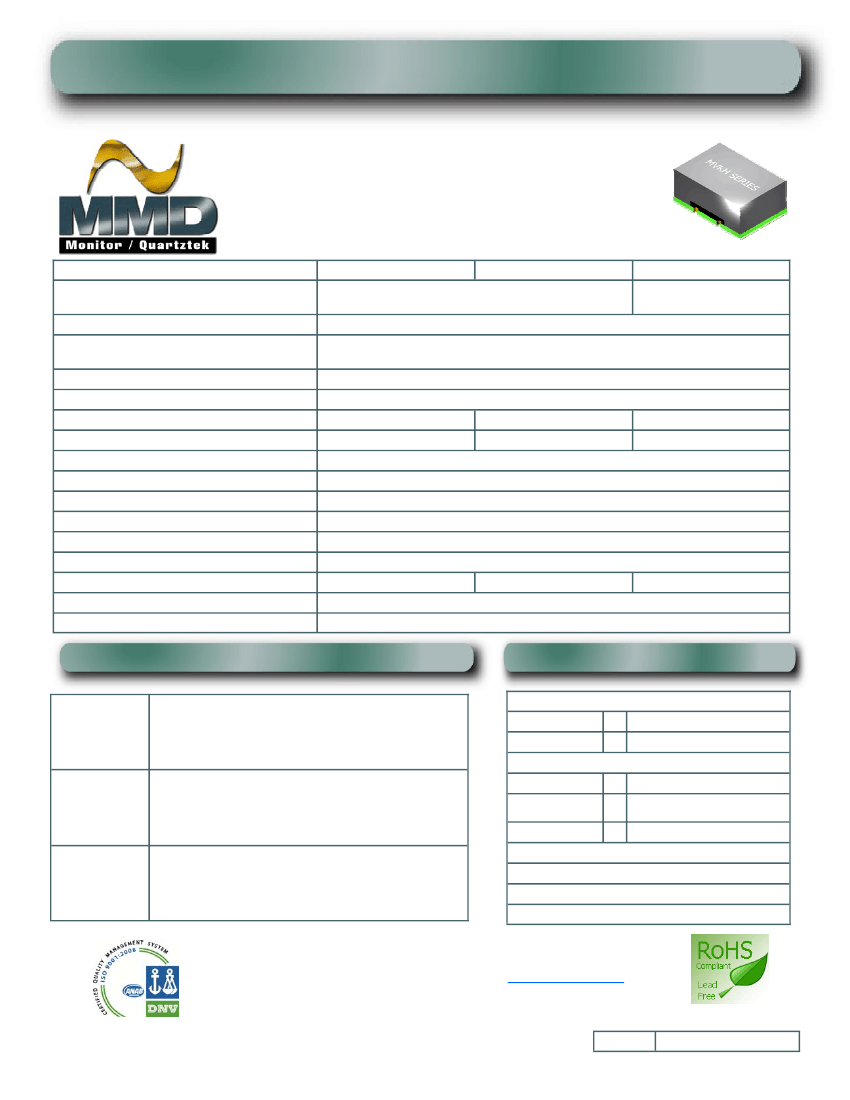

MVKH Series VCXO
Surface Mount Package
+2.5VDC, +3.3VDC, +5.0VDC Supply Voltage
HCMOS Output
RoHS Compliant
Supply Voltage (Vdd)
Frequency Range
Frequency Stability at +25°C
Frequency Stability (Inclusive of Temp.,
Load, Voltage and Aging)
Operating Temp.Range
Storage Temp. Range
Supply Current
Load
Output
Logic “0”
Logic “1”
Symmetry (50% of waveform)
Rise / Fall Time (10% to 90%)
Start Time
Control Voltage
Linearity
Pullability
+2.5VDC ±10%
+3.3DC ±10%
+5.0VDC ±10%
1.544MHZ TO
50.000MHZ
1.544MHZ TO 180.000MHZ
±10 ppm at nominal VC
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
60mA max
15pF
60mA max
30pF
HCMOS
10% Vdd max
90% Vdd min
40%/60%
10nSec max
10mSec max
1.25 VDC ±1.00 VDC
1.65 VDC ±1.50 VDC
85mA max
30pF
2.50 VDC ±2.00 VDC
(See Part Number Guide for Options)
(See Part Number Guide for Options)
Environmental & Mechanical Detail
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
=
=
=
Internal Code
4 Numerical Digit Date Code
(Year / Week) Jan 27 2011=1105
Shock
MIL-STD-883, Method 2002 Cond B
=
=
MMD
Frequency in MHZ
Solderability
MIL-STD-883, Method 2003
YYWW
L
Line 3 = XXXXX
Denotes RoHS Compliant
Vibration
MIL-STD-883, Method 2007, Cond A
Internal use only
May vary with lots
Black dot to denote Pin 1
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
03/28/12 H
Pg 1 of 2

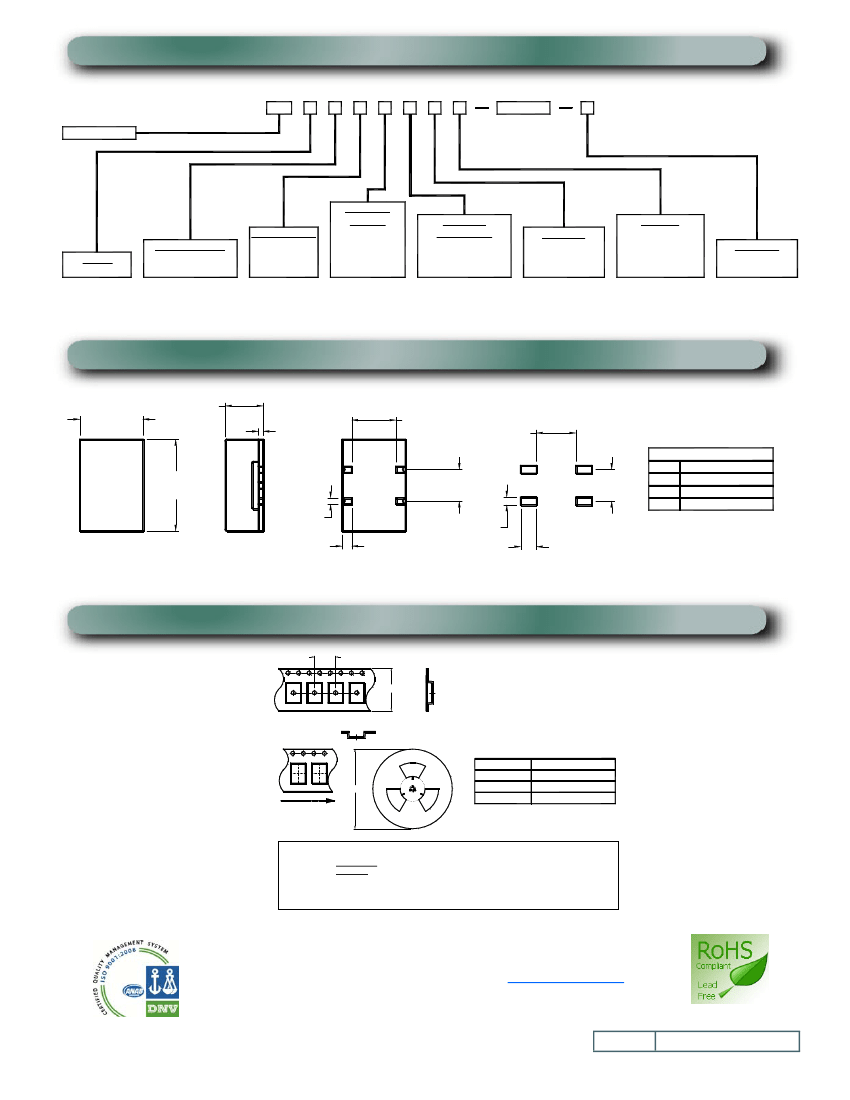

Part Number Guide
MVK
SM VCXO 4 Pads
H
Frequency
Supply Voltage
Output
H = HCMOS
RoHS Compliant
Blank = Not Compliant
F = is Compliant
2 = +2.5 VDC
3 = +3.3 VDC
5 = +5.0 VDC
Frequency
Stability
010 = ±10 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating
Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Linearity
Pullability
D = ±50 ppm min
P = ±80 ppm min
C = ±100 ppm min
Blank = ±20% max
X = ±5% max
Y = ±10% max
Z = ±15% max
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Deparment for any other Parameters or Options
Mechanical Details
10.16 [.400]
MAX
6.10 [.240]
MAX
0.79 [.031]
MAX
7.11 [.280]
6.35 [.250]
PIN CONNECTIONS
PIN 1
VOLTAGE CONTROL
PIN 2
CASE GROUND
PIN 3
OUTPUT
PIN 4
SUPPLY VOLTAGE
MXXXXX
SYYWWL
XXXXX
2
14.73 [.580]
MAX
1.02 [.040]
1
3
5.08 [.200]
4
1.27 [.050]
5.08 [.200]
1.52 [.060]
DIMENSION IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
UNIT IS NOT HERMETICALLY SEALED
2.54 [.100]
RECOMMENDED
LAND PATTERN
Tape & Reel Dimensions
PITCH
Tape Width
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
REEL DIA
PITCH
TAPE WIDTH
REEL DIA
PIN 1 ORIENT.
12.00 [.471]
24.00 [.945]
330 [13.0]
Q1
DIRECTION OF FEED
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inch].
3. Tolerances are ±0.1 [.004] mm unless otherwise specified.
4. Do not scale drawing.
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
03/28/12 H
Pg 2 of 2
