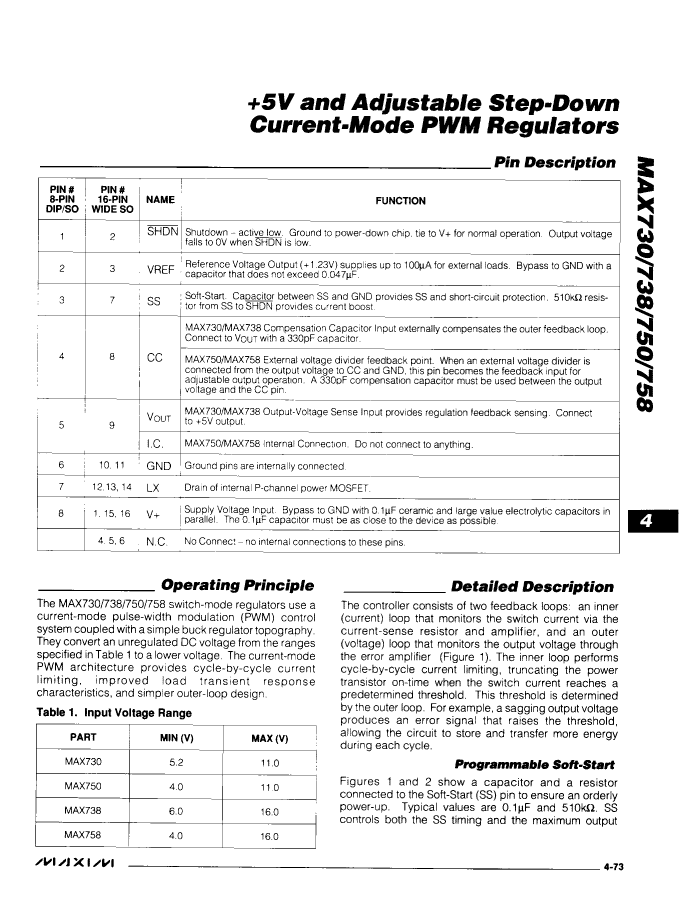

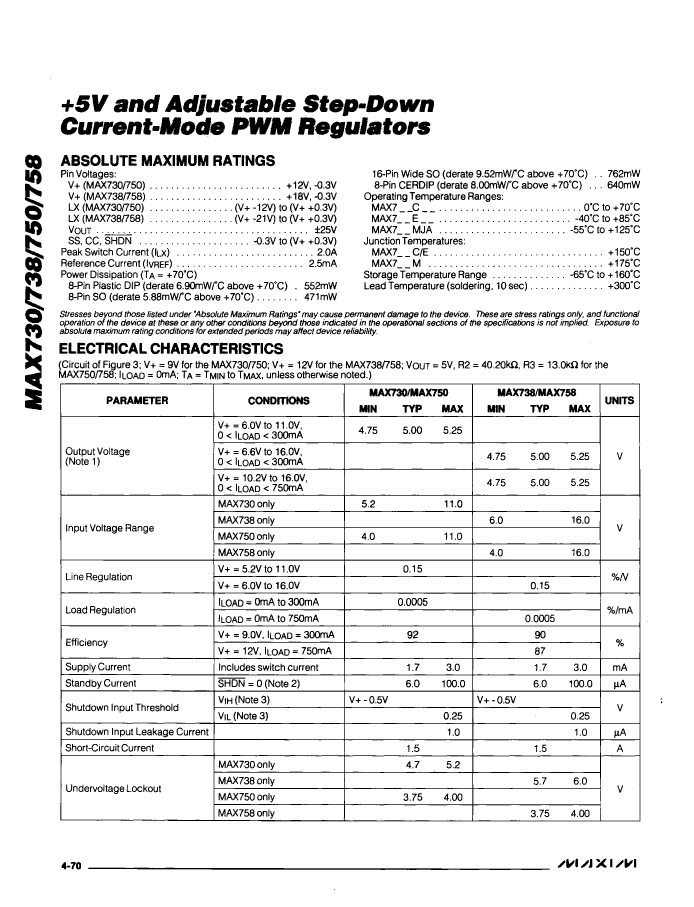

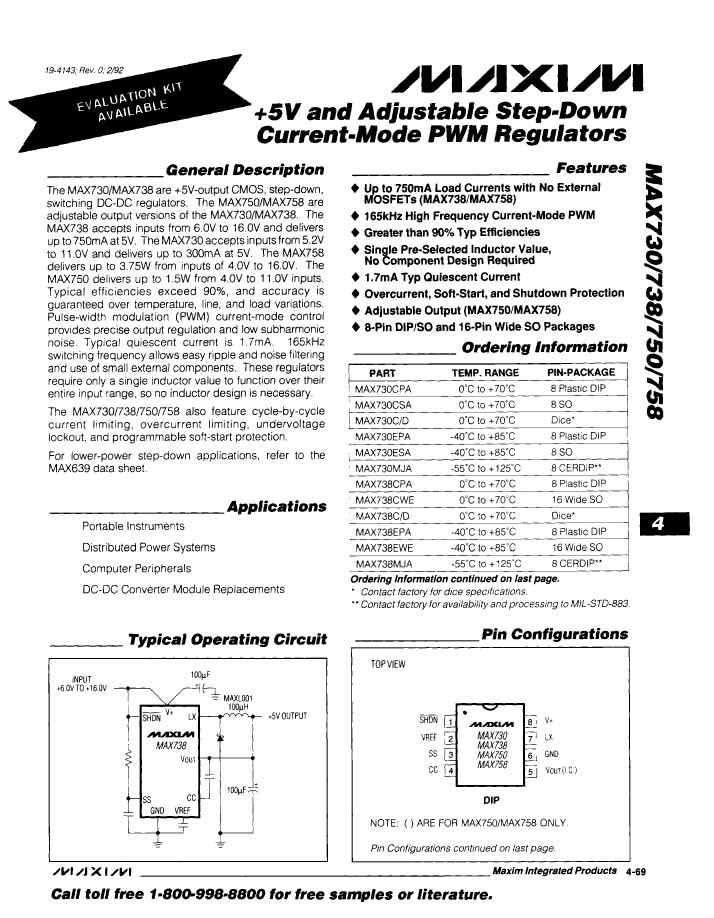

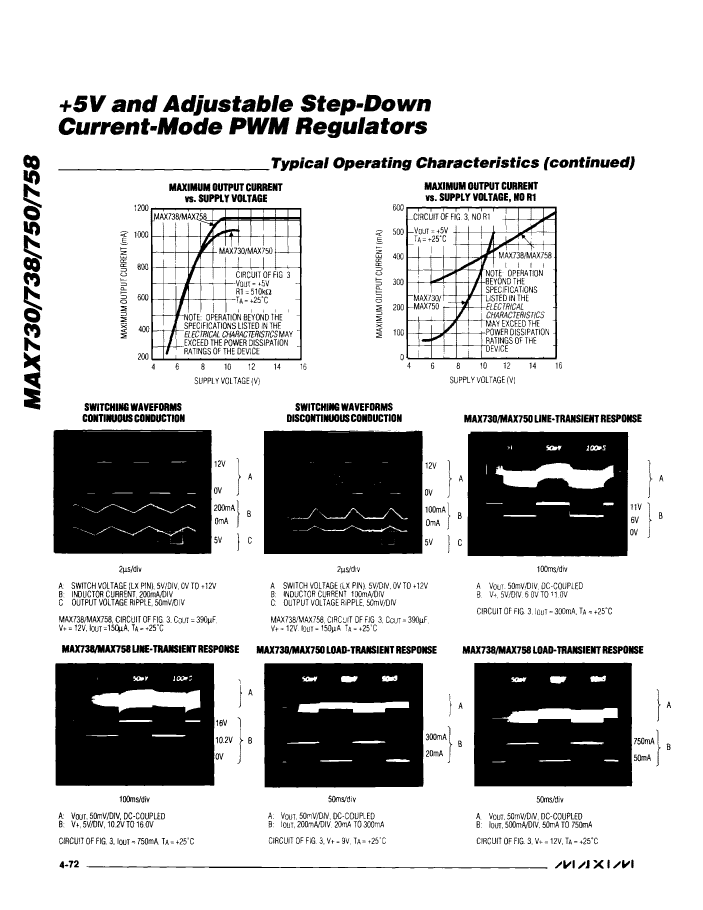

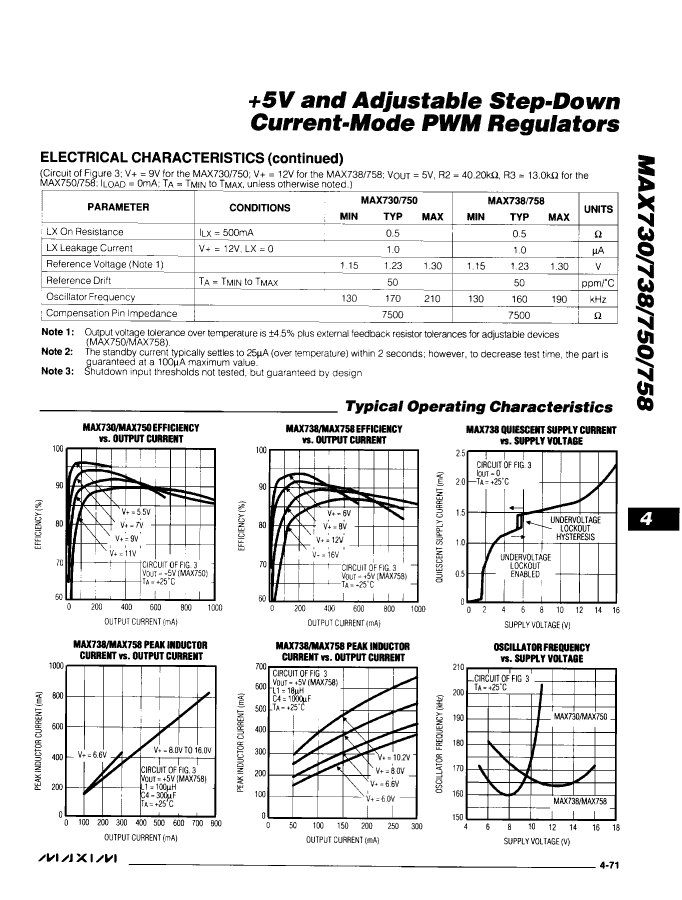

Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, PDSO8, 0.150 INCH, SLIM, SOIC-8
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR |
| control mode | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 11 V |
| Minimum input voltage | 4 V |
| JESD-30 code | R-PDSO-G8 |
| length | 4.9 mm |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Maximum output current | 2 A |
| Nominal output voltage | 1.23 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply current (Isup) | 3 mA |
| surface mount | YES |
| Switch configuration | BUCK |
| Maximum switching frequency | 170 kHz |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| MAX750CSA-T | MAX758CWE+ | MAX758CWE-T | MAX730CSA-T | MAX758EWE-T | MAX730ESA-T | MAX730C/D | MAX738CWE-T | MAX738EWE-T | MAX750ESA-T | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, PDSO8, 0.150 INCH, SLIM, SOIC-8 | Switching Regulator, Current-mode, 2A, 160kHz Switching Freq-Max, CMOS, PDSO16, 0.300 INCH, SOIC-16 | Switching Regulator, Current-mode, 2A, 160kHz Switching Freq-Max, CMOS, PDSO16, 0.300 INCH, SOIC-16 | Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, PDSO8, 0.150 INCH, SLIM, SOIC-8 | Switching Regulator, Current-mode, 2A, 160kHz Switching Freq-Max, CMOS, PDSO16, 0.300 INCH, SOIC-16 | Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, PDSO8, 0.150 INCH, SLIM, SOIC-8 | Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, DIE-14 | Switching Regulator, Current-mode, 2A, 160kHz Switching Freq-Max, CMOS, PDSO16, 0.300 INCH, SOIC-16 | Switching Regulator, Current-mode, 2A, 160kHz Switching Freq-Max, CMOS, PDSO16, 0.300 INCH, SOIC-16 | Switching Regulator, Current-mode, 2A, 170kHz Switching Freq-Max, CMOS, PDSO8, 0.150 INCH, SLIM, SOIC-8 |
| Is it lead-free? | Contains lead | Lead free | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | DIE | SOIC | SOIC | SOIC |
| package instruction | SOP, | SOP, | SOP, | SOP, | SOP, | SOP, | DIE, DIE OR CHIP | SOP, | SOP, | SOP, |
| Contacts | 8 | 16 | 16 | 8 | 16 | 8 | 14 | 16 | 16 | 8 |
| Reach Compliance Code | unknow | compliant | compliant | unknown | compliant | compliant | _compli | compli | compli | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR | - | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR |
| control mode | CURRENT-MODE | - | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION | - | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 11 V | - | 16 V | 11 V | 16 V | 11 V | 11 V | 16 V | 16 V | 11 V |
| Minimum input voltage | 4 V | - | 4 V | 5.2 V | 4 V | 5.2 V | 5.2 V | 6 V | 6 V | 4 V |
| JESD-30 code | R-PDSO-G8 | - | R-PDSO-G16 | R-PDSO-G8 | R-PDSO-G16 | R-PDSO-G8 | R-XUUC-N14 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G8 |
| length | 4.9 mm | - | 10.3 mm | 4.9 mm | 10.3 mm | 4.9 mm | - | 10.3 mm | 10.3 mm | 4.9 mm |
| Number of functions | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | - | 16 | 8 | 16 | 8 | 14 | 16 | 16 | 8 |
| Maximum operating temperature | 70 °C | - | 70 °C | 70 °C | 85 °C | 85 °C | 70 °C | 70 °C | 85 °C | 85 °C |
| Maximum output current | 2 A | - | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A |
| Nominal output voltage | 1.23 V | - | 1.23 V | 5 V | 1.23 V | 5 V | 5 V | 5 V | 5 V | 1.23 V |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | UNSPECIFIED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | - | SOP | SOP | SOP | SOP | DIE | SOP | SOP | SOP |
| Package shape | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | - | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | UNCASED CHIP | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | 240 | 240 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | - | 2.65 mm | 1.75 mm | 2.65 mm | 1.75 mm | - | 2.65 mm | 2.65 mm | 1.75 mm |
| Maximum supply current (Isup) | 3 mA | - | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA |
| surface mount | YES | - | YES | YES | YES | YES | YES | YES | YES | YES |
| Switch configuration | BUCK | - | BUCK | BUCK | BUCK | BUCK | BUCK | BUCK | BUCK | BUCK |
| Maximum switching frequency | 170 kHz | - | 160 kHz | 170 kHz | 160 kHz | 170 kHz | 170 kHz | 160 kHz | 160 kHz | 170 kHz |
| technology | CMOS | - | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | - | GULL WING | GULL WING | GULL WING | GULL WING | NO LEAD | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | - | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | - | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | - | DUAL | DUAL | DUAL | DUAL | UPPER | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 3.9 mm | - | 7.5 mm | 3.9 mm | 7.5 mm | 3.9 mm | - | 7.5 mm | 7.5 mm | 3.9 mm |
