759-862A20 Overview

Connector to Adapter

Preview

Download Datasheet

View All

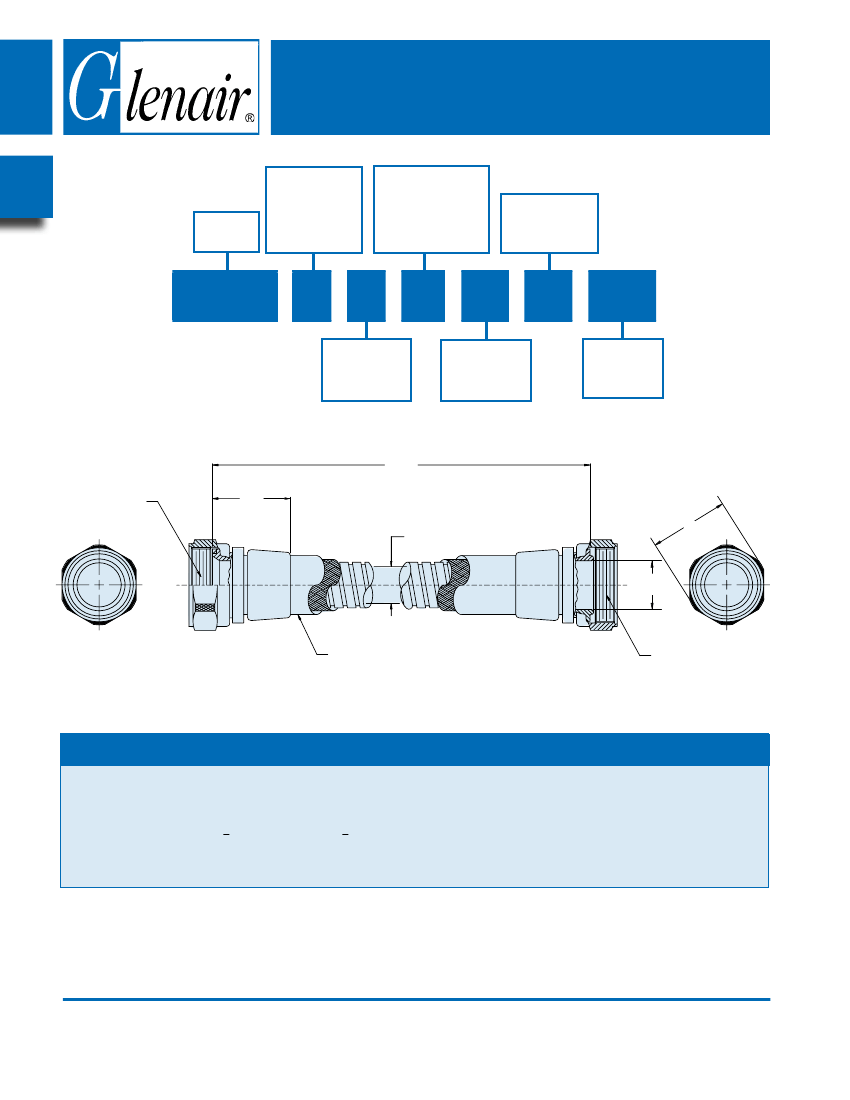

Factory Terminated Conduit Assembly

759-862

Connector to Adapter

MIL-PRF

24758A

Basic

Number

Adapter “A”

Connector

Designator

A,C,D,F,G,H

(Tables I & III)

Adapter “T”

Transition

Adapter

T = Transition

(See Table II, Note 4)

Conduit

Dash Number

(Table II)

759-862

Adapter “A”

Shell Size

(Table II)

50.5

Adapter “B”

Shell Size

(Table II)

Length

In Inches

(See Note 3)

Length

(See Note 3)

A Thread

1.500

(38.1)

Max

I.D Table II

END

Ref

(M24758-(PRF Size)

with Glenair

“BlueJacket”

C thread

(See Note 4)

APPLICATION NOTES

Assembly identified with manufacurer’s code identification.

Glenair 600 series backshell assembly tools are recommended

for assembly installation.

Length tolerance is 0-24” = +1/4”, for longer lengths is +1% of length.

End “B” adapter (C thread) mates with corresponding MIL-

PRF-24758-* adapter (see Table II).

Glenair series 600 backshell assembly tools are recommended for

assembly and installation.

Material / Finish:

Adapter, ferrule & coupling nut - AISI 316L stainless steel /

electroless nickel, matte finish.

Metric dimensions (mm) are indicated in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

A-82
