10124632-121010GLF datasheet, PDF

10124632-121010GLF: DescriptionCard Edge Connector, 288 Contact(s), 2 Row(s), Straight, 0.033 inch Pitch, Solder Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size498KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

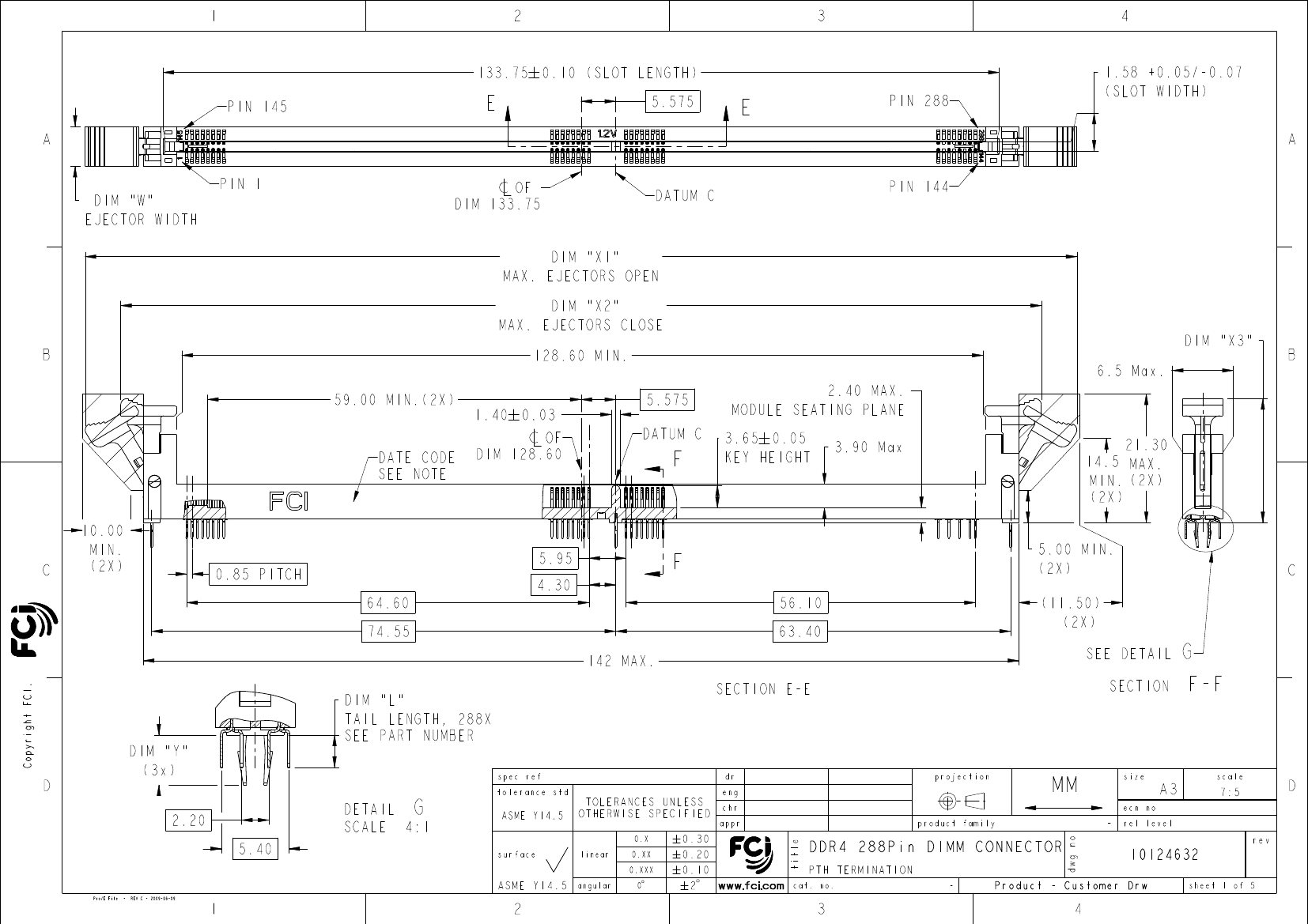

10124632-121010GLF Overview

Card Edge Connector, 288 Contact(s), 2 Row(s), Straight, 0.033 inch Pitch, Solder Terminal, Locking, Natural Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compli
Board mount options	SPLIT BOARD LOCK
subject depth	0.839 inch
body length	5.591 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn)
Insulator color	NATURAL
JESD-609 code	e3
Plug contact pitch	0.033 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Termination type	SOLDER
Total number of contacts	288

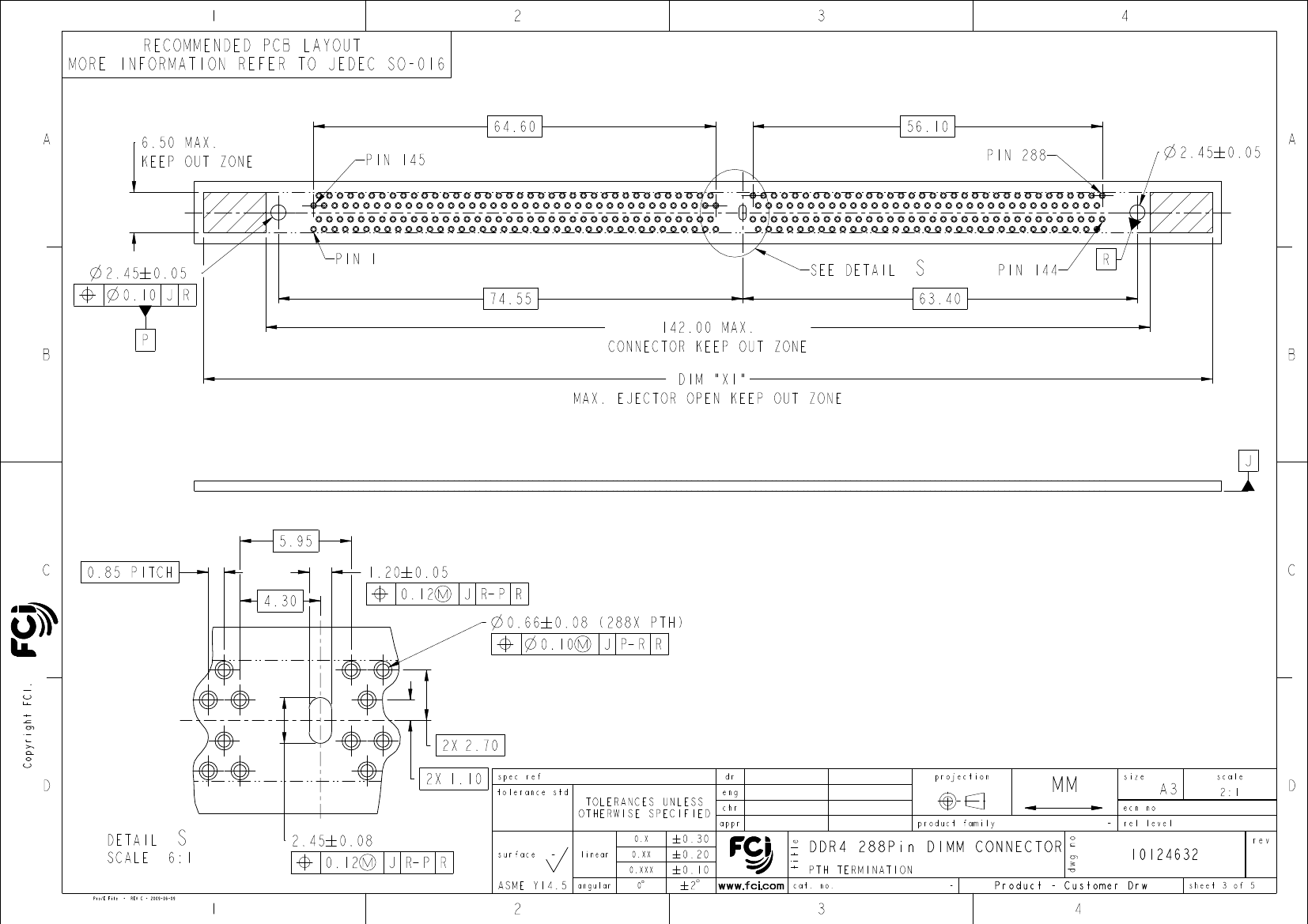

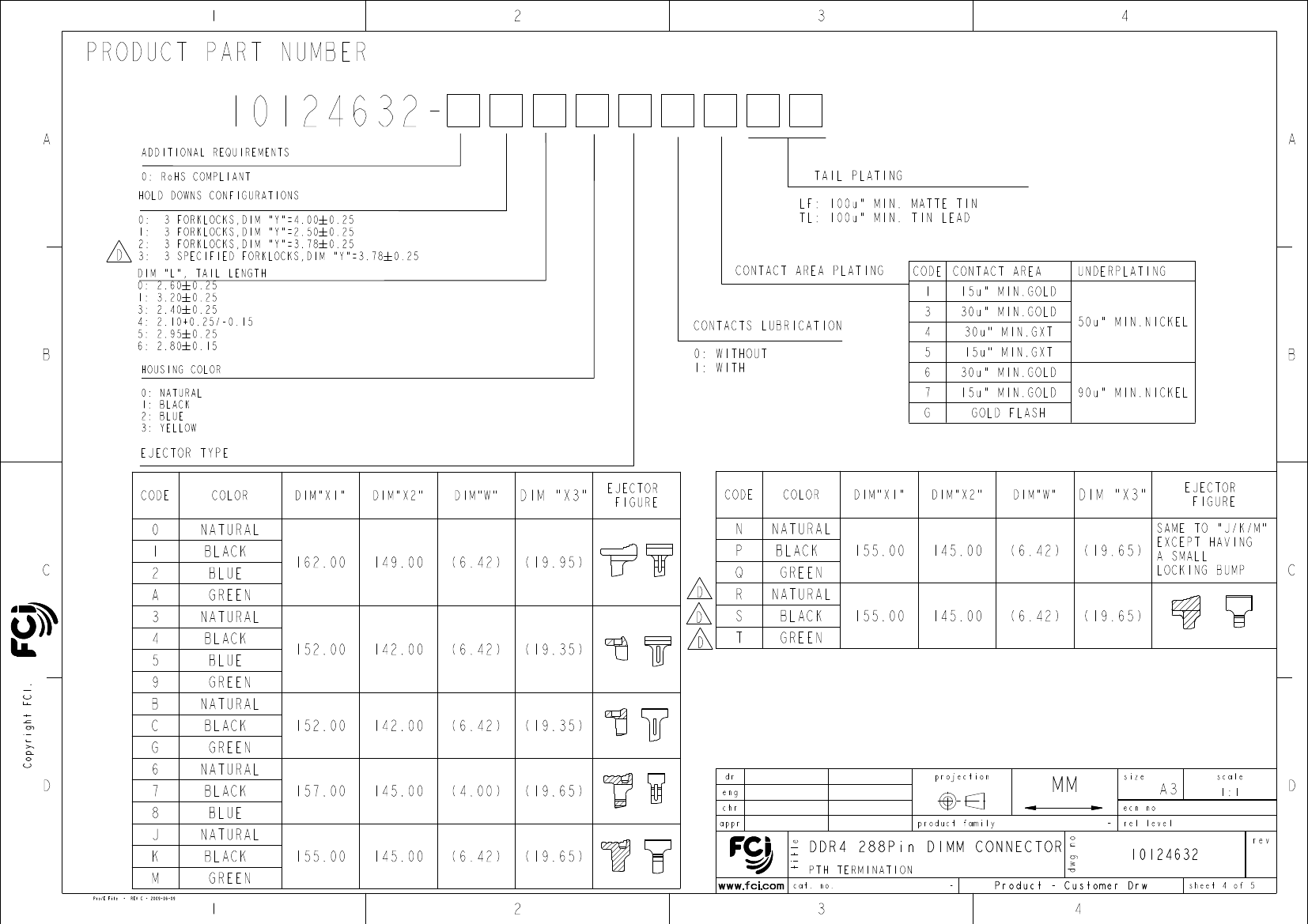

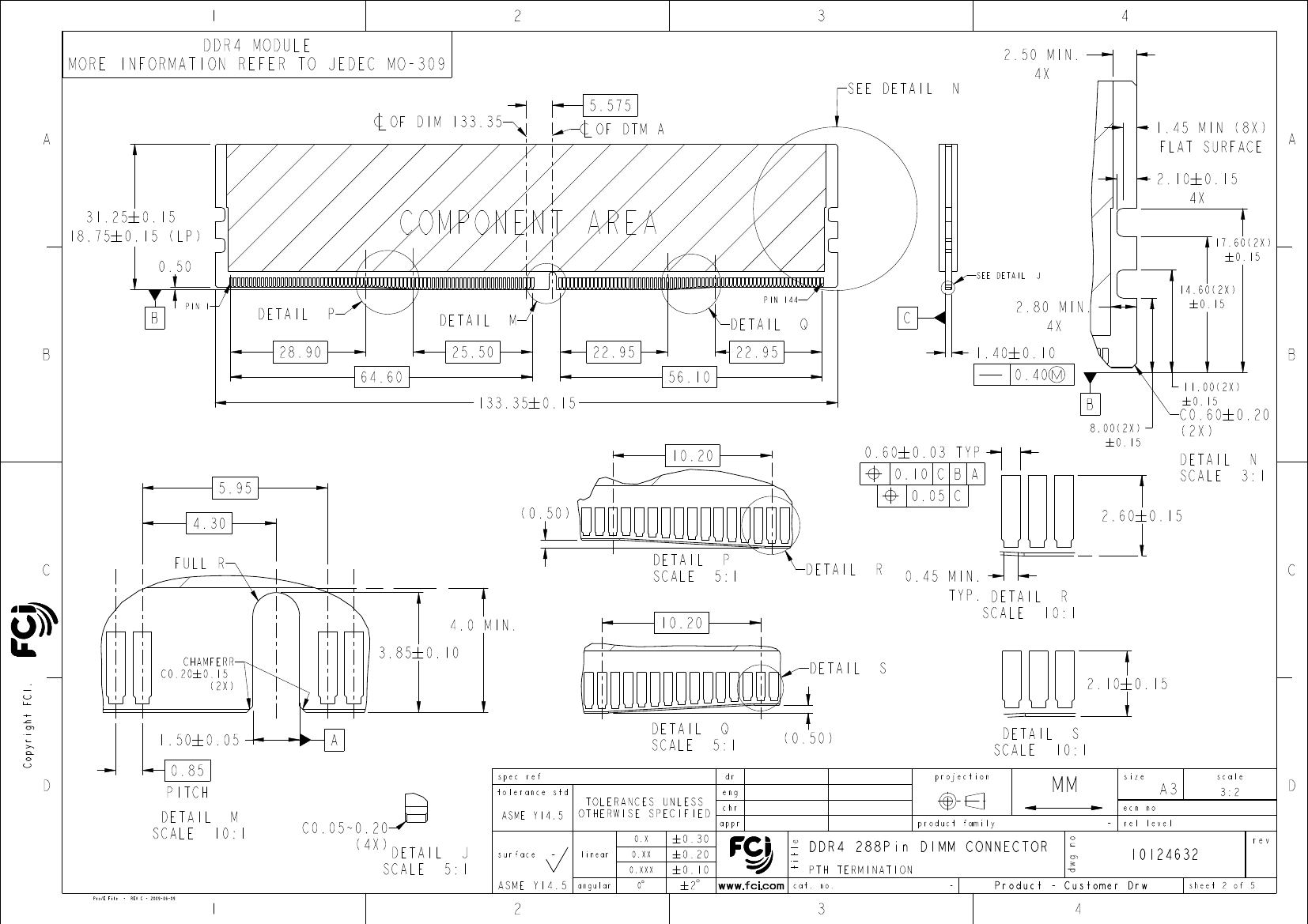

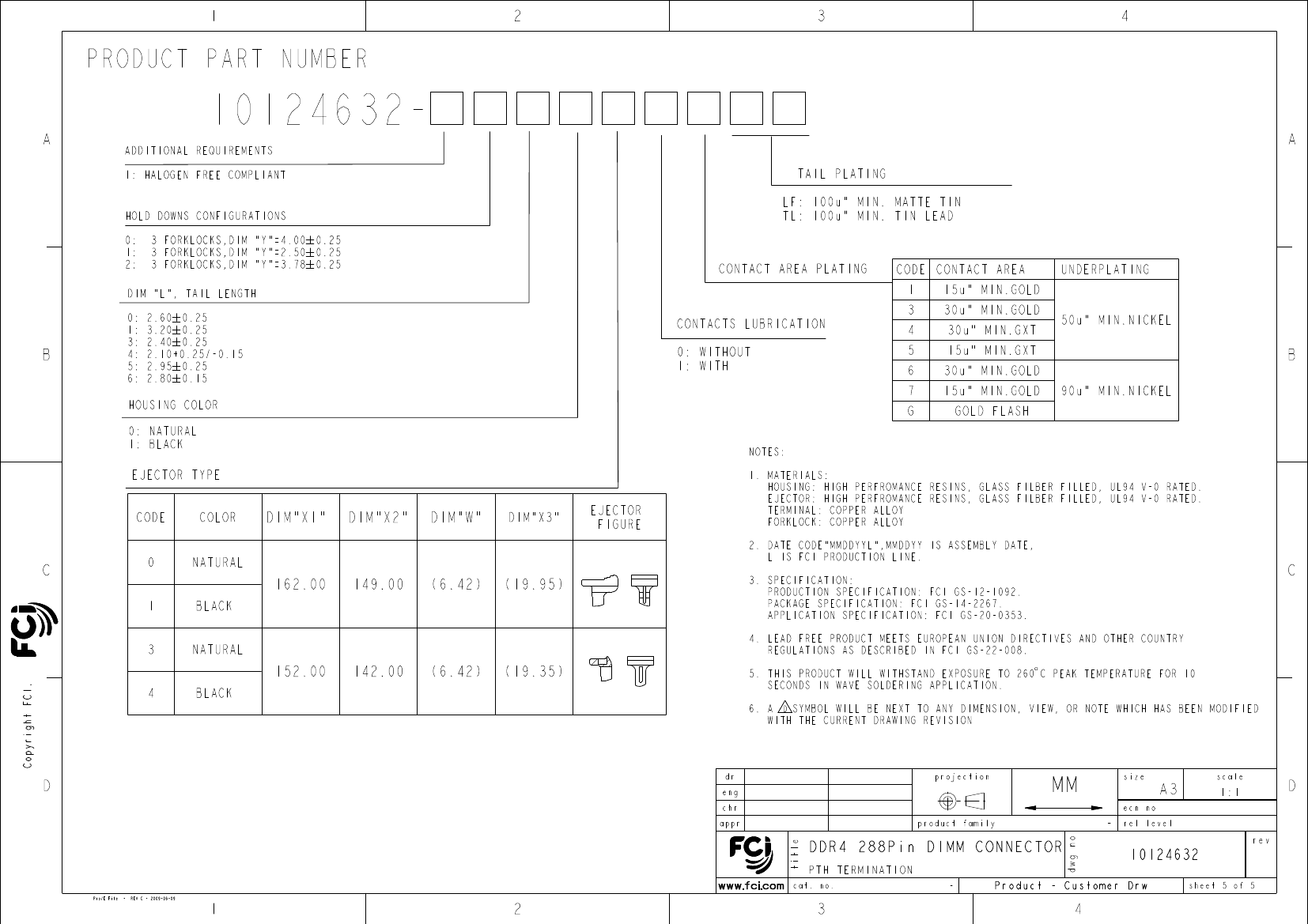

Nickor Zuo

Eric Jiang

Nickor Zuo

Pei-Ming Zheng

2013/05/29

2015/09/07

ELX-DG-21856-1

Released

PDS: Rev :D

STATUS:Released

Printed: Sep 07, 2015
