10124657-545555PLF: DescriptionRectangular Power Connector, 6 Contact(s), Female, Press Fit Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size273KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10124657-545555PLF Overview

Rectangular Power Connector, 6 Contact(s), Female, Press Fit Terminal, Receptacle, LEAD FREE

10124657-545555PLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compli
ECCN code	EAR99
Board mount options	PEG
body width	0.545 inch
subject depth	0.409 inch
body length	0.631 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	1 mΩ
Dielectric withstand voltage	1500VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	10124657
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Termination type	PRESS FIT
Total number of contacts	6

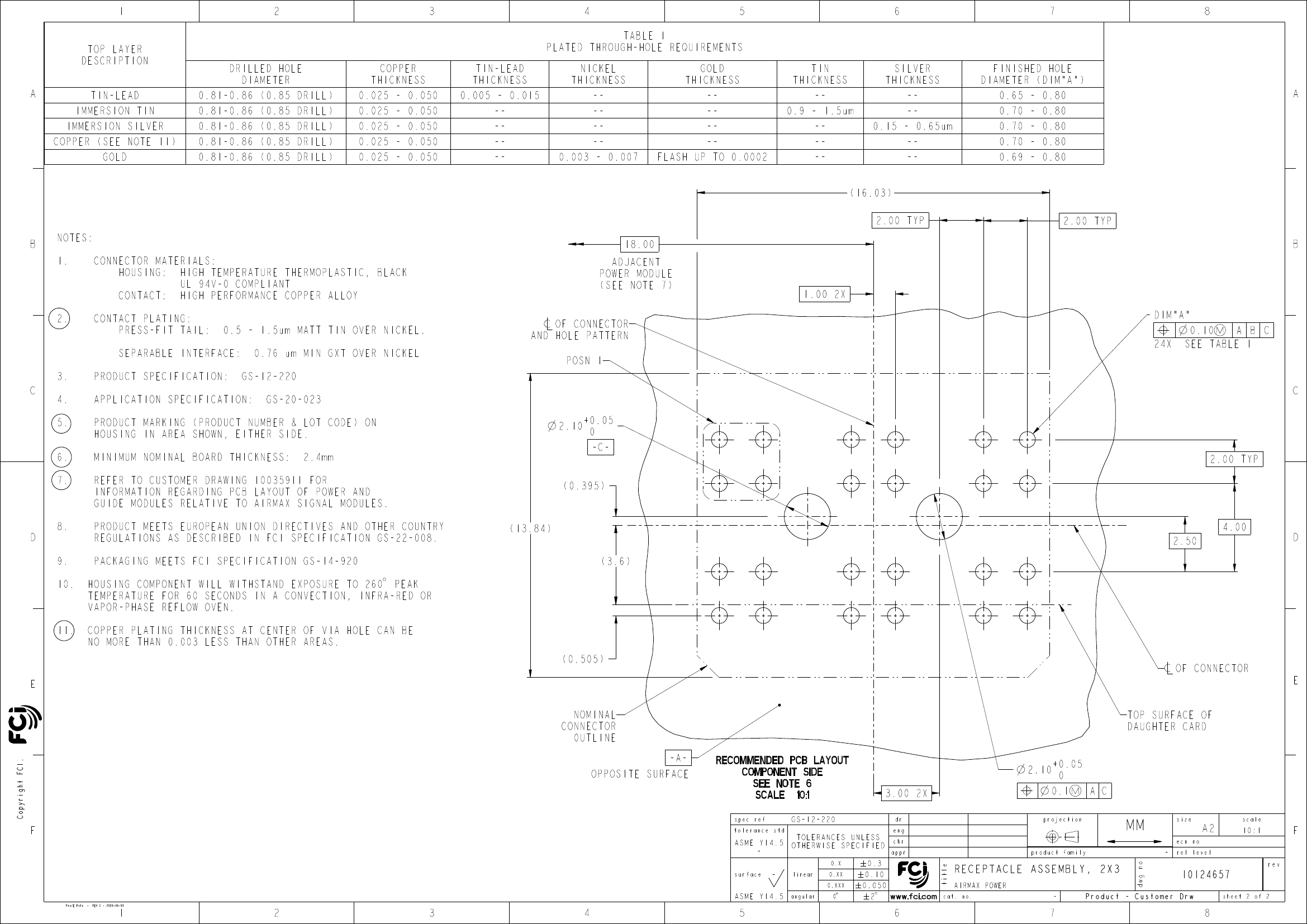

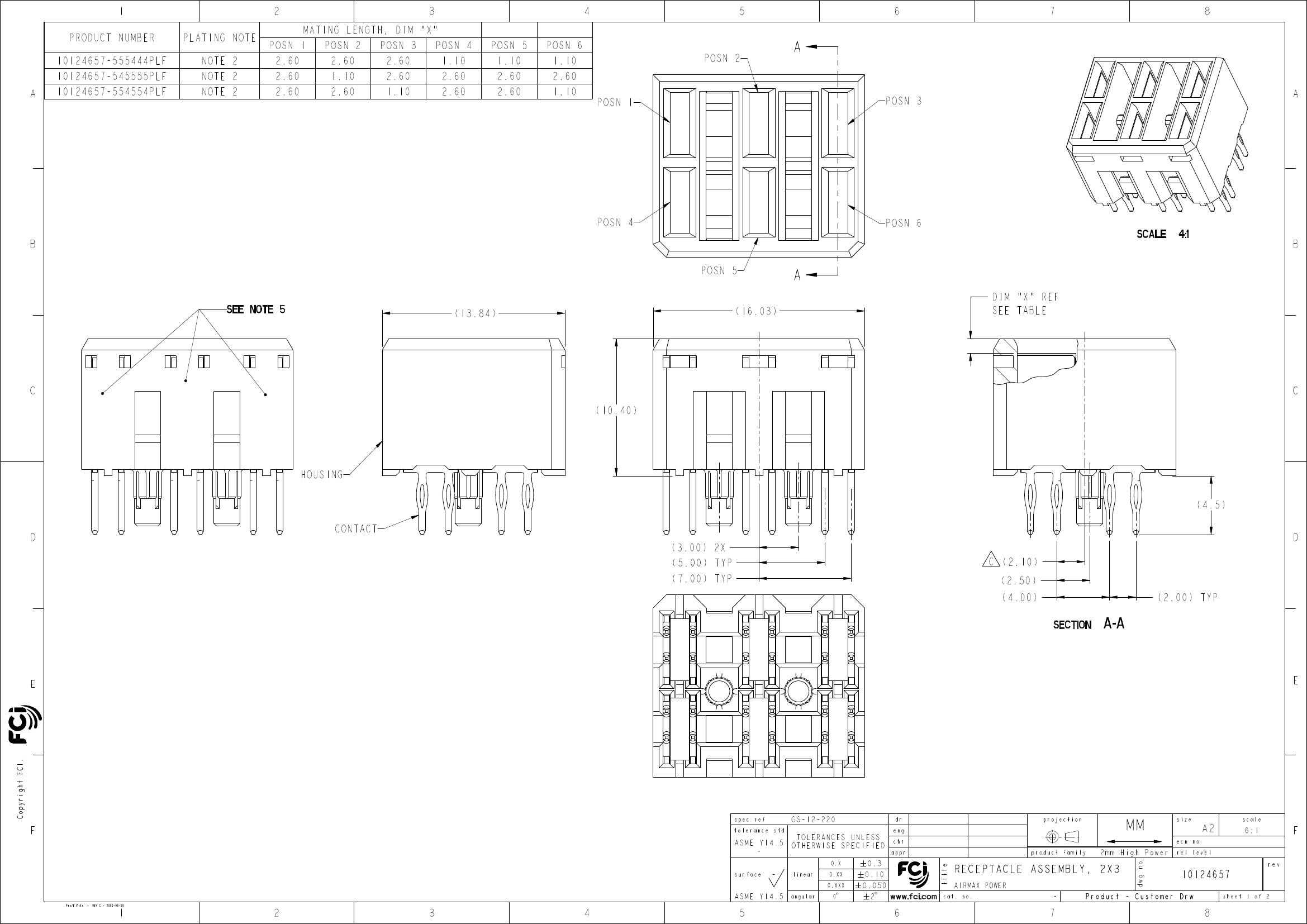

Preview

Download Datasheet

View All

S Paulpandian

Suzie Nah

-

Chen-Hong Tan

2013/03/11

2013/11/07

-

2013/11/14

ELX-S-16034-1

Released

C

PDS: Rev :C

STATUS:Released

Printed: Nov 15, 2013

10124657-545555PLF Related Products

	10124657-545555PLF	10124657-554554PLF	10124657-555444PLF
Description	Rectangular Power Connector, 6 Contact(s), Female, Press Fit Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 6 Contact(s), Female, Press Fit Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 6 Contact(s), Female, Press Fit Terminal, Receptacle, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Board mount options	PEG	PEG	PEG
body width	0.545 inch	0.545 inch	0.545 inch
subject depth	0.409 inch	0.409 inch	0.409 inch
body length	0.631 inch	0.631 inch	0.631 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6	S0P6	S0P6
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	1 mΩ	1 mΩ	1 mΩ
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	10124657	10124657	10124657
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.177 inch	0.177 inch	0.177 inch
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	6	6	6
Maker	Amphenol	-	Amphenol
