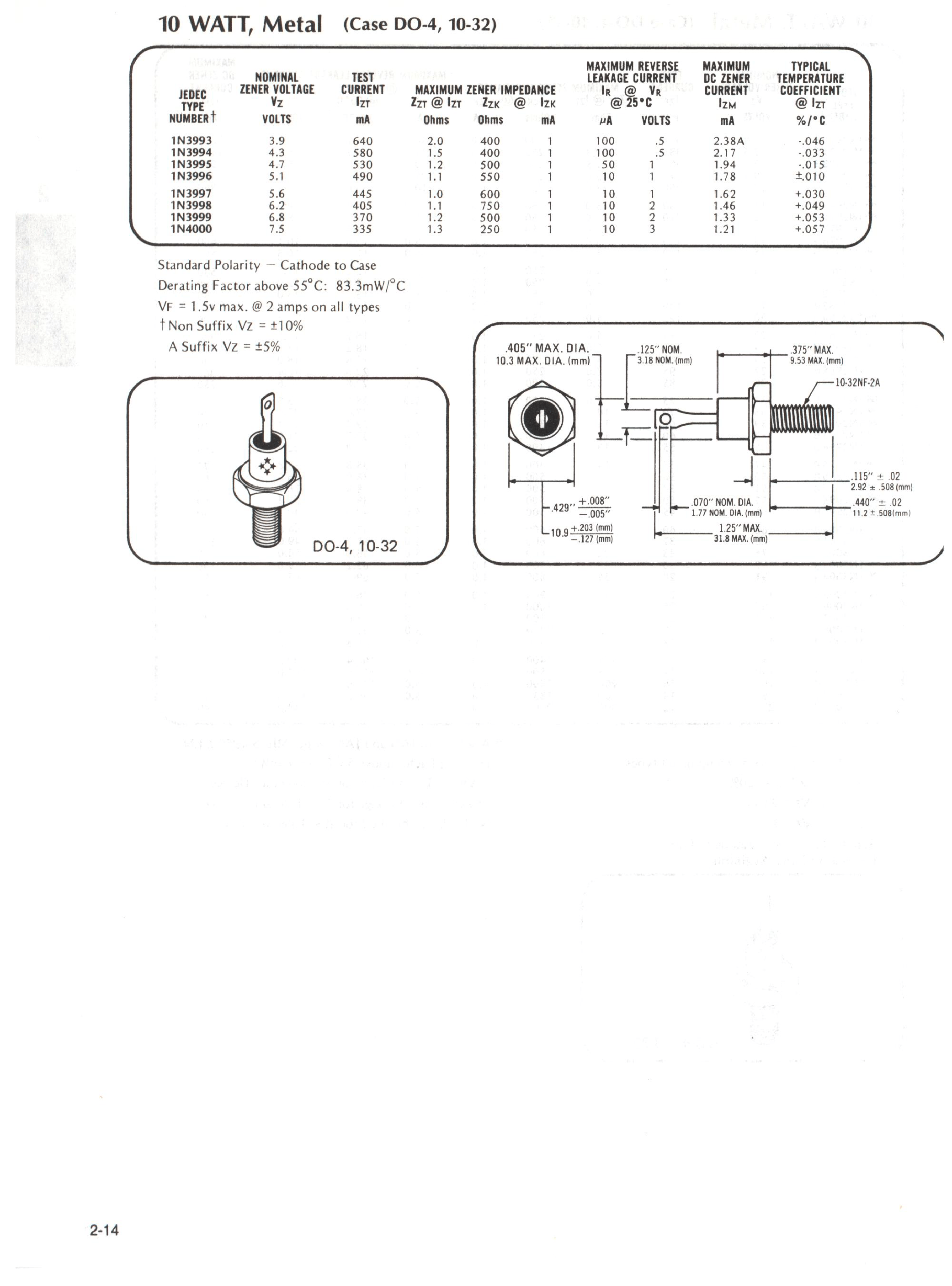

Zener Diode, 5.1V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1
| Parameter Name | Attribute value |
| Maker | Vishay |
| Parts packaging code | DO-4 |
| package instruction | O-MUPM-D1 |
| Contacts | 1 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JEDEC-95 code | DO-4 |
| JESD-30 code | O-MUPM-D1 |
| Number of components | 1 |
| Number of terminals | 1 |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 10 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 5.1 V |
| surface mount | NO |
| technology | ZENER |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum voltage tolerance | 5% |
| Working test current | 490 mA |
| Base Number Matches | 1 |
| 1N3996A | 1N3996 | 1N3998A | 1N3999A | 1N3997A | 1N3994 | |
|---|---|---|---|---|---|---|
| Description | Zener Diode, 5.1V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 | Zener Diode, 5.1V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 | Zener Diode, 6.2V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 | Zener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 | Zener Diode, 5.6V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 | Zener Diode, 4.3V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1 |
| Maker | Vishay | Vishay | Vishay | Vishay | Vishay | Vishay |
| Parts packaging code | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 |
| package instruction | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Contacts | 1 | 1 | 1 | 1 | 1 | 1 |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JEDEC-95 code | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 10 W | 10 W | 10 W | 10 W | 10 W | 10 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 5.1 V | 5.1 V | 6.2 V | 6.8 V | 5.6 V | 4.3 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum voltage tolerance | 5% | 10% | 5% | 5% | 5% | 10% |
| Working test current | 490 mA | 490 mA | 405 mA | 370 mA | 445 mA | 580 mA |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
